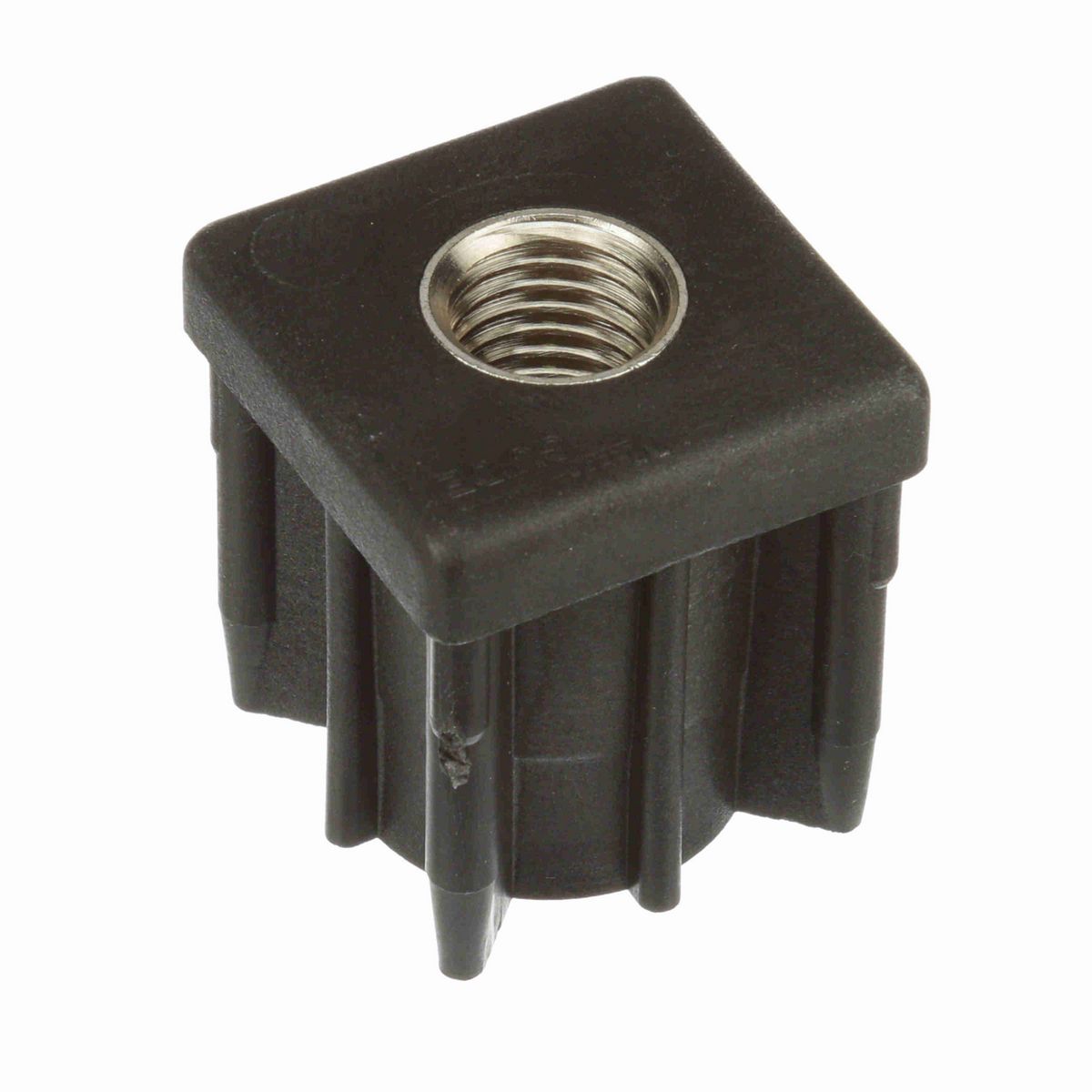

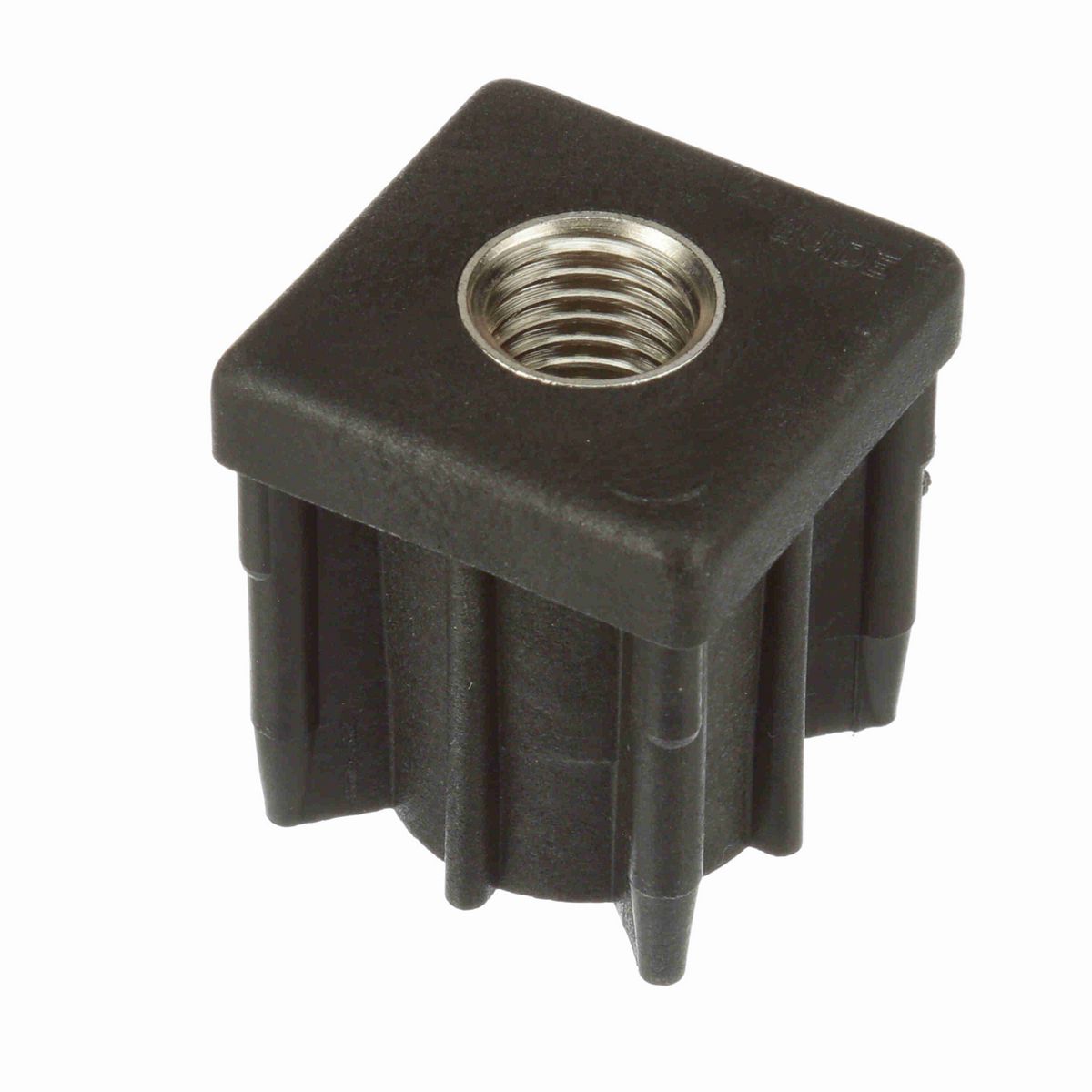

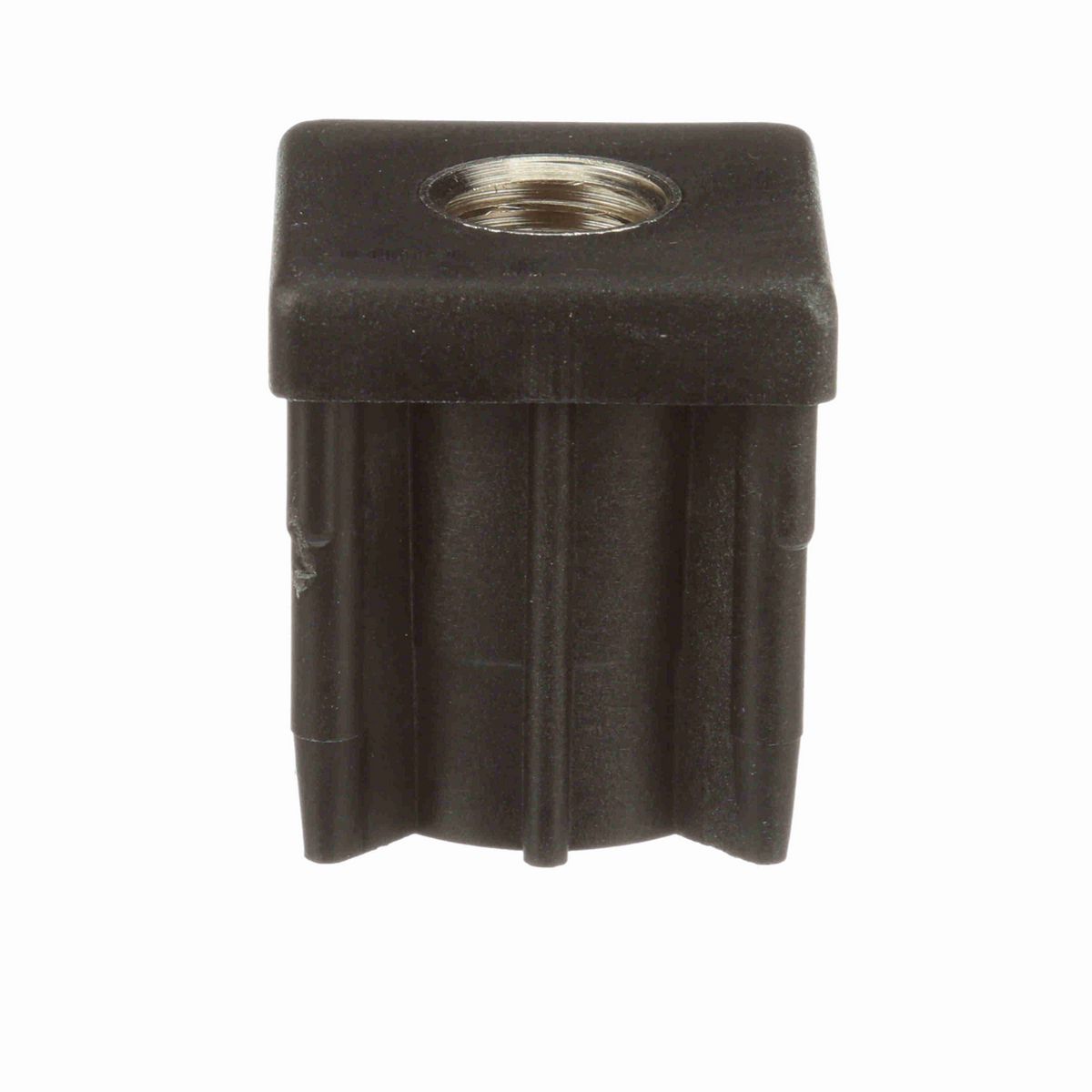

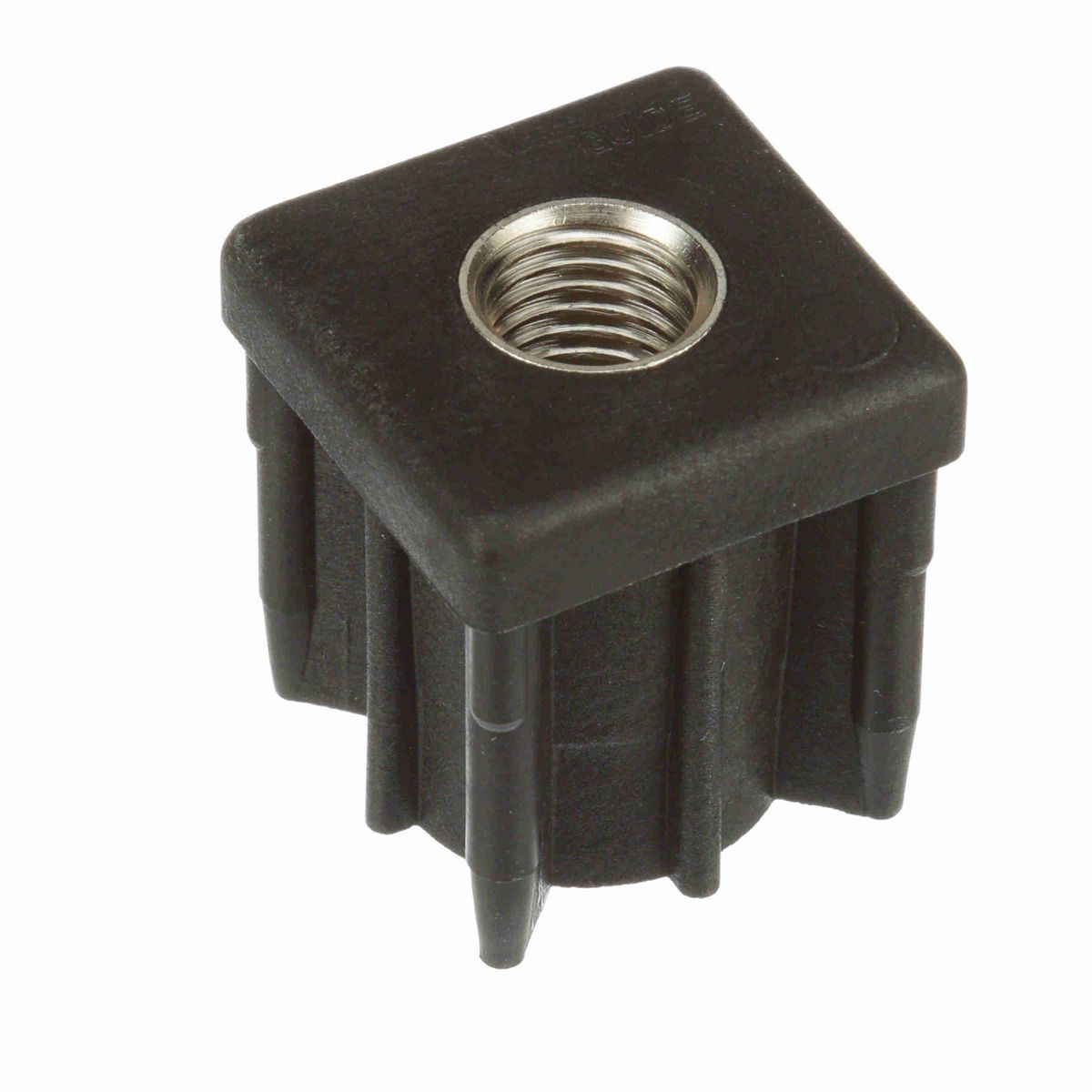

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Tube Size (sq) x Wall Thickness (in)	.065-.075 in
Height (in)	1.71 in
Insert Width / Diameter (in)	1.37 in
Material	Reinforced polyamide with brass threaded insert
Thread (mm)	M16 mm
Face Width / Diameter (in)	1.5 in
Insert Depth (mm)	35 mm
Face Width / Diameter (mm)	38 mm
Insert Depth (in)	1.38 in
Insert Width / Diameter (mm)	35 mm
Type	Square Tube Ends
Base Diameter (in)	0 in
Product Group	Frame and Structure Components
Height (mm)	43 mm
Product Type	Tube End (Square)
Measurement System	Metric
Component Series	VG-552
Product Line	Conveying Components
Vertical Tube/Pipe Size (in)	1-1/2 Sq. Tube in
Static Load (lb)	1,000 lb

General Specifications

UPC	787405256170
Weight	0.15 LB
Packaged Length	5.55 IN
Packaged Width	4.20 IN
Packaged Height	1.85 IN
HTC	8431.39.0010
Country of Origin	Mexico
