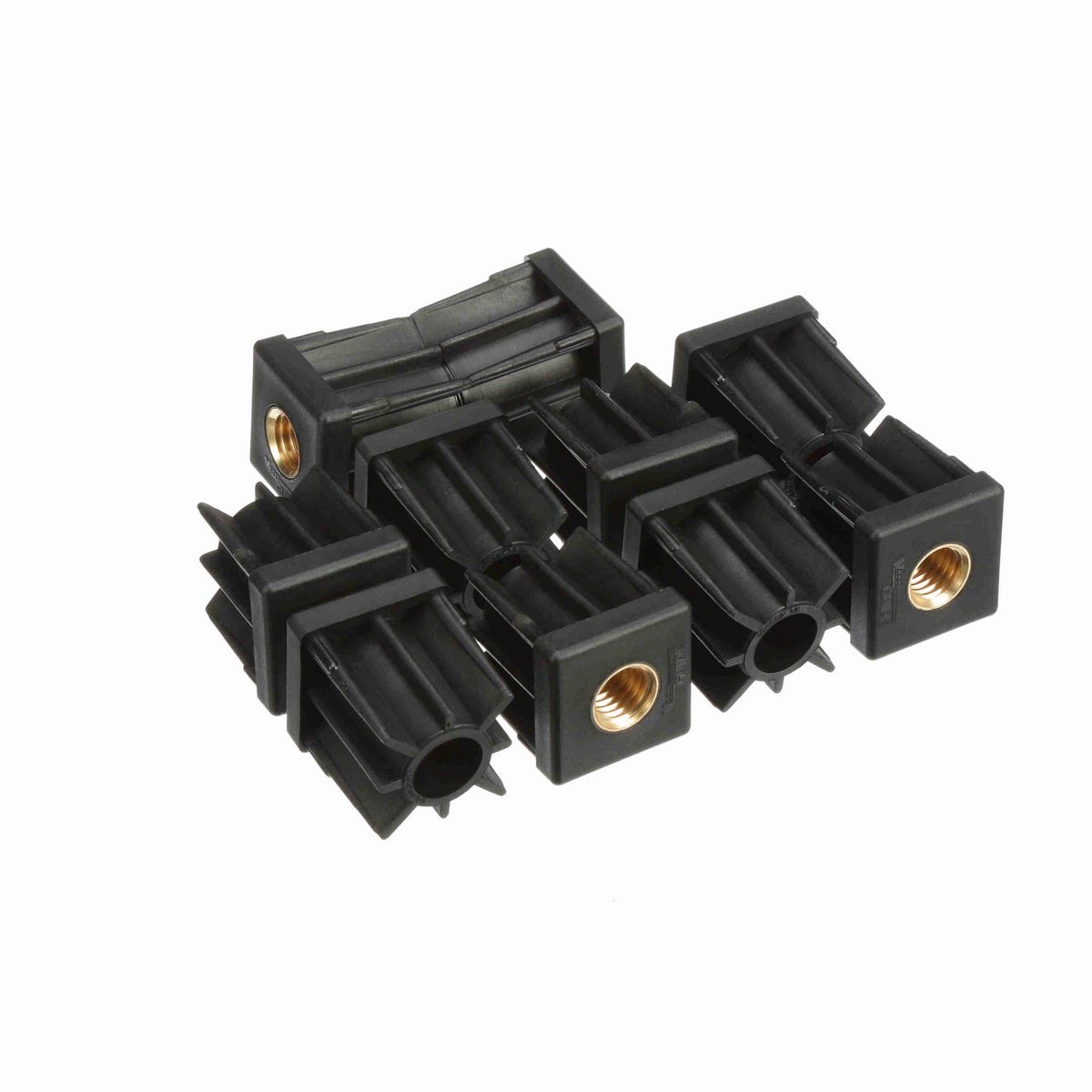

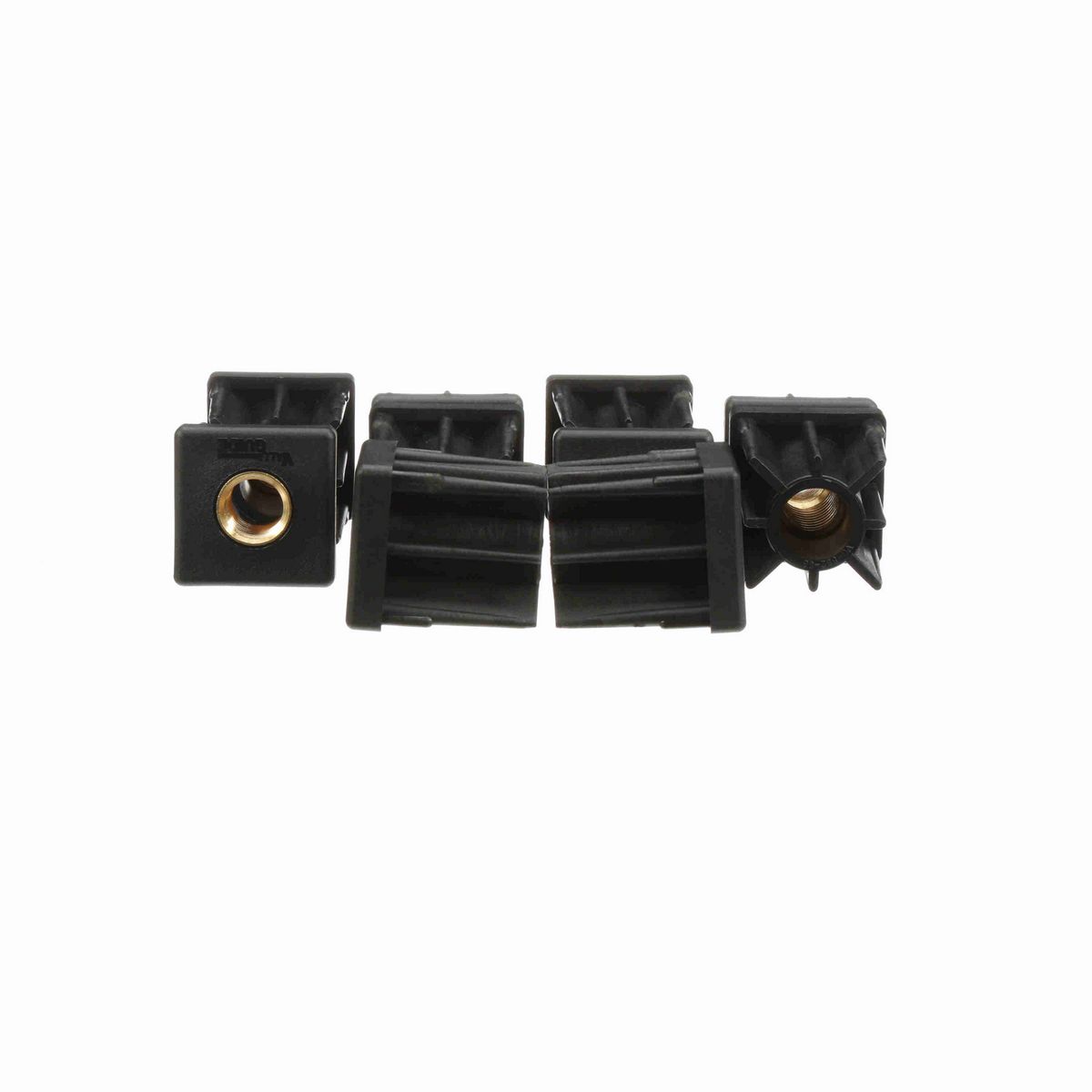

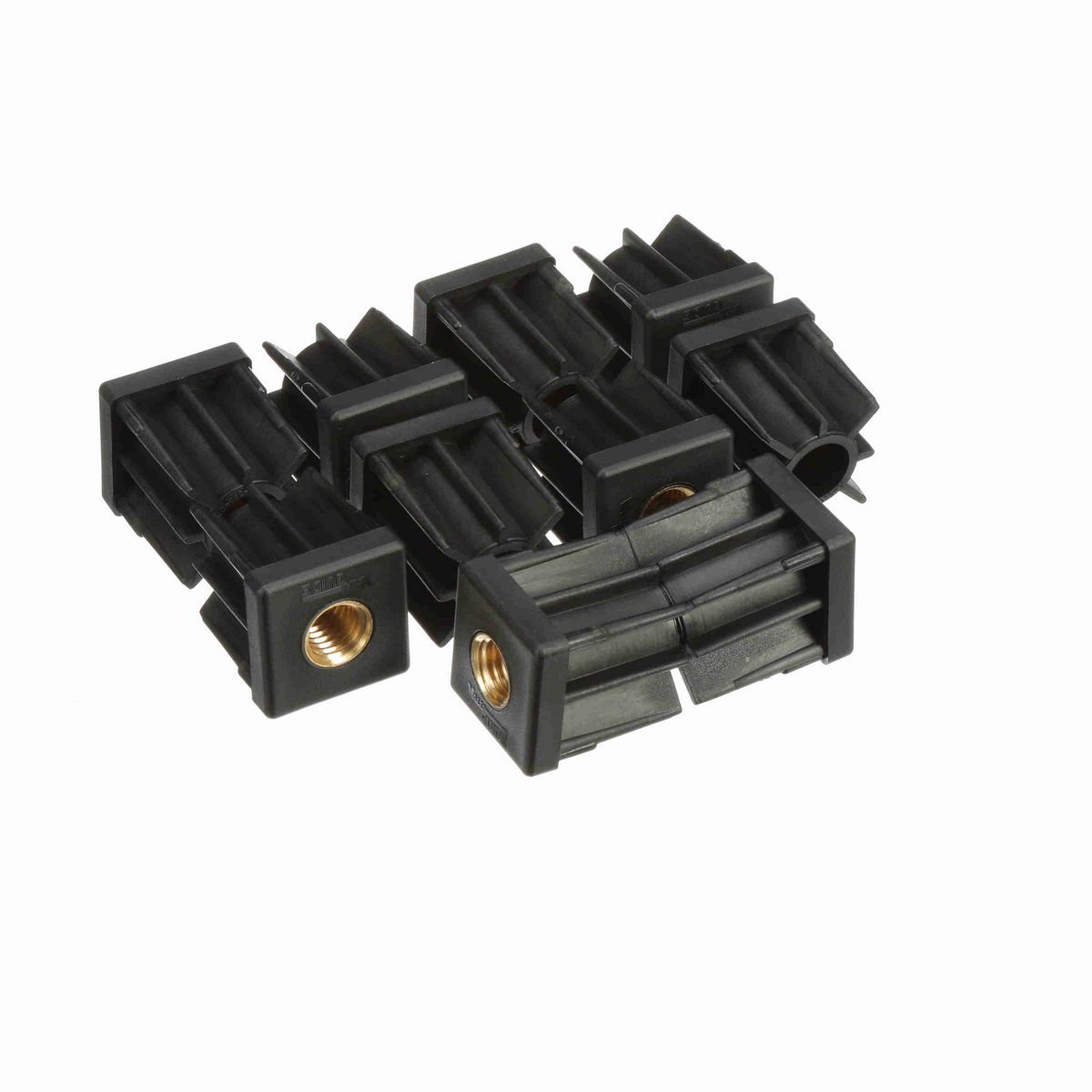

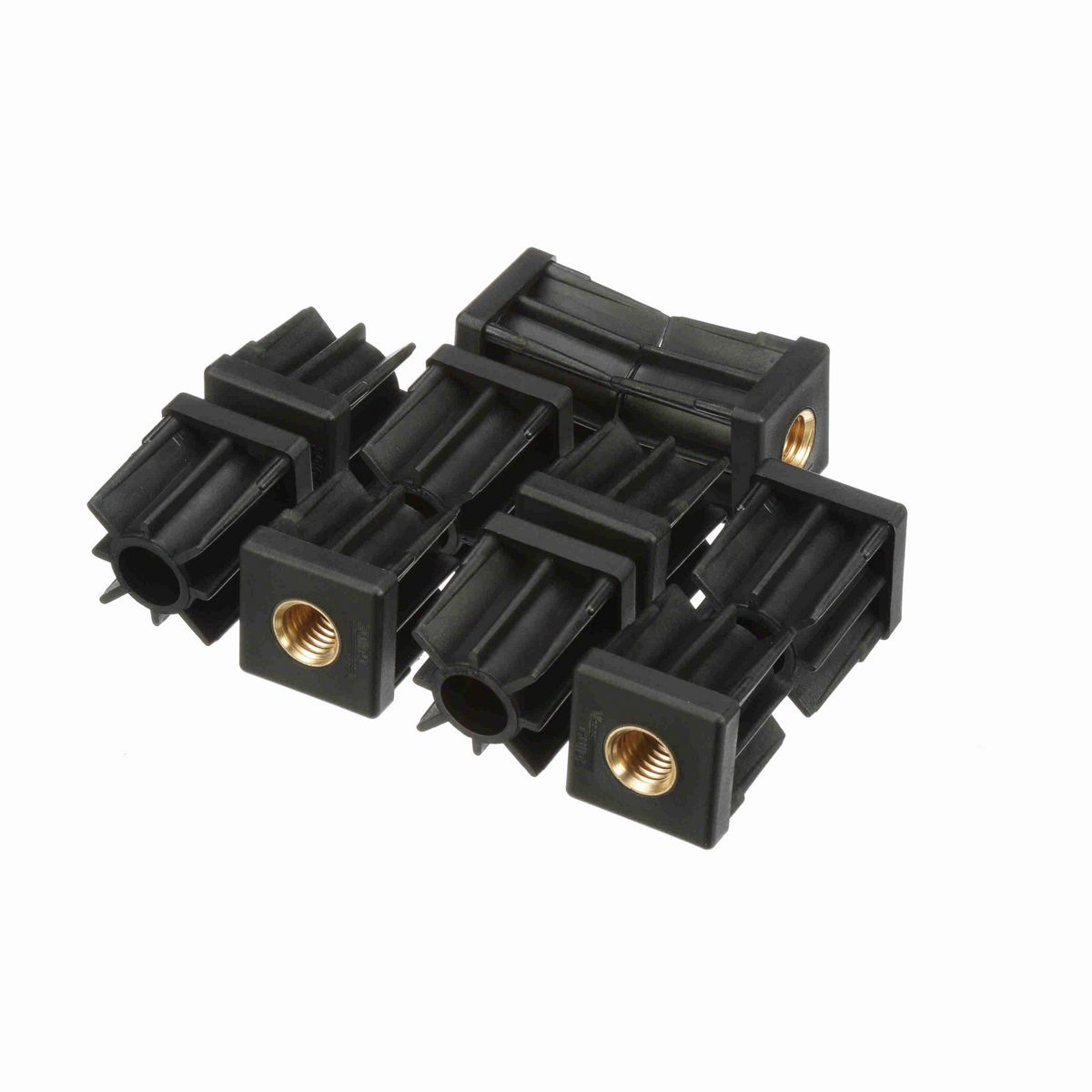

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Material	Reinforced polyamide with brass threaded insert
Insert Width / Diameter (in)	1.37 in
Insert Width / Diameter (mm)	35 mm
Insert Depth (mm)	35 mm
Insert Depth (in)	1.38 in
Face Width / Diameter (in)	1.5 in
Type	Square Tube Ends
Tube Size (sq) x Wall Thickness (in)	.065-.075 in
Thread (in)	5/8-11 in
Height (in)	1.71 in
Face Width / Diameter (mm)	38 mm
Height (mm)	43 mm
Product Group	Frame and Structure Components
Vertical Tube/Pipe Size (in)	1-1/2 Sq. Tube in
Product Line	Conveying Components
Base Diameter (in)	0 in
Product Type	Tube End (Square)
Measurement System	Imperial
Component Series	VG-552
Static Load (lb)	1,000 lb

General Specifications

UPC	787405256149
Weight	0.12 LB
Packaged Length	5.95 IN
Packaged Width	6.80 IN
Packaged Height	1.75 IN
HTC	8431.39.0010
Country of Origin	Mexico
