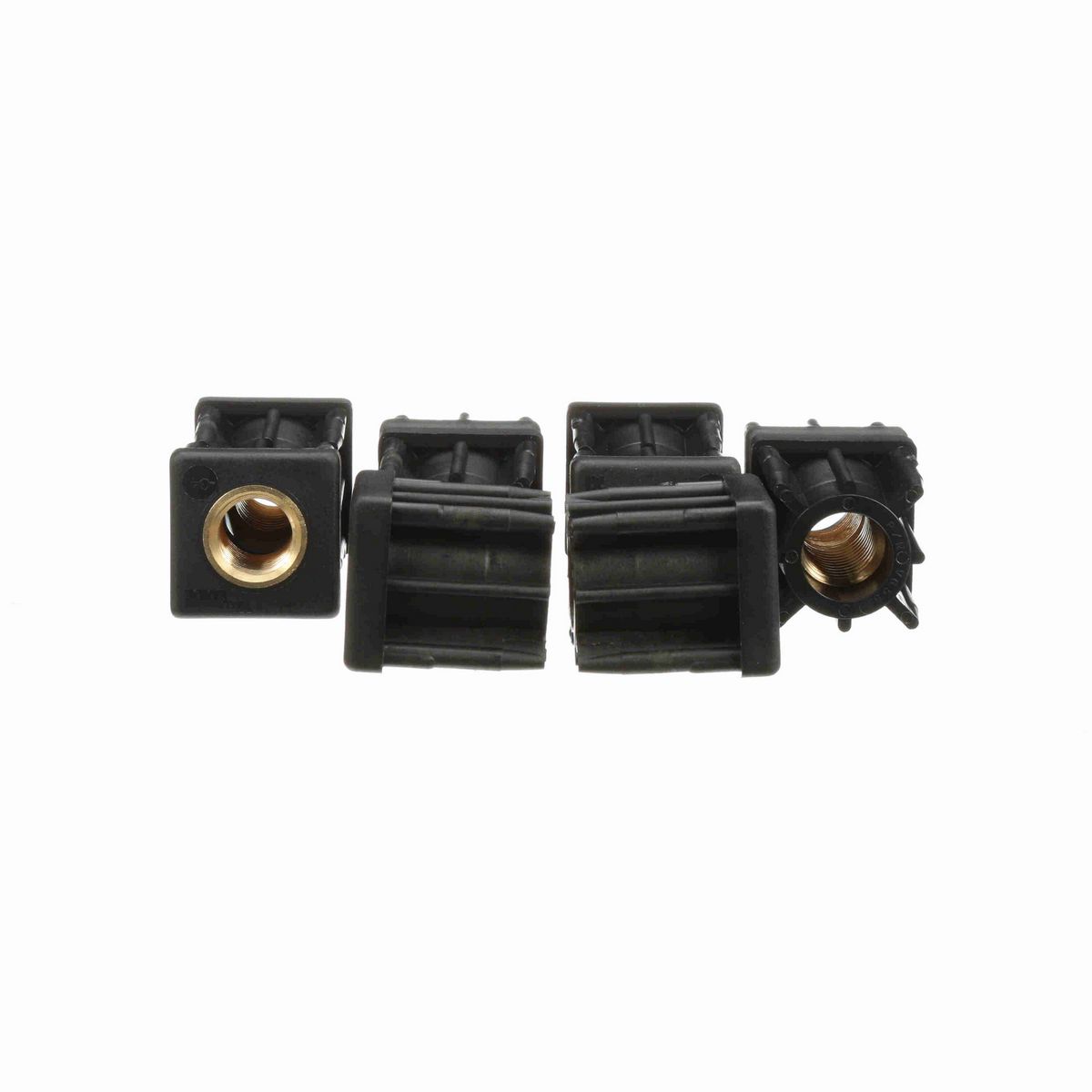

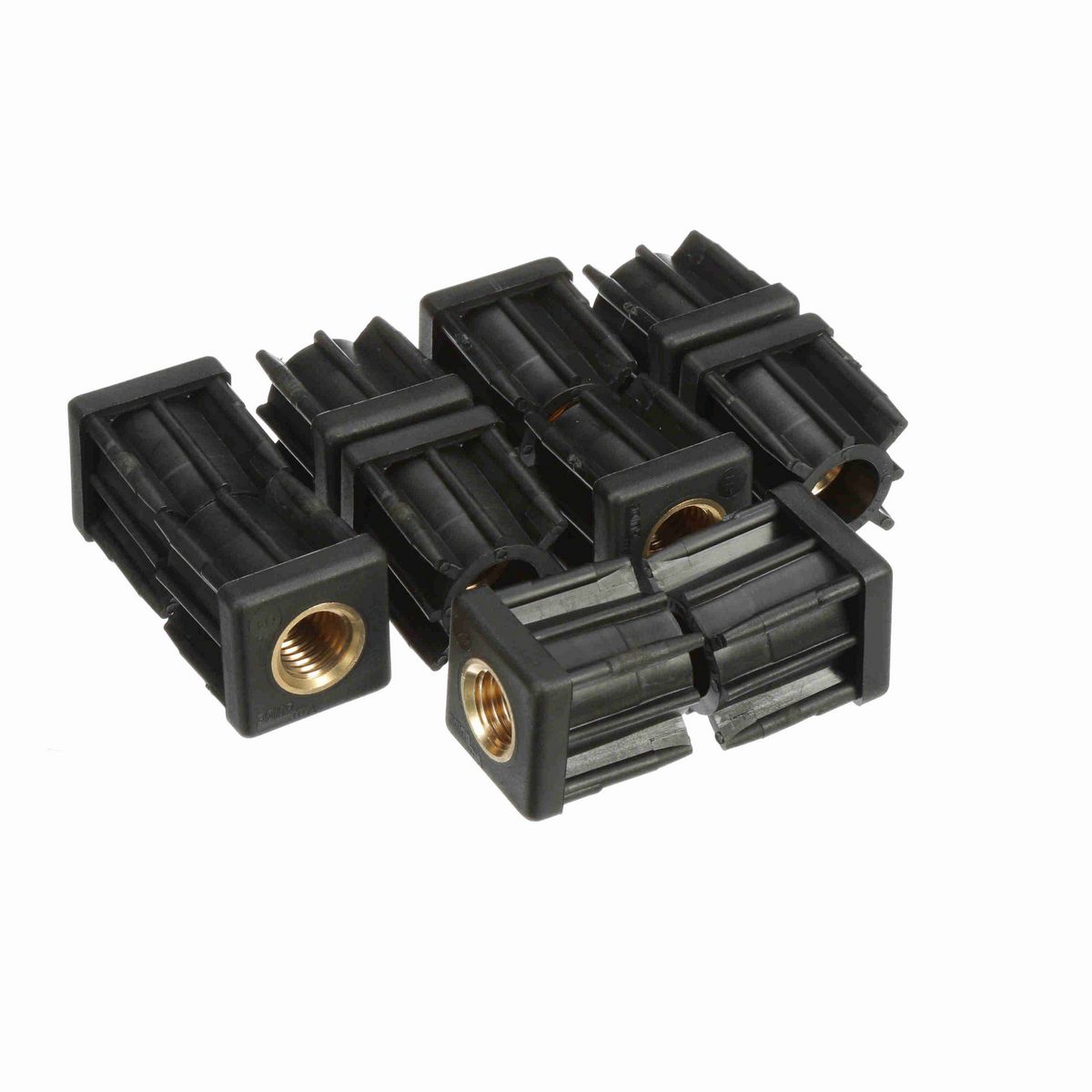

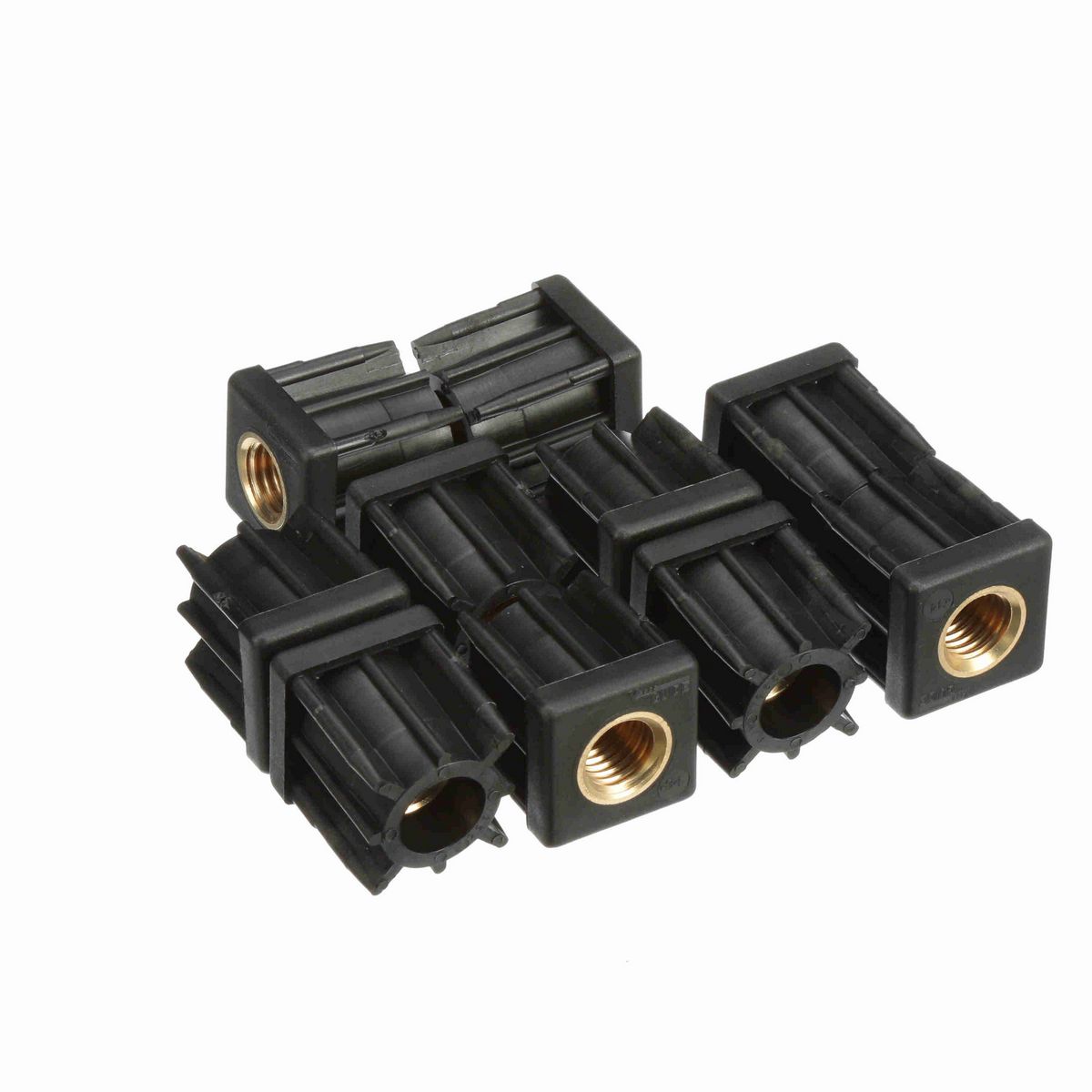

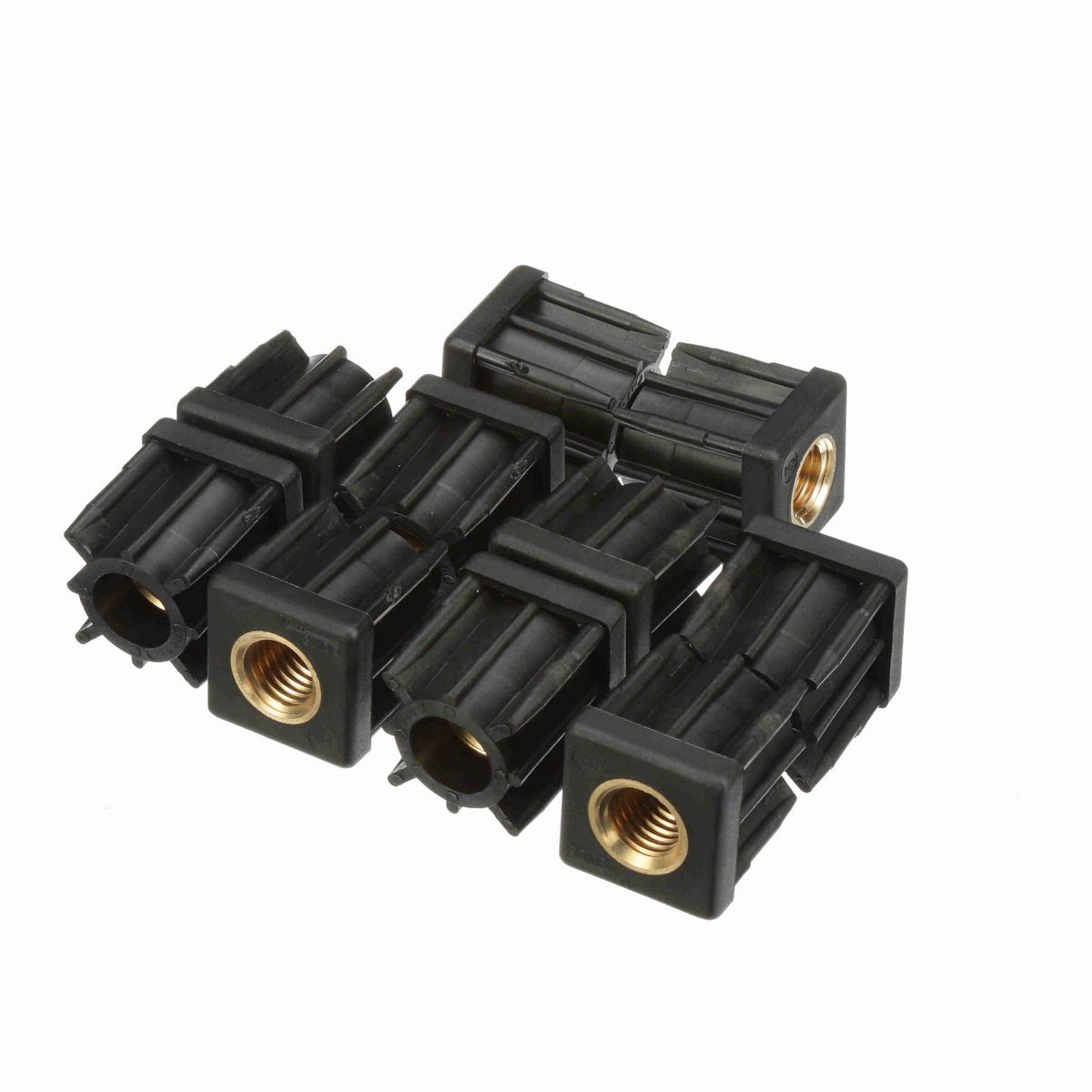

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Face Width / Diameter (mm)	38 mm
Material	Reinforced polyamide with brass threaded insert
Insert Depth (in)	1.38 in
Thread (in)	3/4-10 in
Face Width / Diameter (in)	1.5 in
Type	Square Tube Ends
Insert Width / Diameter (in)	1.37 in
Height (in)	1.71 in
Tube Size (sq) x Wall Thickness (in)	.065-.075 in
Insert Depth (mm)	35 mm
Insert Width / Diameter (mm)	35 mm
Height (mm)	43 mm
Measurement System	Imperial
Vertical Tube/Pipe Size (in)	1-1/2 Sq. Tube in
Base Diameter (in)	0 in
Product Group	Frame and Structure Components
Component Series	VG-552
Product Line	Conveying Components
Product Type	Tube End (Square)
Static Load (lb)	1,000 lb

General Specifications

UPC	787405256101
Weight	0.18 LB
Packaged Length	6.05 IN
Packaged Width	7.70 IN
Packaged Height	1.80 IN
HTC	8431.39.0010
Country of Origin	Mexico
