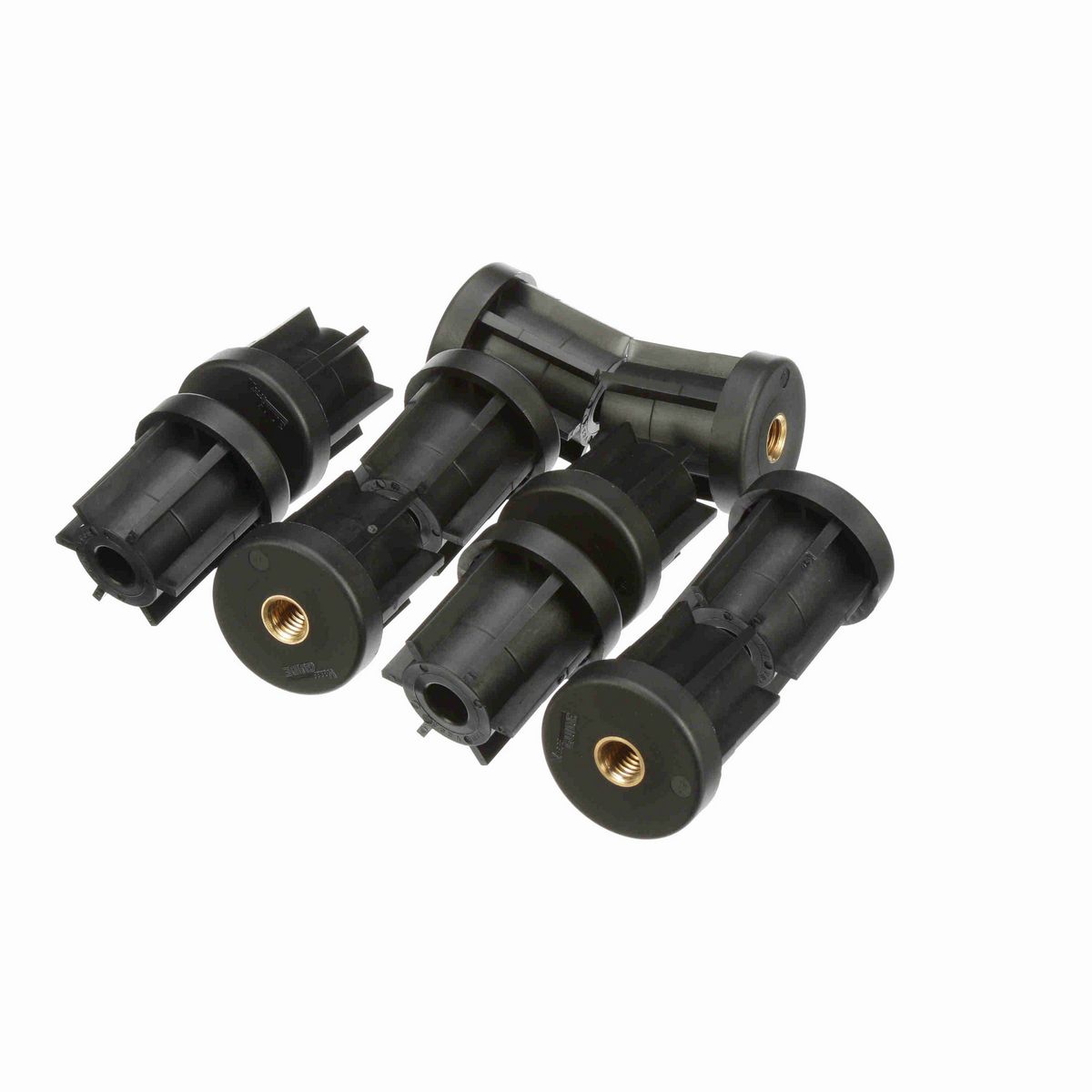

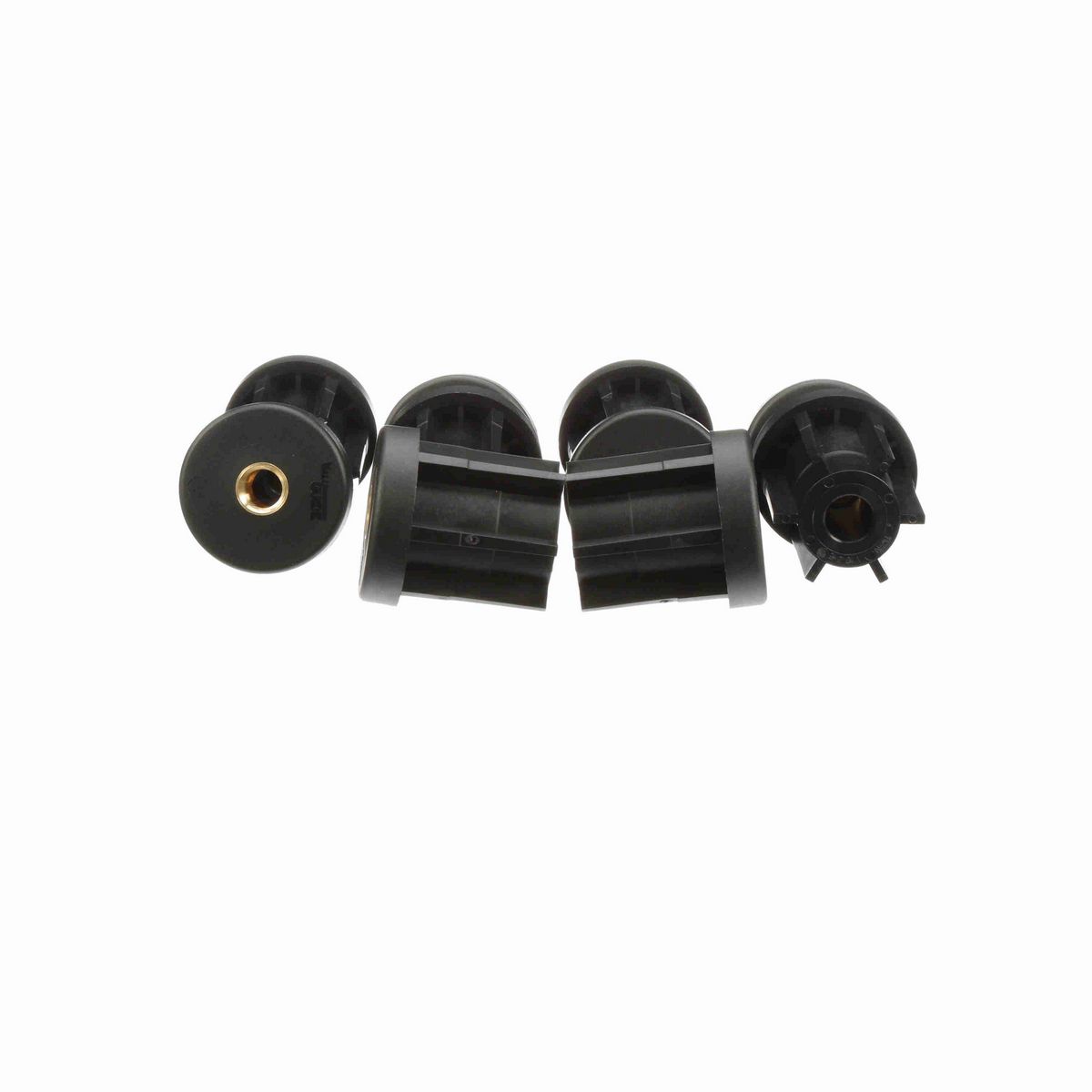

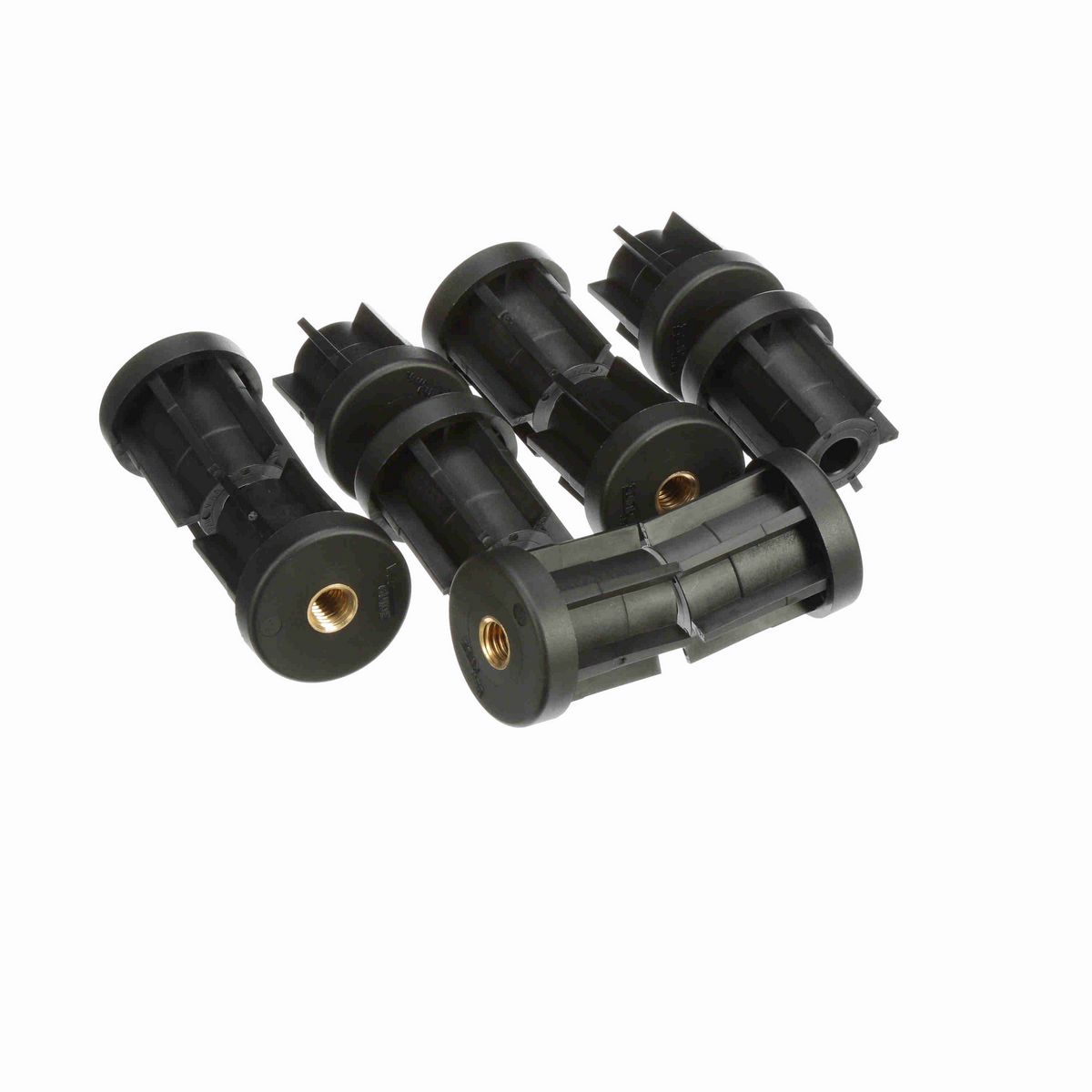

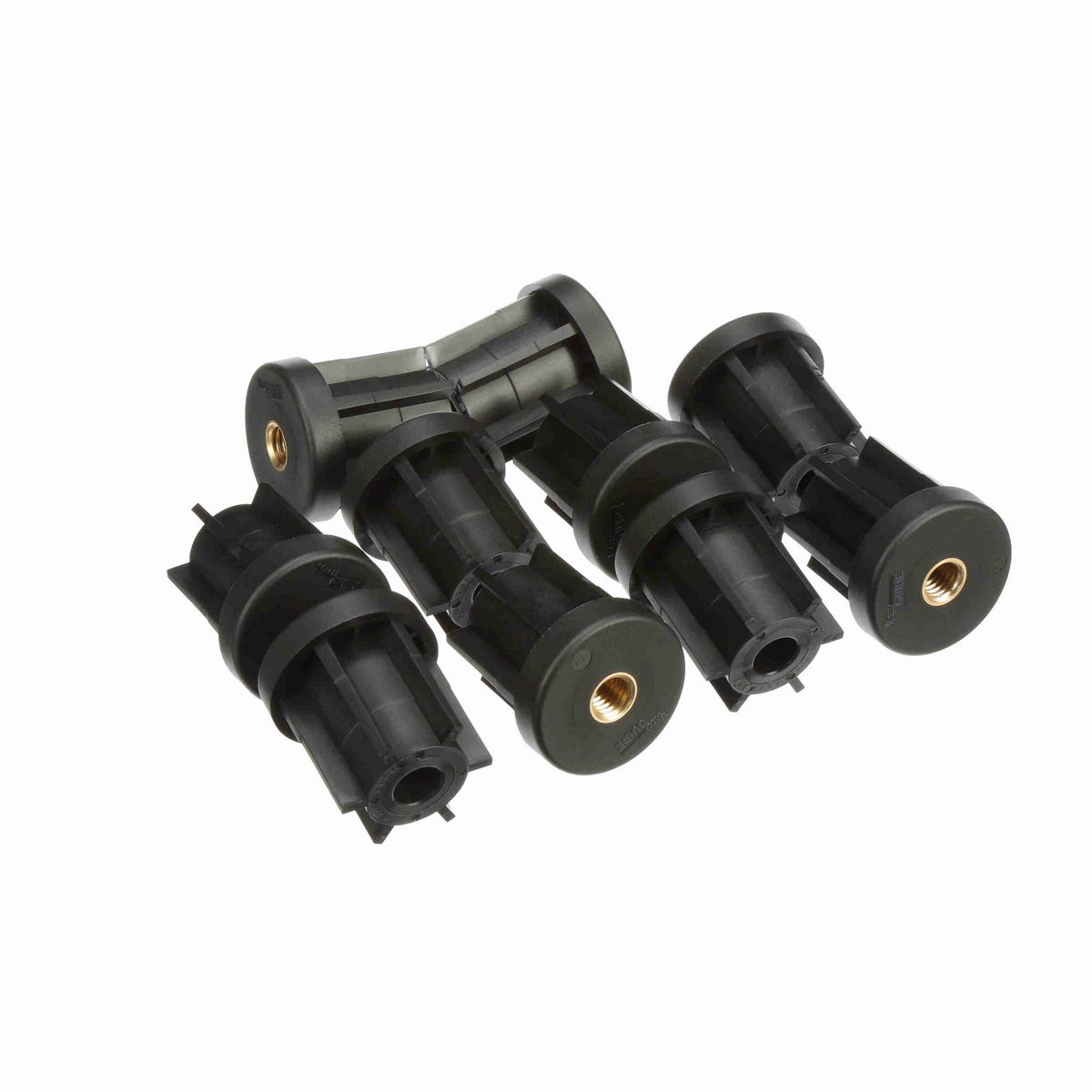

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Insert Width / Diameter (mm)	43 mm
Material	Reinforced polyamide with brass threaded insert
Insert Width / Diameter (in)	1.69 in
Height (in)	1.95 in
Type	Round Tube Ends
Face Width / Diameter (in)	1.97 in
Insert Depth (in)	1.54 in
Face Width / Diameter (mm)	50 mm
Thread (in)	1/2-13 in
Insert Depth (mm)	39 mm
Tube Size (sq) x Wall Thickness (in)	0.109 in
Measurement System	Imperial
Base Diameter (in)	0 in
Height (mm)	50 mm
Product Line	Conveying Components
Product Group	Frame and Structure Components
Vertical Tube/Pipe Size (in)	1-1/2 Sch. 10 Pipe in
Product Type	Tube End (Round)
Component Series	VG-551
Static Load (lb)	1,000 lb

General Specifications

UPC	787405254695
Weight	0.19 LB
Packaged Length	6.60 IN
Packaged Width	9.55 IN
Packaged Height	2.30 IN
HTC	8431.39.0010
Country of Origin	Mexico
