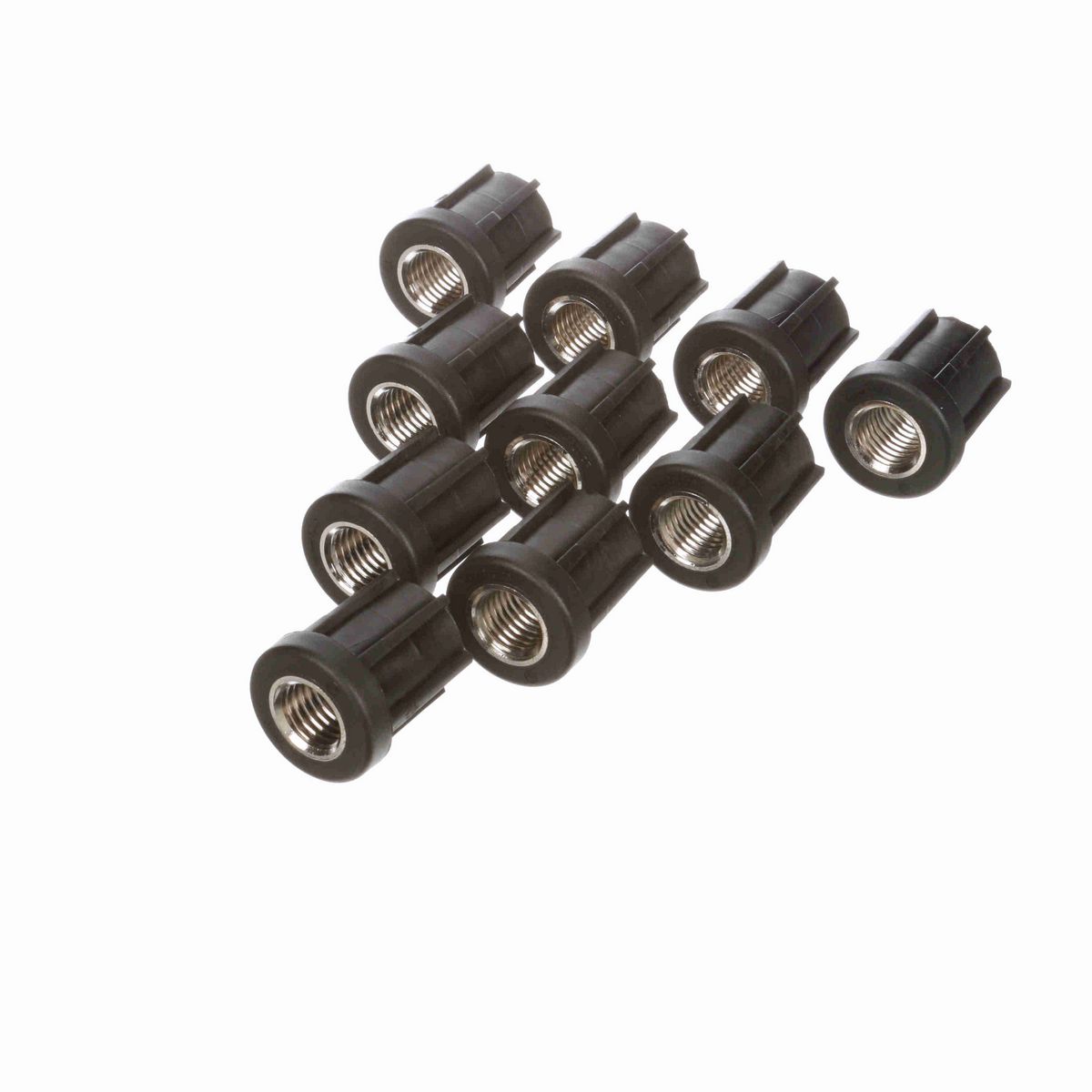

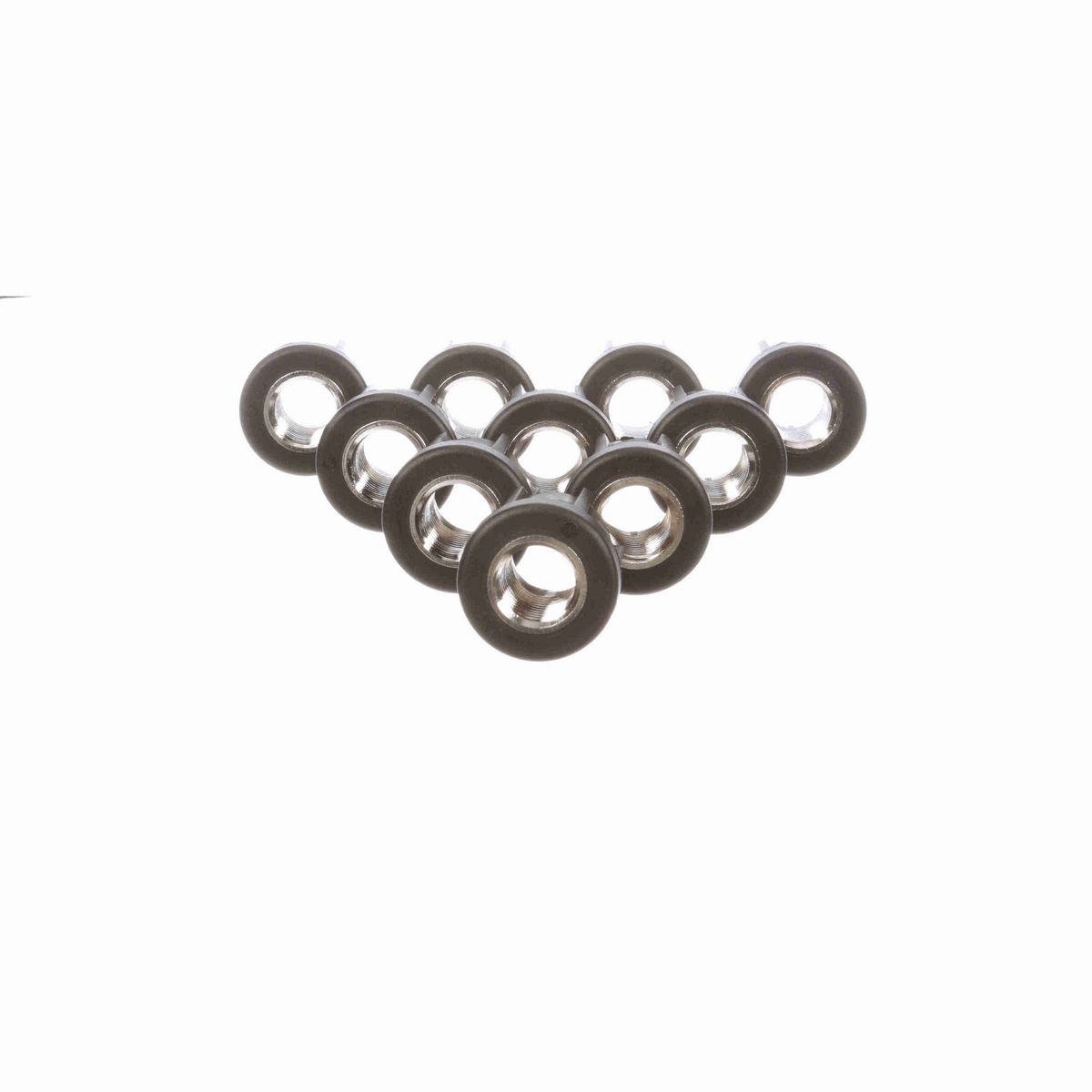

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Insert Width / Diameter (mm)	35 mm
Face Width / Diameter (in)	1.5 in
Insert Depth (in)	1.38 in
Face Width / Diameter (mm)	38 mm
Type	Round Tube Ends
Height (in)	1.71 in
Material	POLYAMIDE
Insert Width / Diameter (in)	1.37 in
Thread (mm)	M20 mm
Insert Depth (mm)	35 mm
Height (mm)	43 mm
Vertical Tube/Pipe Size (in)	1-1/2 Tube in
Product Line	Conveying Components
Measurement System	Metric
Component Series	VG-550
Product Type	Tube End (Round)
Product Group	Frame and Structure Components
Static Load (lb)	1,000 lb

General Specifications

UPC	787405254688
Weight	0.57 LB
Packaged Length	3.65 IN
Packaged Width	3.50 IN
Packaged Height	1.90 IN
HTC	8431.39.0010
Country of Origin	Mexico
