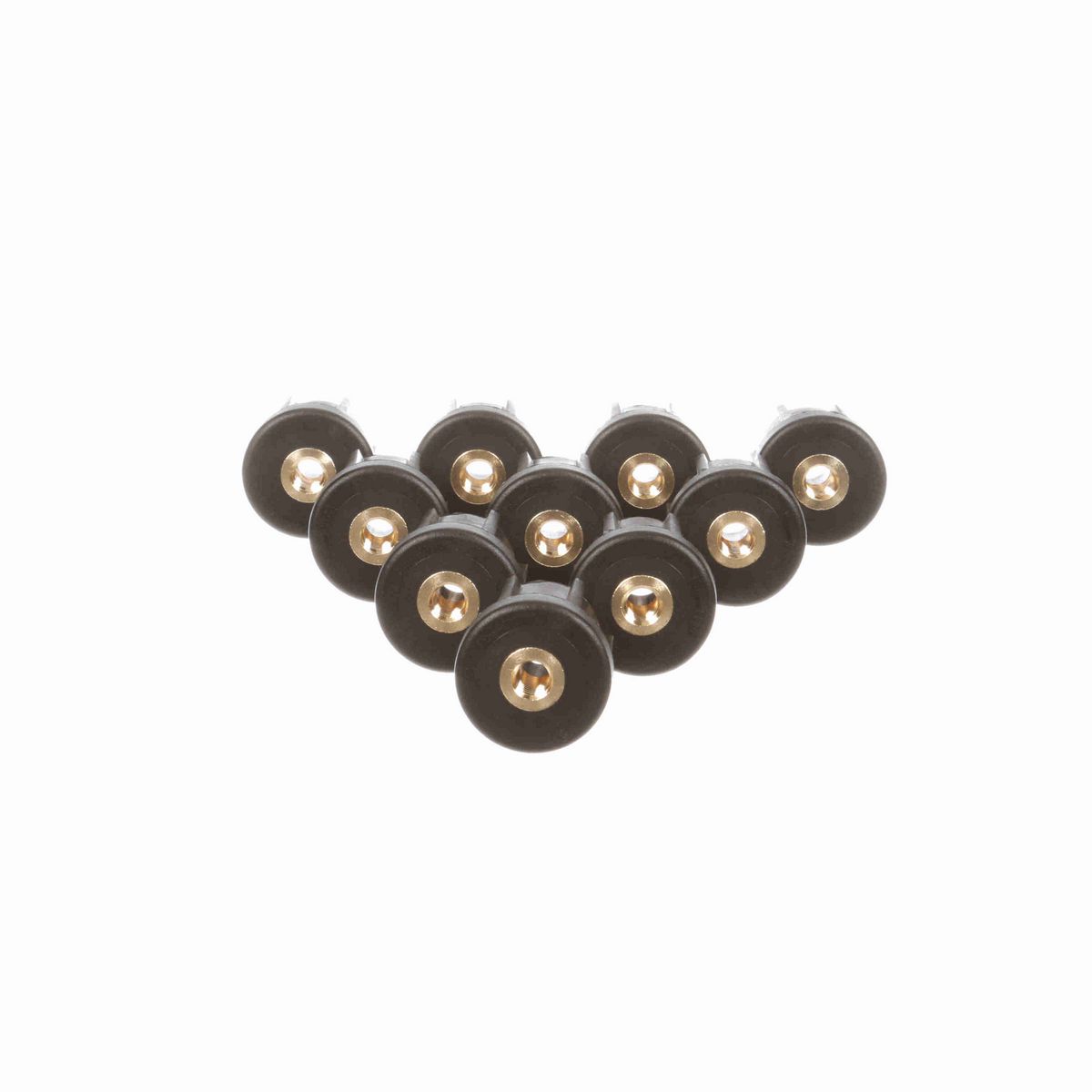

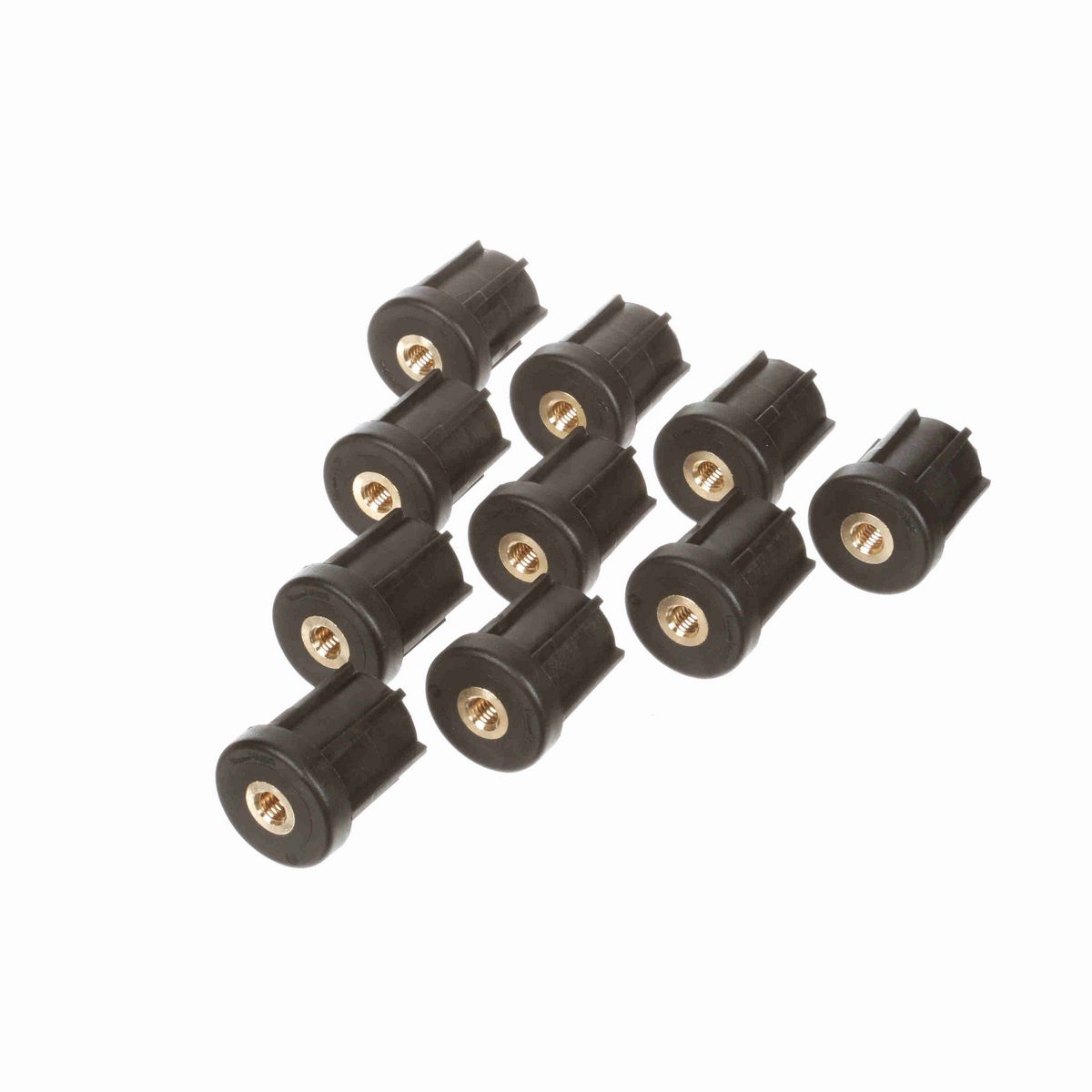

• Threaded tube end for use with System Plast adjustable levelers.
• No welding, drilling, or tapping.
• Reinforced polyamide with brass insert.

Technical Specifications

Face Width / Diameter (in)	1.5 in
Insert Depth (in)	1.38 in
Thread (in)	3/8-16 in
Material	Reinforced polyamide with brass threaded insert
Insert Width / Diameter (mm)	35 mm
Insert Depth (mm)	35 mm
Insert Width / Diameter (in)	1.37 in
Tube Size (sq) x Wall Thickness (in)	0.065 in
Type	Round Tube Ends
Face Width / Diameter (mm)	38 mm
Height (in)	1.71 in
Product Line	Conveying Components
Product Group	Frame and Structure Components
Product Type	Tube End (Round)
Height (mm)	43 mm
Component Series	VG-550
Vertical Tube/Pipe Size (in)	1-1/2 Tube in
Measurement System	Imperial
Static Load (lb)	1,000 lb

General Specifications

UPC	787405254633
Weight	0.13 LB
Packaged Length	6.60 IN
Packaged Width	6.05 IN
Packaged Height	1.75 IN
HTC	8431.39.0010
Country of Origin	Mexico
