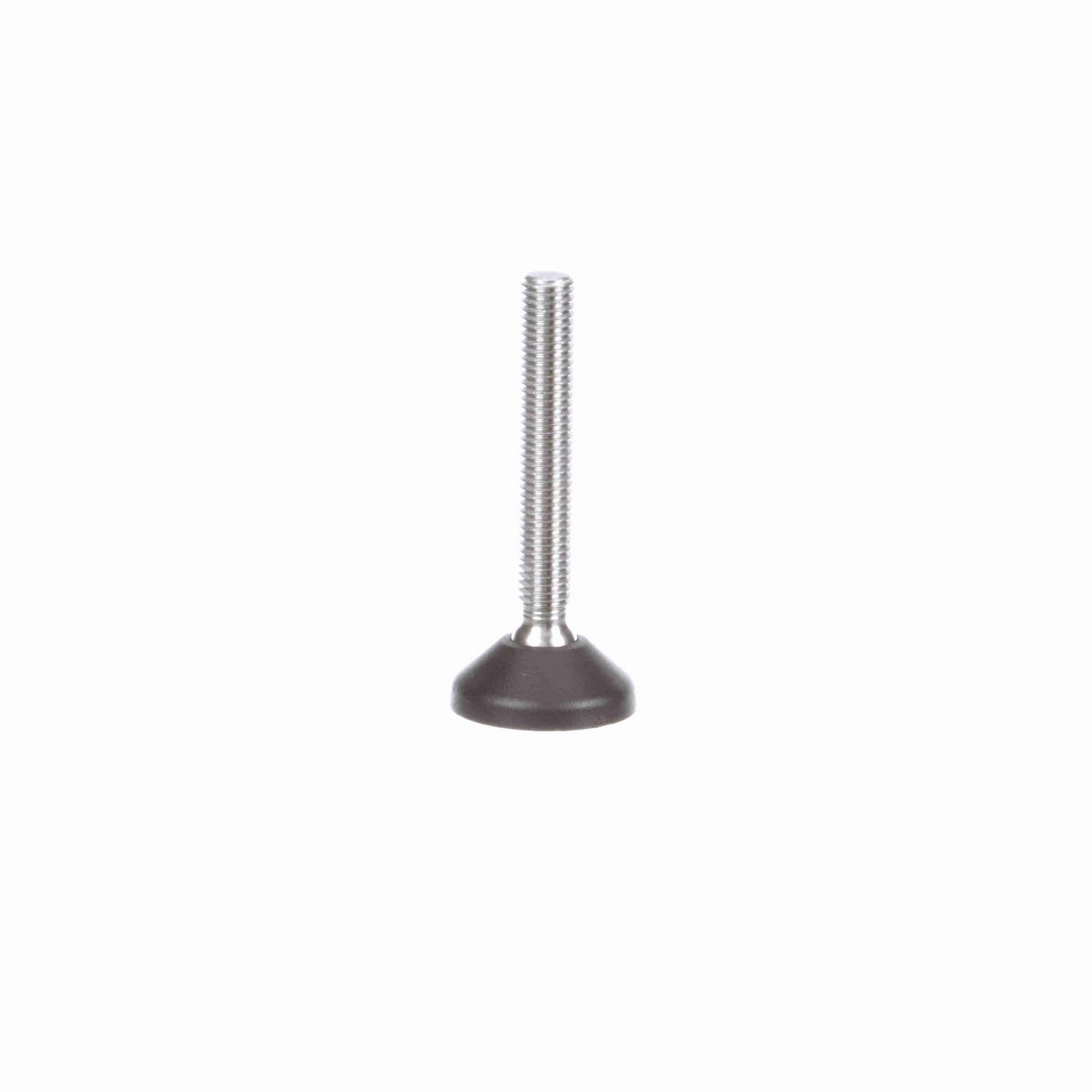

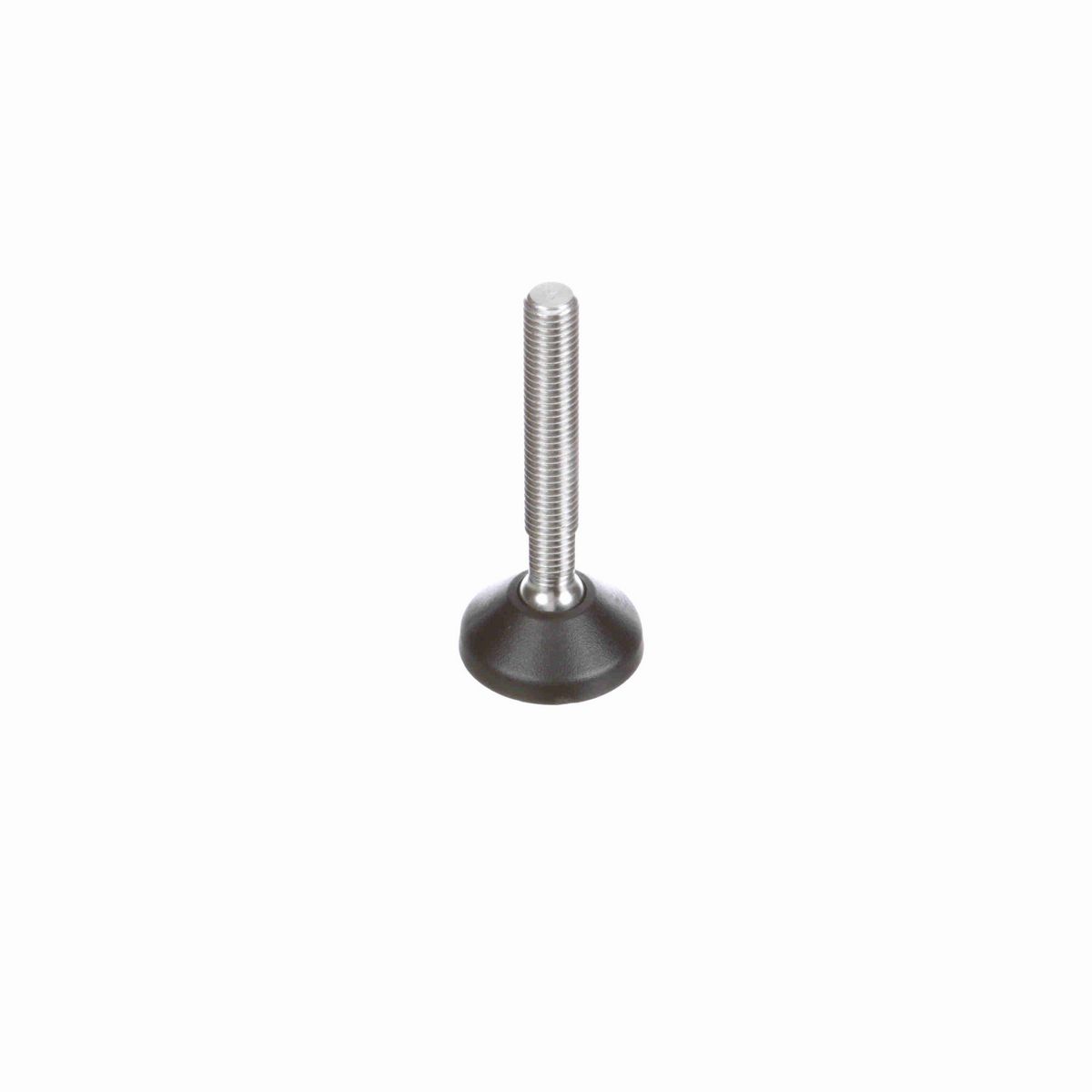

• Reinforced polyamide base, stainless steel stem.
• Articulating leveler support for light duty machines.

Technical Specifications

Leveler Type	Articulating Leveler
Stem Thread	M12
Vibration PAD	VG-534
Component Series	VG-533
Measurement System	Universal
Spindle Length (in)	2.45 in
Stem Material	Stainless Steel
Product Group	Levelers
Base Height (in)	0.59 in
Material	POLYAMIDE
Base Height with Pad (in)	0.66 in
Length (in)	3.7 in
Product Type	Leveler (Polyamide Base)
Product Line	Conveying Components
Base Diameter (in)	1.58 in
Thread (mm)	M12 mm
Application	Support for light duty machines.
Static Load (lb)	700 lb
Misalignment Angle	±15°

General Specifications

UPC	787405251625
Weight	0.17 LB
Packaged Length	1.58 IN
Packaged Width	1.58 IN
Packaged Height	3.71 IN
