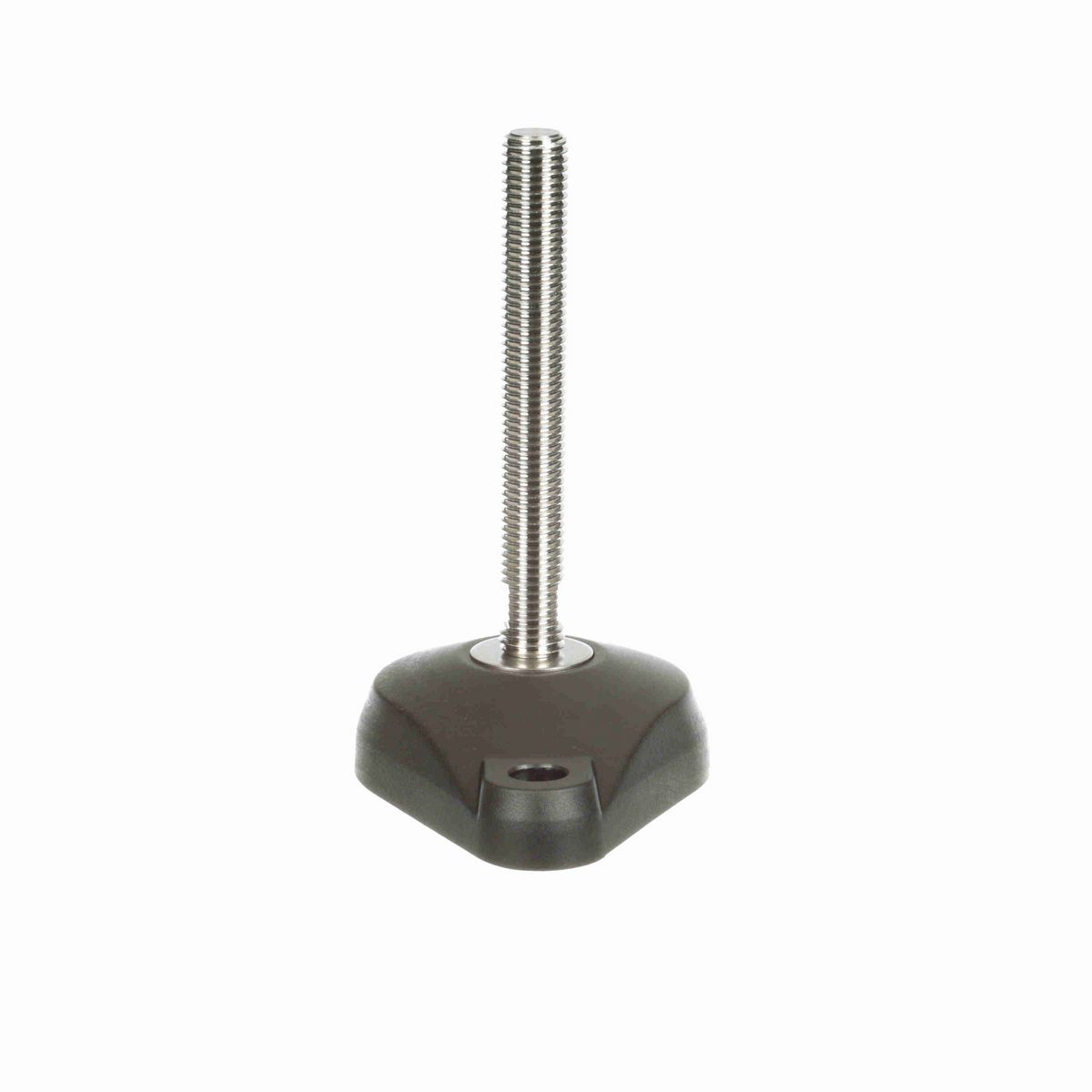

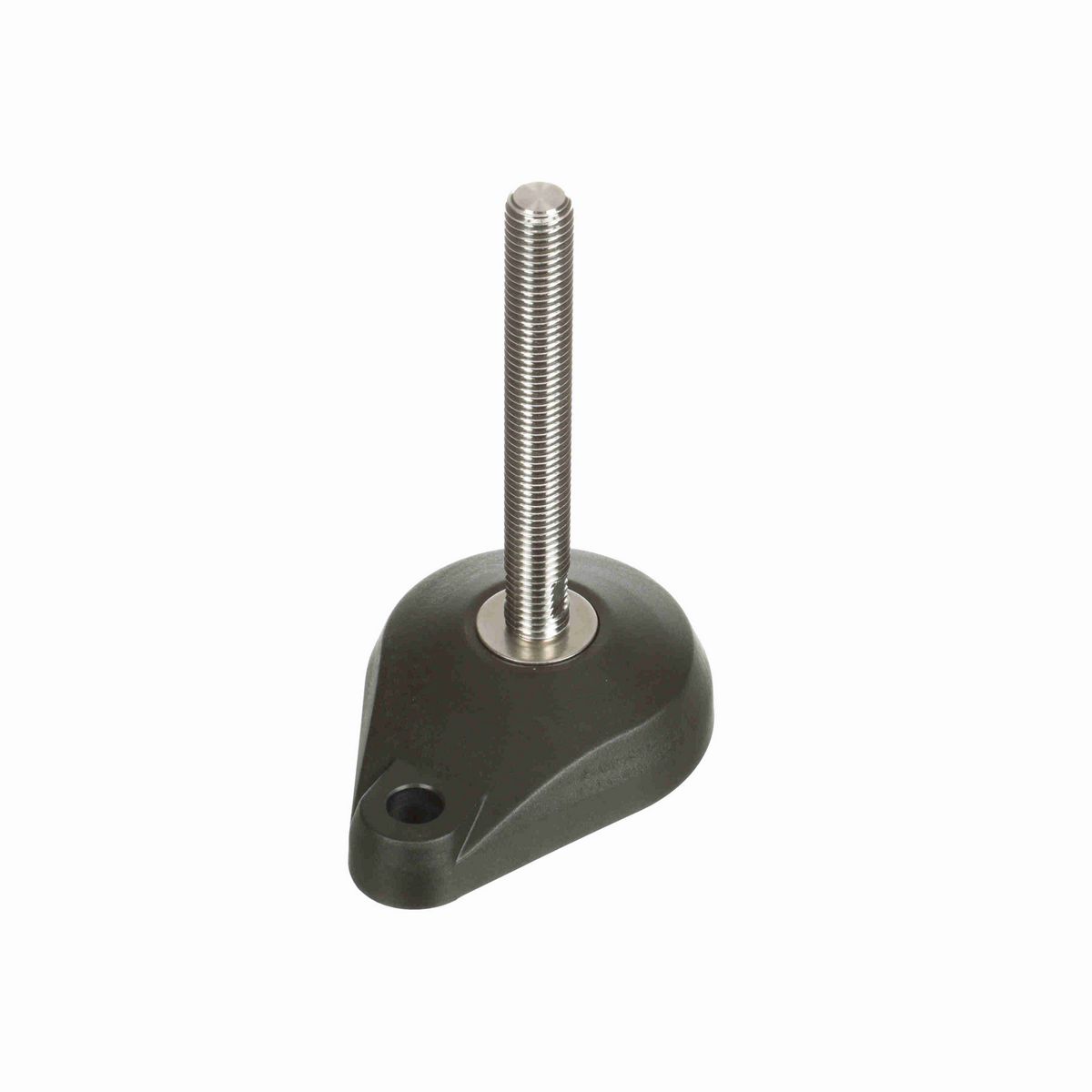

• Reinforced polyamide base, stainless steel stem.
• Support leveler with solid base. Machinery support with one offset lag hole for accessibility or high chemical resistance is required.

Technical Specifications

Leveler Type	Support leveler with solid base
Stem Thread	3/4-10
Product Group	Levelers
Lag Hole Diameter (in)	0.53 in
Component Series	VG-525
Product Type	Leveler (Polyamide Base)
Spindle Length (in)	5.1 in
Material	POLYAMIDE
Stem Material	Stainless Steel
Base Diameter (in)	5.5 in
Base Height (in)	1.35 in
Measurement System	Imperial
Length (in)	7.25 in
Thread (in)	3/4-10 in
Product Line	Conveying Components
Number of Lag Holes	1
Application	Machinery support where lag hole accessibility or high chemical resistance is required.
Static Load (lb)	7,200 lb
Misalignment Angle	±3°

General Specifications

UPC	787405250567
Weight	1.57 LB
