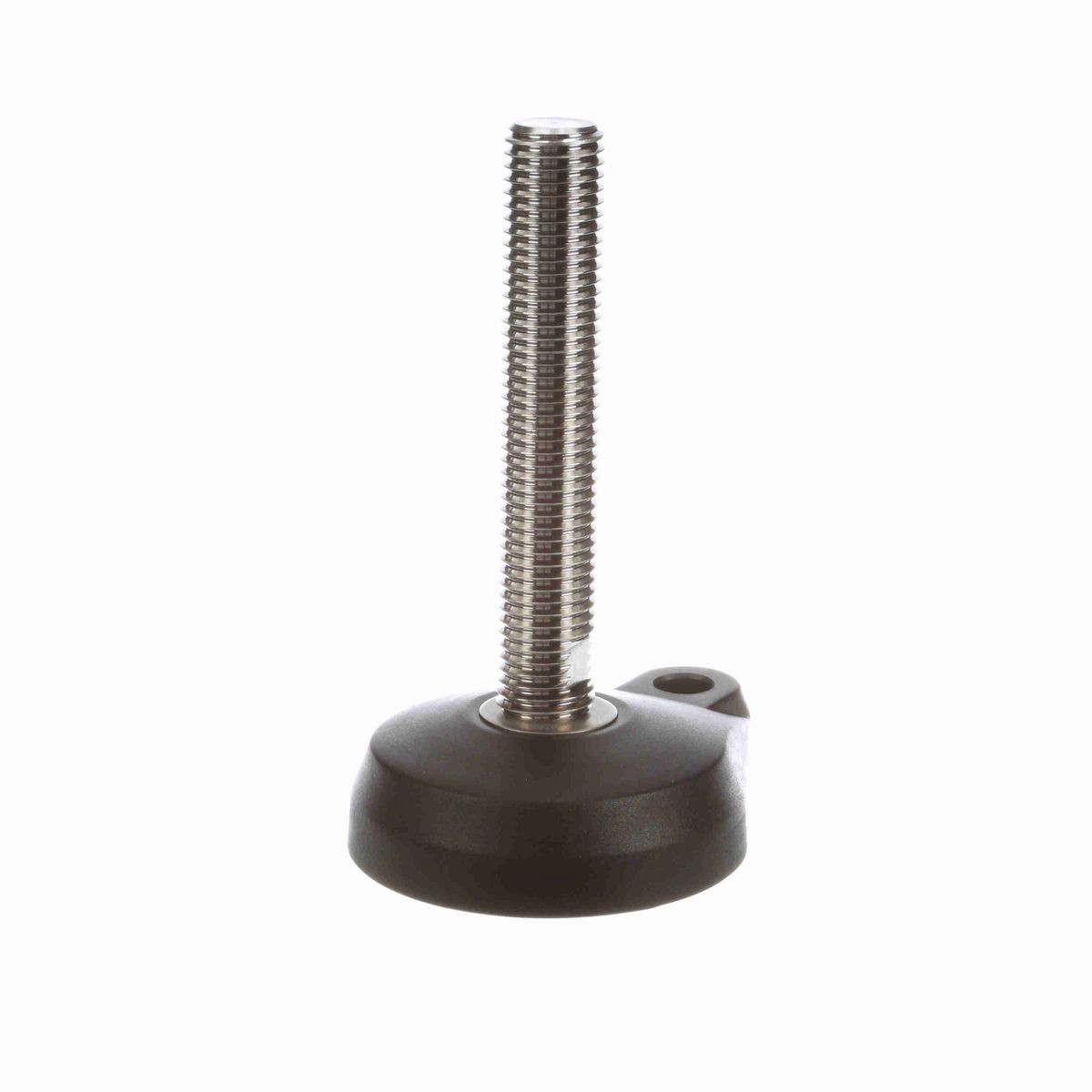

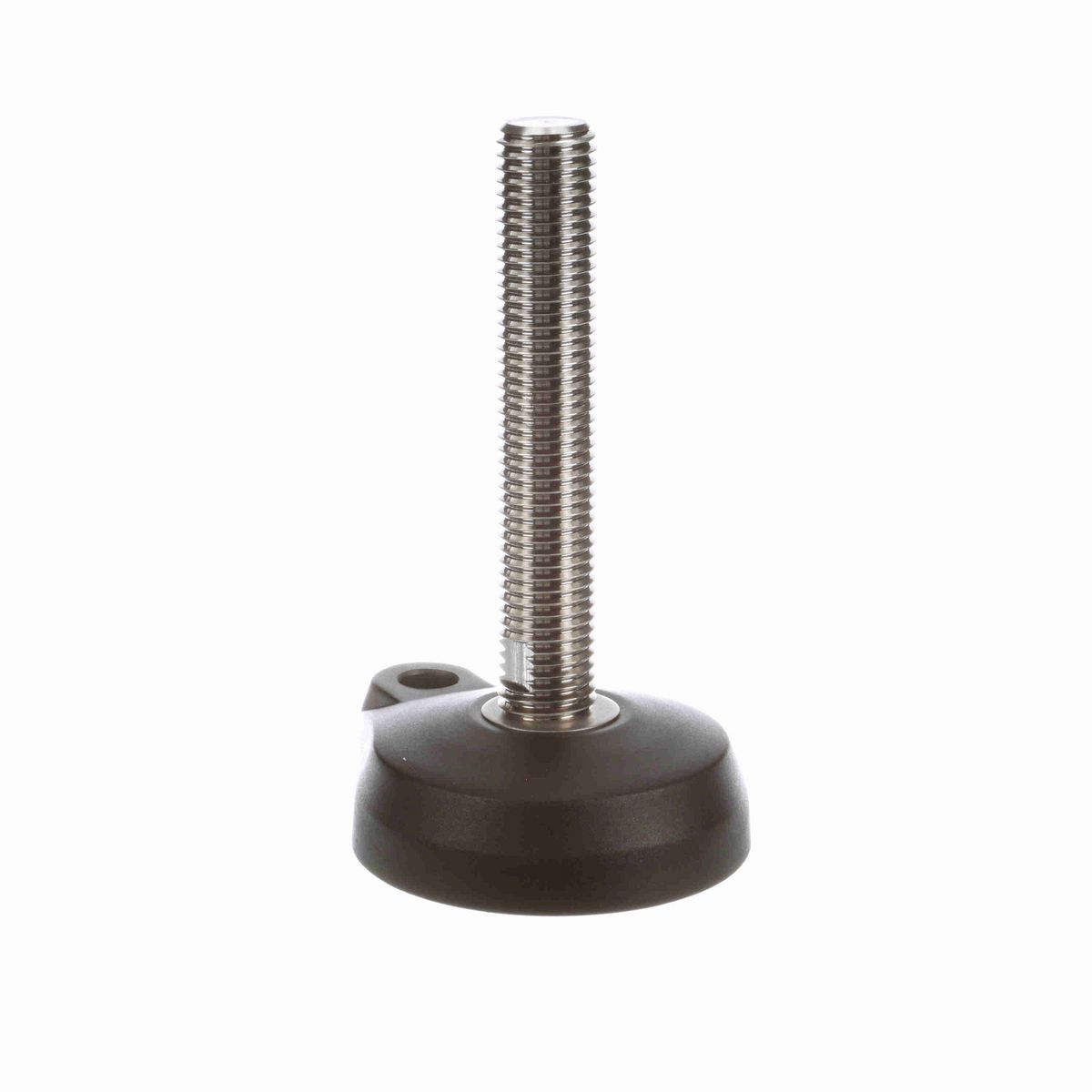

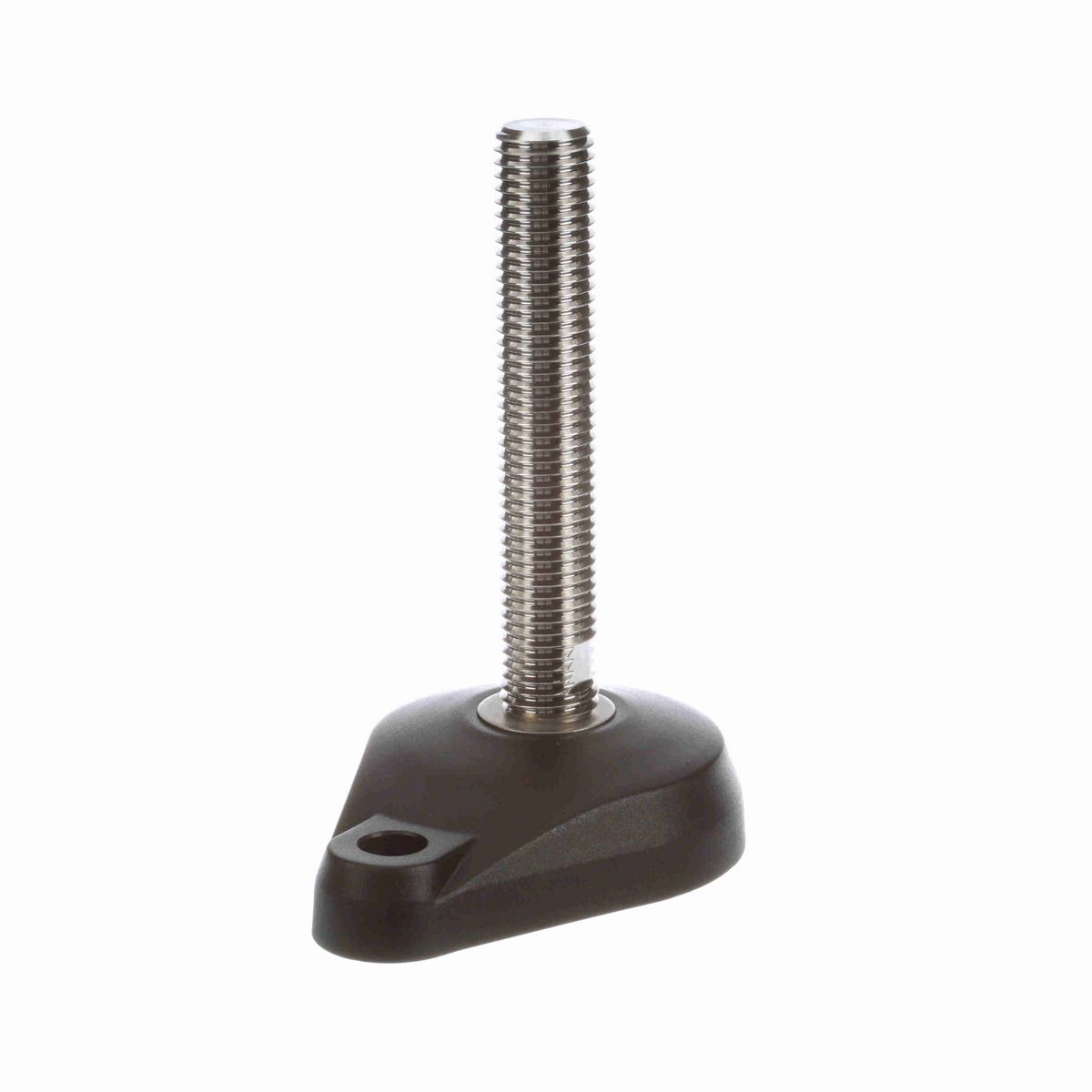

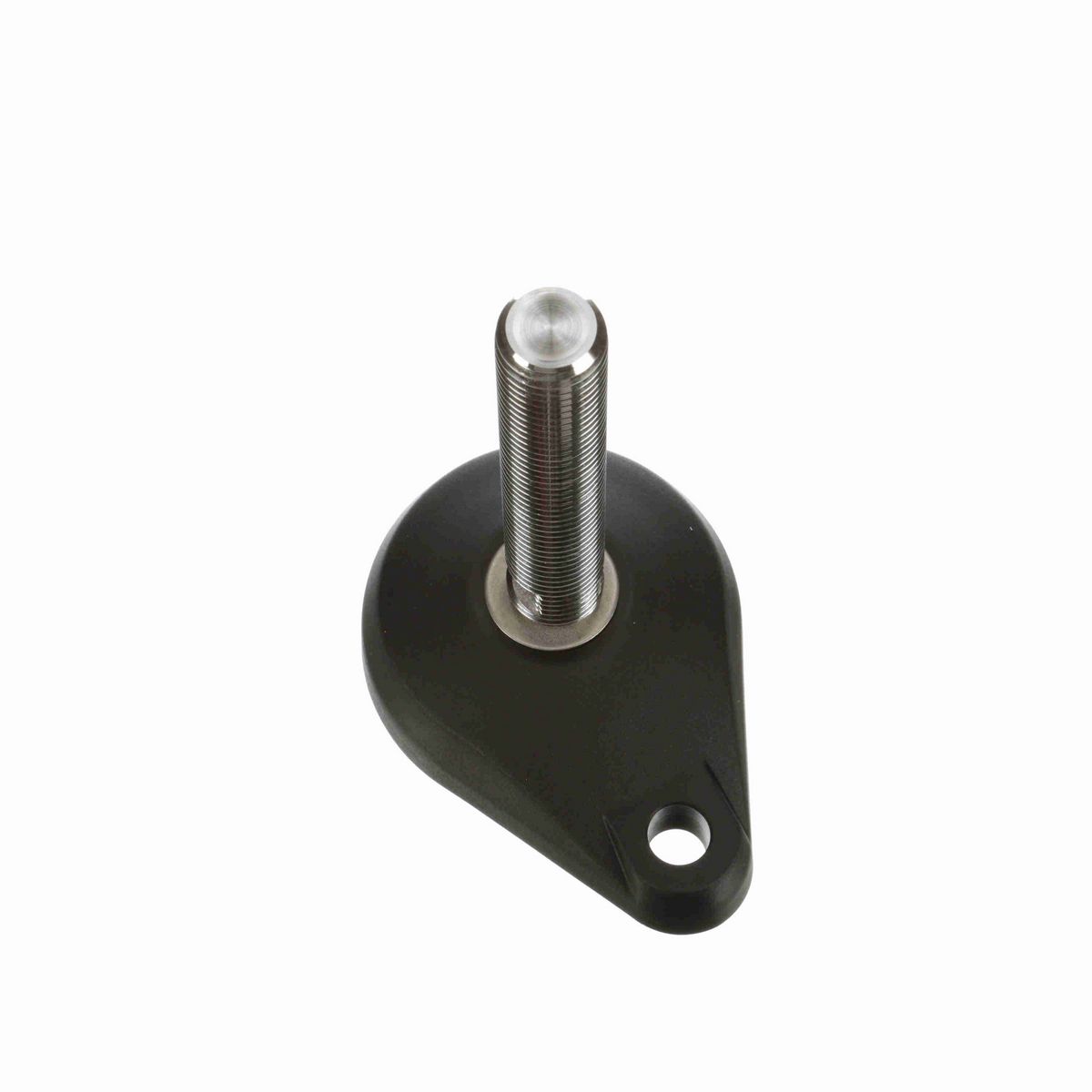

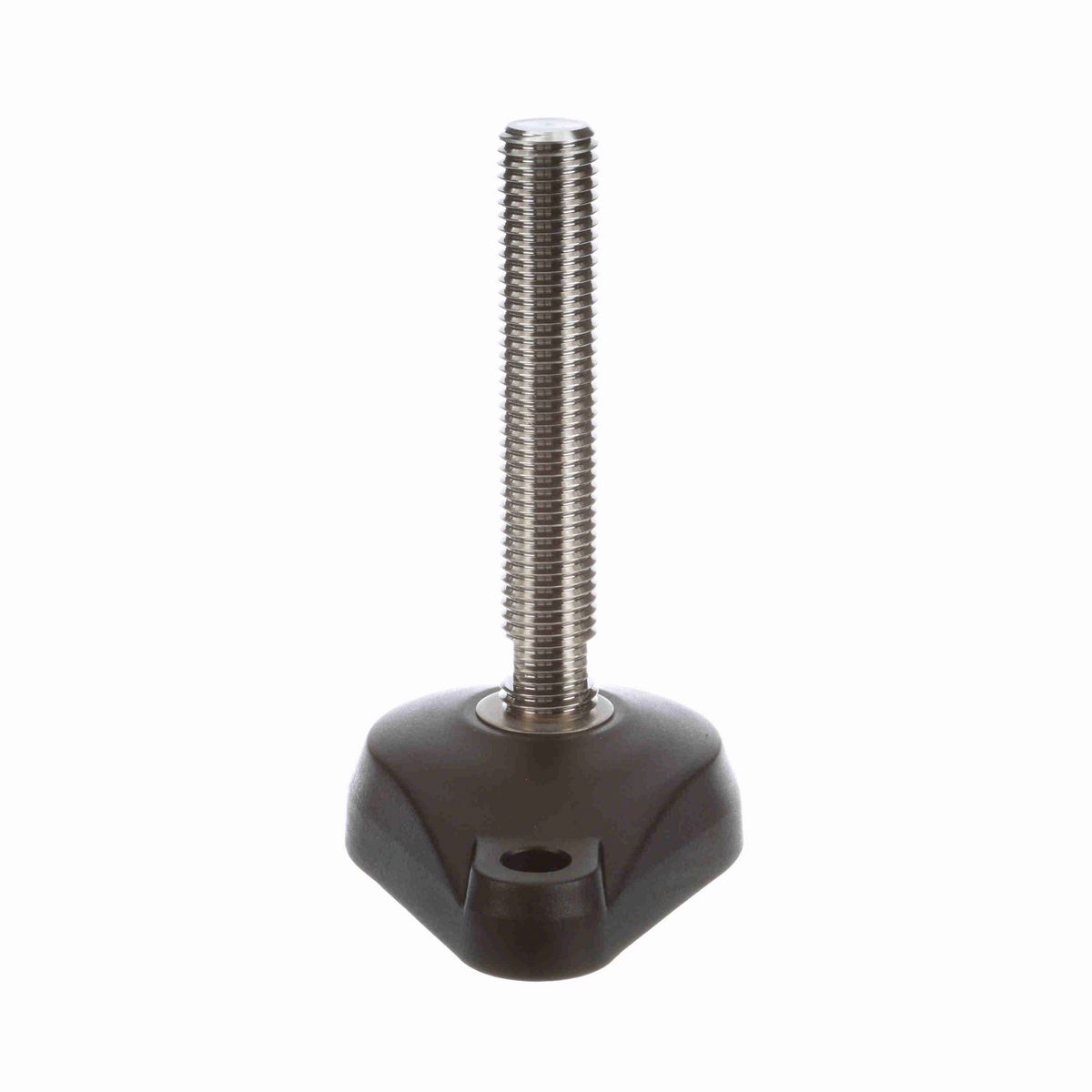

• Reinforced polyamide base, stainless steel stem.
• Support leveler with solid base. Machinery support with one offset lag hole for accessibility or high chemical resistance is required.

Technical Specifications

Stem Thread	1-8
Leveler Type	Support leveler with solid base
Number of Lag Holes	1
Length (in)	7.25 in
Lag Hole Diameter (in)	0.53 in
Stem Material	Stainless Steel
Product Type	Leveler (Polyamide Base)
Measurement System	Imperial
Component Series	VG-525
Spindle Length (in)	5.1 in
Product Line	Conveying Components
Material	POLYAMIDE
Thread (in)	1-8 in
Product Group	Levelers
Base Diameter (in)	5.5 in
Base Height (in)	1.35 in
Application	Machinery support where lag hole accessibility or high chemical resistance is required.
Static Load (lb)	7,200 lb
Misalignment Angle	±3°

General Specifications

UPC	787405250505
Weight	1.80 LB
