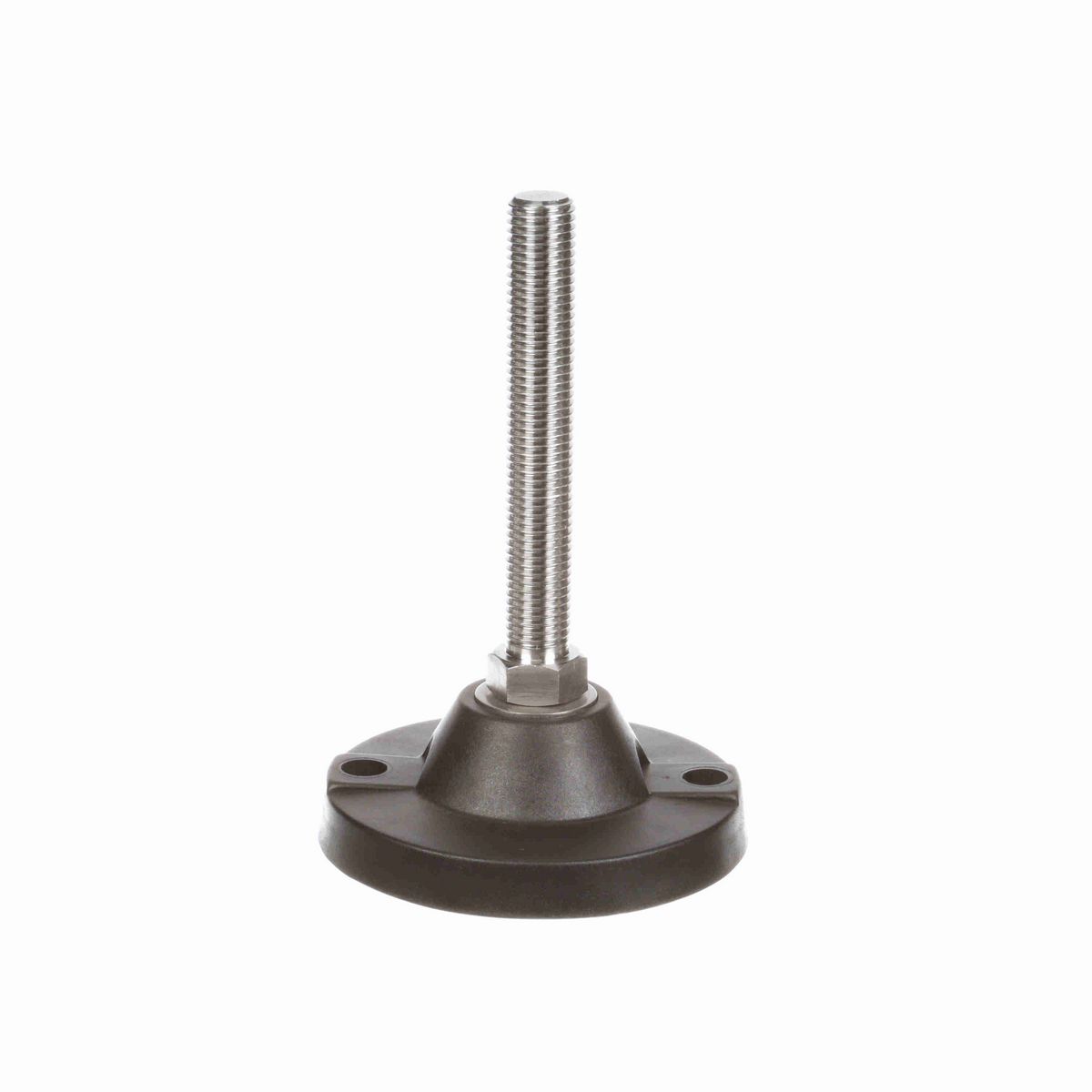

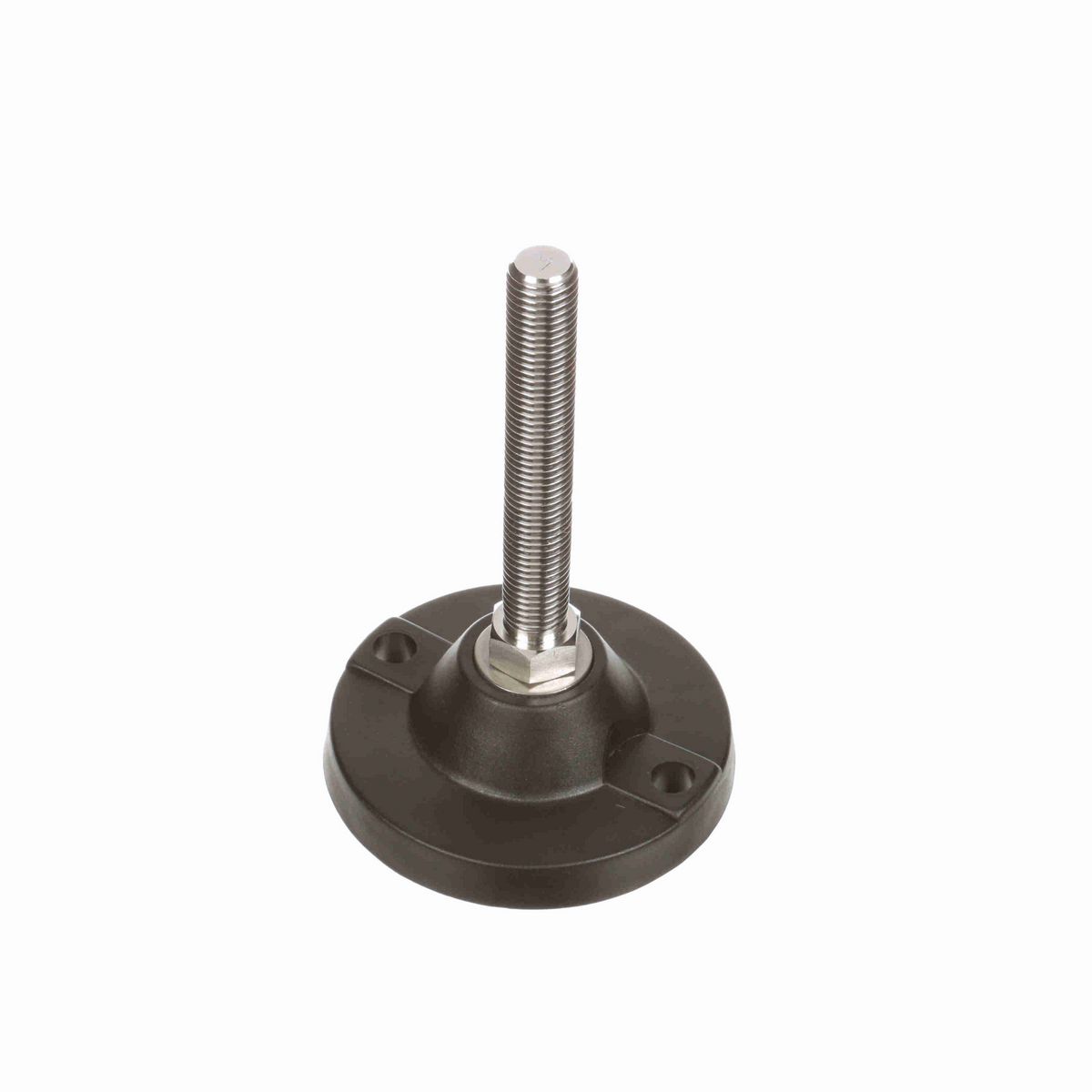

• Reinforced polyamide base, stainless steel stem.
• Heavy duty machinery support with adjusting nut welded to stem.

Technical Specifications

Duty Type	Heavy Duty
Vibration PAD	VG-514 / VG-514N
Type	520
Leveler Type	Support Leveler
Deflection Angle	±2°
Wrench Height (in)	2.61 in
Lag Hole Center Distance (in)	3.88 in
Product Type	Leveler (Polyamide Base)
Component Series	VG-520
Length (in)	7.48 in
Product Line	Conveying Components
Base Height (in)	0.67 in
Number of Lag Holes	2
Thread (mm)	M20 mm
Lag Hole Diameter (in)	0.52 in
Spindle Length (in)	4.87 in
Base Diameter (in)	4.84 in
Measurement System	Metric
Product Group	Levelers
Base Height with Pad (in)	0.89 in
Stem Material	Stainless Steel
Material	POLYAMIDE
Application	Machinery Support with adjusting nut welded to stem.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	7,000 lb

General Specifications

UPC	787405249356
Weight	1.33 LB
Packaged Length	4.85 IN
Packaged Width	4.80 IN
Packaged Height	8.55 IN
