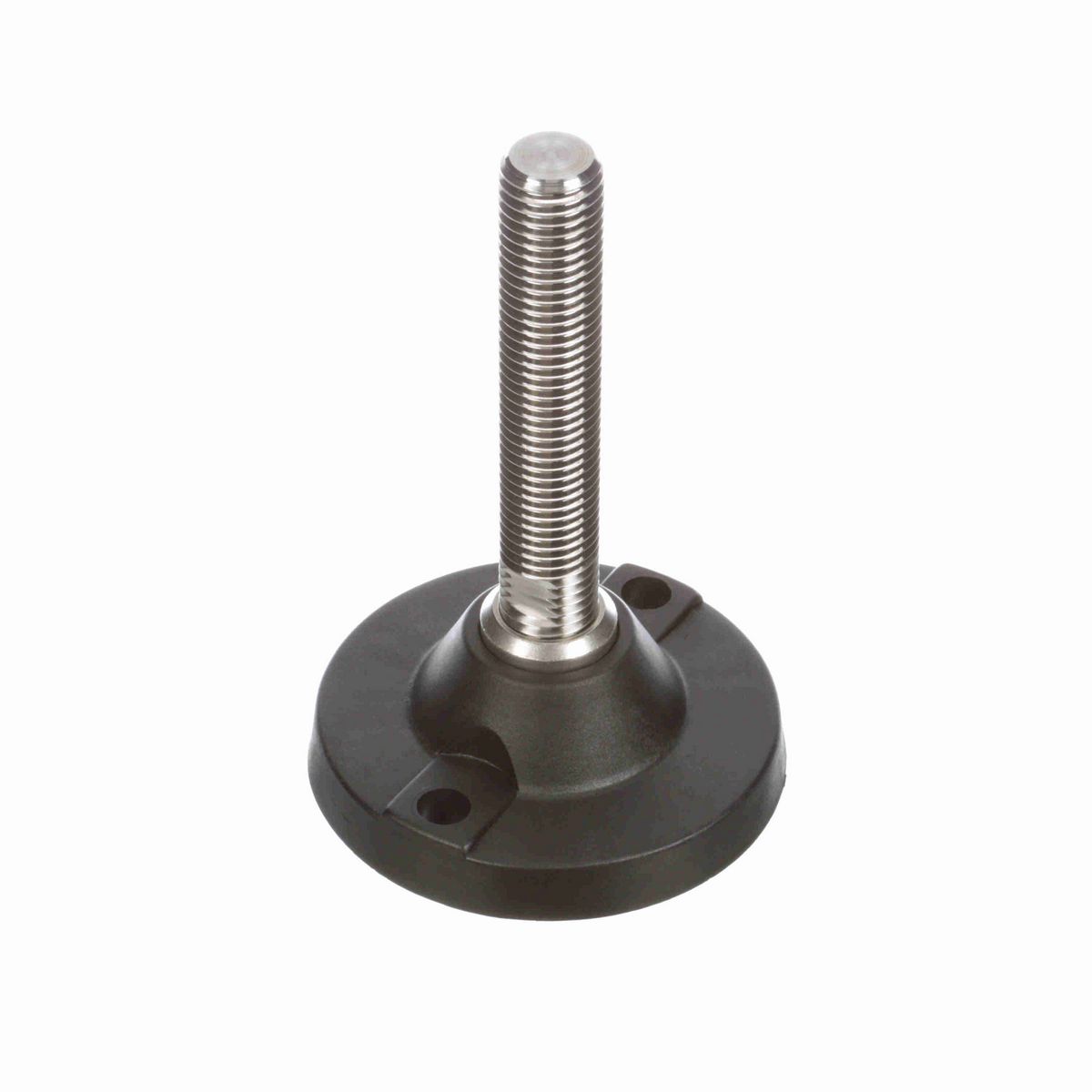

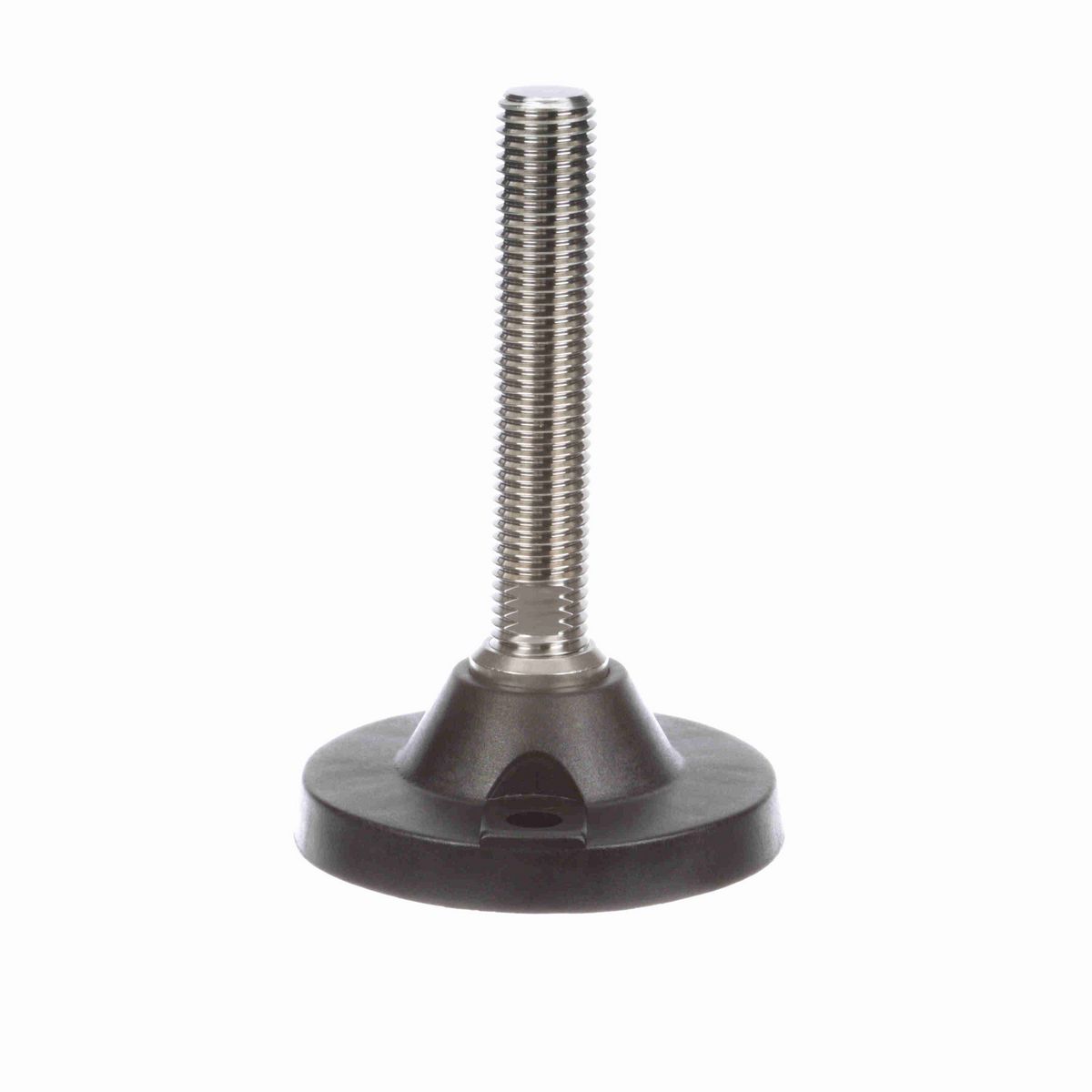

• Reinforced polyamide base, stainless steel stem.
• Heavy duty machinery support with adjusting nut welded to stem.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Type	520-T
Duty Type	Heavy Duty
Leveler Type	Articulating Leveler
Deflection Angle	±5°
Vibration PAD	VG-514 / VG-514N
Thread (in)	1-8 in
Lag Hole Diameter (in)	0.52 in
Base Height with Pad (in)	0.89 in
Product Group	Levelers
Stem Material	Stainless Steel
Measurement System	Imperial
Number of Lag Holes	2
Base Height (in)	0.67 in
Product Type	Leveler (Polyamide Base)
Lag Hole Center Distance (in)	3.88 in
Base Diameter (in)	4.84 in
Component Series	VG-520
Wrench Height (in)	2.85 in
Spindle Length (in)	4.84 in
Material	POLYAMIDE
Length (in)	7.45 in
Product Line	Conveying Components
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	7,000 lb

General Specifications

UPC	787405248984
Weight	1.60 LB
Packaged Length	5.00 IN
Packaged Width	5.00 IN
Packaged Height	8.00 IN
