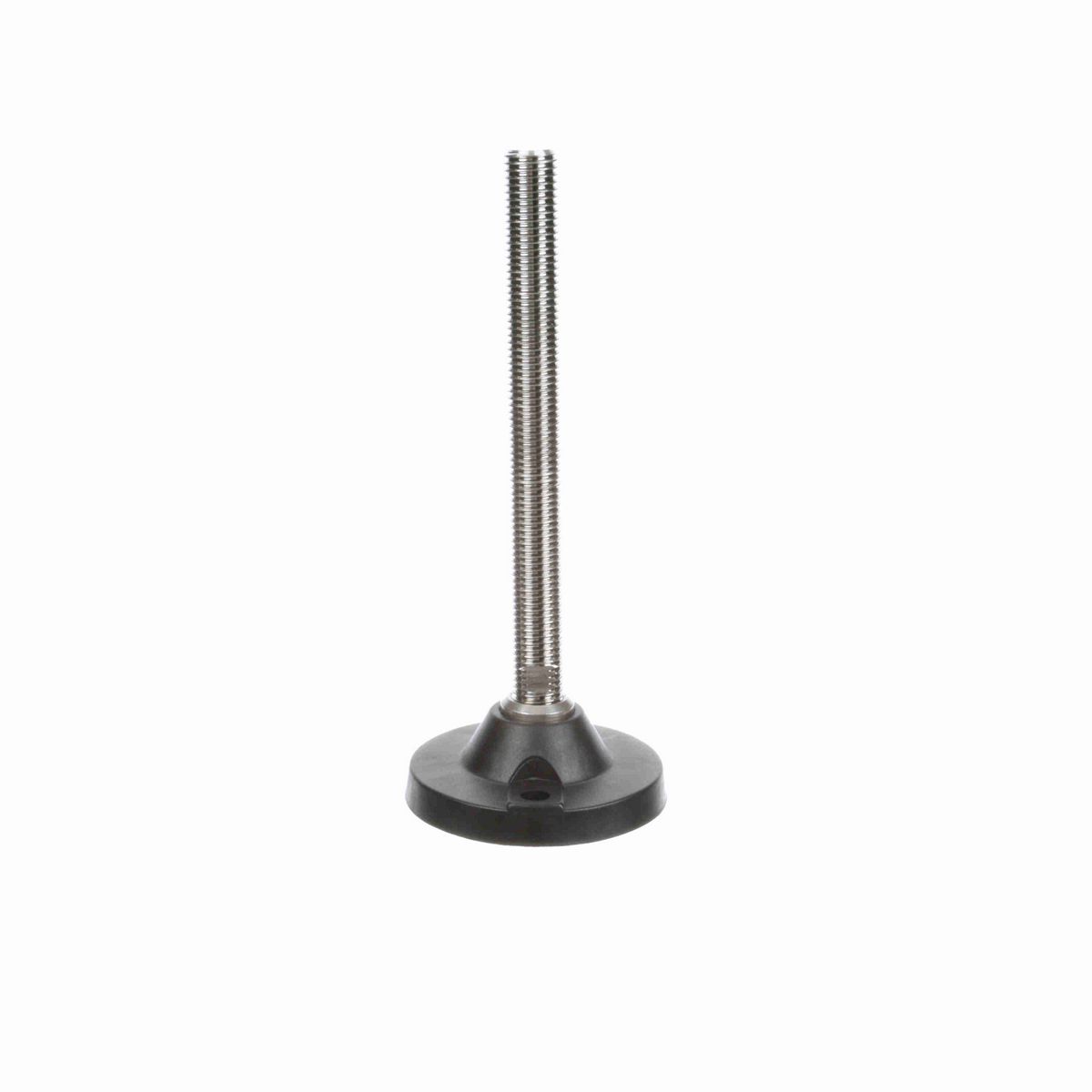

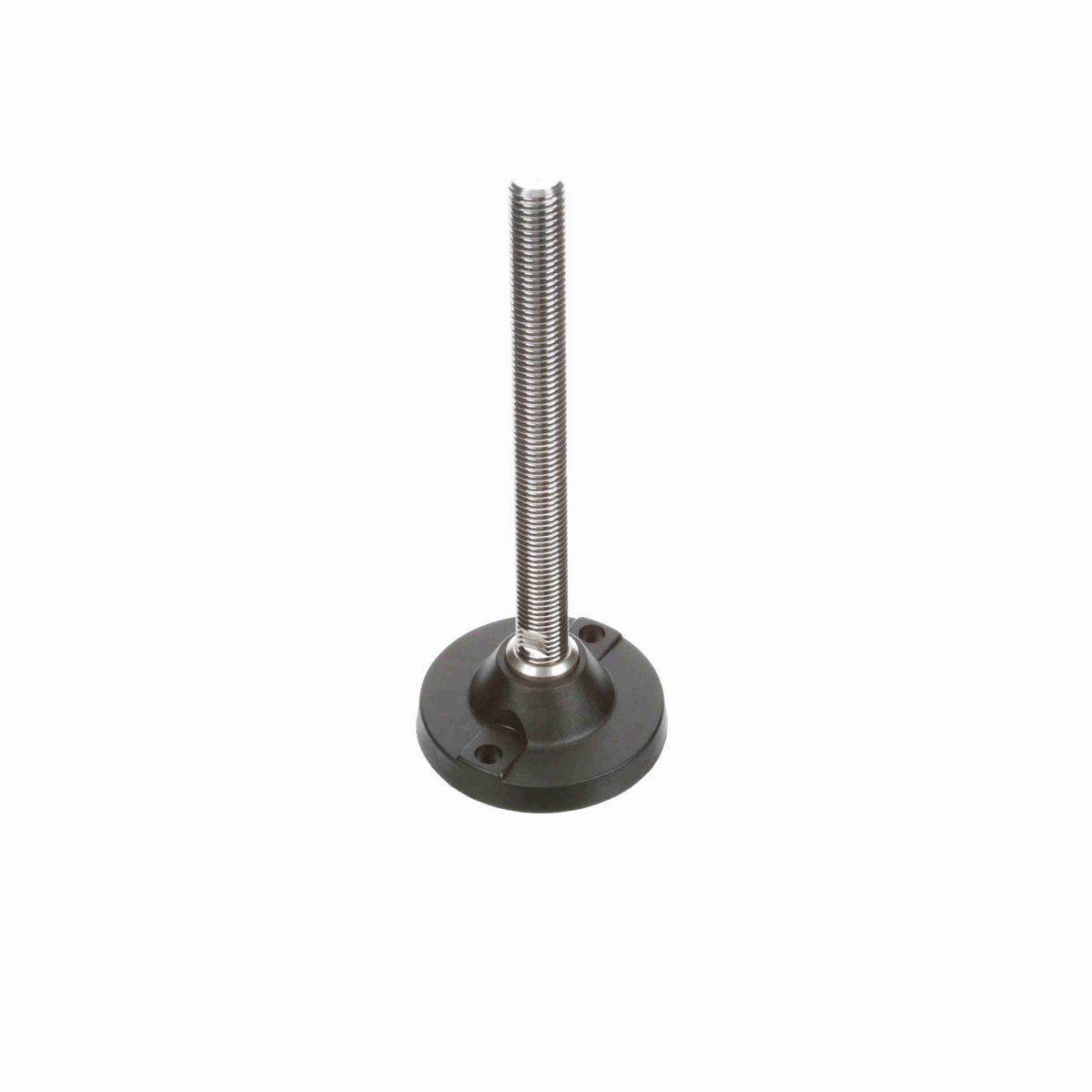

• Reinforced polyamide base, stainless steel stem.
• Heavy duty machinery support with adjusting nut welded to stem.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Type	520-T
Deflection Angle	±5°
Duty Type	Heavy Duty
Leveler Type	Articulating Leveler
Vibration PAD	VG-514 / VG-514N
Product Group	Levelers
Stem Material	Stainless Steel
Component Series	VG-520
Spindle Length (in)	9.34 in
Length (in)	11.95 in
Base Height (in)	0.67 in
Measurement System	Imperial
Base Diameter (in)	4.84 in
Material	POLYAMIDE
Lag Hole Center Distance (in)	3.88 in
Base Height with Pad (in)	0.89 in
Wrench Height (in)	2.85 in
Number of Lag Holes	2
Product Line	Conveying Components
Lag Hole Diameter (in)	0.52 in
Thread (in)	1-8 in
Product Type	Leveler (Polyamide Base)
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	7,000 lb

General Specifications

UPC	787405248915
Weight	2.30 LB
