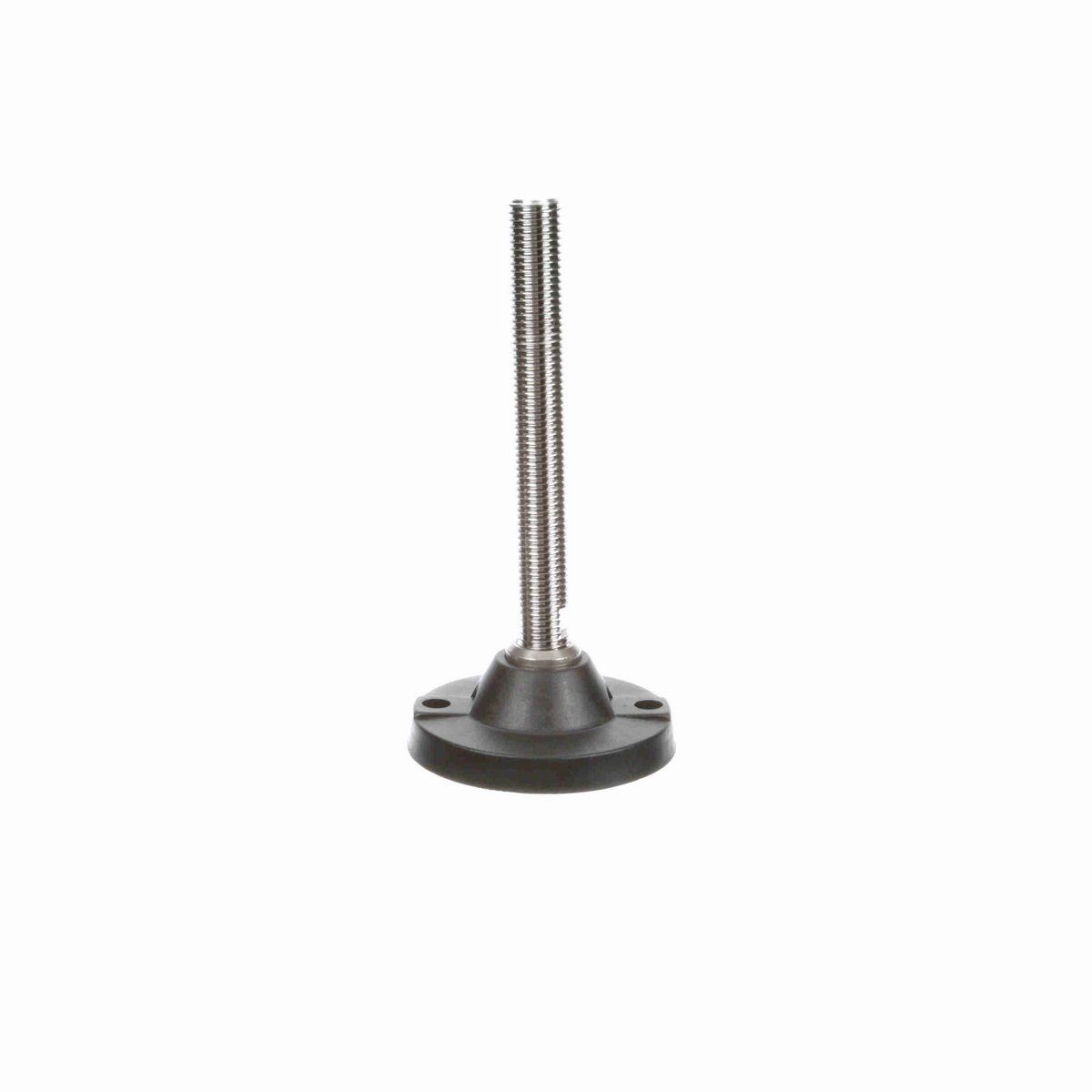

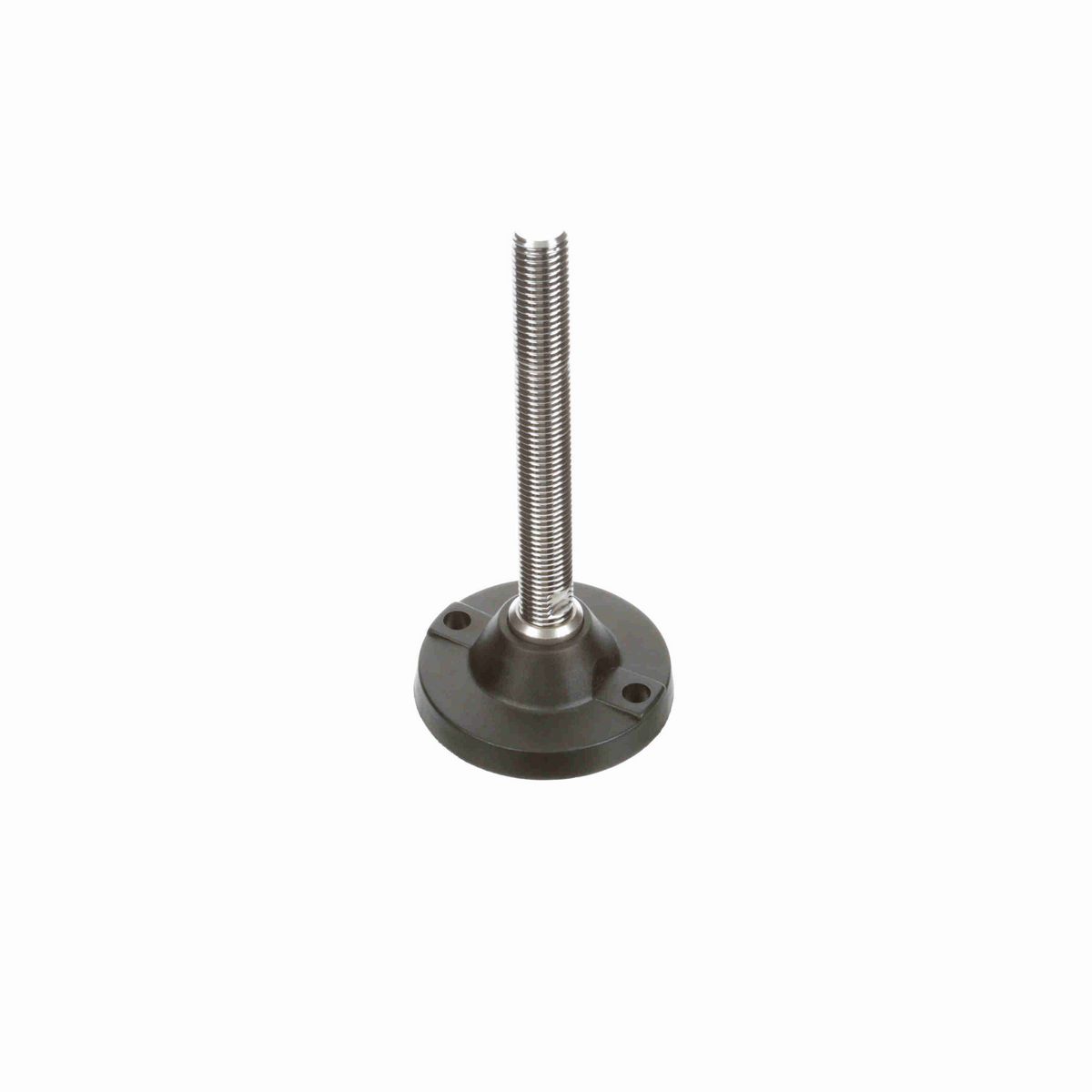

• Reinforced polyamide base, stainless steel stem.
• Heavy duty machinery support with adjusting nut welded to stem.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Duty Type	Heavy Duty
Leveler Type	Articulating Leveler
Deflection Angle	±5°
Type	520-T
Vibration PAD	VG-514 / VG-514N
Measurement System	Imperial
Base Diameter (in)	4.84 in
Stem Material	Stainless Steel
Material	POLYAMIDE
Number of Lag Holes	2
Base Height (in)	0.67 in
Product Type	Leveler (Polyamide Base)
Product Line	Conveying Components
Component Series	VG-520
Spindle Length (in)	7.34 in
Product Group	Levelers
Length (in)	9.95 in
Thread (in)	1-8 in
Base Height with Pad (in)	0.89 in
Wrench Height (in)	2.85 in
Lag Hole Diameter (in)	0.52 in
Lag Hole Center Distance (in)	3.88 in
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Max Recommended Static Load (lb)	7,000 lb
Leveler Operating Type	Adjustable

General Specifications

UPC	787405248892
Weight	2.48 LB
Packaged Length	4.80 IN
Packaged Width	4.80 IN
Packaged Height	11.05 IN
