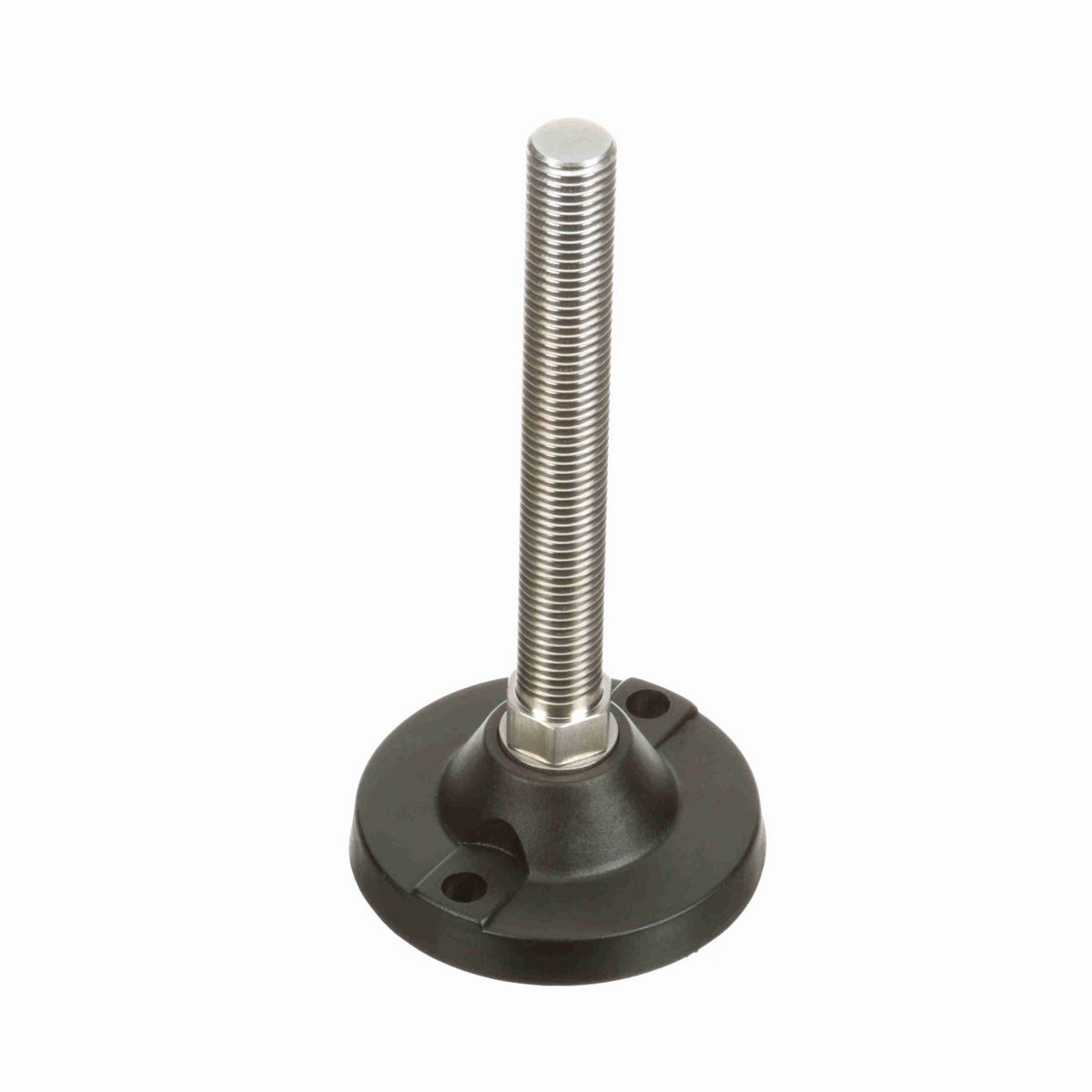

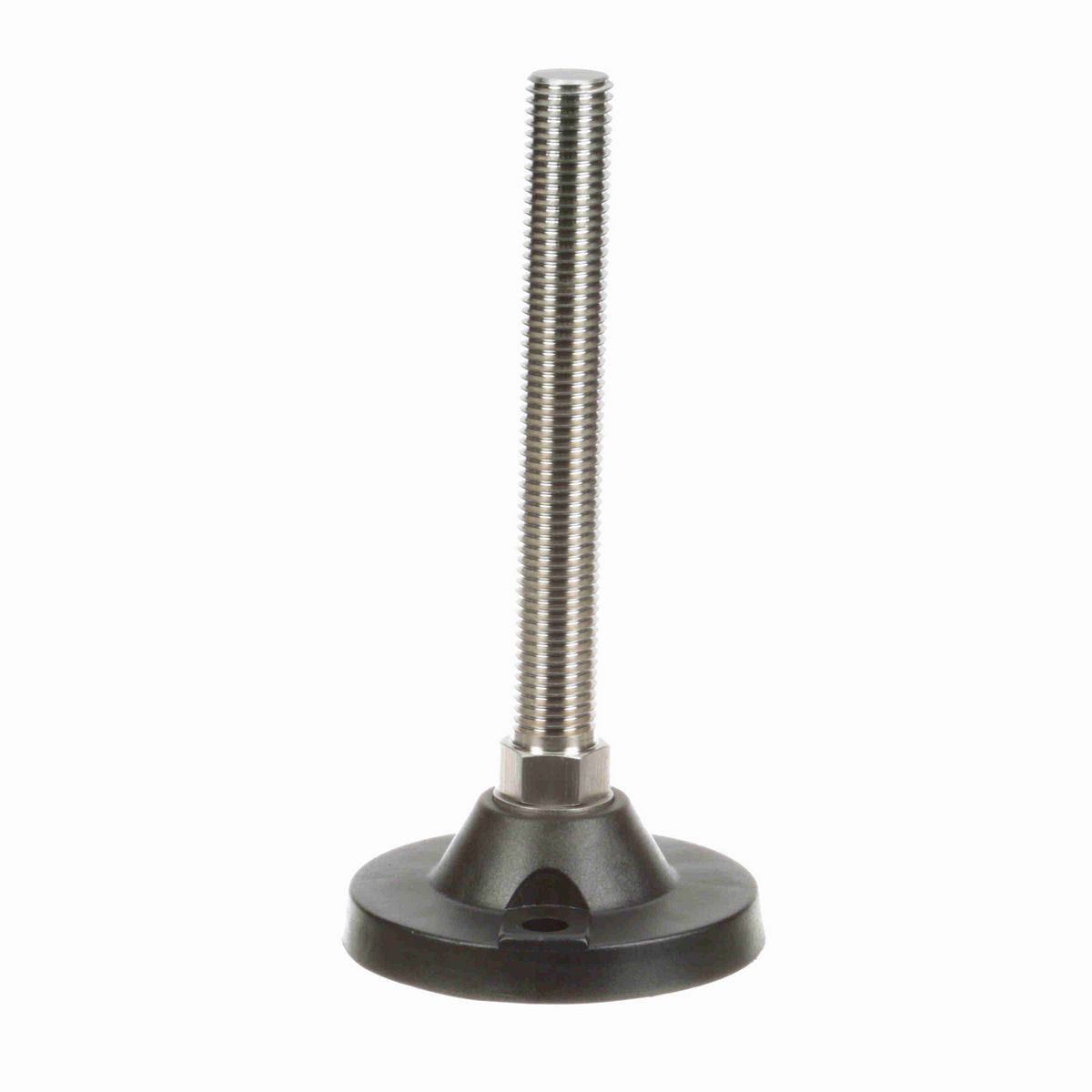

• Reinforced polyamide base, stainless steel stem.
• Heavy duty machinery support with adjusting nut welded to stem.

Technical Specifications

Leveler Type	Support Leveler
Deflection Angle	±2°
Vibration PAD	VG-514 / VG-514N
Type	520
Duty Type	Heavy Duty
Length (in)	10.07 in
Product Type	Leveler (Polyamide Base)
Lag Hole Diameter (in)	0.52 in
Product Line	Conveying Components
Lag Hole Center Distance (in)	3.88 in
Base Height (in)	0.67 in
Product Group	Levelers
Base Height with Pad (in)	0.89 in
Number of Lag Holes	2
Wrench Height (in)	2.61 in
Base Diameter (in)	4.84 in
Measurement System	Imperial
Material	POLYAMIDE
Spindle Length (in)	7.46 in
Thread (in)	1-8 in
Stem Material	Stainless Steel
Component Series	VG-520
Application	Machinery Support with adjusting nut welded to stem.
Max Recommended Static Load (lb)	7,000 lb
Leveler Operating Type	Adjustable

General Specifications

UPC	787405248854
Weight	2.40 LB
