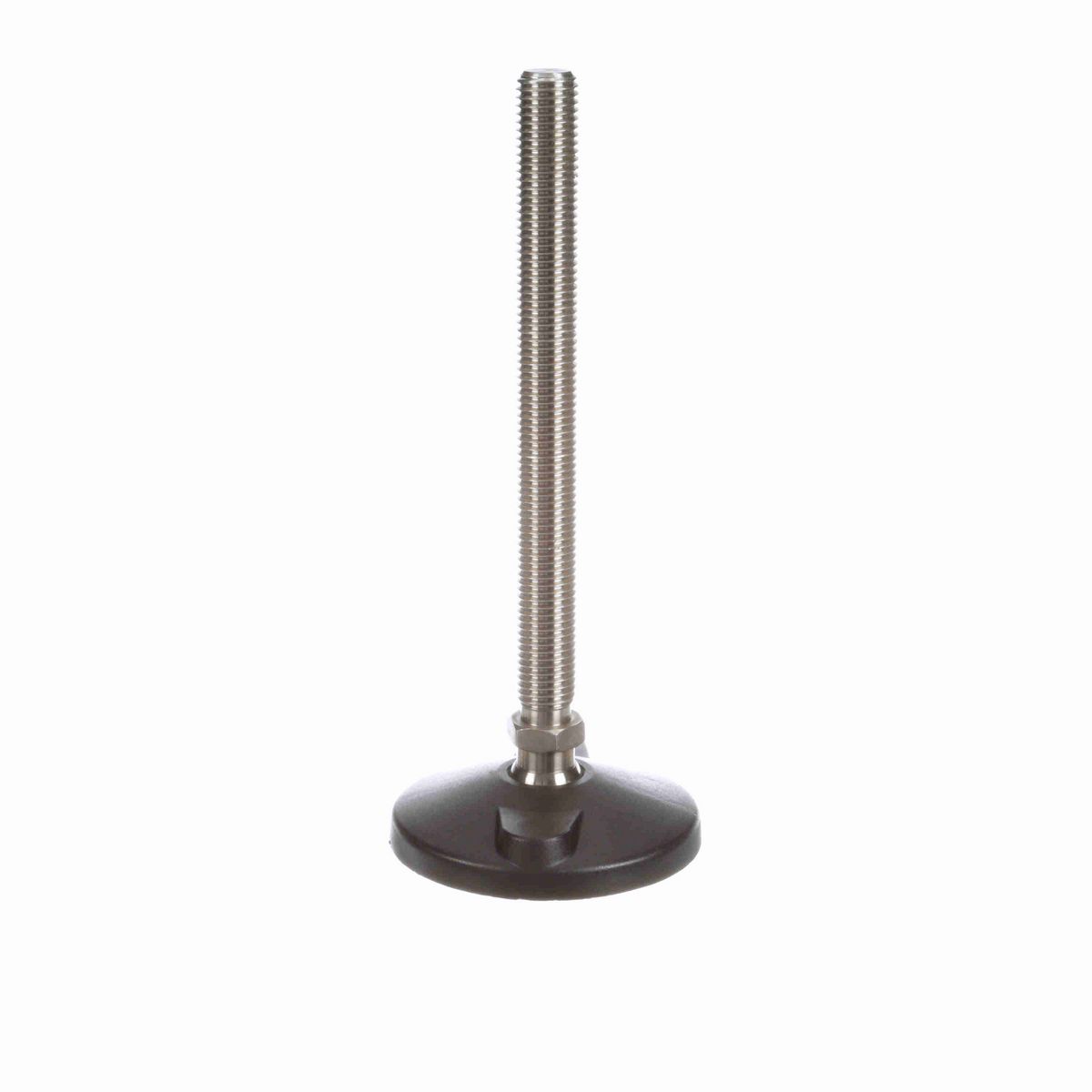

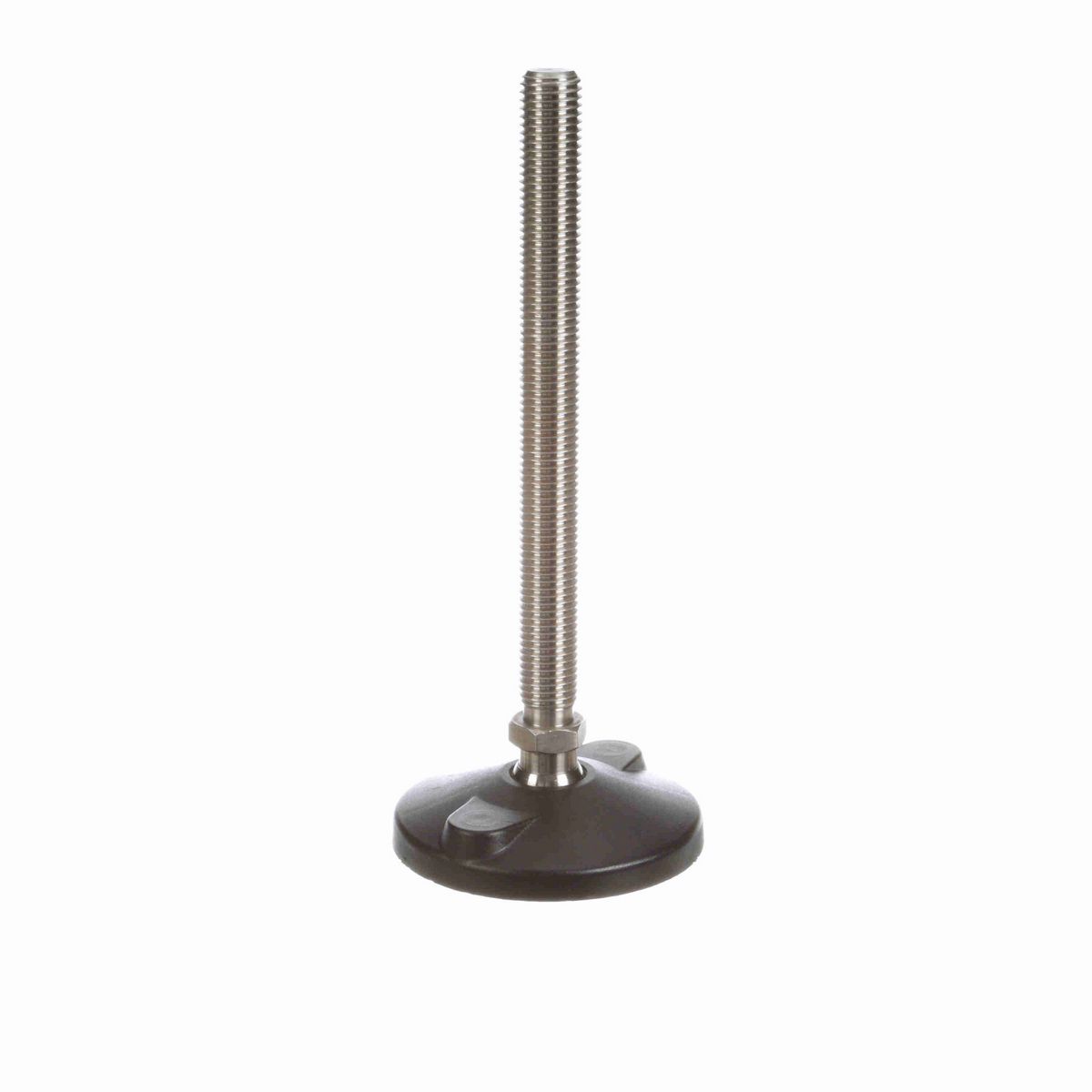

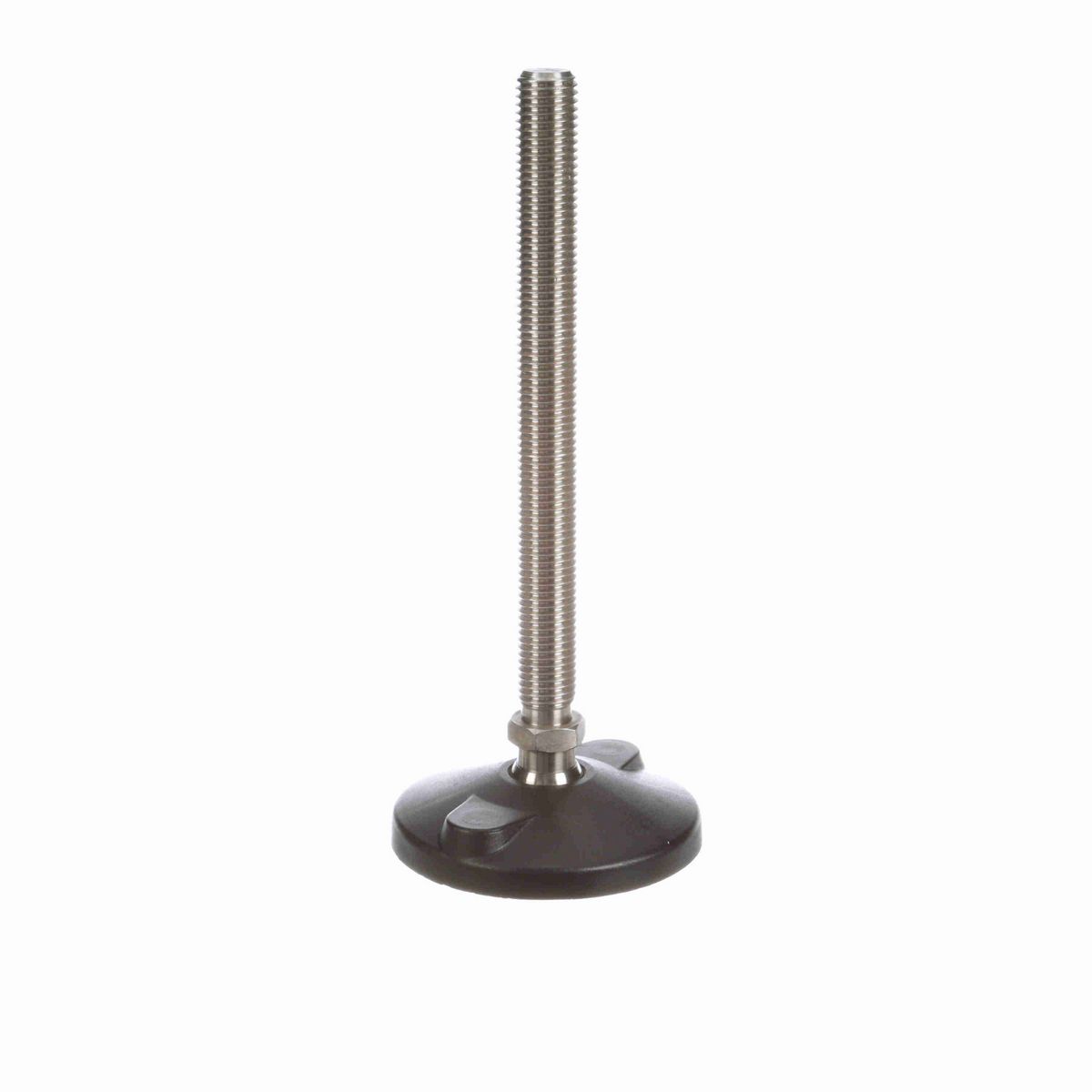

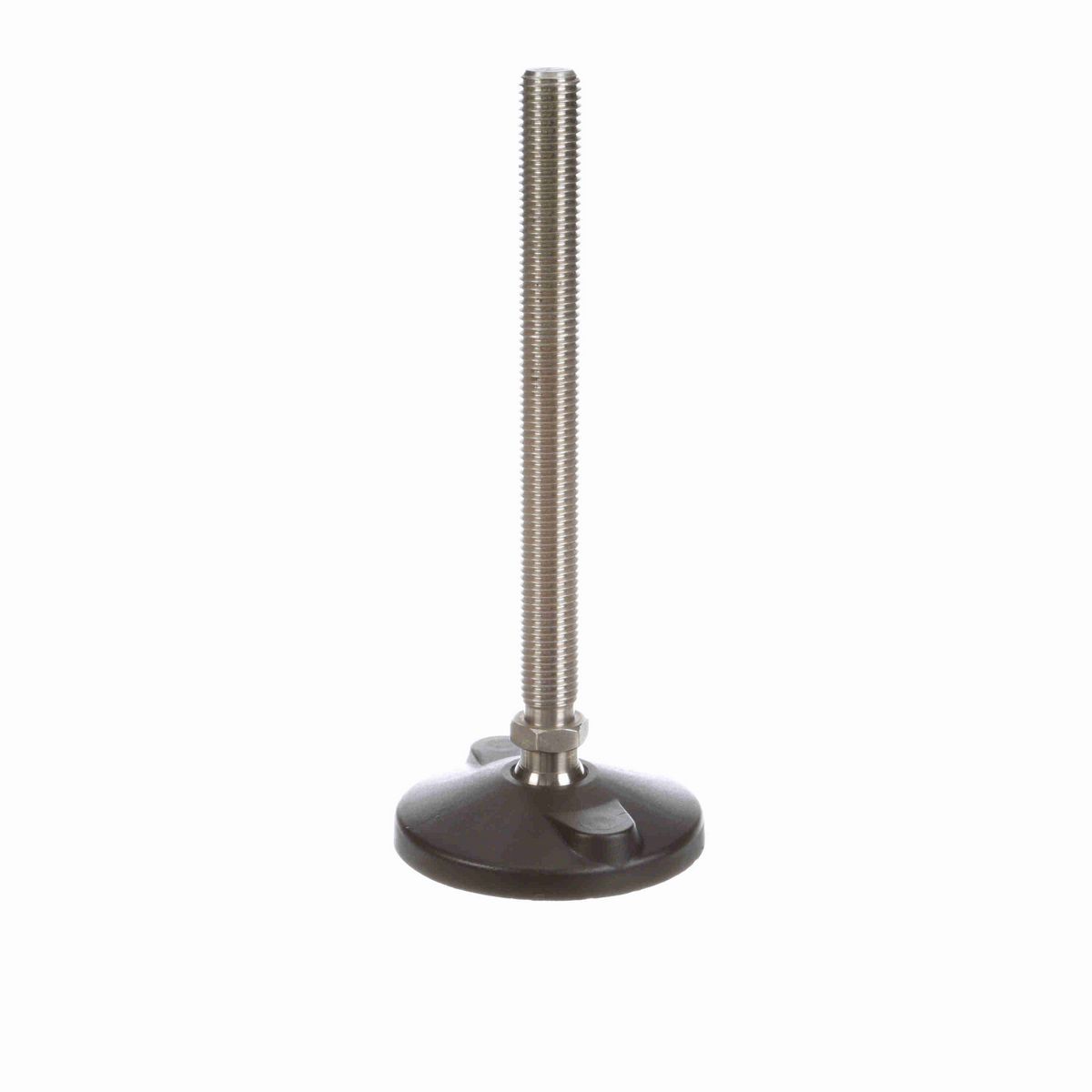

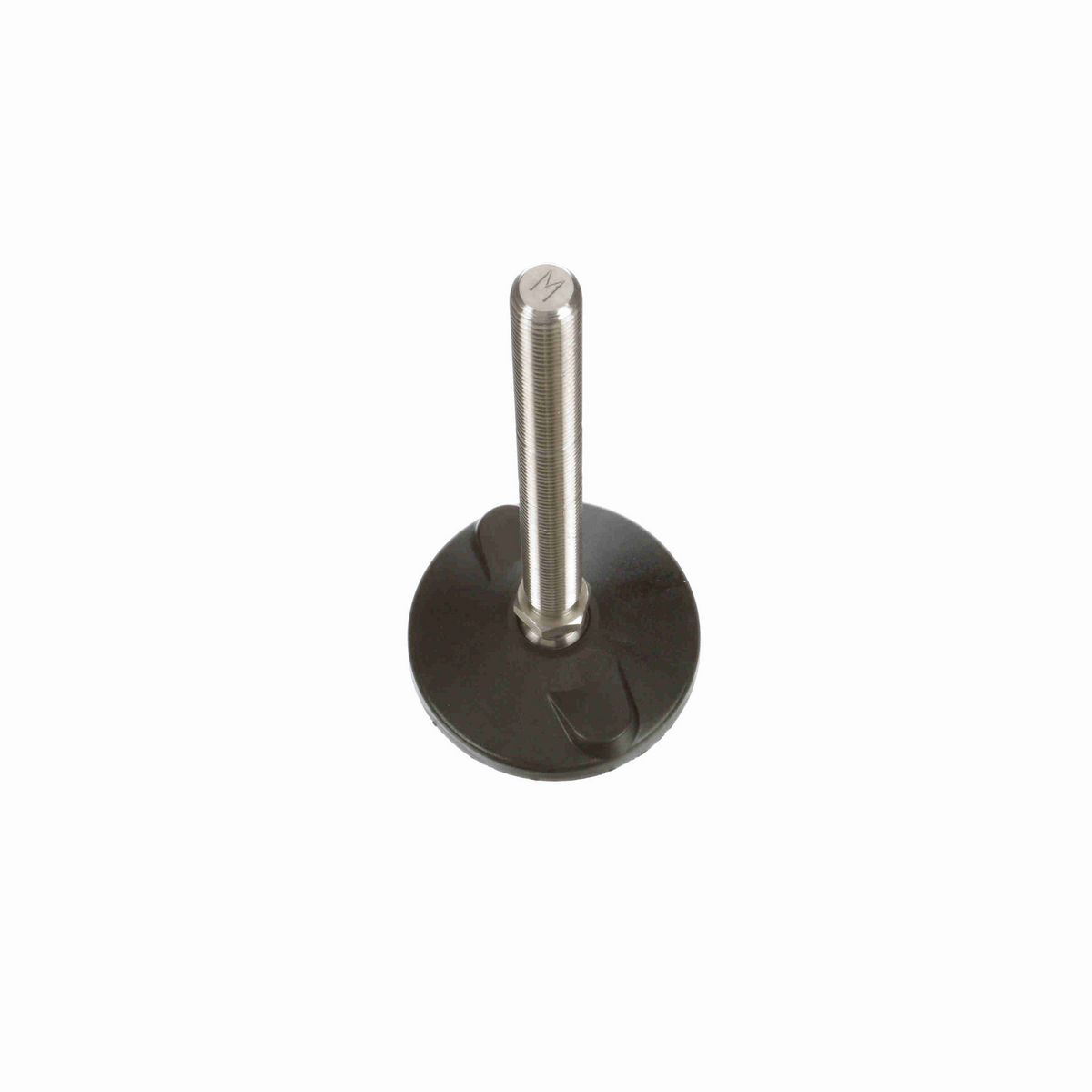

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Hex head at bottom of stem for easy adjustment and skimmed lag holes for optional use of holes for anchoring.

Technical Specifications

Leveler Type	Articulating Leveler
Stem Thread	M20
Vibration PAD	VG-512
Thread (mm)	M20 mm
Lag Hole Center Distance (in)	2.92 in
Product Line	Conveying Components
Product Group	Levelers
Spindle Length (in)	8.35 in
Base Height (in)	0.73 in
Stem Material	Stainless Steel
Length (in)	9.95 in
Measurement System	Universal
Lag Hole Diameter (in)	0.48 in
Base Diameter (in)	4 in
Component Series	VG-511
Base Height with Pad (in)	0.83 in
Material	POLYAMIDE
Number of Skinned Lag Holes	2
Product Type	Leveler (Polyamide Base)
Application	Conveyor and machinery support.
Static Load (lb)	2,600 lb
Misalignment Angle	±15°

General Specifications

UPC	787405493902
Weight	1.36 LB
