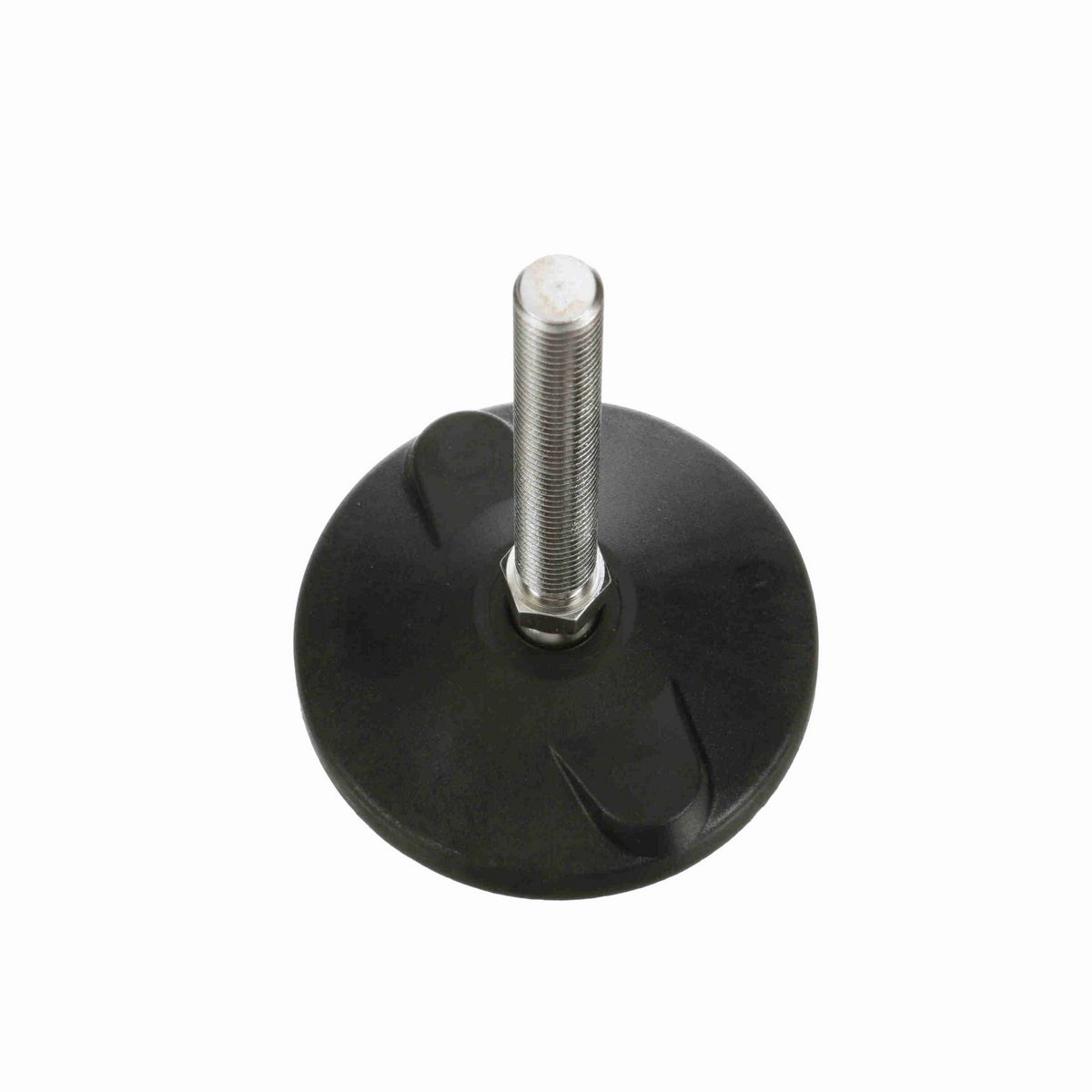

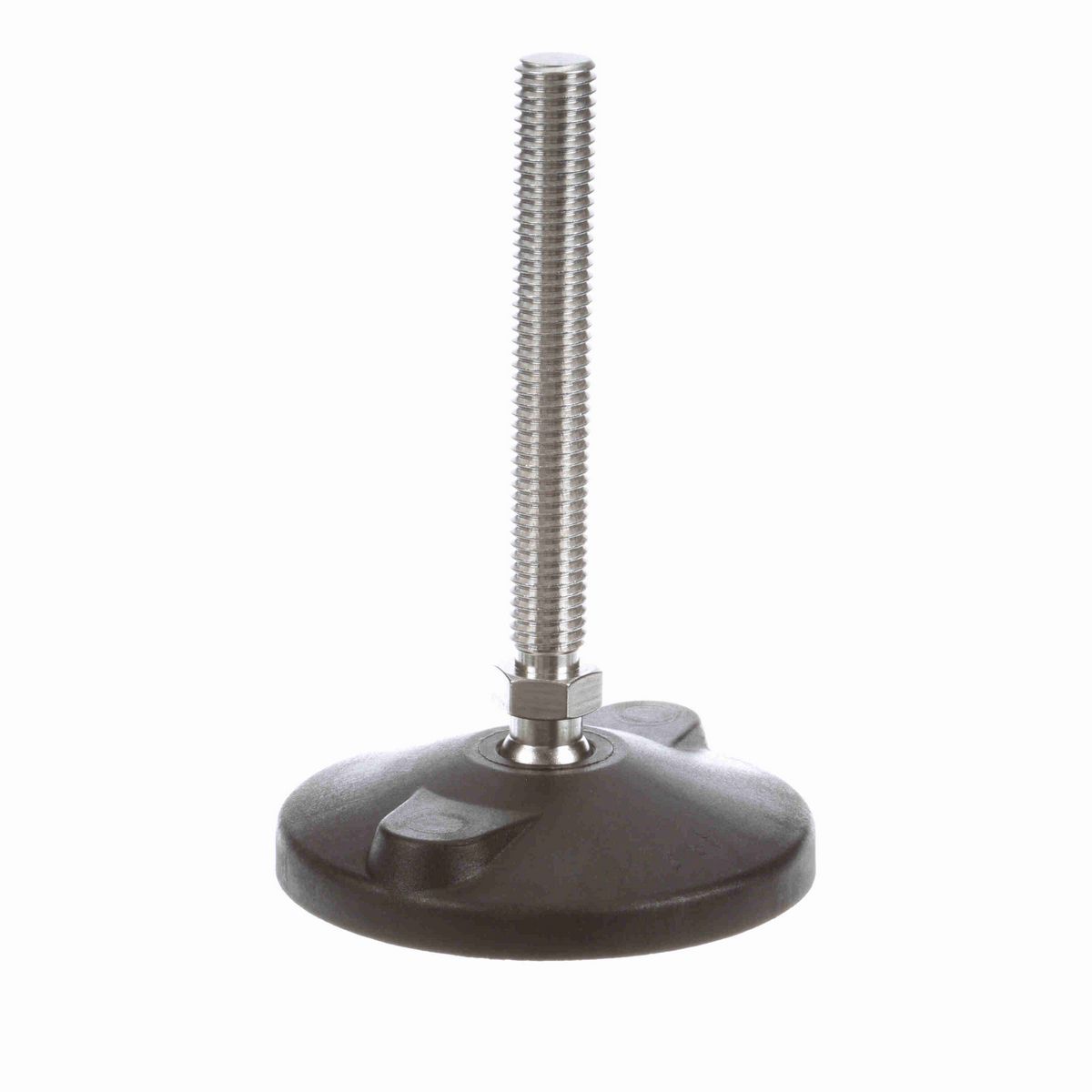

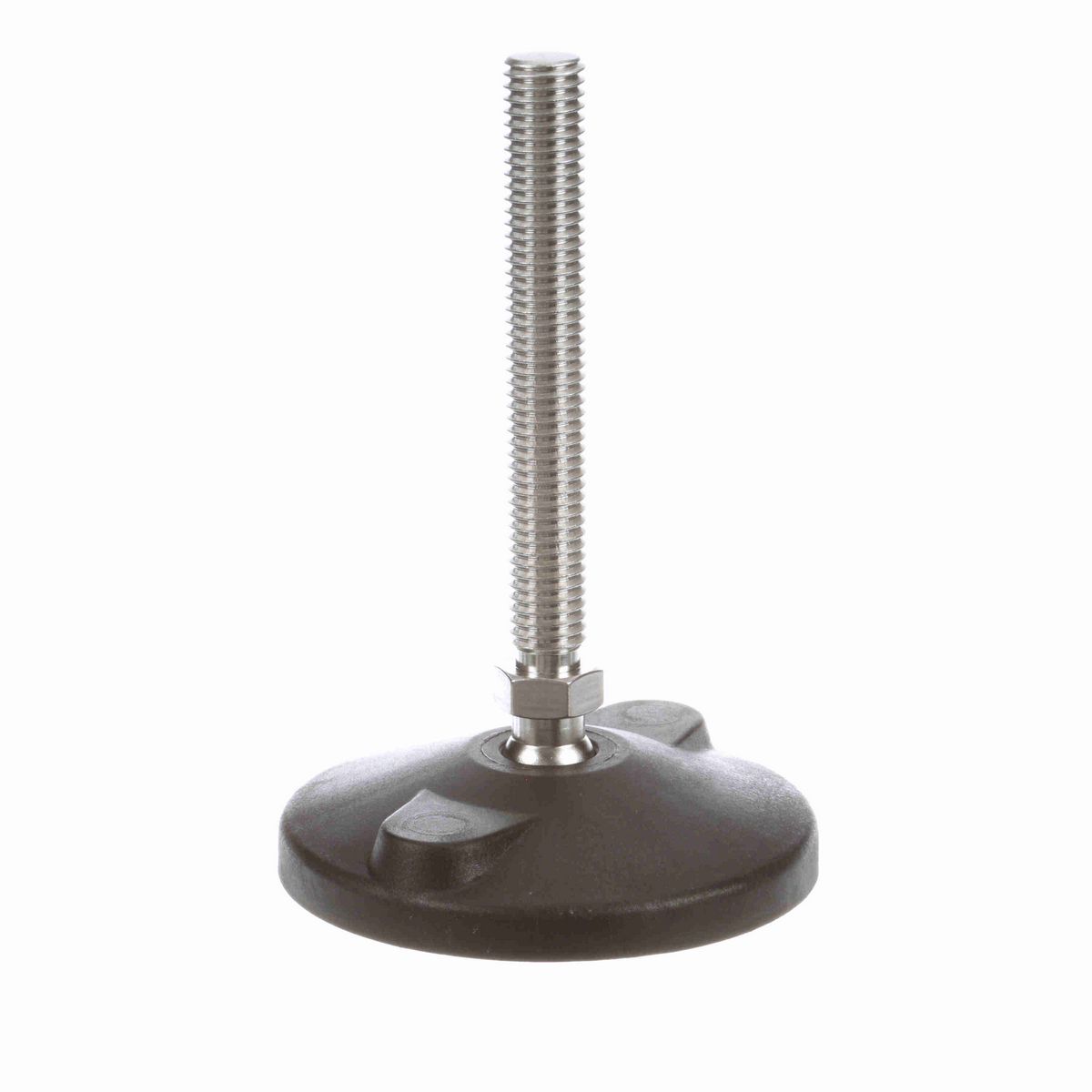

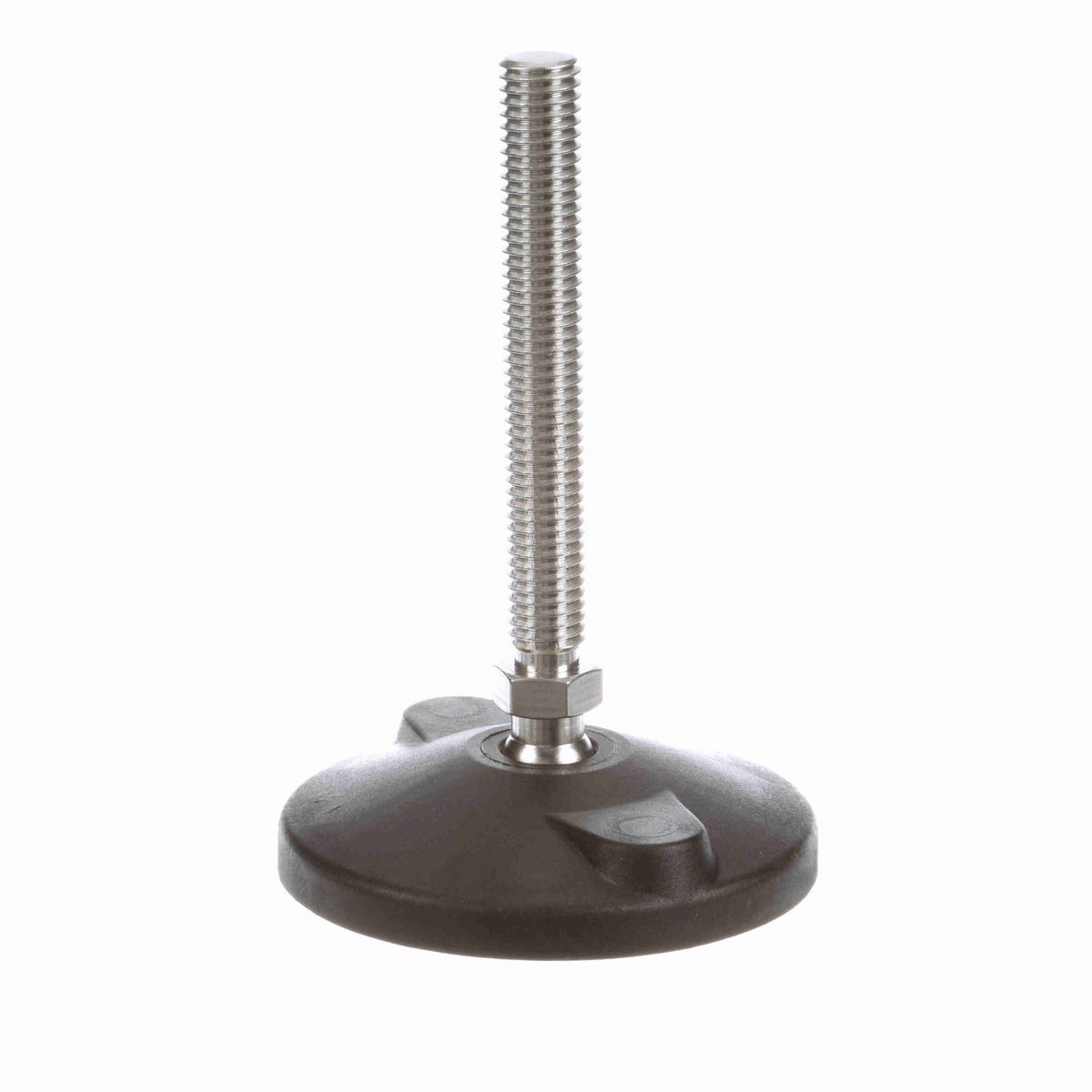

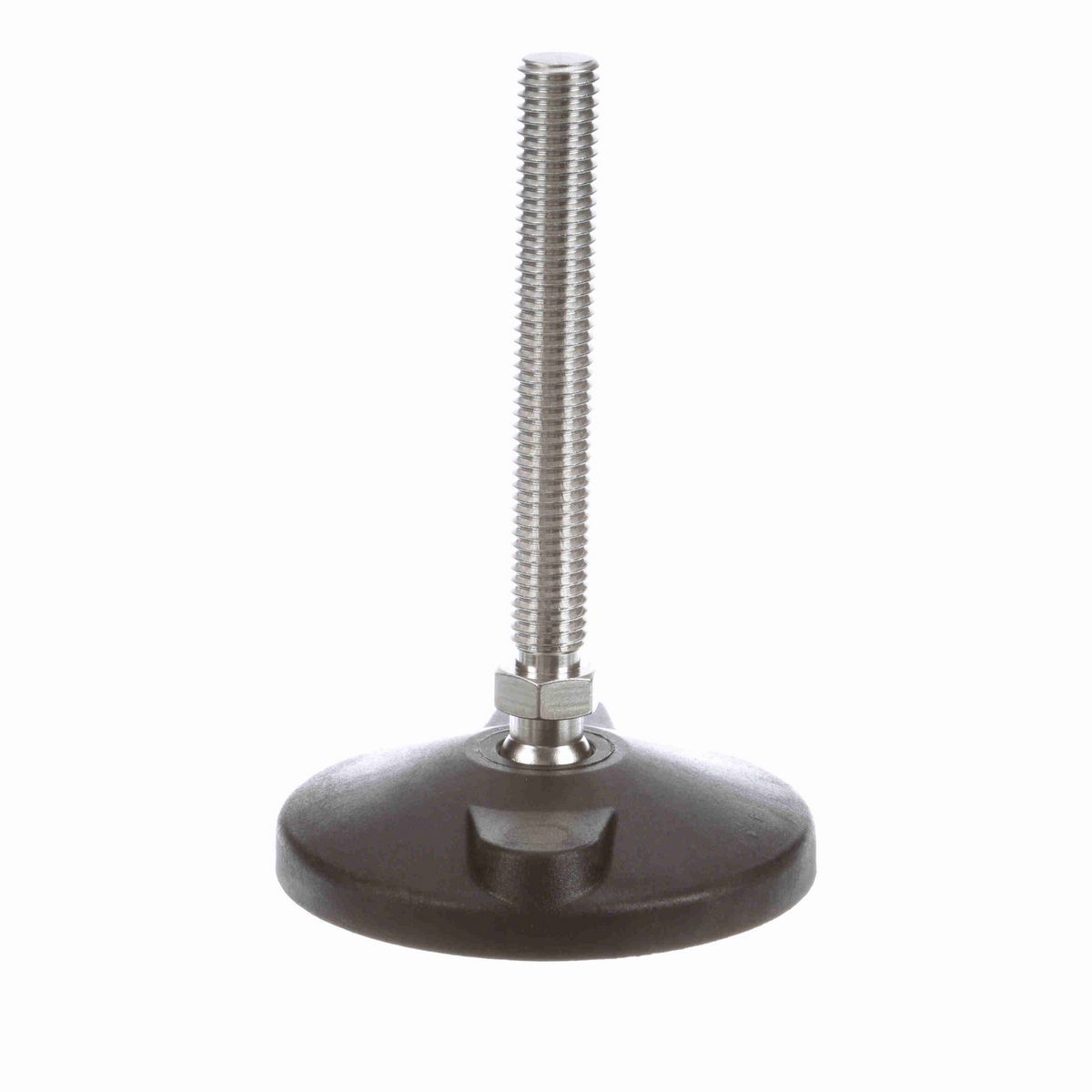

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Hex head at bottom of stem for easy adjustment.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Vibration PAD	VG-512
Duty Type	Medium Duty
Type	511H-T
Deflection Angle	±5°
Series	Loc-A-Lign
Leveler Type	Articulating Leveler
Number of Skinned Lag Holes	2
Product Line	Conveying Components
Component Series	VG-511
Material	POLYAMIDE
Product Type	Leveler (Polyamide Base)
Base Diameter (in)	4 in
Length (in)	6.15 in
Measurement System	Imperial
Stem Material	Stainless Steel
Thread (in)	5/8-11 in
Base Height (in)	0.73 in
Spindle Length (in)	4.55 in
Lag Hole Center Distance (in)	2.92 in
Lag Hole Diameter (in)	0.48 in
Product Group	Levelers
Base Height with Pad (in)	0.83 in
Wrench Height (in)	1.6 in
Application	Conveyor and machinery support.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	2,600 lb

General Specifications

UPC	787405493889
Weight	0.63 LB
