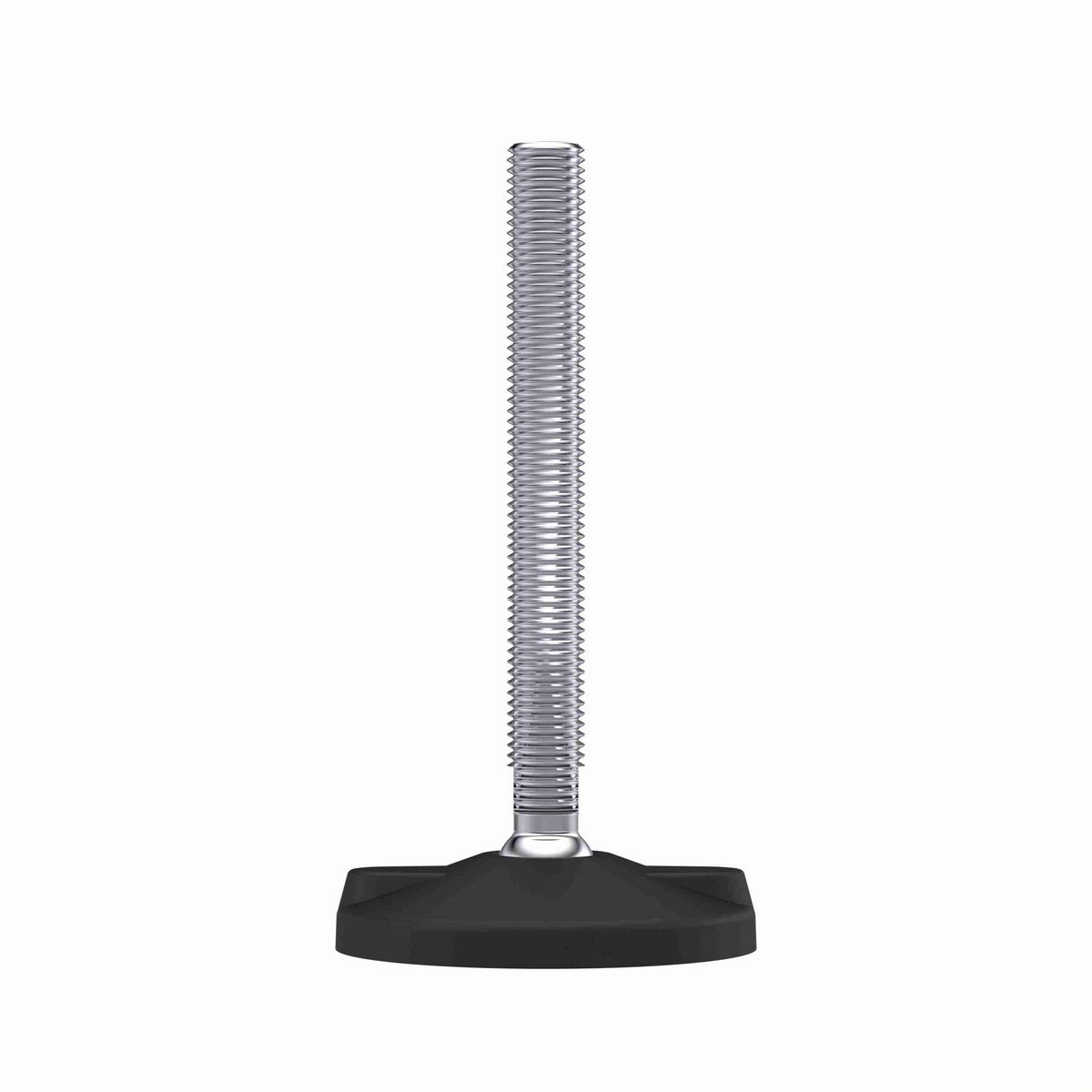

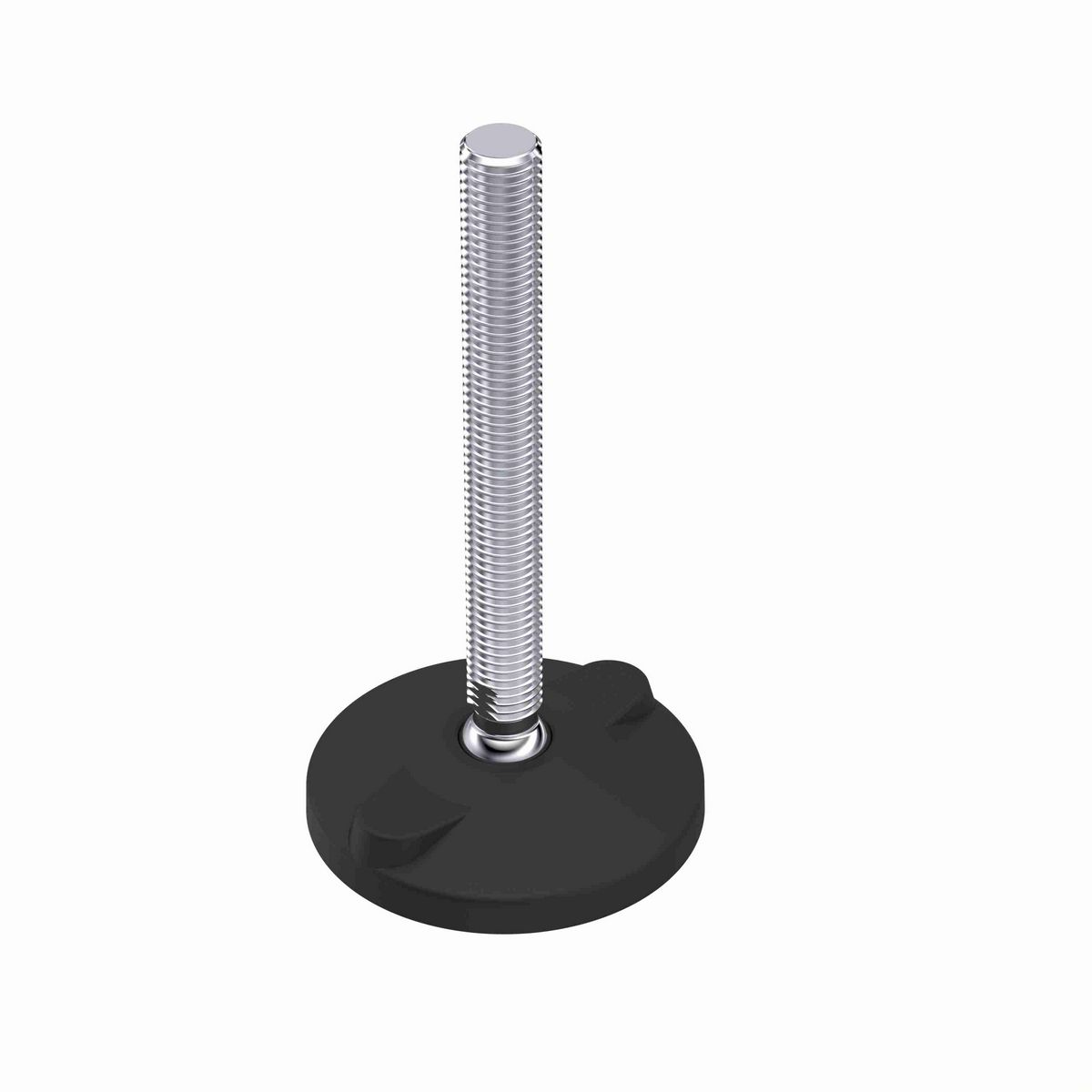

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Hex head at bottom of stem for easy adjustment and skimmed lag holes for optional use of holes for anchoring.

Technical Specifications

Vibration PAD	VG-512
Stem Thread	3/4-10
Measurement System	Imperial
Product Type	Leveler (Polyamide Base)
Product Line	Conveying Components
Base Diameter (in)	4 in
Material	POLYAMIDE
Thread (in)	3/4-10 in
Leveler Type	Articulating Leveler
Product Group	Levelers
Base Height (in)	0.73 in
Length (in)	7.69 in
Lag Hole Diameter (in)	0.48 in
Component Series	VG-511
Spindle Length (in)	6.09 in
Stem Material	Stainless Steel
Base Height with Pad (in)	0.83 in
Number of Skinned Lag Holes	2
Lag Hole Center Distance (in)	2.92 in
Static Load (lb)	2,600 lb
Misalignment Angle	±15°

General Specifications

UPC	787405493858
Weight	1.30 LB
