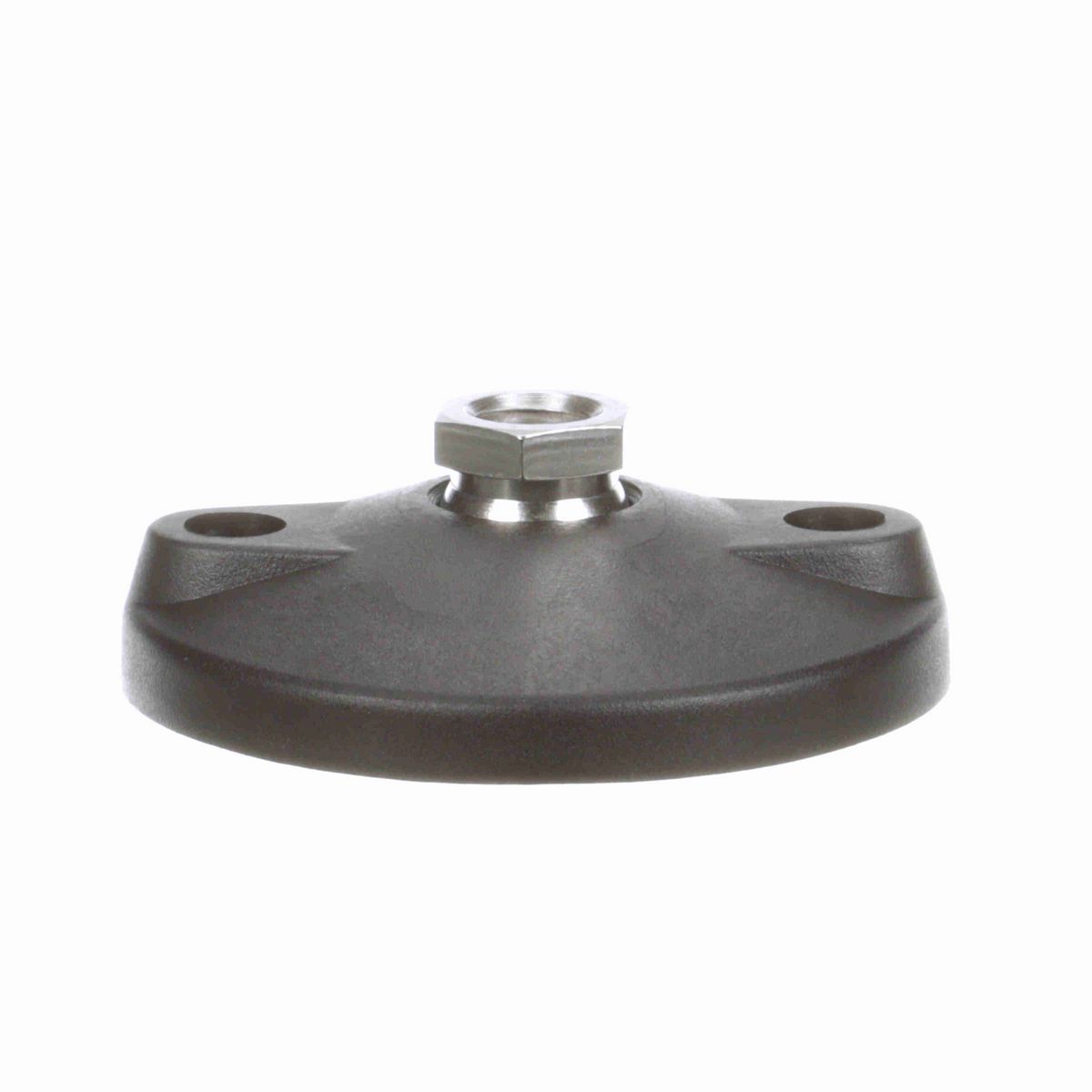

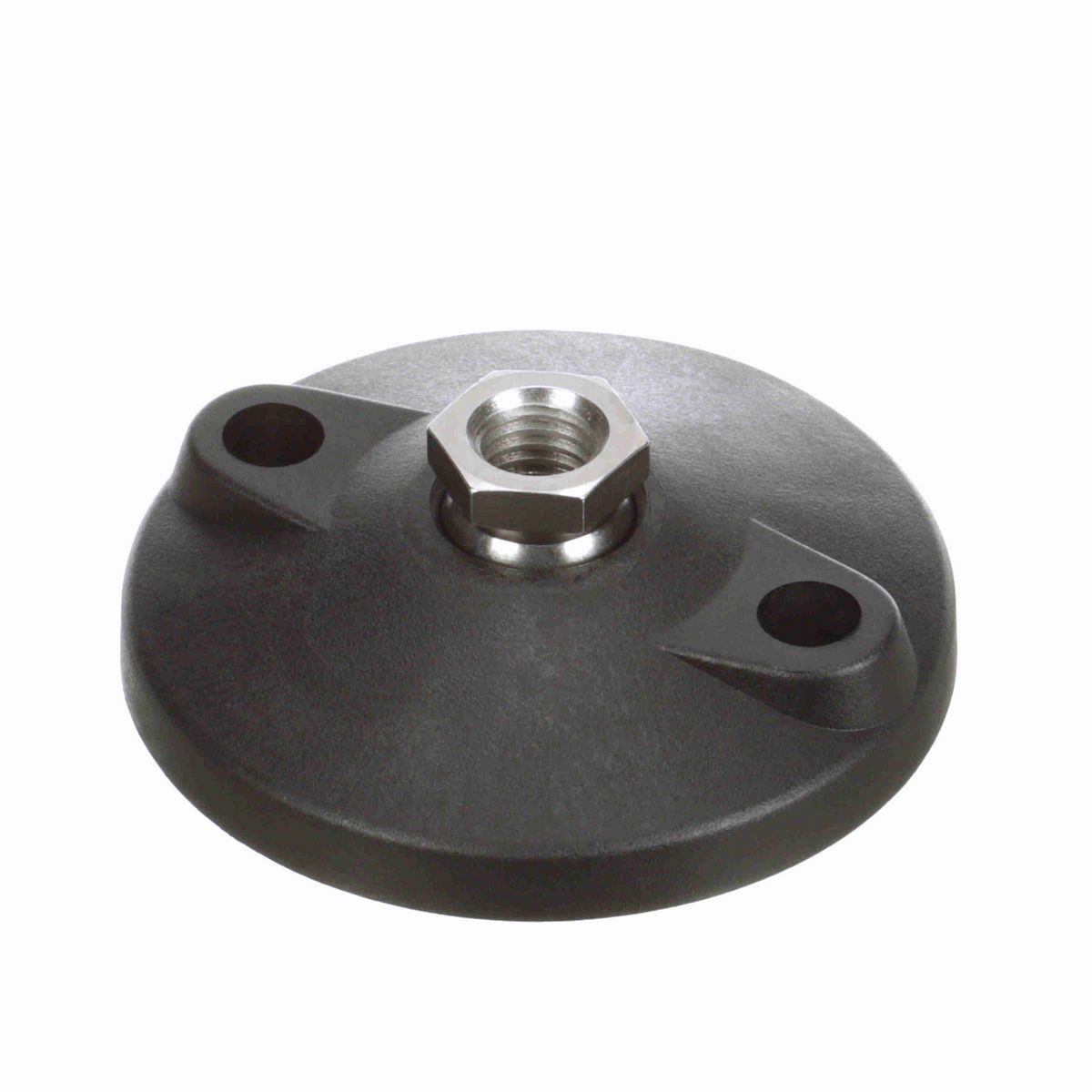

• Reinforced polyamide base, stainless steel threaded ball.
• Valu Guide socket style levelers can be used on existing studs or with Valu Guide threaded rod to fabricate custom stem lengths.
• Two lag holes for anchoring to floor.

Technical Specifications

Lag Hole Diameter (in)	0.48 in
Thread (in)	5/8-11 in
Base Height with Pad (in)	0.83 in
Length (in)	1.35 in
Lag Hole Center Distance (in)	2.92 in
Product Group	Levelers
Base Height (in)	0.73 in
Material	POLYAMIDE
Product Type	Leveler (Polyamide Base)
Component Series	VG-511
Stem Material	Stainless Steel
Product Line	Conveying Components
Measurement System	Universal
Number of Lag Holes	2
Base Diameter (in)	4 in
Static Load (lb)	2,600 lb
Misalignment Angle	±15°

General Specifications

UPC	787405246690
Weight	0.30 LB
