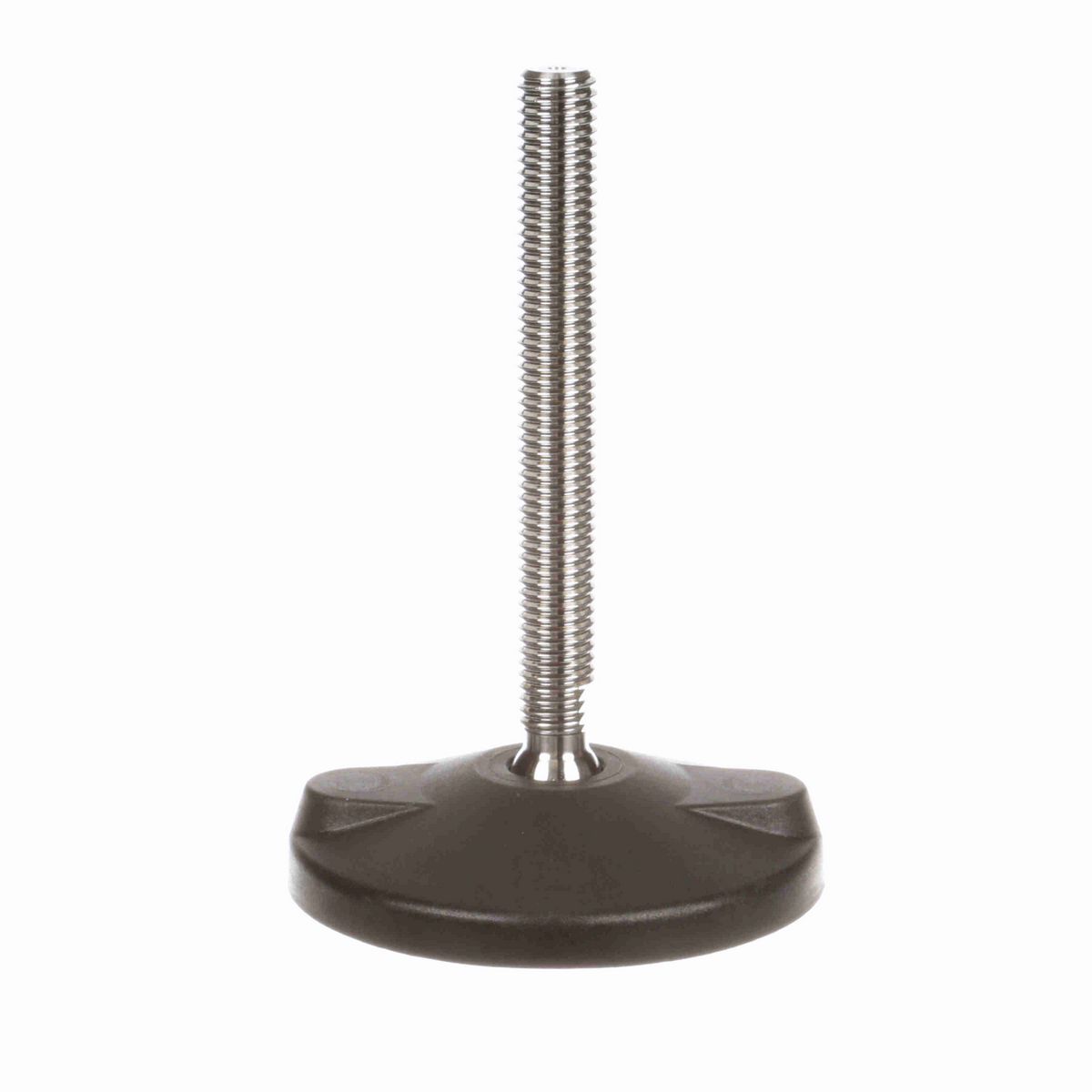

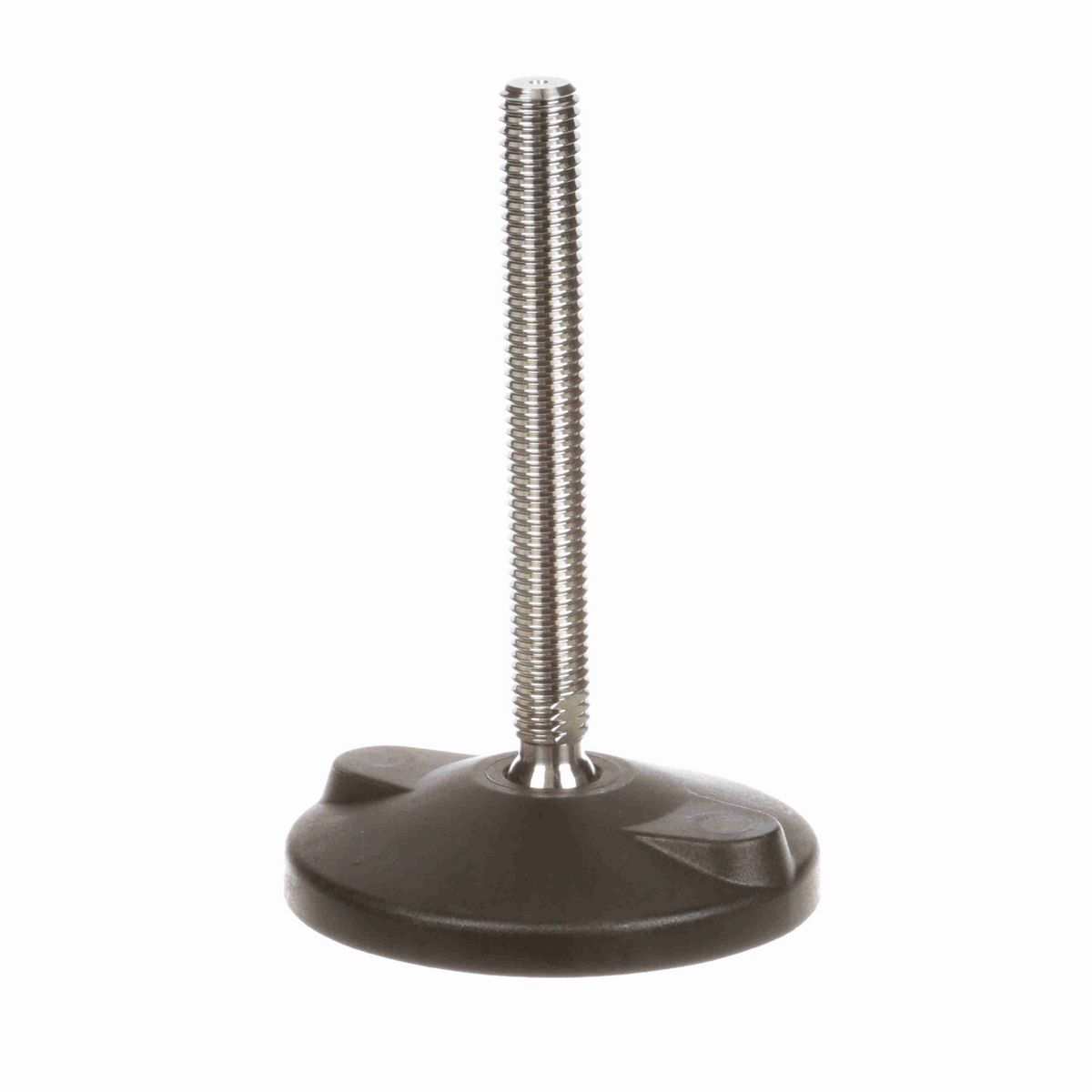

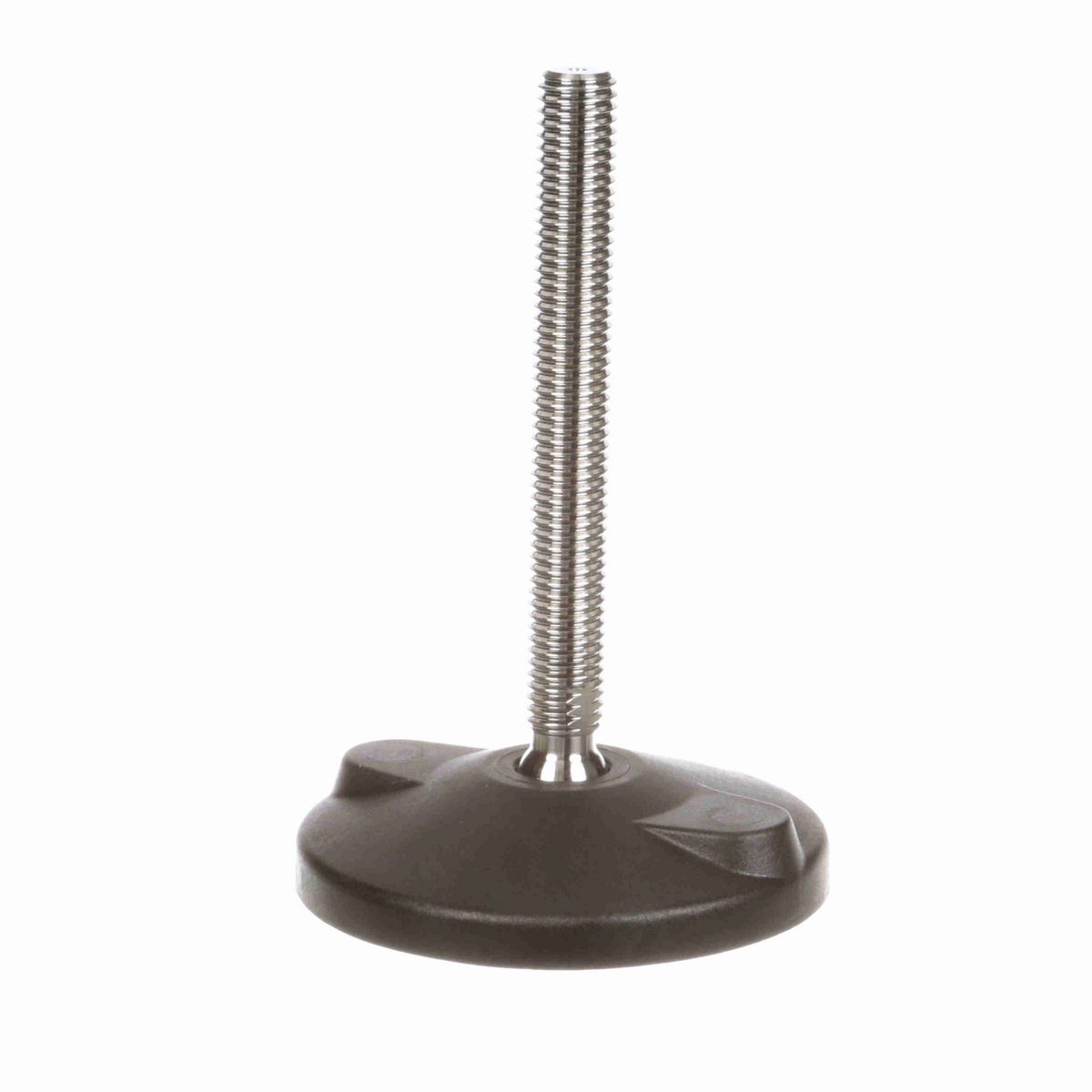

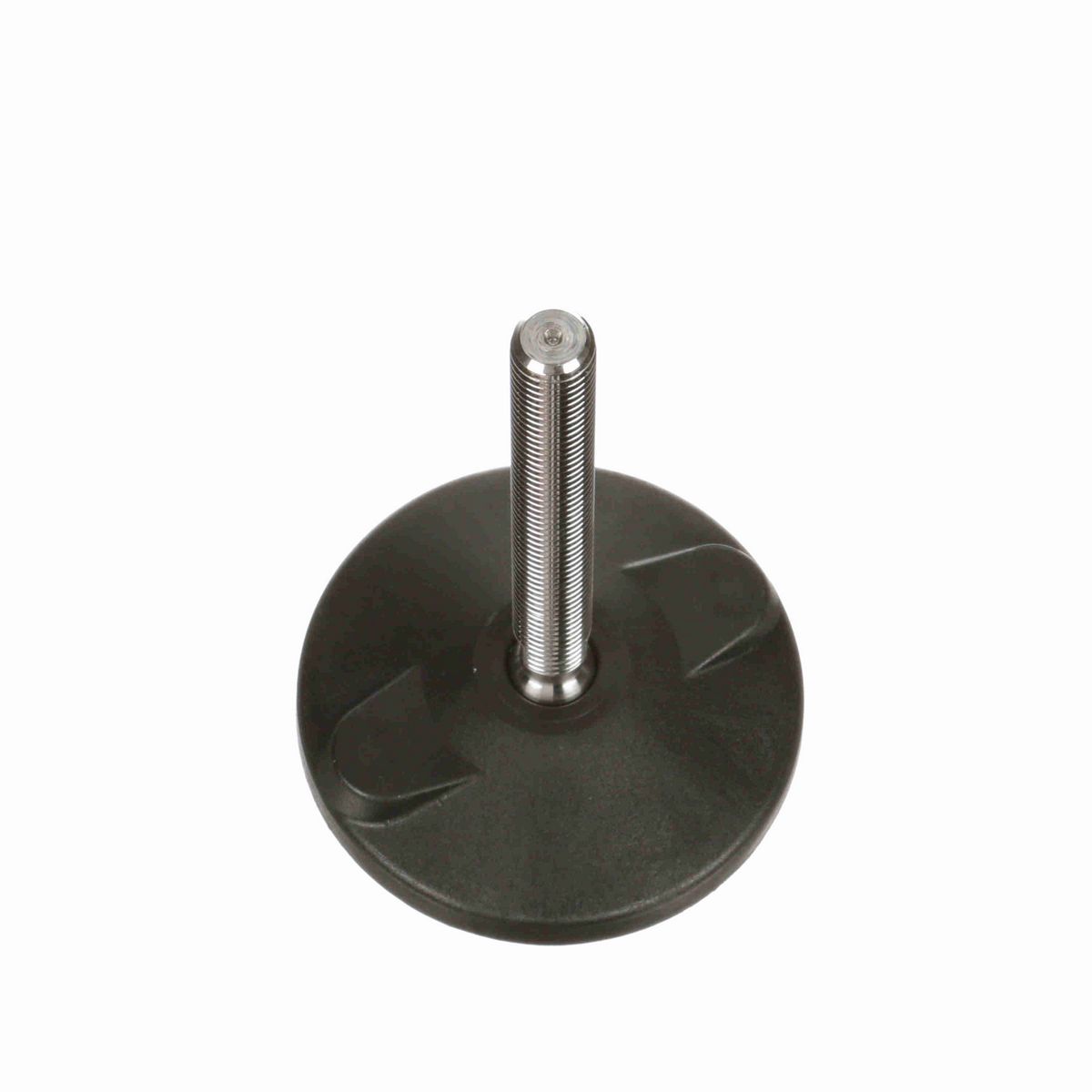

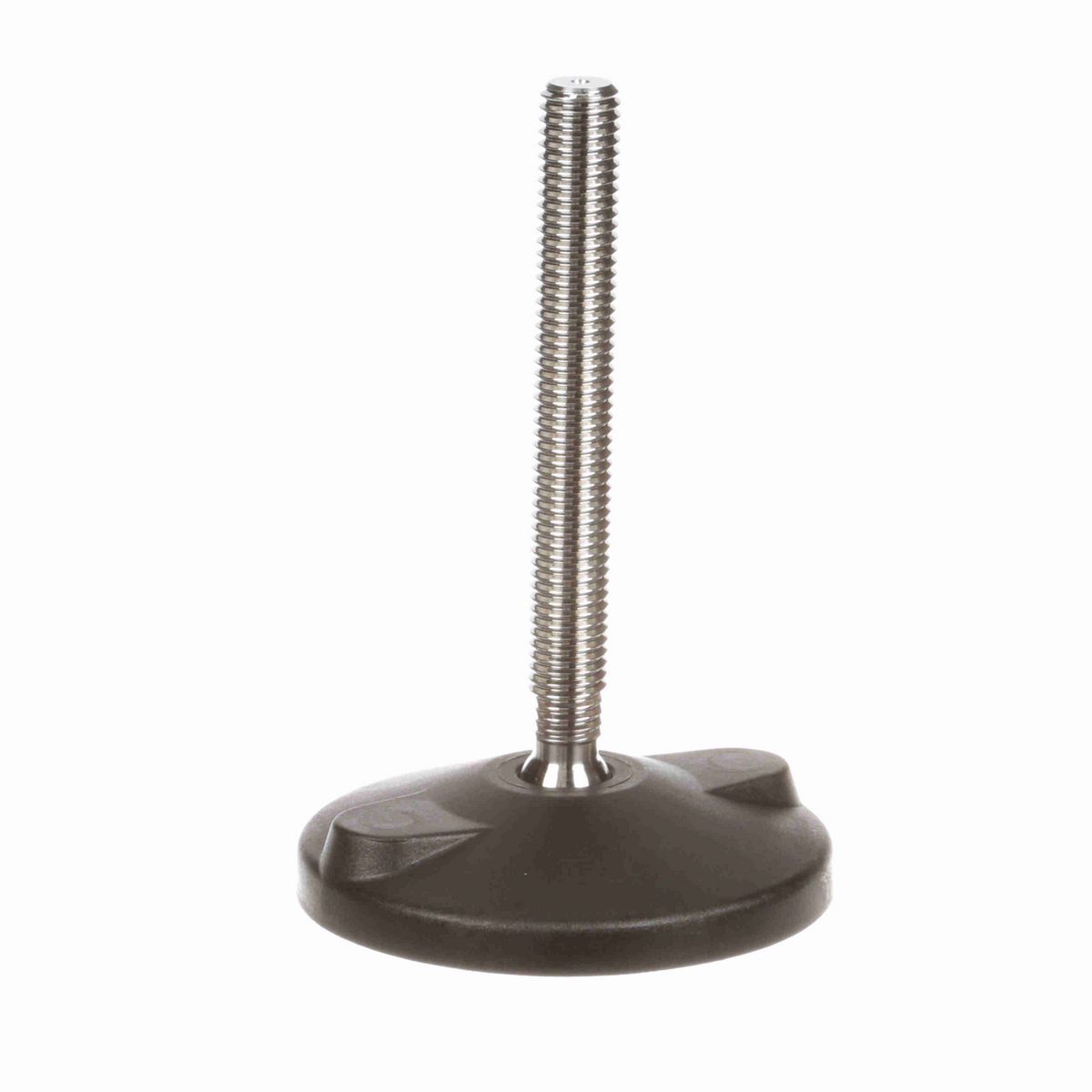

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Duty Type	Medium Duty
Vibration PAD	VG-512
Deflection Angle	±5°
Type	511-T
Leveler Type	Articulating Leveler
Component Series	VG-511
Number of Skinned Lag Holes	2
Lag Hole Center Distance (in)	2.92 in
Base Height (in)	0.73 in
Material	POLYAMIDE
Product Line	Conveying Components
Product Group	Levelers
Spindle Length (in)	4.6 in
Base Diameter (in)	4 in
Measurement System	Imperial
Base Height with Pad (in)	0.83 in
Stem Material	Stainless Steel
Product Type	Leveler (Polyamide Base)
Wrench Height (in)	1.6 in
Thread (in)	5/8-11 in
Lag Hole Diameter (in)	0.48 in
Length (in)	6.2 in
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	2,600 lb

General Specifications

UPC	787405492202
Weight	0.61 LB
