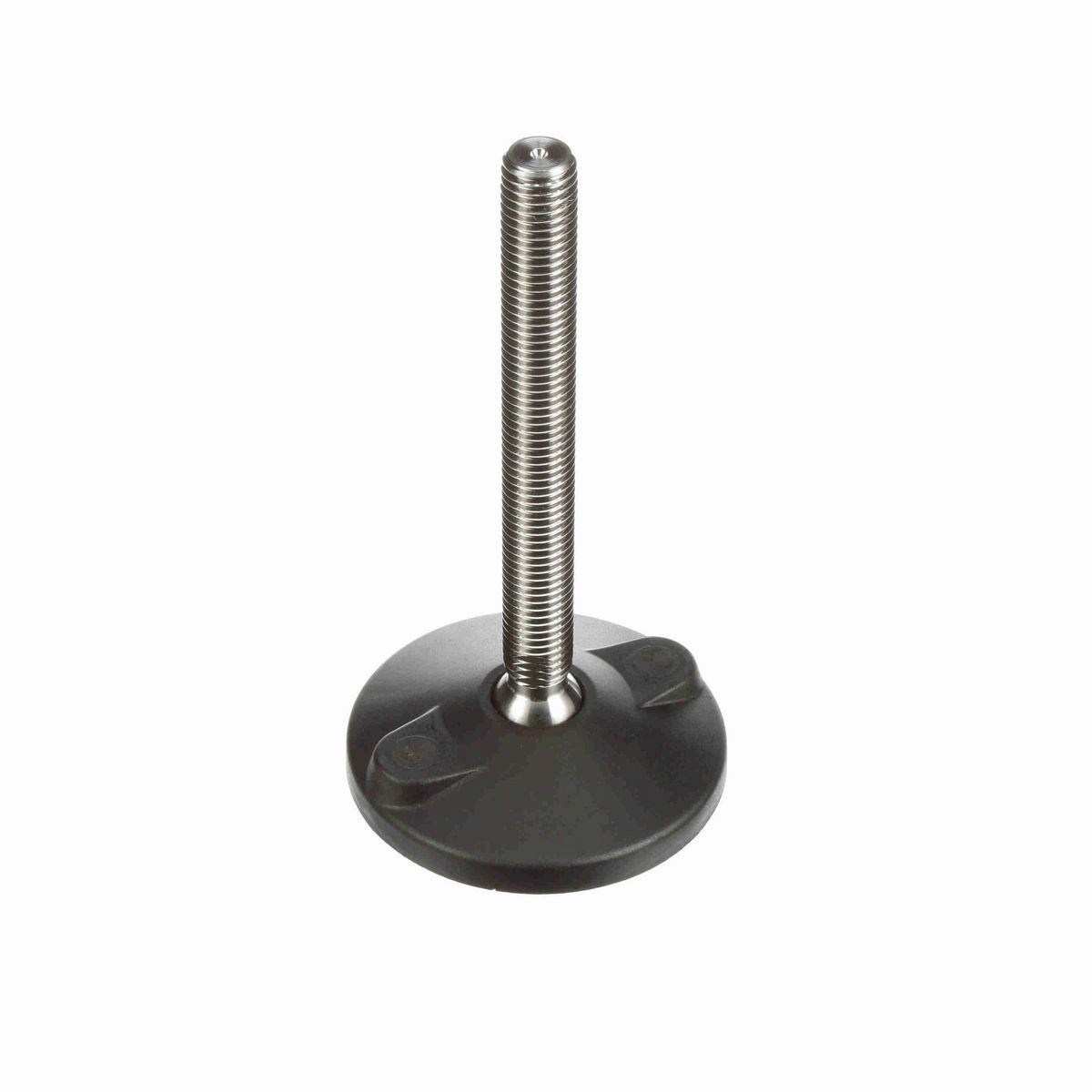

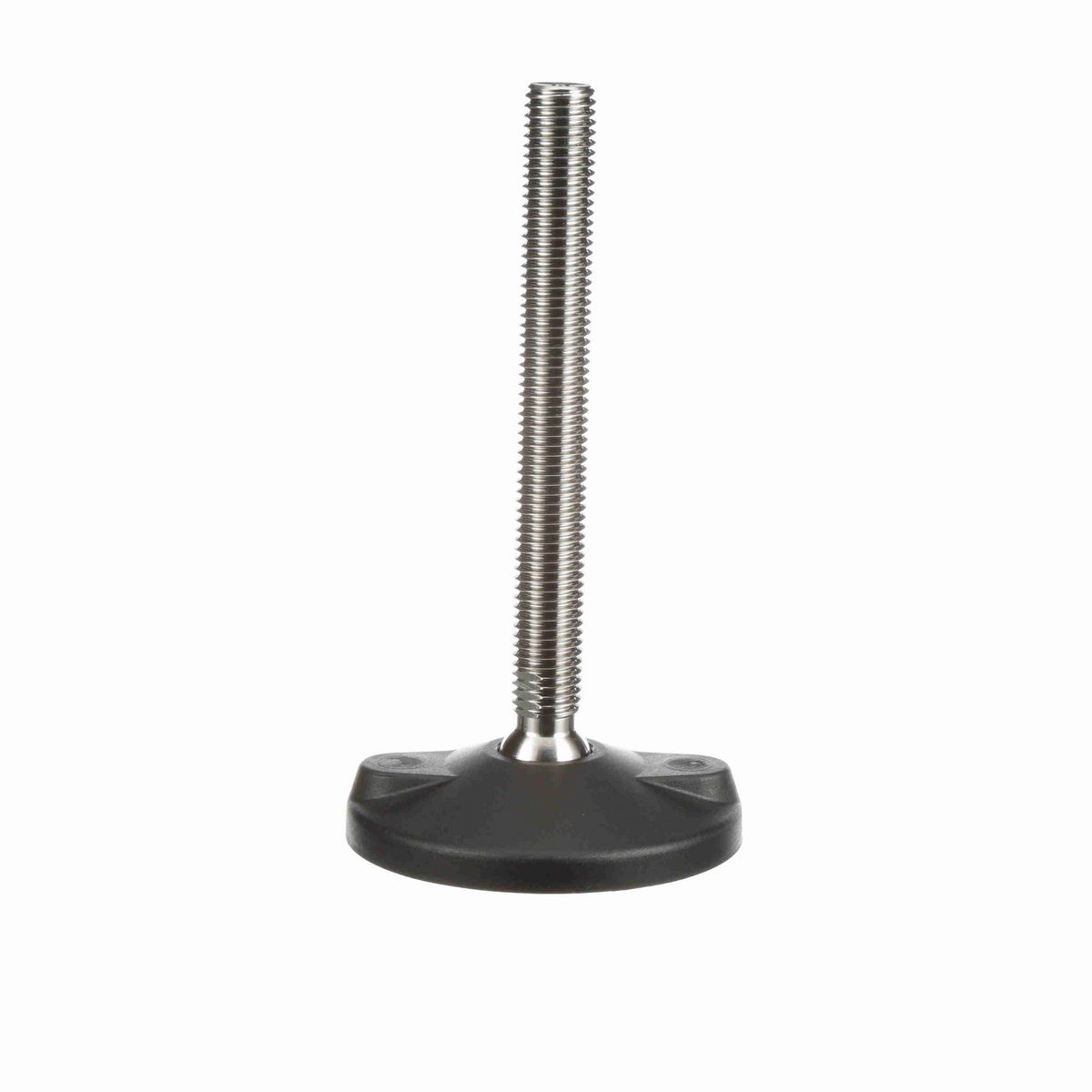

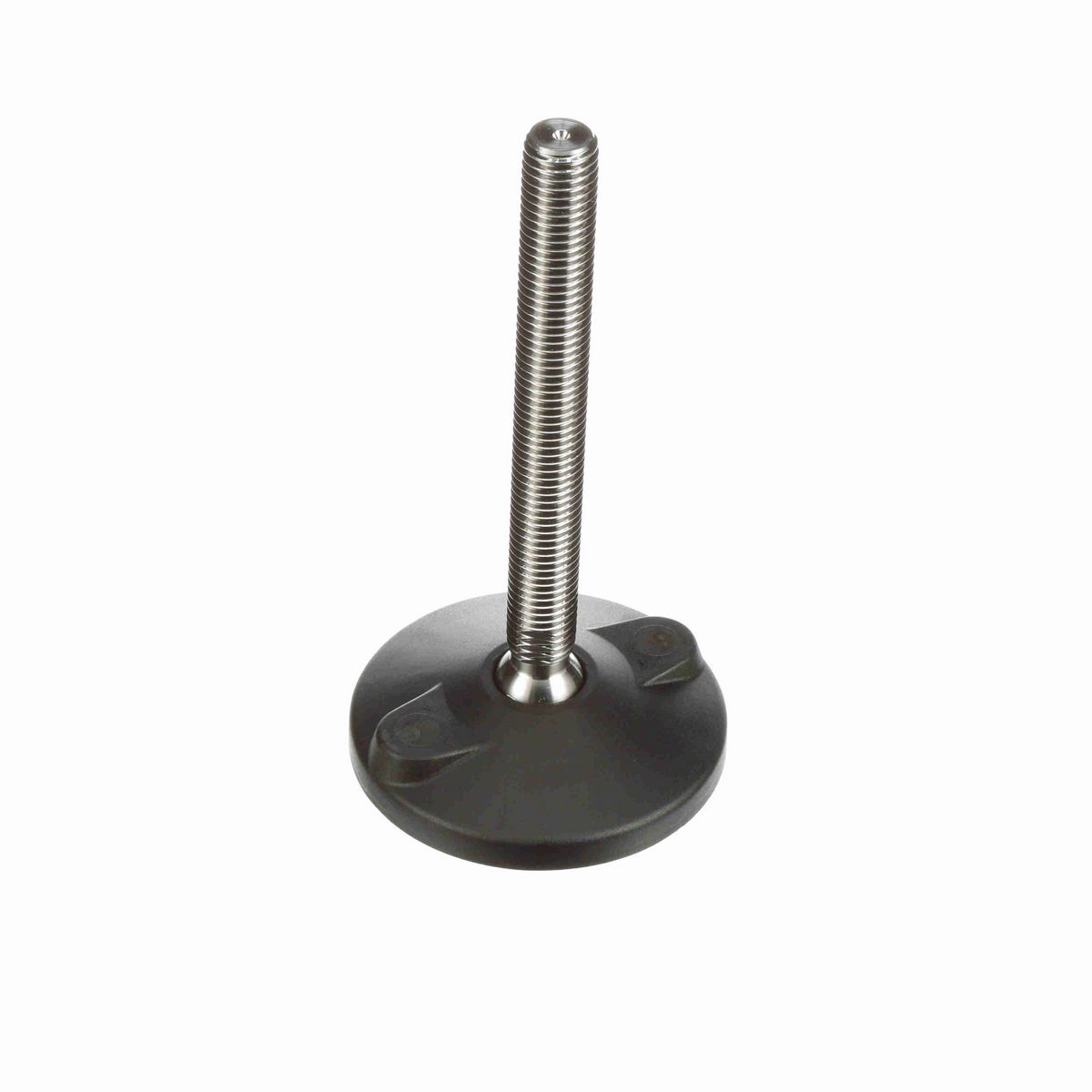

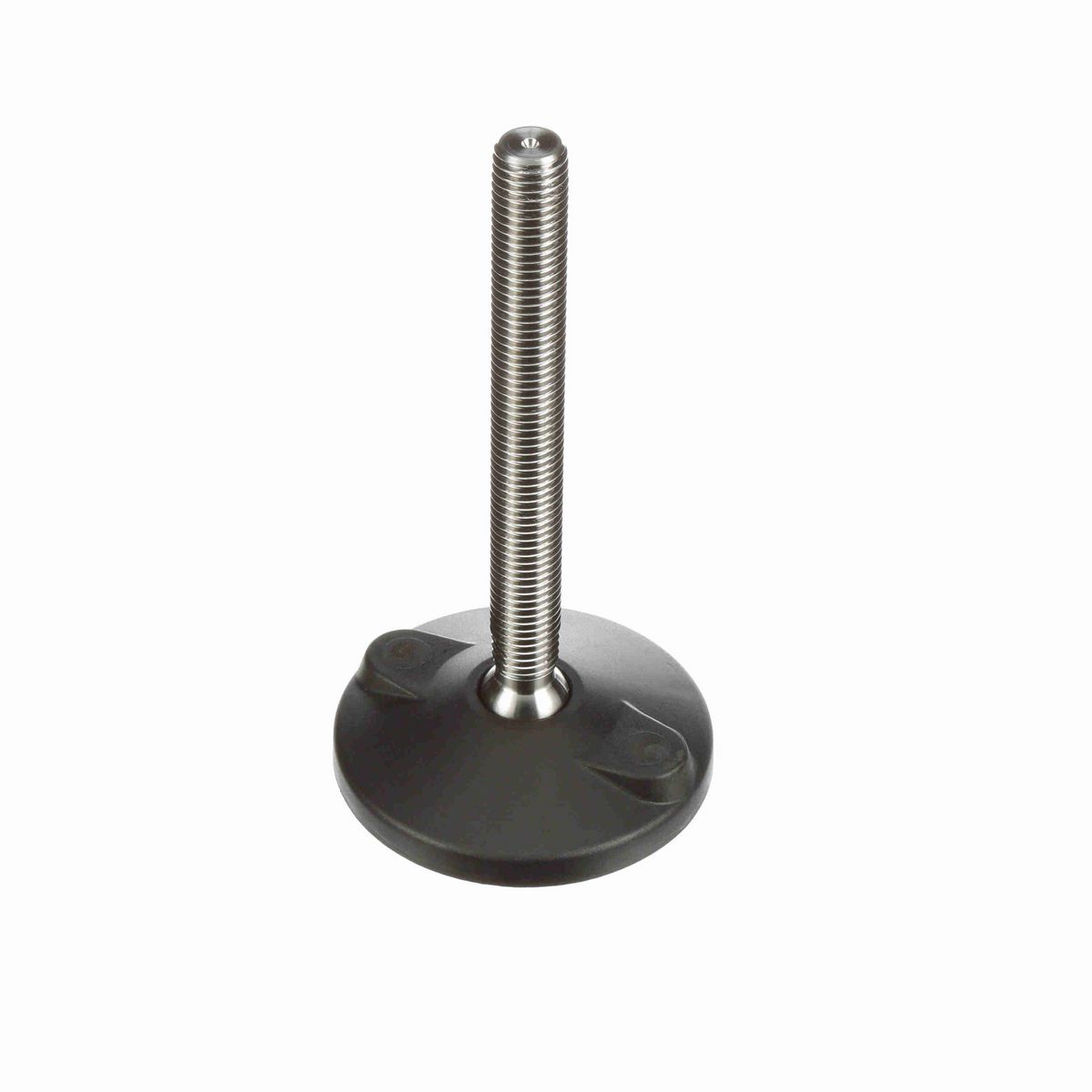

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support with skinned lag holes for optional use of holes for anchoring.

Technical Specifications

Stem Thread	3/4-10
Leveler Type	Articulating
Vibration PAD	VG-512
Lag Hole Diameter (in)	0.48 in
Component Series	VG-511
Spindle Length (in)	6.09 in
Product Group	Levelers
Stem Material	Stainless Steel
Number of Skinned Lag Holes	2
Lag Hole Center Distance (in)	2.92 in
Base Height with Pad (in)	0.83 in
Base Height (in)	0.73 in
Product Type	Leveler (Polyamide Base)
Material	POLYAMIDE
Base Diameter (in)	4 in
Thread (in)	3/4-10 in
Product Line	Conveying Components
Measurement System	Imperial
Length (in)	7.69 in
Application	Conveyor and machinery support.
Misalignment Angle	±15°
Static Load (lb)	2,600 lb

General Specifications

UPC	787405492165
Weight	1.00 LB
Packaged Length	4.00 IN
Packaged Width	3.95 IN
Packaged Height	8.25 IN
