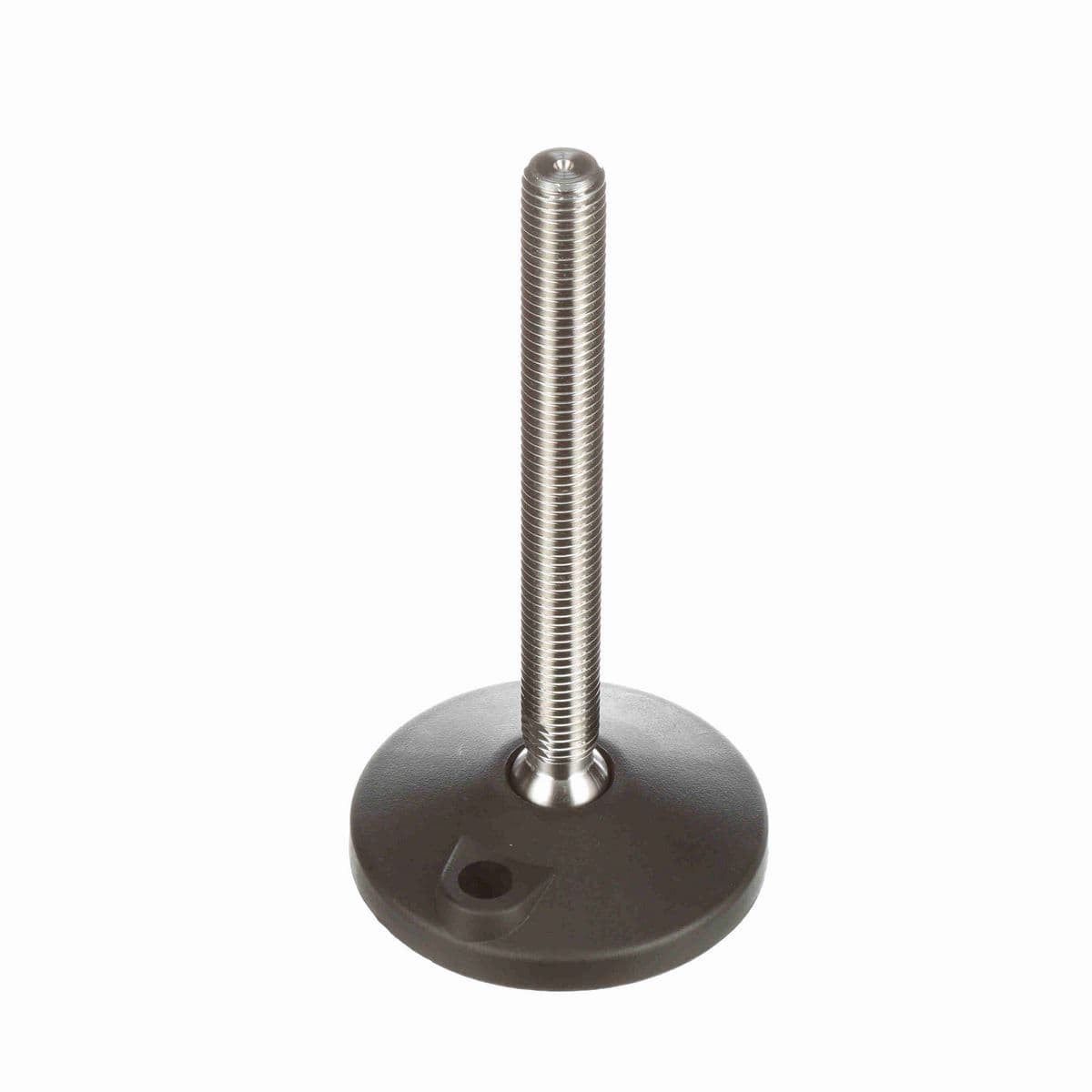

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Deflection Angle	±5°
Vibration PAD	VG-512
Type	511-T
Leveler Type	Articulating Leveler
Duty Type	Medium Duty
Product Line	Conveying Components
Base Height (in)	0.73 in
Number of Lag Holes	1
Measurement System	Imperial
Wrench Height (in)	1.6 in
Lag Hole Diameter (in)	0.48 in
Product Type	Leveler (Polyamide Base)
Length (in)	7.69 in
Base Diameter (in)	4 in
Base Height with Pad (in)	0.83 in
Material	POLYAMIDE
Product Group	Levelers
Lag Hole Center Distance (in)	2.92 in
Component Series	VG-511
Spindle Length (in)	6.09 in
Thread (in)	3/4-10 in
Stem Material	Stainless Steel
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Max Recommended Static Load (lb)	2,600 lb
Leveler Operating Type	Adjustable

General Specifications

UPC	787405246027
Weight	1.02 LB
