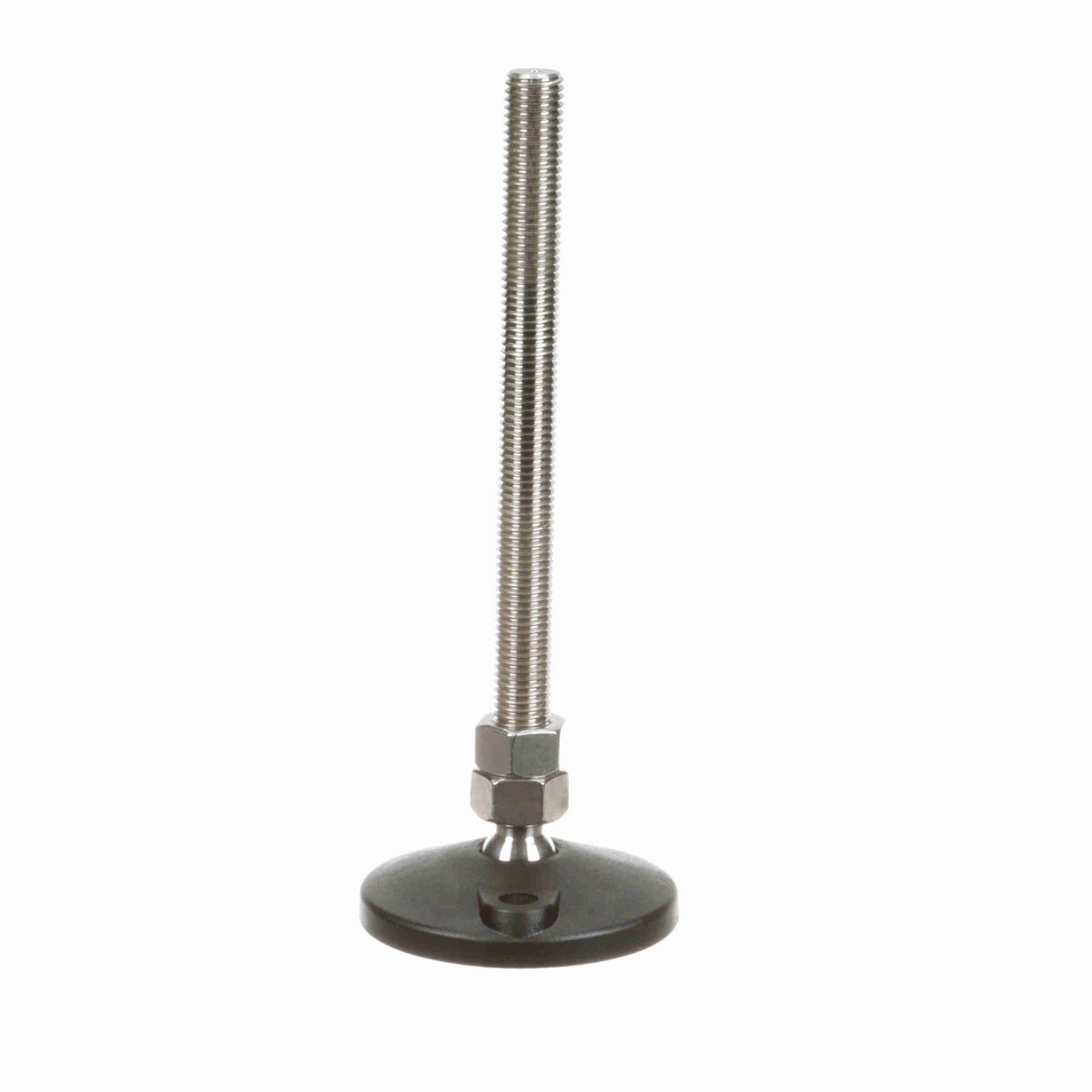

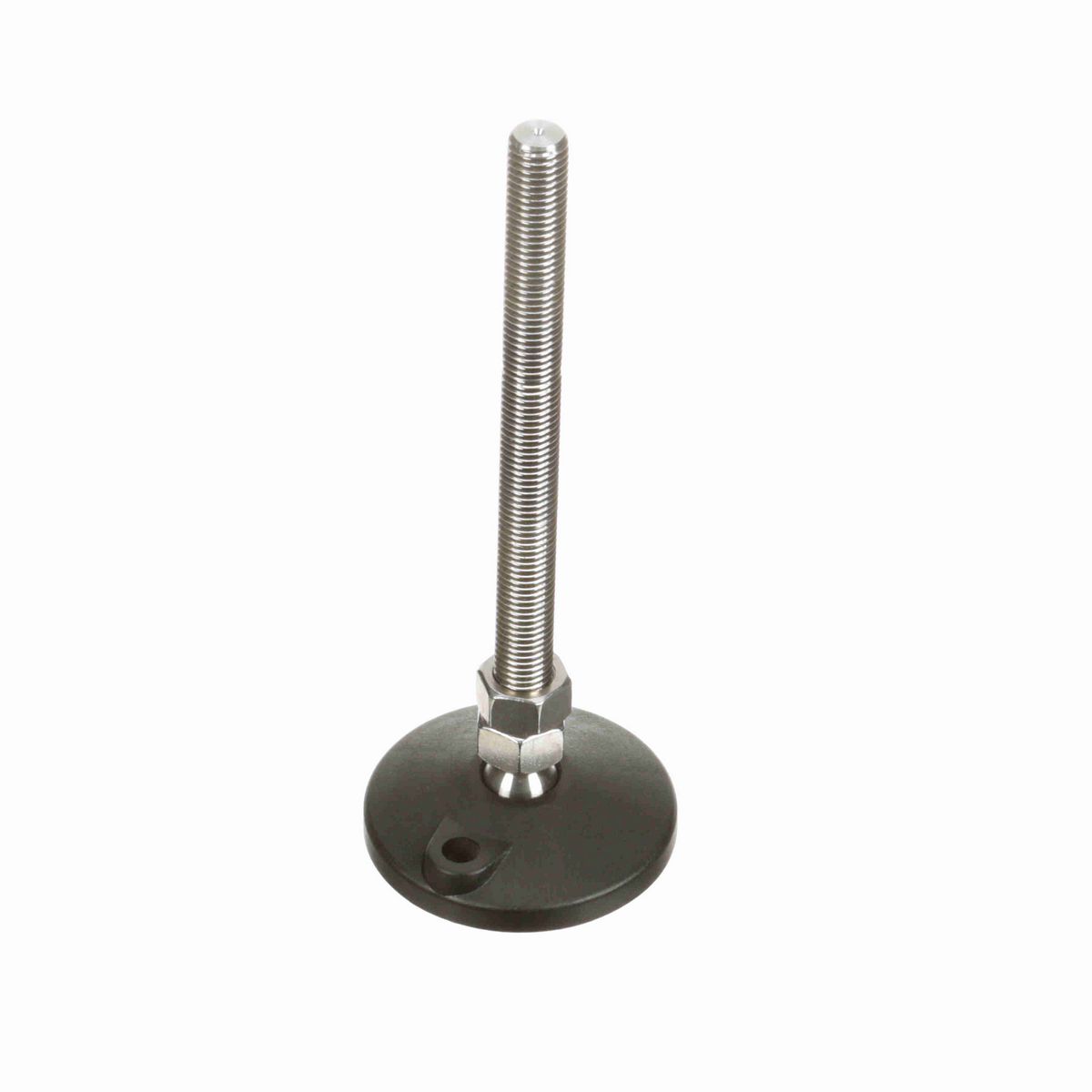

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Vibration PAD	VG-512
Type	511-T
Deflection Angle	±5°
Duty Type	Medium Duty
Leveler Type	Articulating Leveler
Measurement System	Imperial
Thread (in)	3/4-10 in
Lag Hole Center Distance (in)	2.92 in
Number of Lag Holes	1
Base Diameter (in)	4 in
Base Height (in)	0.73 in
Product Line	Conveying Components
Length (in)	10.69 in
Product Type	Leveler (Polyamide Base)
Lag Hole Diameter (in)	0.48 in
Base Height with Pad (in)	0.83 in
Component Series	VG-511
Spindle Length (in)	9.09 in
Product Group	Levelers
Material	POLYAMIDE
Stem Material	Stainless Steel
Wrench Height (in)	1.6 in
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Max Recommended Static Load (lb)	2,600 lb
Leveler Operating Type	Adjustable

General Specifications

UPC	787405245983
Weight	1.32 LB
