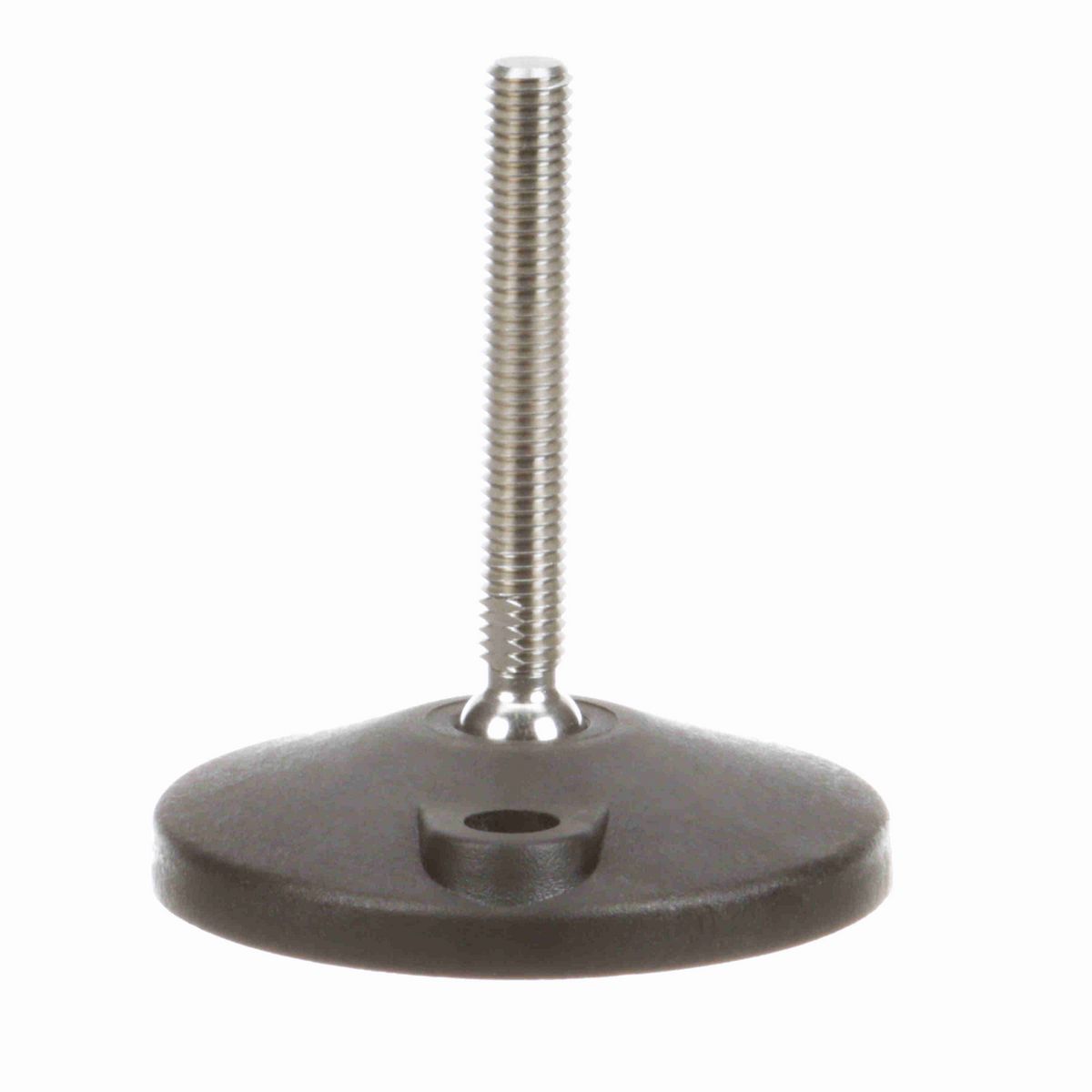

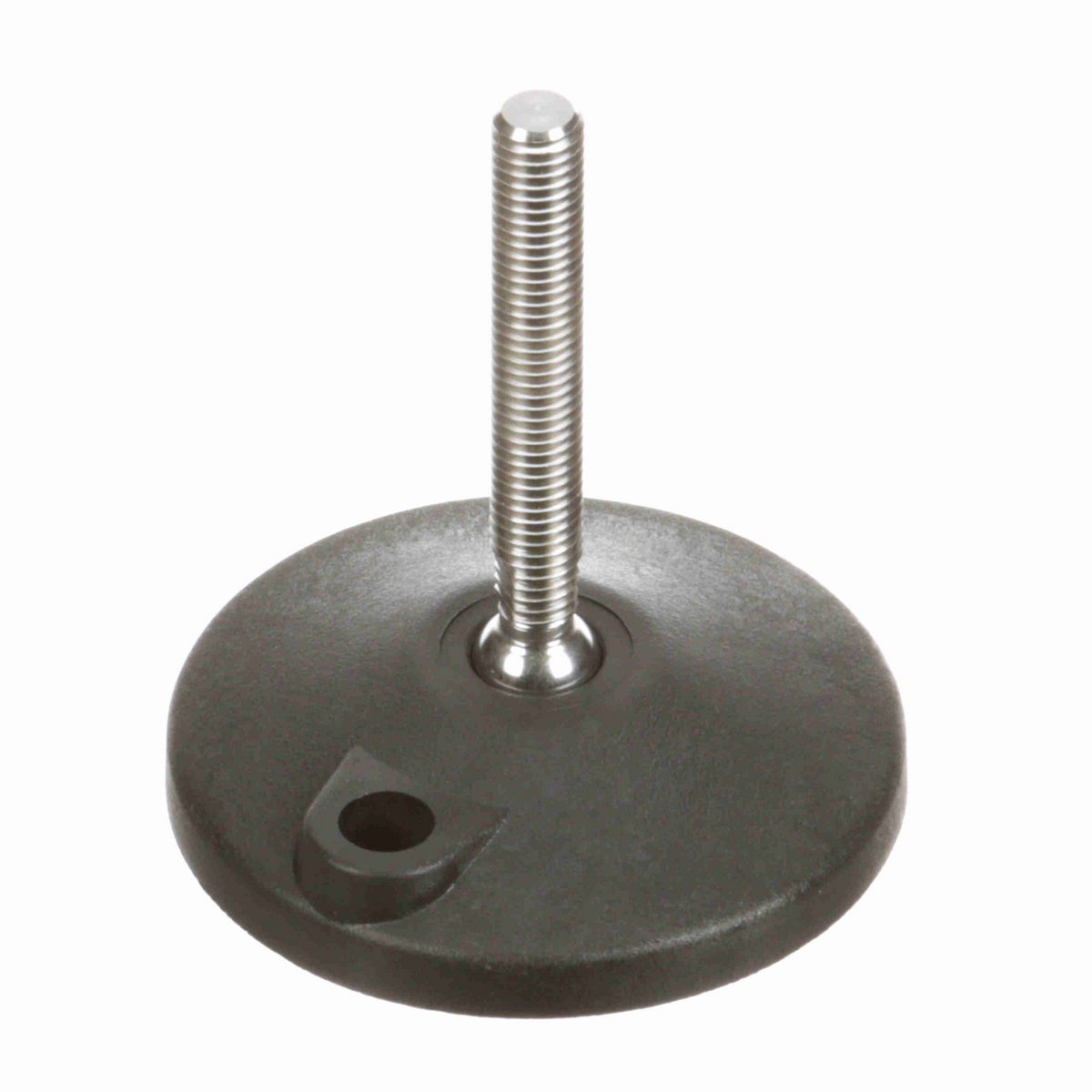

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support with skinned lag holes for optional use of holes.

Technical Specifications

Stem Thread	1/2-13
Vibration PAD	VG-512
Leveler Type	Articulating
Product Type	Leveler (Polyamide Base)
Base Height (in)	0.73 in
Thread (in)	1/2-13 in
Spindle Length (in)	2.92 in
Stem Material	Stainless Steel
Component Series	VG-511
Product Line	Conveying Components
Product Group	Levelers
Length (in)	4.52 in
Base Diameter (in)	4 in
Base Height with Pad (in)	0.83 in
Lag Hole Diameter (in)	0.48 in
Measurement System	Imperial
Number of Lag Holes	1
Material	POLYAMIDE
Application	Conveyor and machinery support.
Static Load (lb)	2,600 lb
Misalignment Angle	±15°

General Specifications

UPC	787405245945
Weight	0.42 LB
