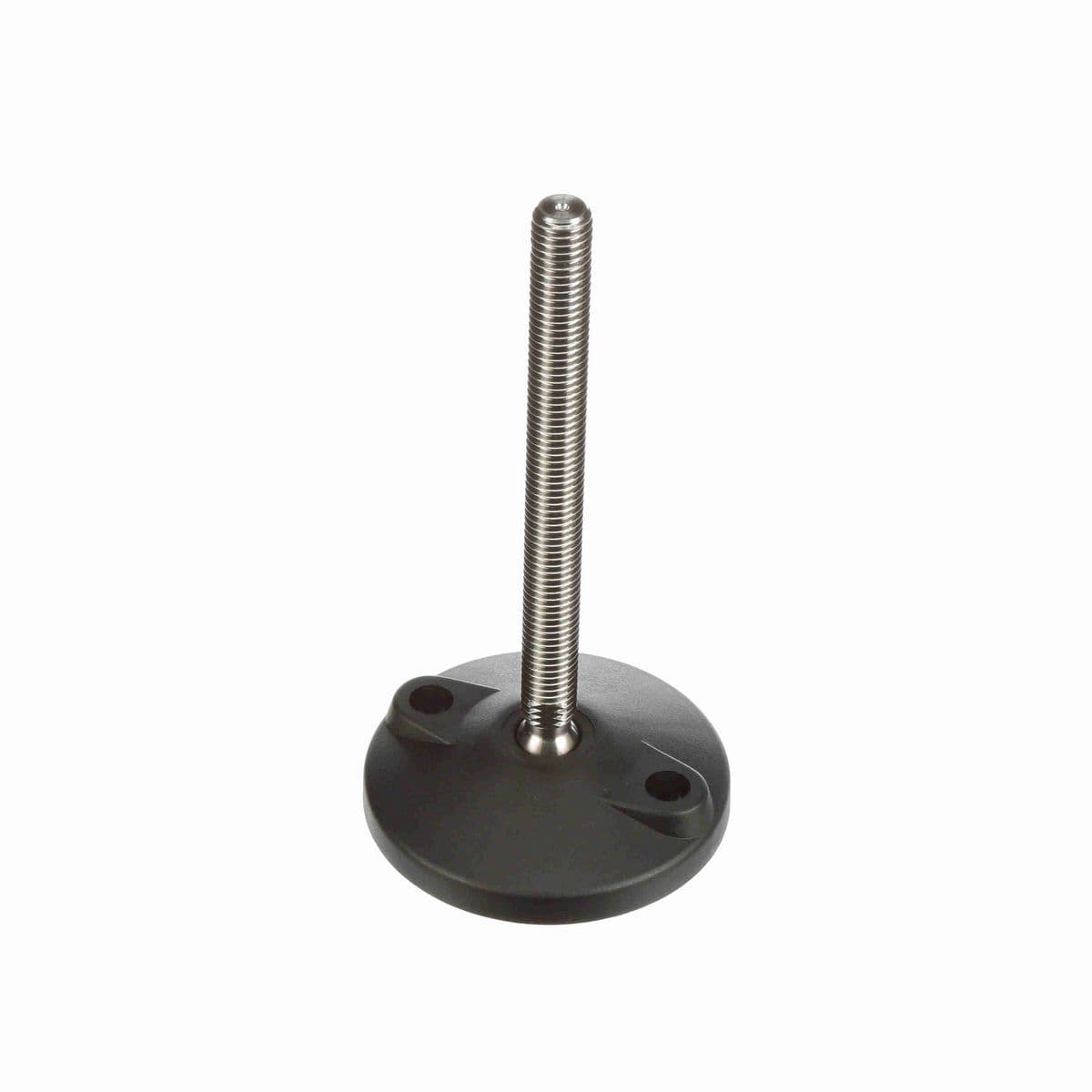

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support with two lag holes for anchoring to floor.

Technical Specifications

Stem Thread	M20
Leveler Type	Articulating
Vibration PAD	VG-512
Lag Hole Diameter (in)	0.48 in
Base Height with Pad (in)	0.83 in
Length (in)	7.69 in
Product Line	Conveying Components
Spindle Length (in)	6.09 in
Component Series	VG-511
Base Height (in)	0.73 in
Material	POLYAMIDE
Product Type	Leveler (Polyamide Base)
Measurement System	Universal
Product Group	Levelers
Stem Material	Stainless Steel
Thread (mm)	M20 mm
Number of Lag Holes	2
Base Diameter (in)	4 in
Application	Conveyor and machinery support.
Static Load (lb)	2,600 lb
Misalignment Angle	±15°

General Specifications

UPC	787405245655
Weight	1.10 LB
