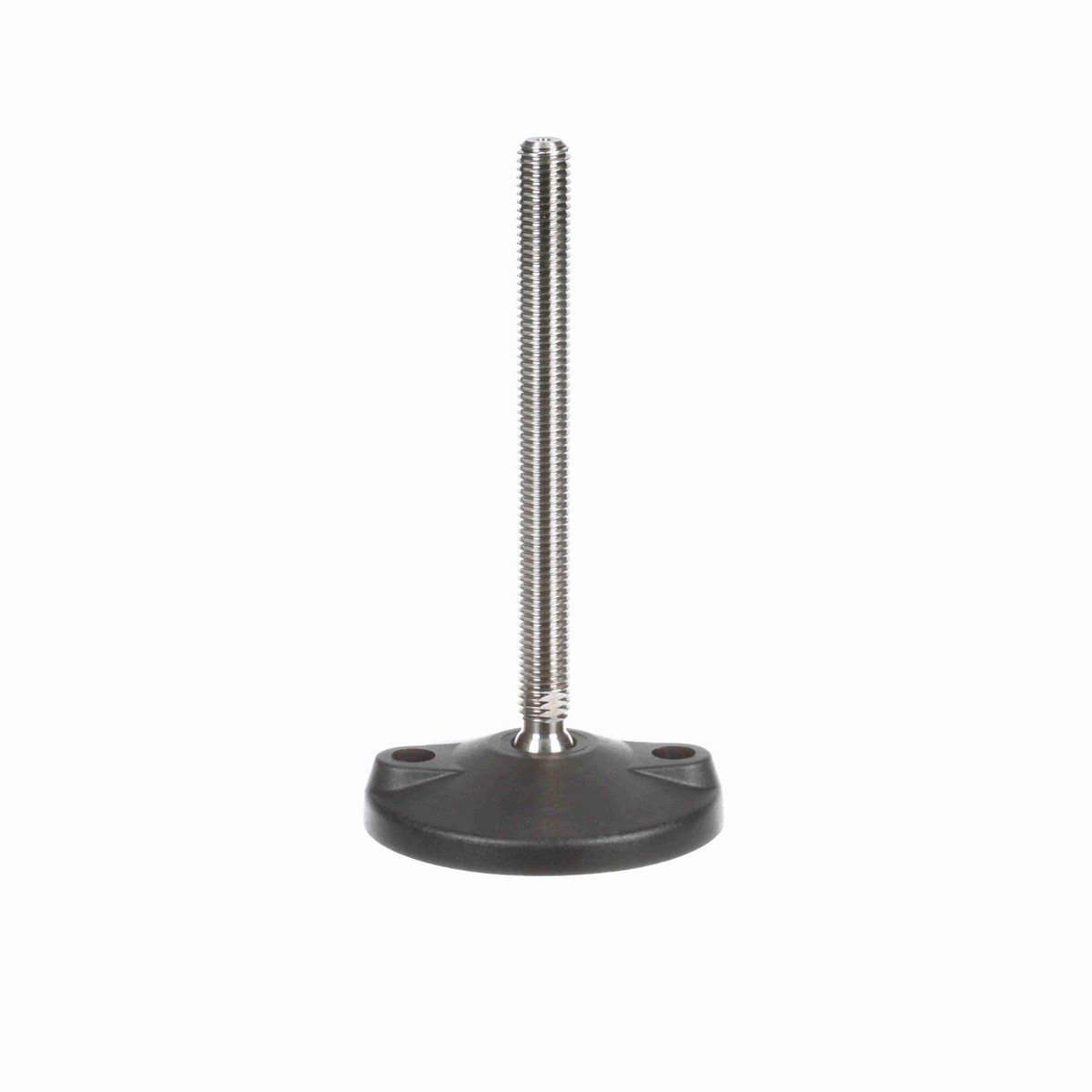

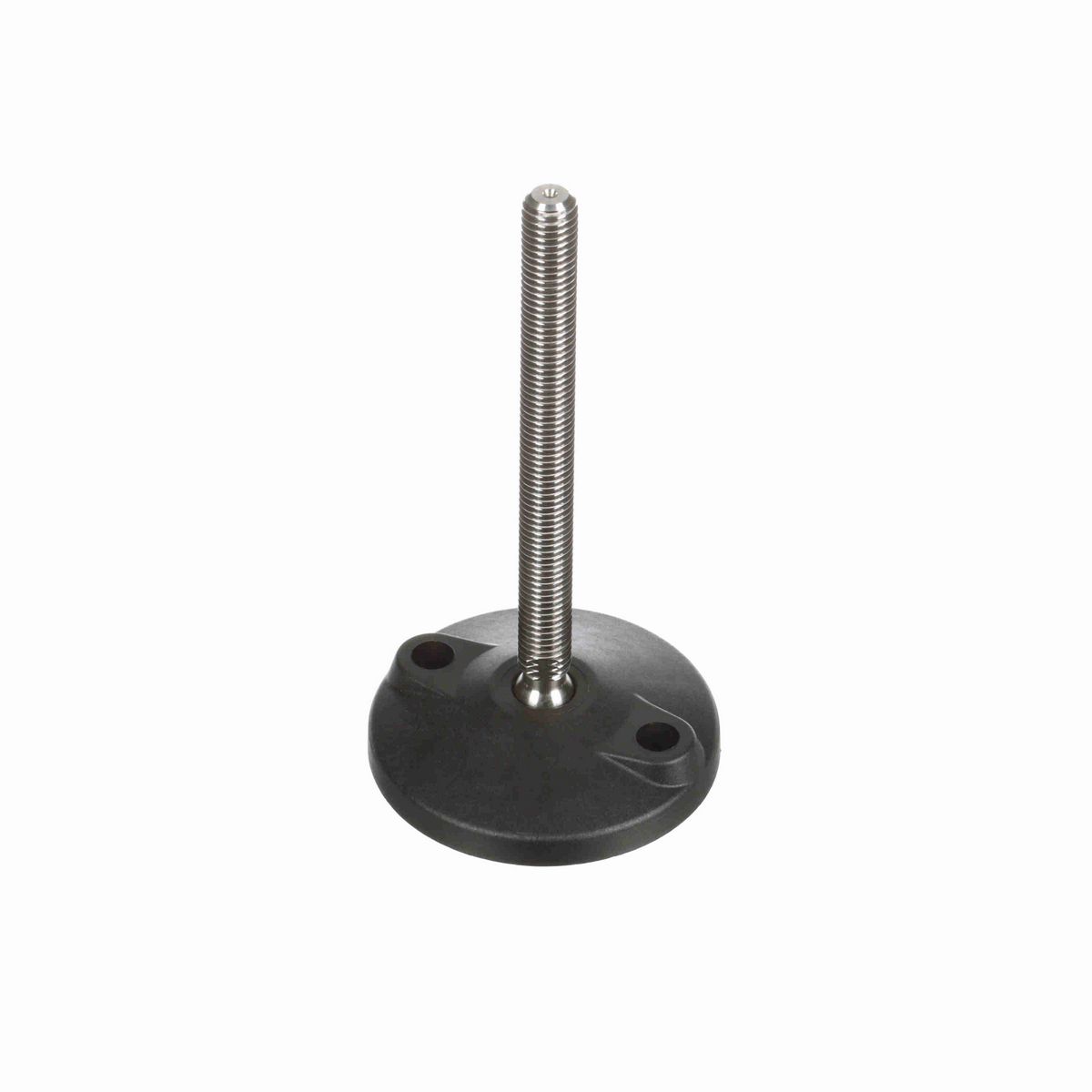

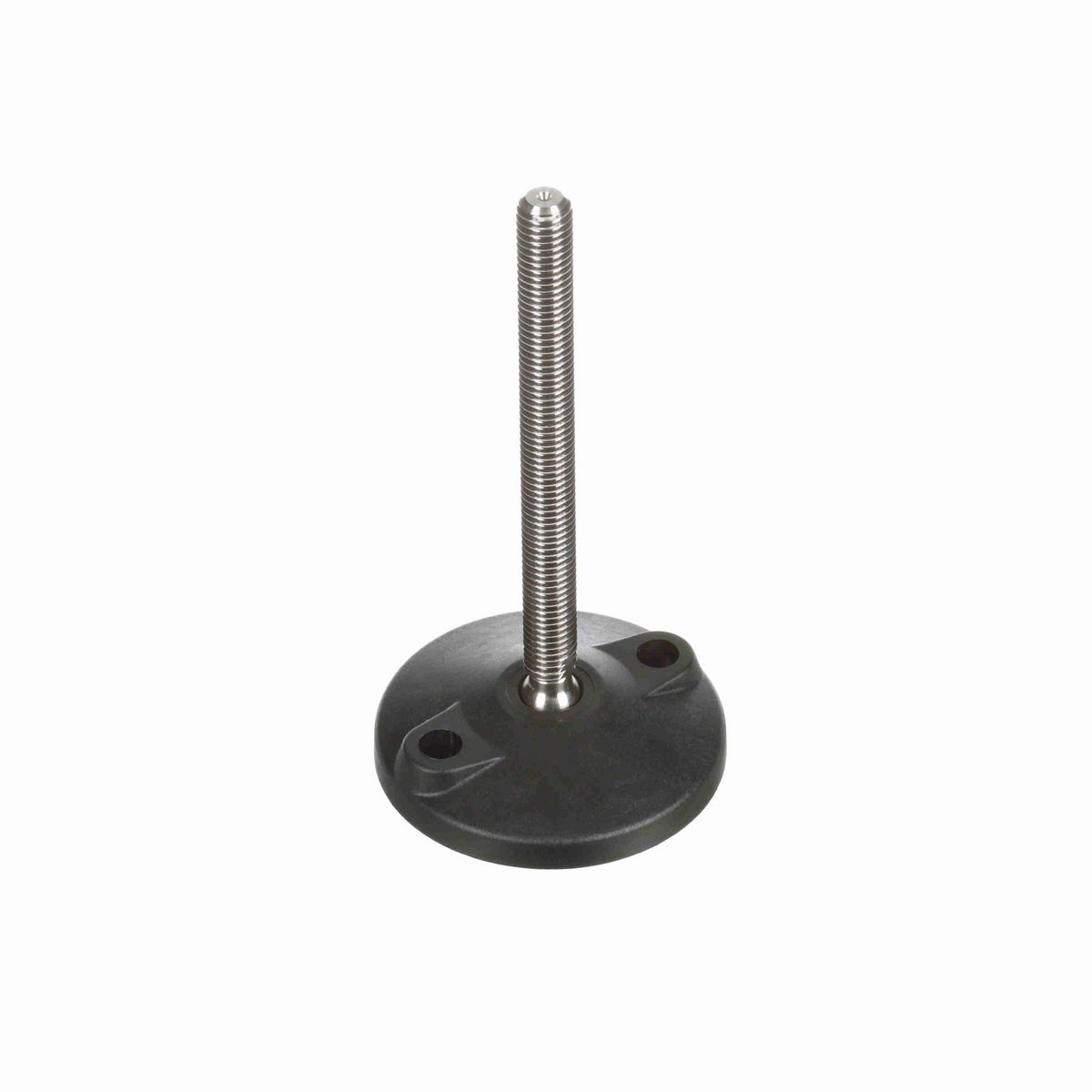

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Leveler Type	Articulating Leveler
Deflection Angle	±5°
Duty Type	Medium Duty
Type	511-T
Vibration PAD	VG-512
Lag Hole Diameter (in)	0.48 in
Product Group	Levelers
Base Diameter (in)	4 in
Length (in)	7.69 in
Product Type	Leveler (Polyamide Base)
Product Line	Conveying Components
Stem Material	Stainless Steel
Spindle Length (in)	6.09 in
Base Height with Pad (in)	0.83 in
Component Series	VG-511
Measurement System	Imperial
Material	POLYAMIDE
Wrench Height (in)	1.6 in
Lag Hole Center Distance (in)	2.92 in
Thread (in)	5/8-11 in
Number of Lag Holes	2
Base Height (in)	0.73 in
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	2,600 lb

General Specifications

UPC	787405245495
Weight	0.68 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	7.69 IN
