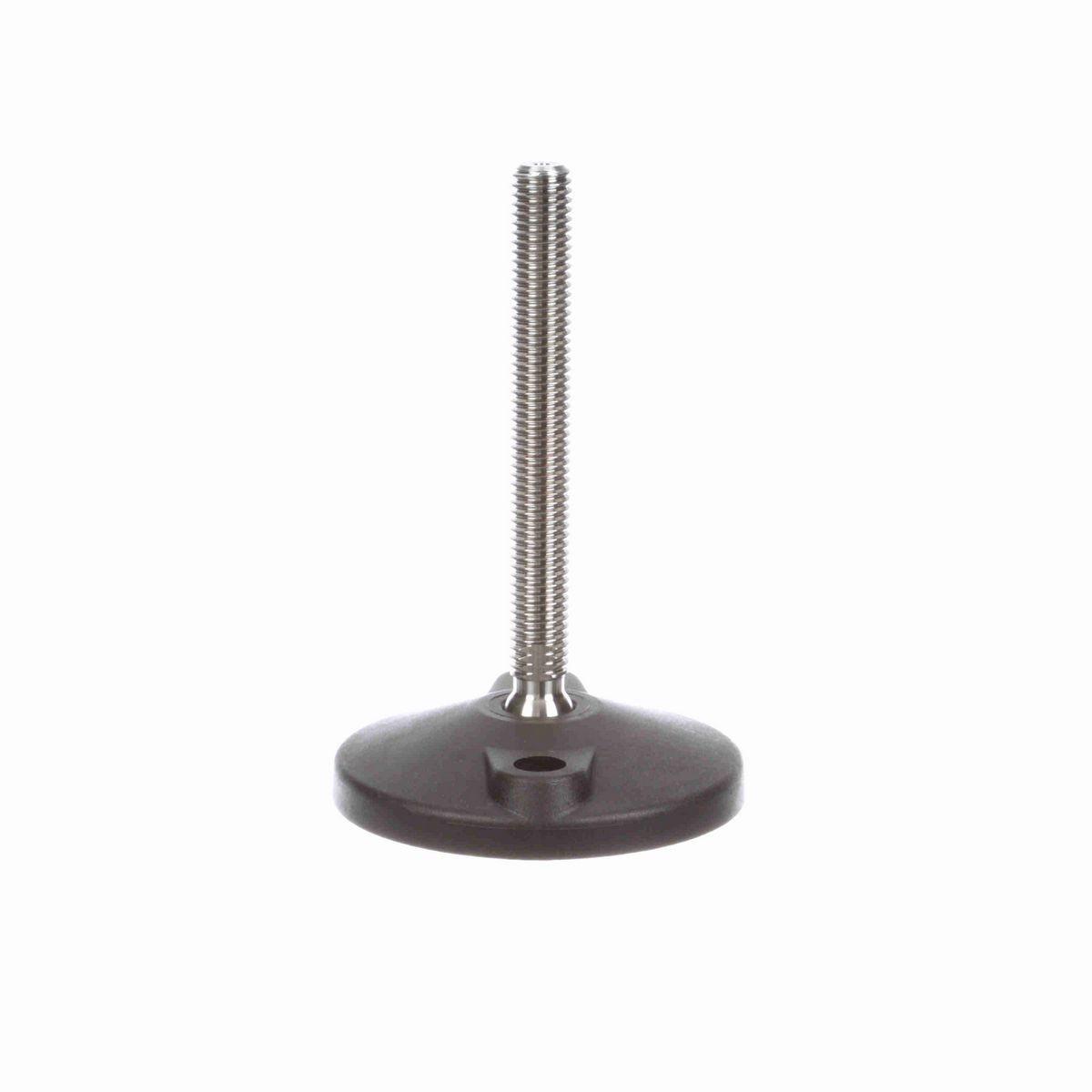

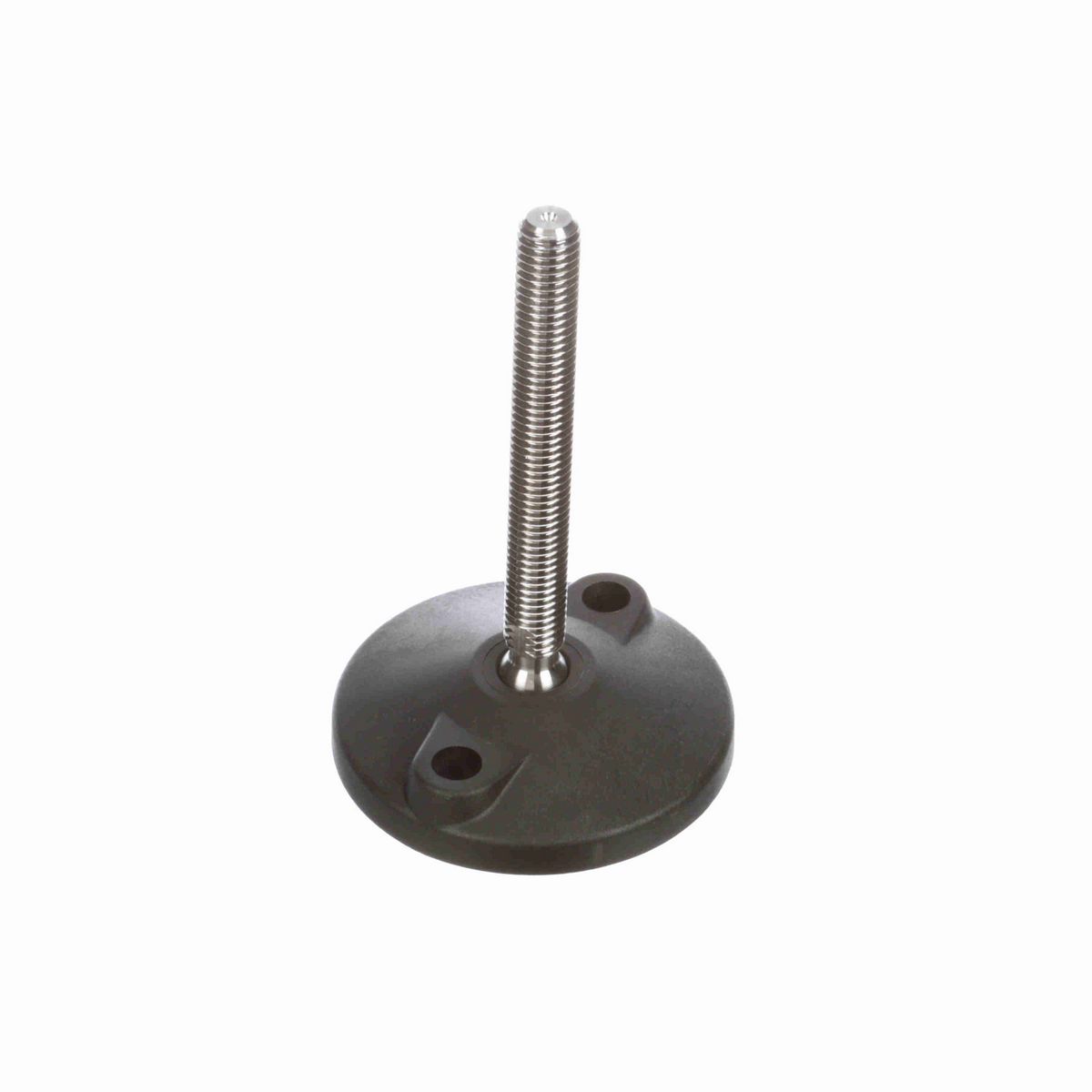

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Vibration PAD	VG-512
Duty Type	Medium Duty
Deflection Angle	±5°
Type	511-T
Leveler Type	Articulating Leveler
Number of Lag Holes	2
Thread (in)	5/8-11 in
Lag Hole Center Distance (in)	2.92 in
Component Series	VG-511
Measurement System	Imperial
Product Group	Levelers
Wrench Height (in)	1.6 in
Spindle Length (in)	4.6 in
Lag Hole Diameter (in)	0.48 in
Product Type	Leveler (Polyamide Base)
Base Diameter (in)	4 in
Product Line	Conveying Components
Material	POLYAMIDE
Base Height with Pad (in)	0.83 in
Base Height (in)	0.73 in
Length (in)	6.2 in
Stem Material	Stainless Steel
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	2,600 lb

General Specifications

UPC	787405245457
Weight	0.60 LB
