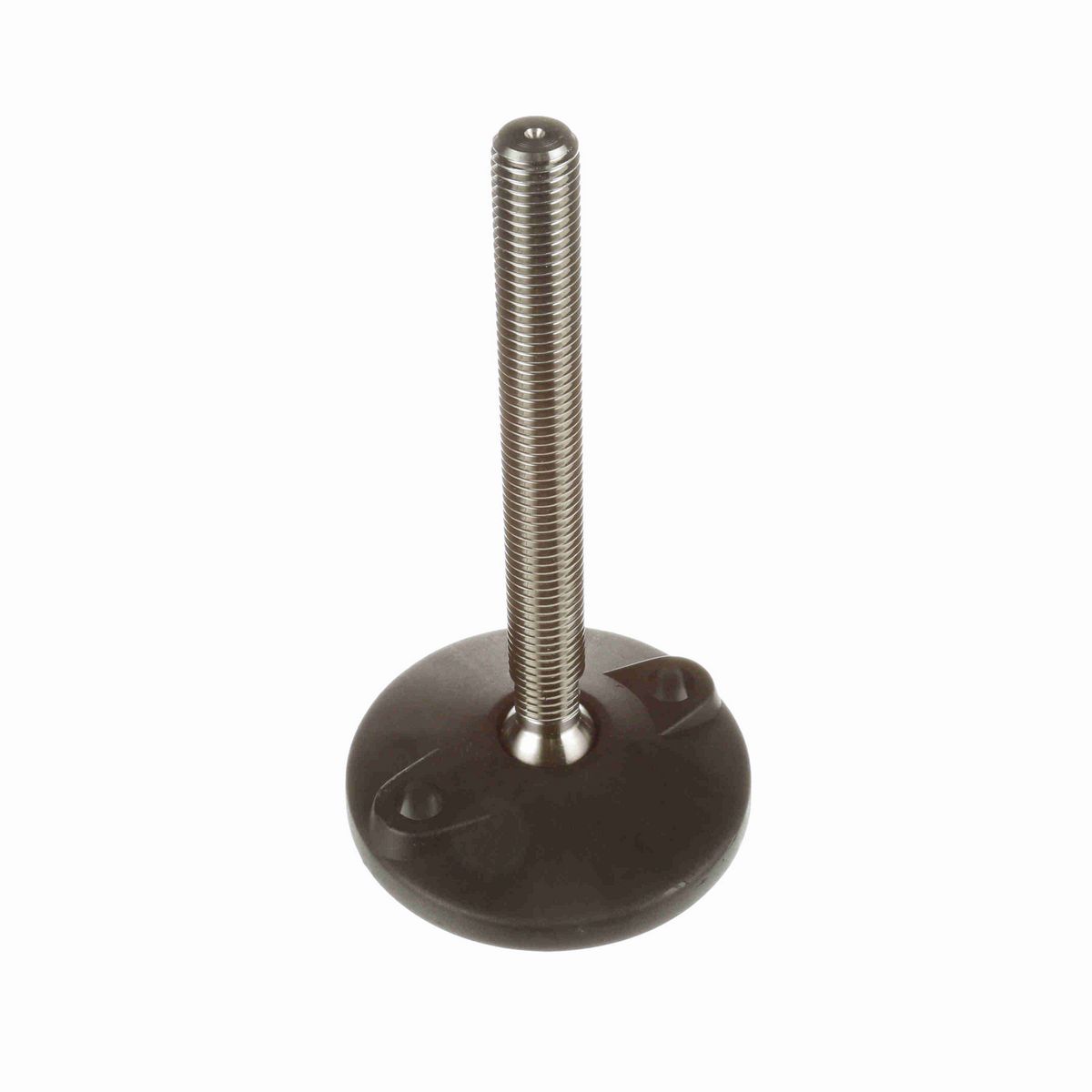

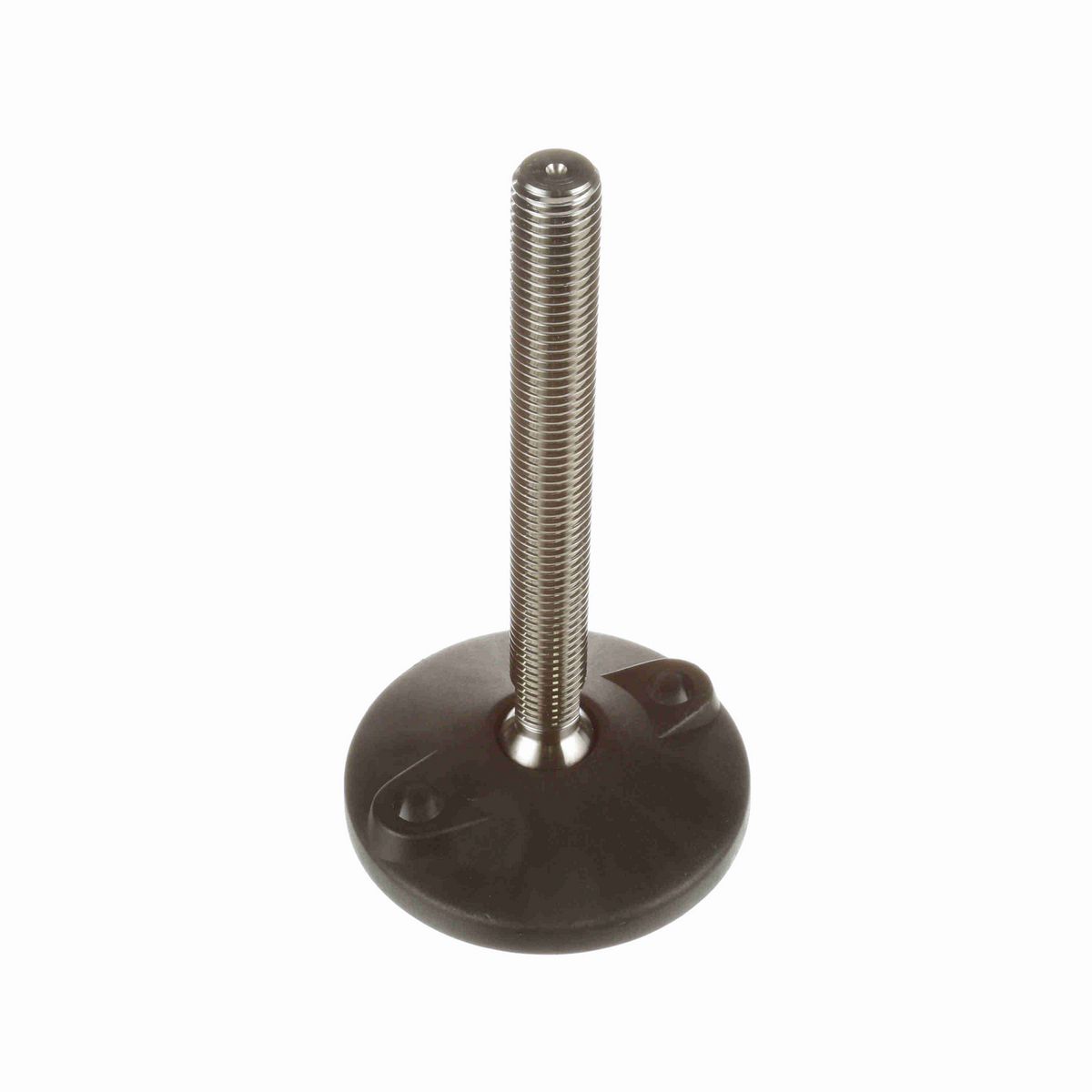

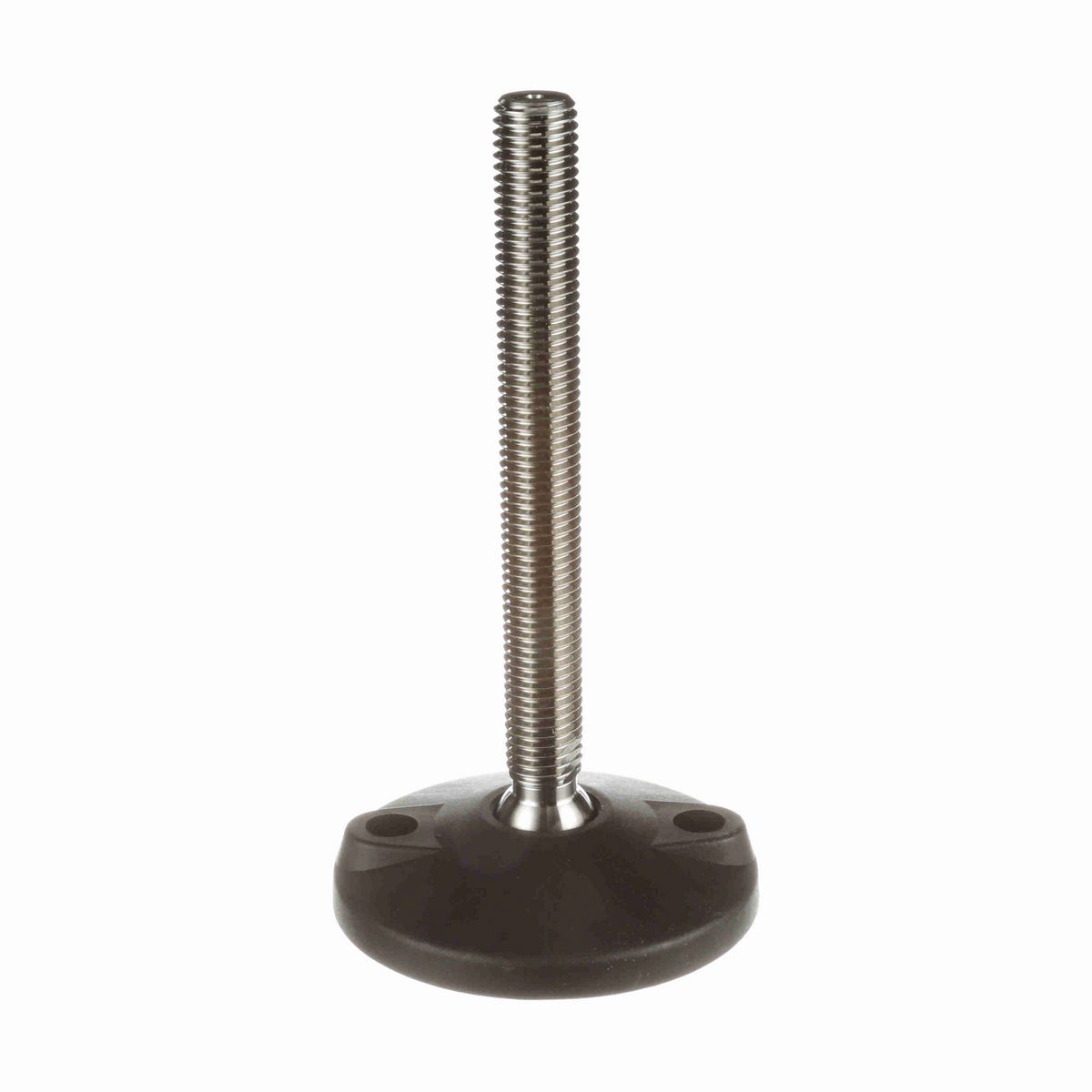

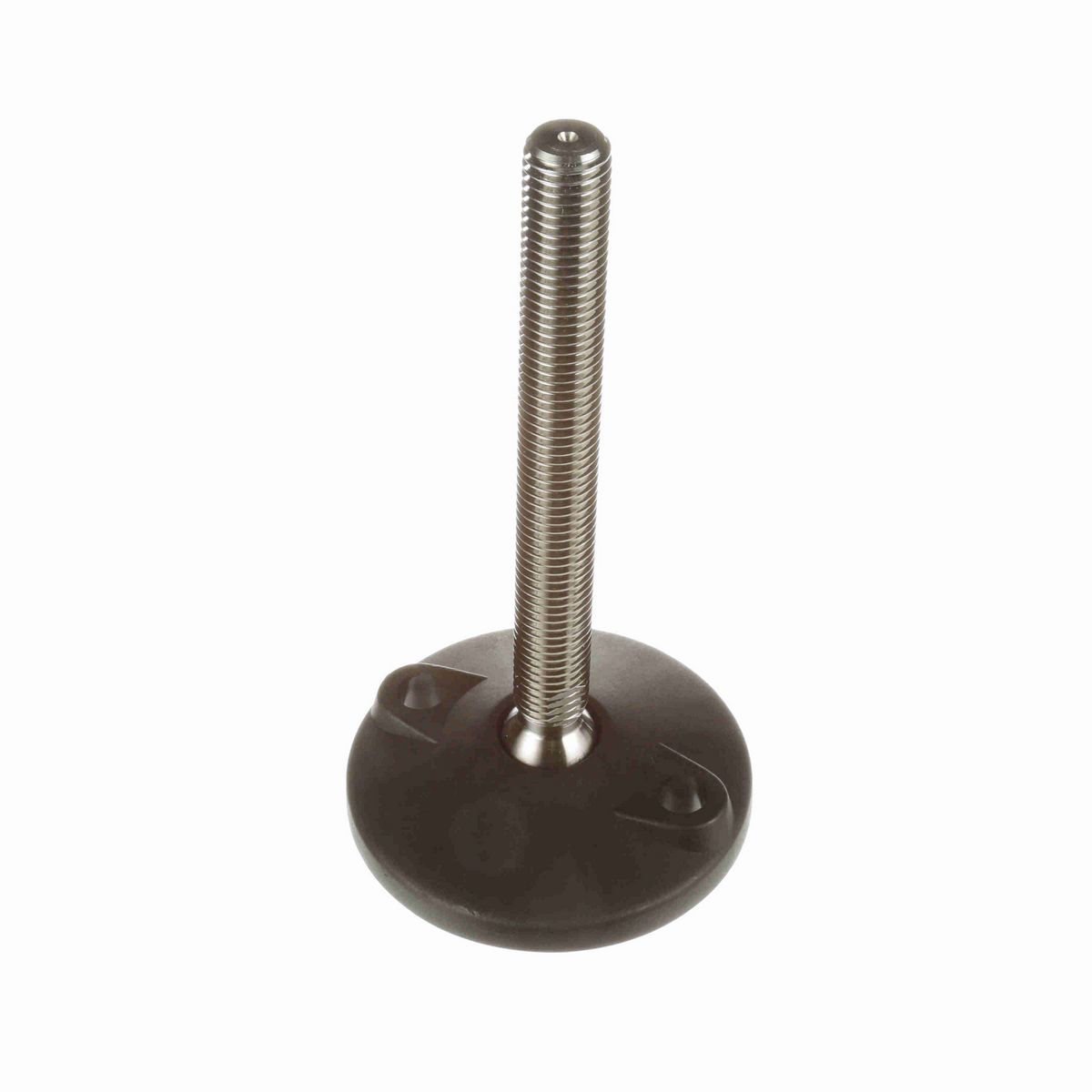

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Deflection Angle	±5°
Leveler Type	Articulating Leveler
Vibration PAD	VG-512
Duty Type	Medium Duty
Type	511-T
Length (in)	7.69 in
Base Height with Pad (in)	0.83 in
Wrench Height (in)	1.6 in
Product Line	Conveying Components
Product Type	Leveler (Polyamide Base)
Lag Hole Center Distance (in)	2.92 in
Base Diameter (in)	4 in
Stem Material	Stainless Steel
Thread (in)	3/4-10 in
Number of Lag Holes	2
Lag Hole Diameter (in)	0.48 in
Measurement System	Imperial
Material	POLYAMIDE
Spindle Length (in)	6.09 in
Base Height (in)	0.73 in
Component Series	VG-511
Product Group	Levelers
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	2,600 lb

General Specifications

UPC	787405245396
Weight	1.03 LB
Packaged Length	4.00 IN
Packaged Width	4.05 IN
Packaged Height	8.25 IN
