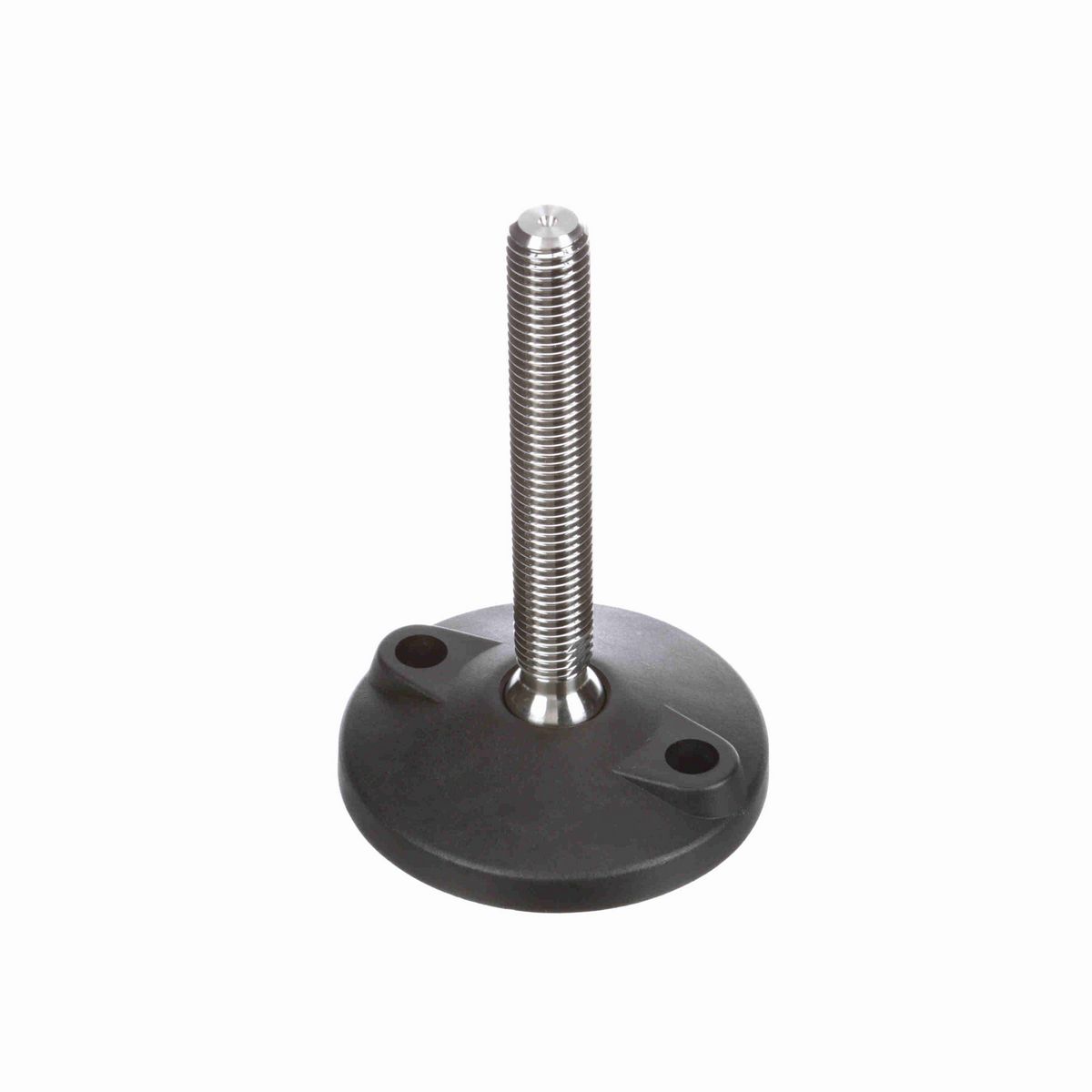

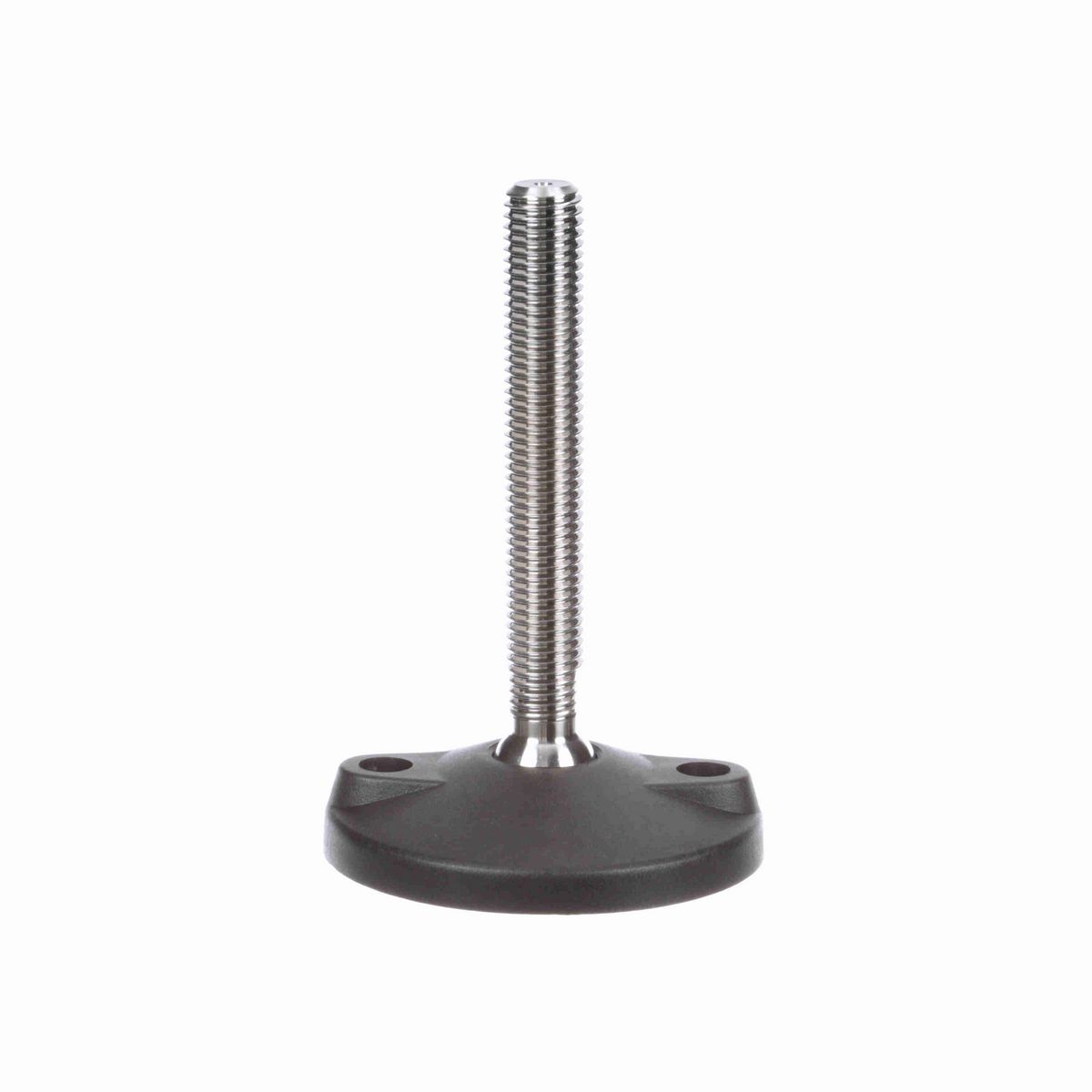

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Duty Type	Medium Duty
Vibration PAD	VG-512
Leveler Type	Articulating Leveler
Type	511-T
Deflection Angle	±5°
Base Height with Pad (in)	0.83 in
Number of Lag Holes	2
Measurement System	Imperial
Product Line	Conveying Components
Base Height (in)	0.73 in
Wrench Height (in)	1.6 in
Product Type	Leveler (Polyamide Base)
Material	POLYAMIDE
Length (in)	6.2 in
Stem Material	Stainless Steel
Base Diameter (in)	4 in
Component Series	VG-511
Lag Hole Diameter (in)	0.48 in
Spindle Length (in)	4.6 in
Lag Hole Center Distance (in)	2.92 in
Thread (in)	3/4-10 in
Product Group	Levelers
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Max Recommended Static Load (lb)	2,600 lb
Leveler Operating Type	Adjustable

General Specifications

UPC	787405245358
Weight	0.85 LB
