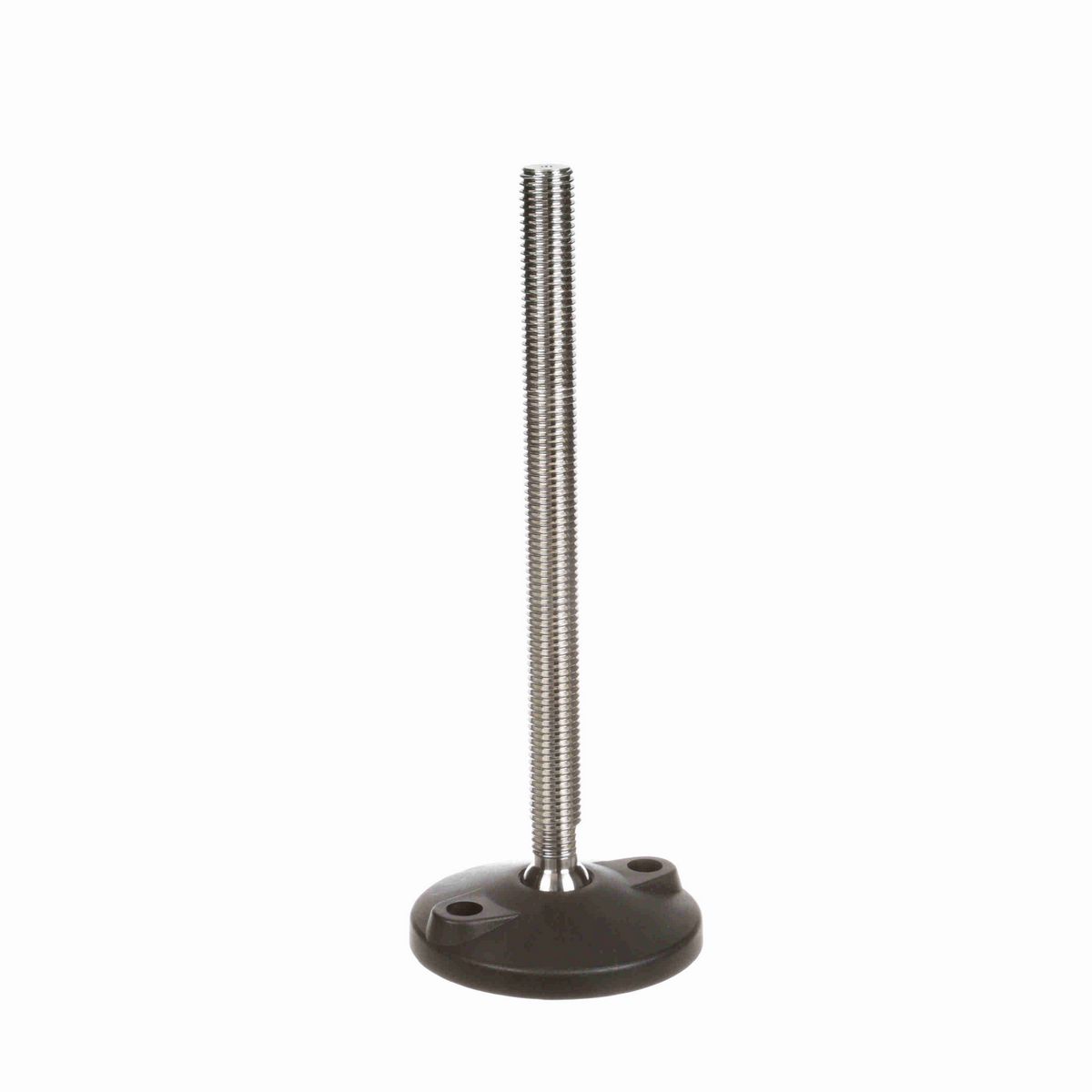

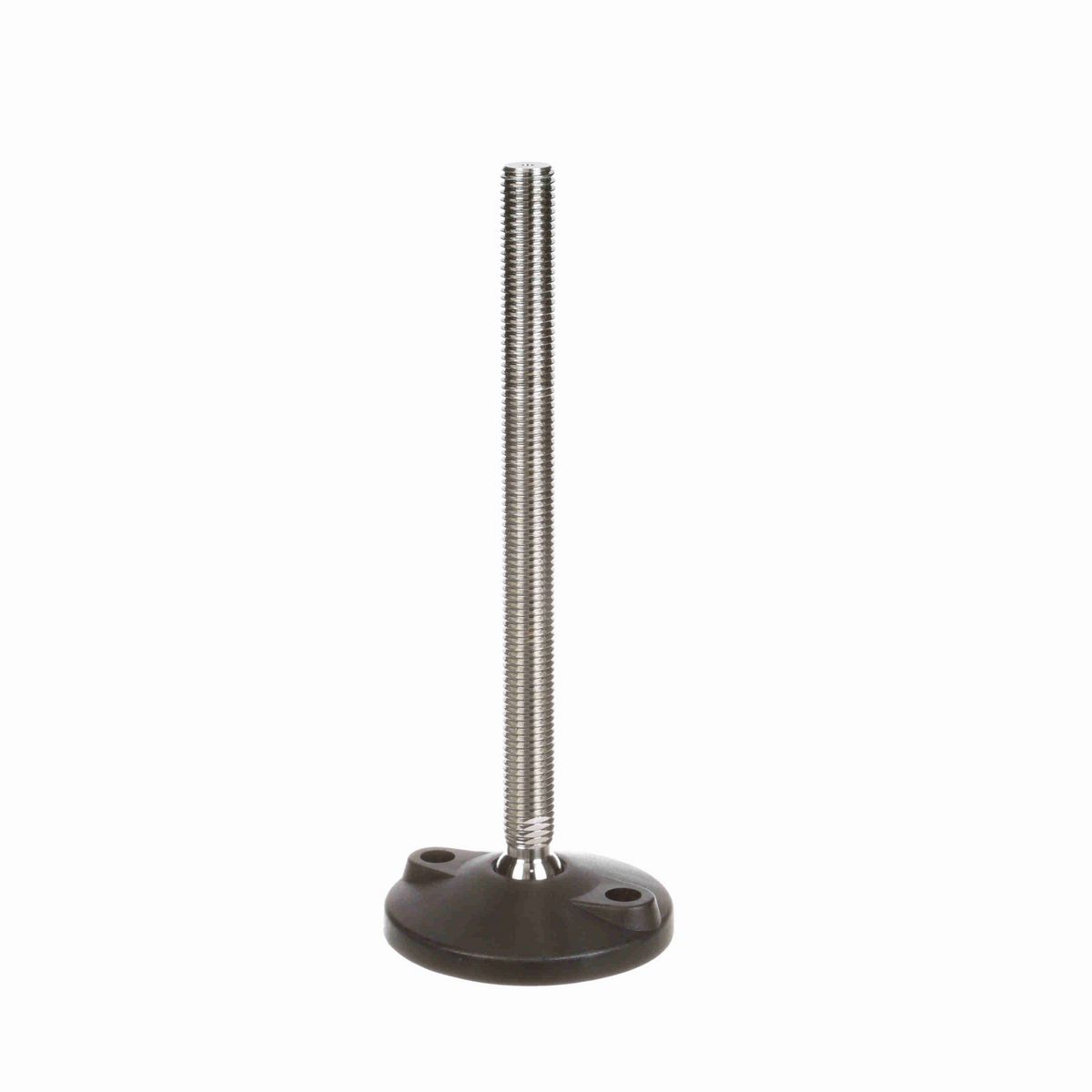

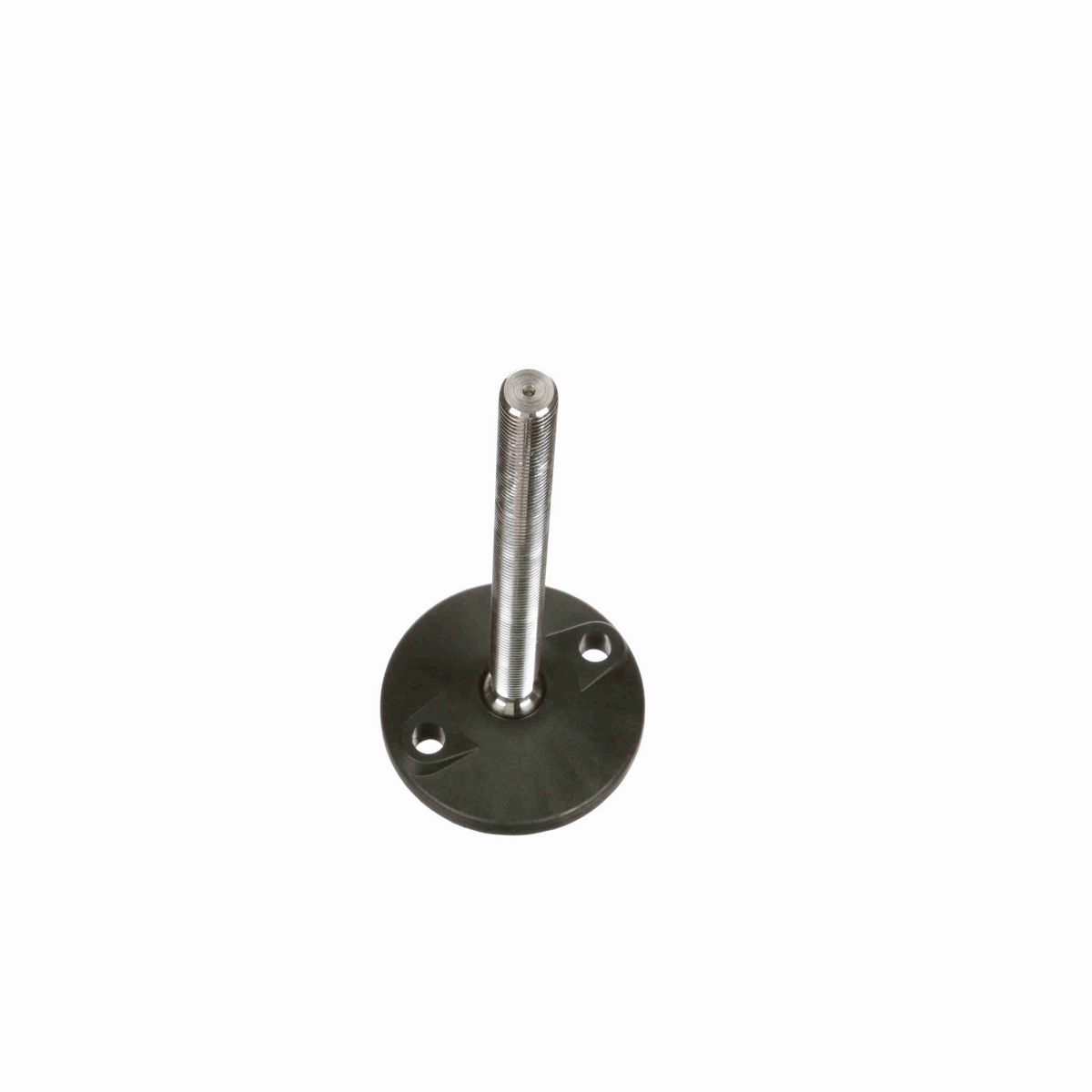

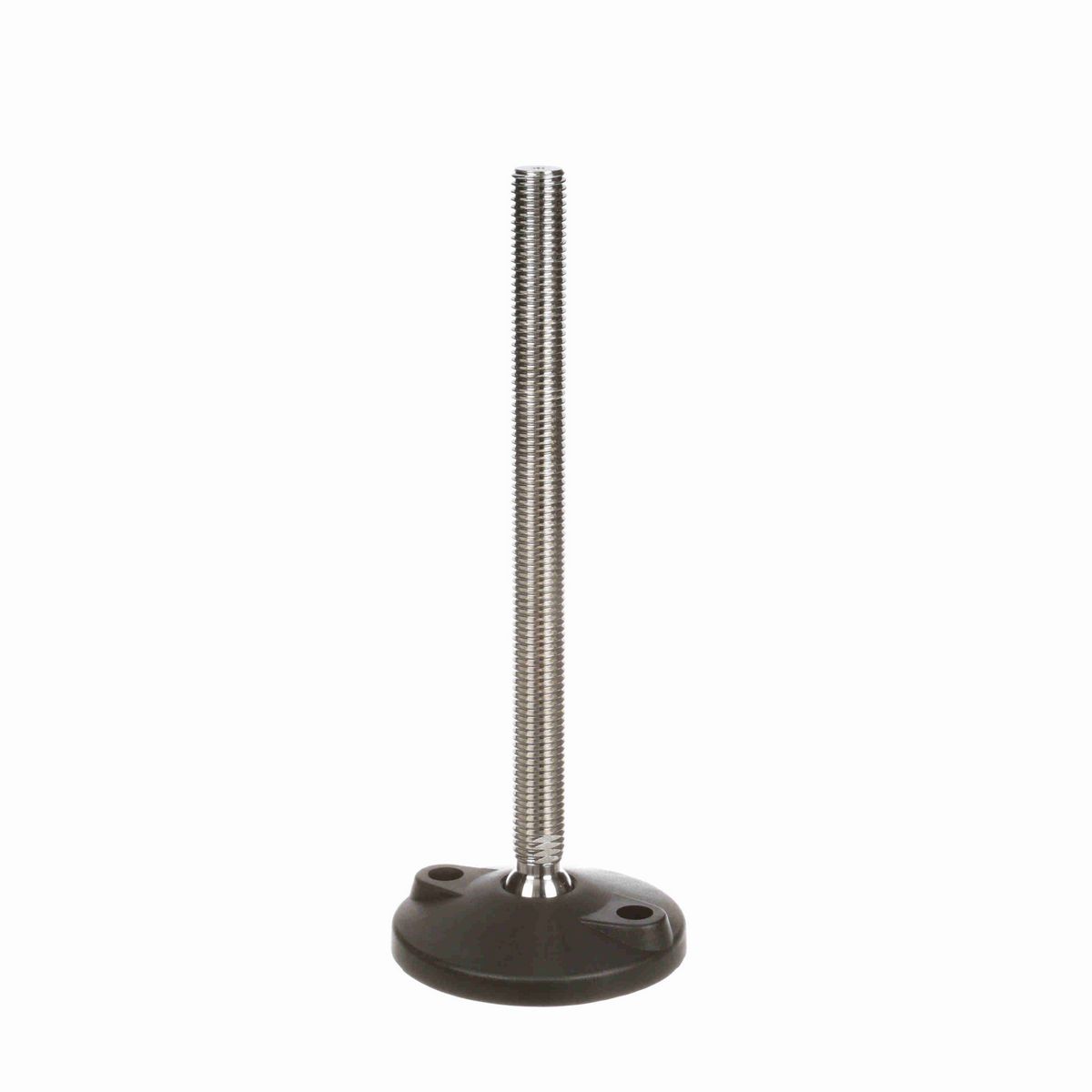

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support.
• Fastener attached to the stem through the base used to help prevent separation of the base from the stem.

Technical Specifications

Series	Loc-A-Lign
Leveler Type	Articulating Leveler
Deflection Angle	±5°
Type	511-T
Duty Type	Medium Duty
Vibration PAD	VG-512
Product Group	Levelers
Base Diameter (in)	4 in
Thread (in)	3/4-10 in
Lag Hole Diameter (in)	0.48 in
Component Series	VG-511
Spindle Length (in)	9.09 in
Measurement System	Imperial
Lag Hole Center Distance (in)	2.92 in
Stem Material	Stainless Steel
Material	POLYAMIDE
Wrench Height (in)	1.6 in
Product Type	Leveler (Polyamide Base)
Number of Lag Holes	2
Product Line	Conveying Components
Base Height (in)	0.73 in
Base Height with Pad (in)	0.83 in
Length (in)	10.69 in
Application	Conveyor and machinery support where resistance to stem pull-out is required.
Leveler Operating Type	Adjustable
Max Recommended Static Load (lb)	2,600 lb

General Specifications

UPC	787405245327
Weight	1.55 LB
