Technical Specifications

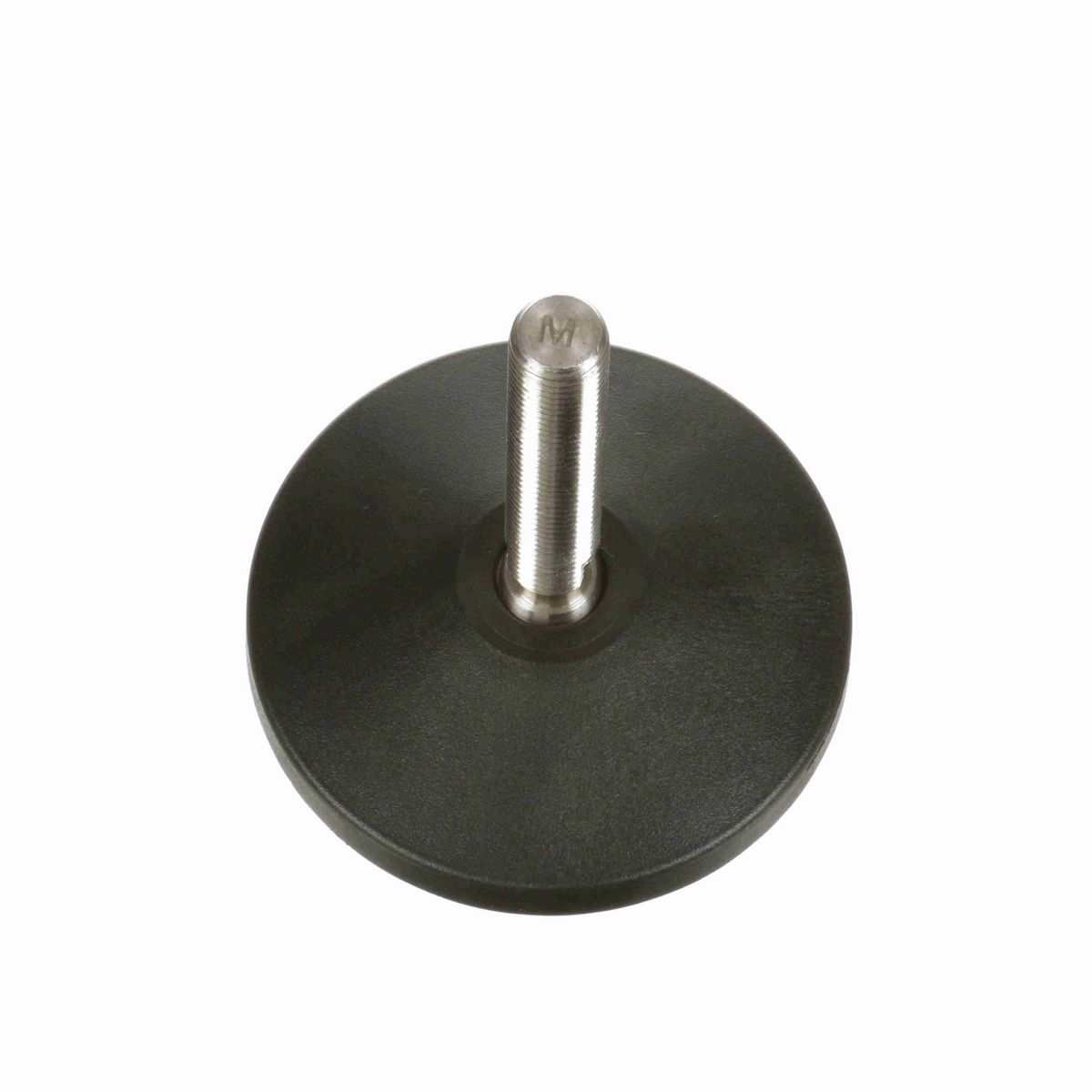

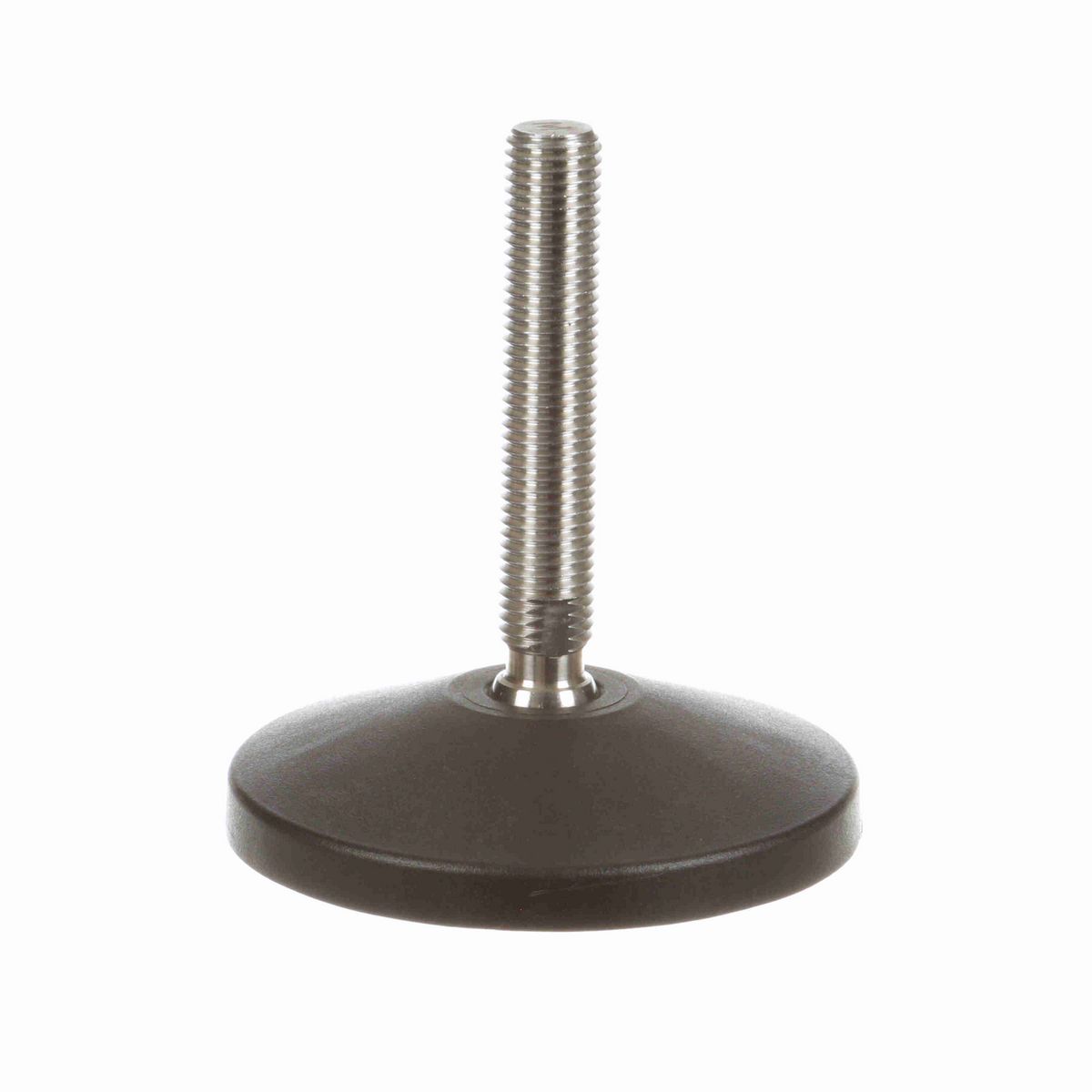

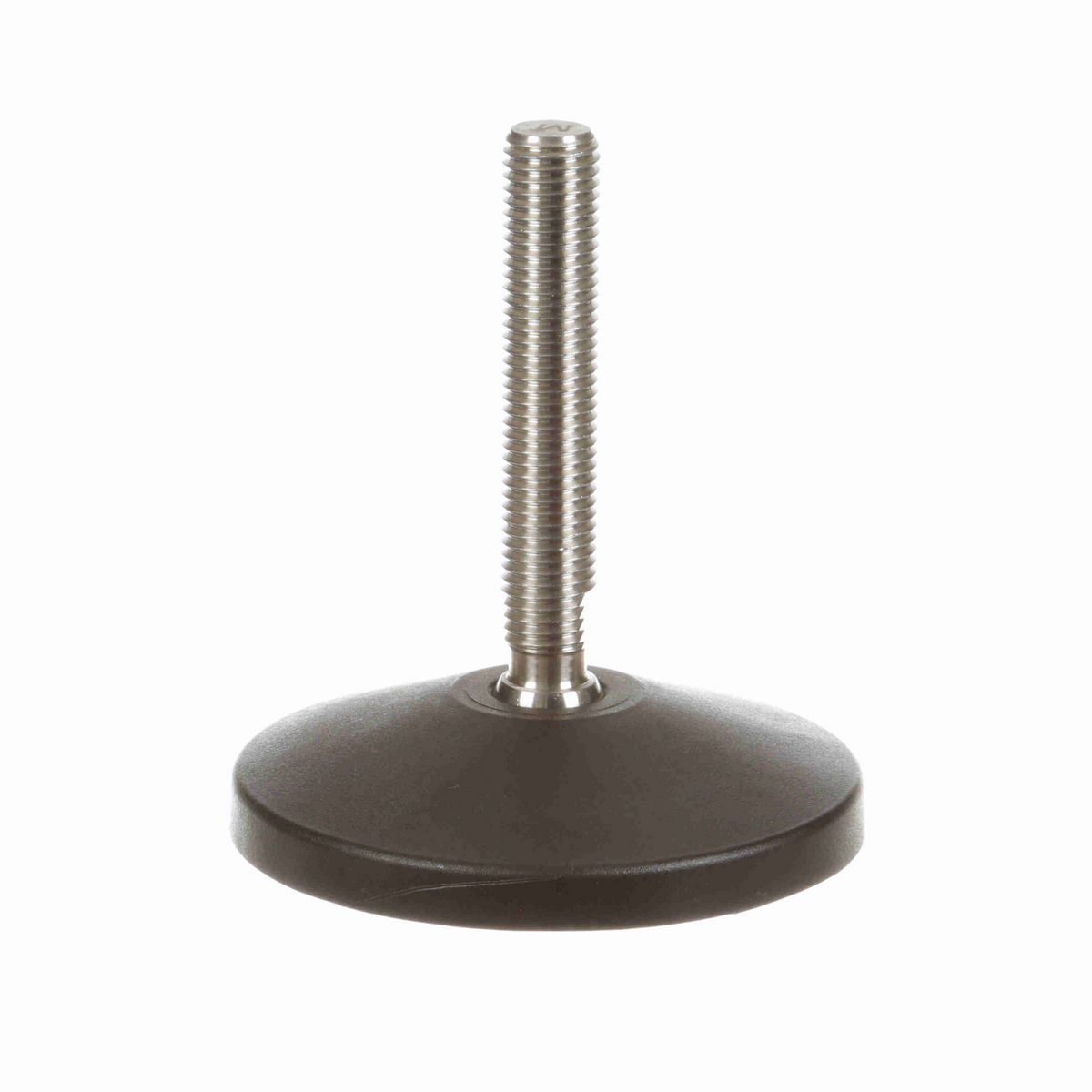

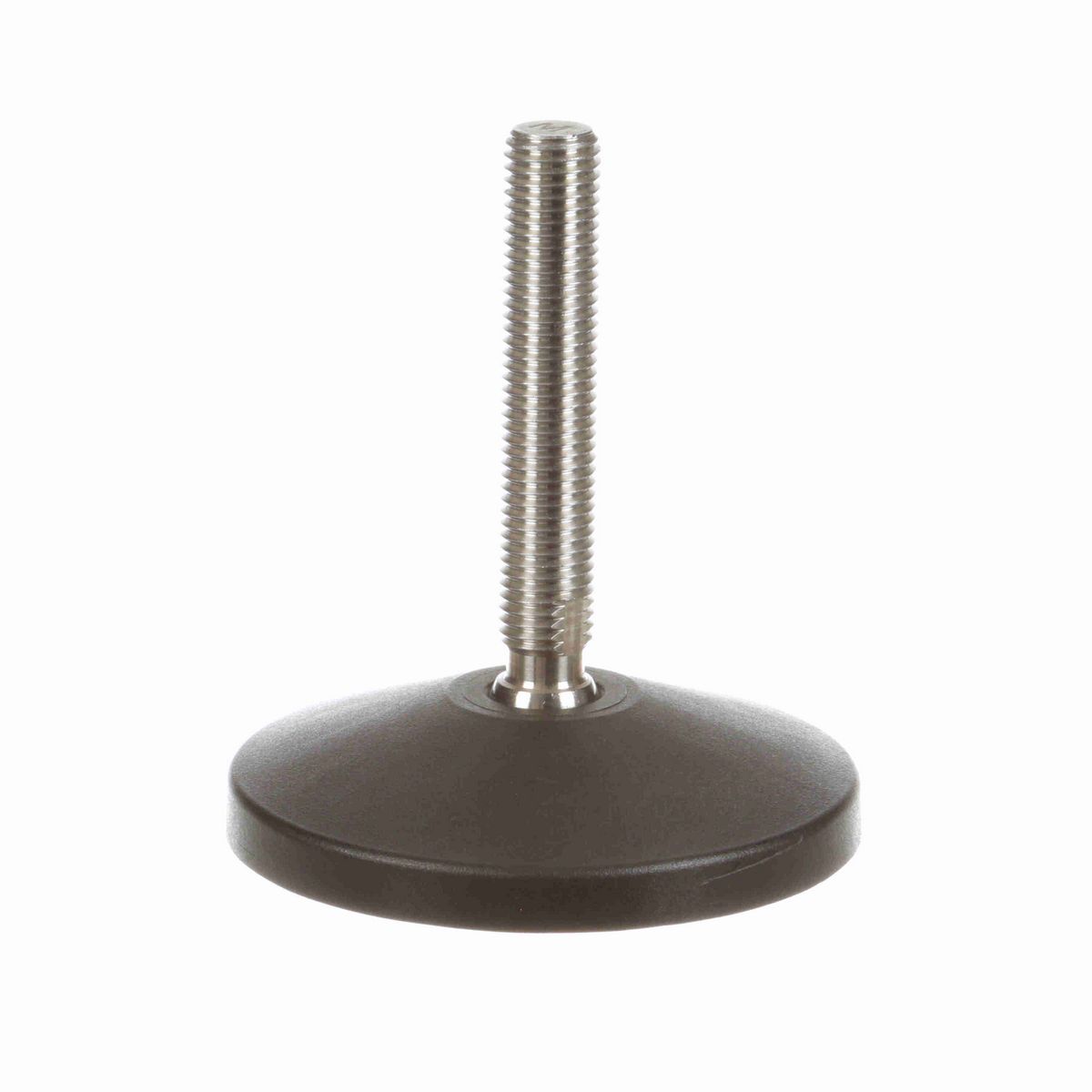

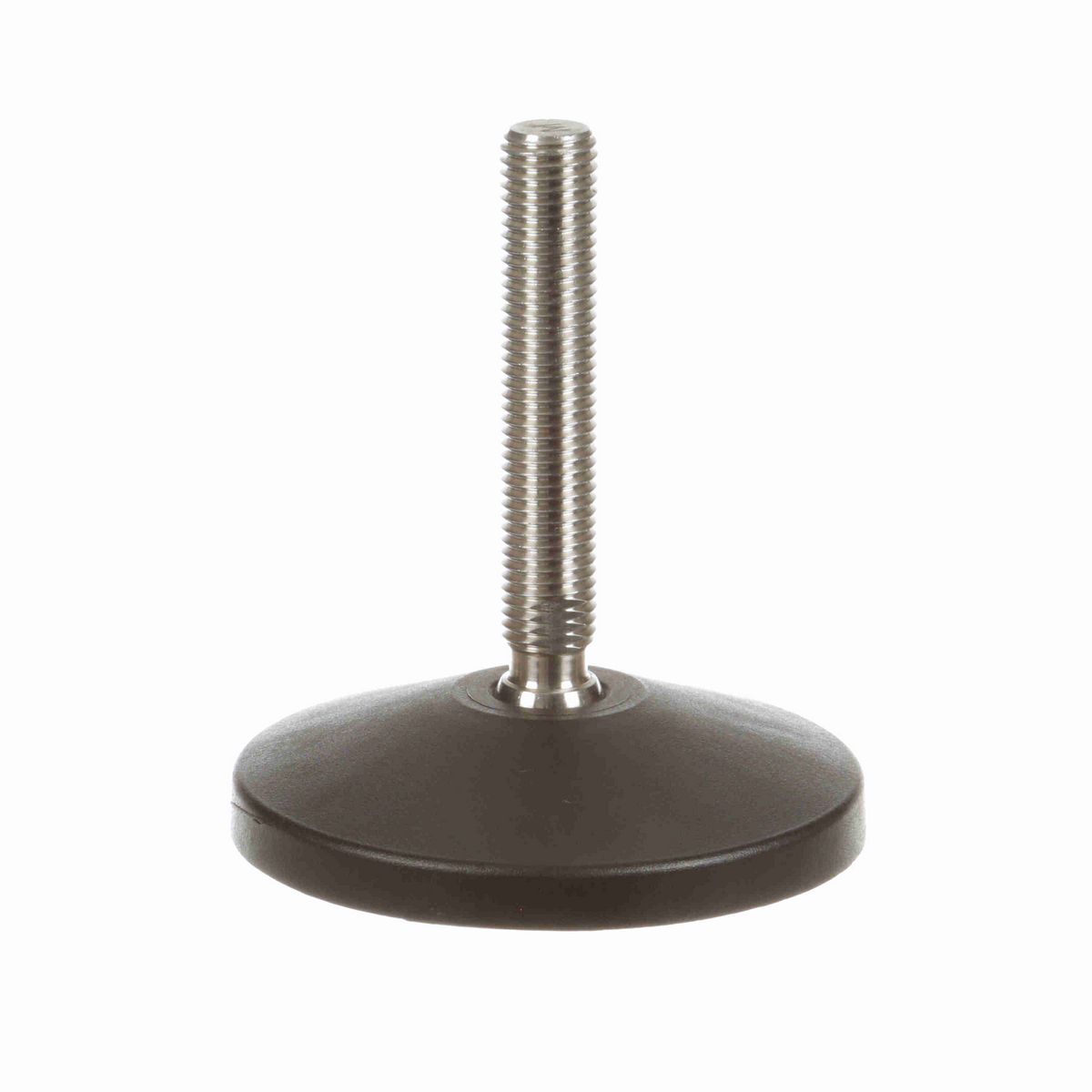

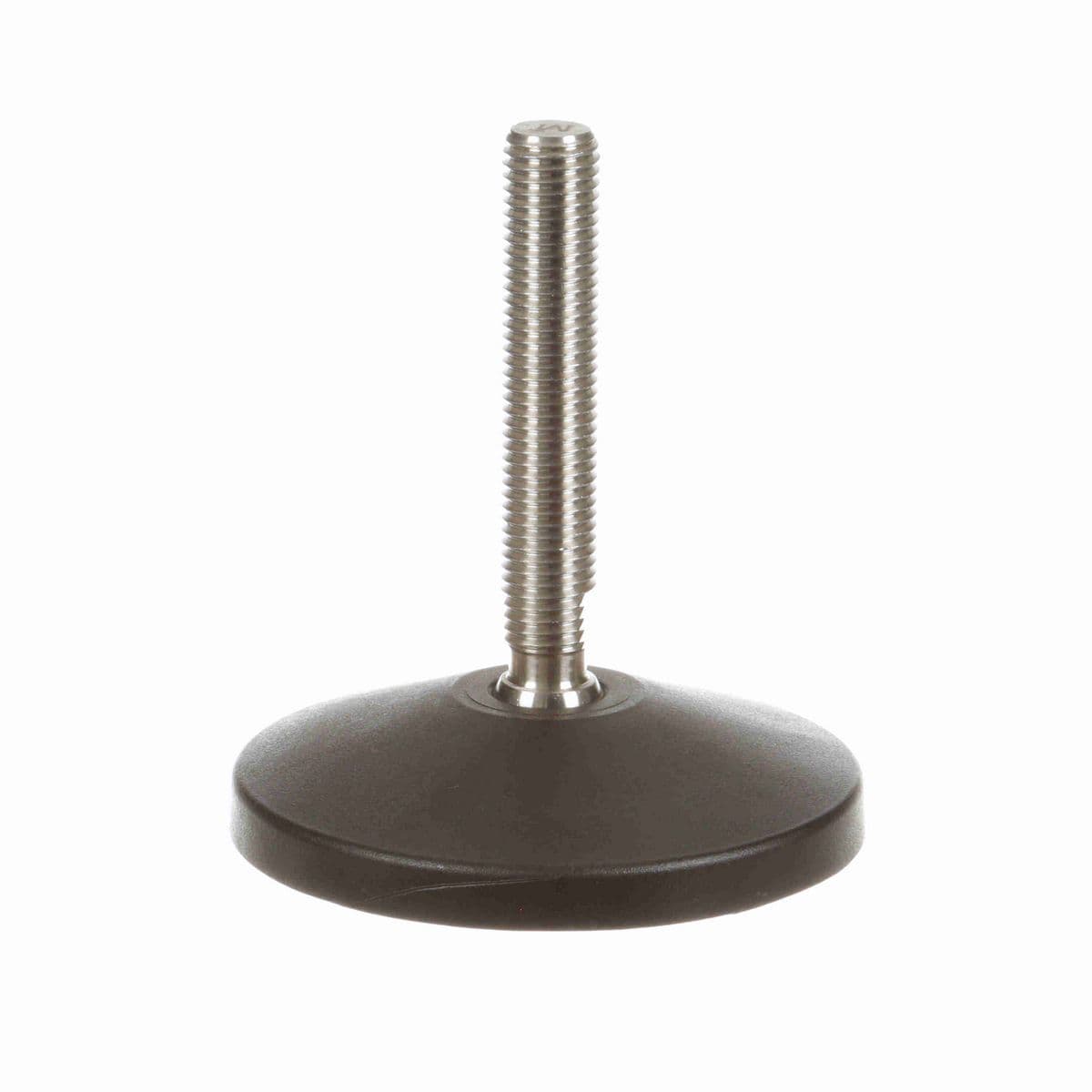

Leveler Type	Articulating Leveler
Product Line	Conveying Components
Base Height (in)	1.6 in
Thread (mm)	M16 mm
Base Height with Pad (in)	1.7 in
Stem Material	Stainless Steel
Height (in)	4.52 in
Thread Length (in)	2.92 in
Product Group	Levelers
Vibration PAD	VG-512
Component Series	VG-511
Material	POLYMAMIDE
Base Diameter (in)	4 in
Measurement System	Universal
Length (in)	4.52 in
Product Type	Leveler (Polyamide base)
Misalignment Angle	±15°
Static Load (lb)	2,600 lb

General Specifications

UPC	787405244733
Weight	0.50 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	4.55 IN
