• Reinforced polyamide base, stainless steel stem.

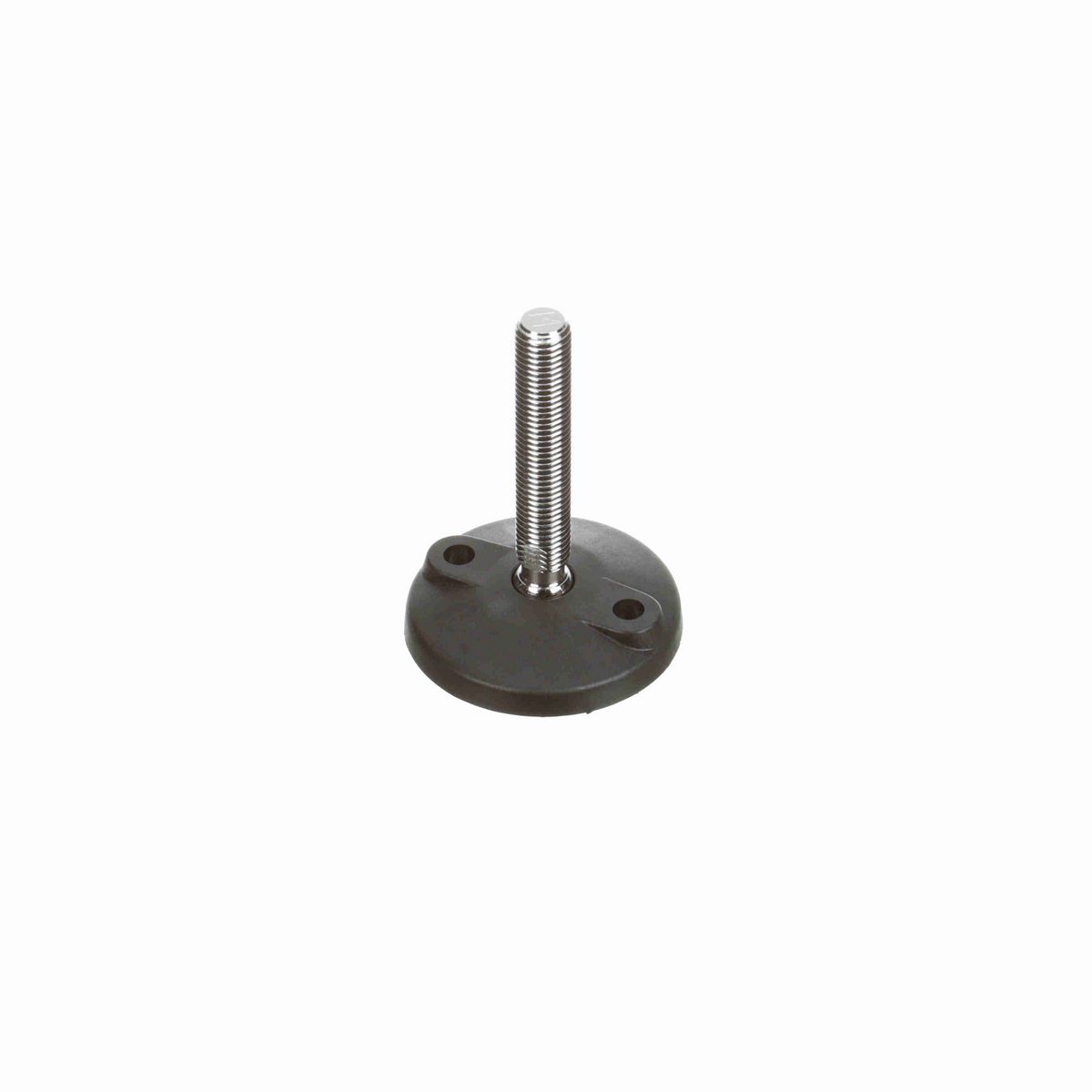

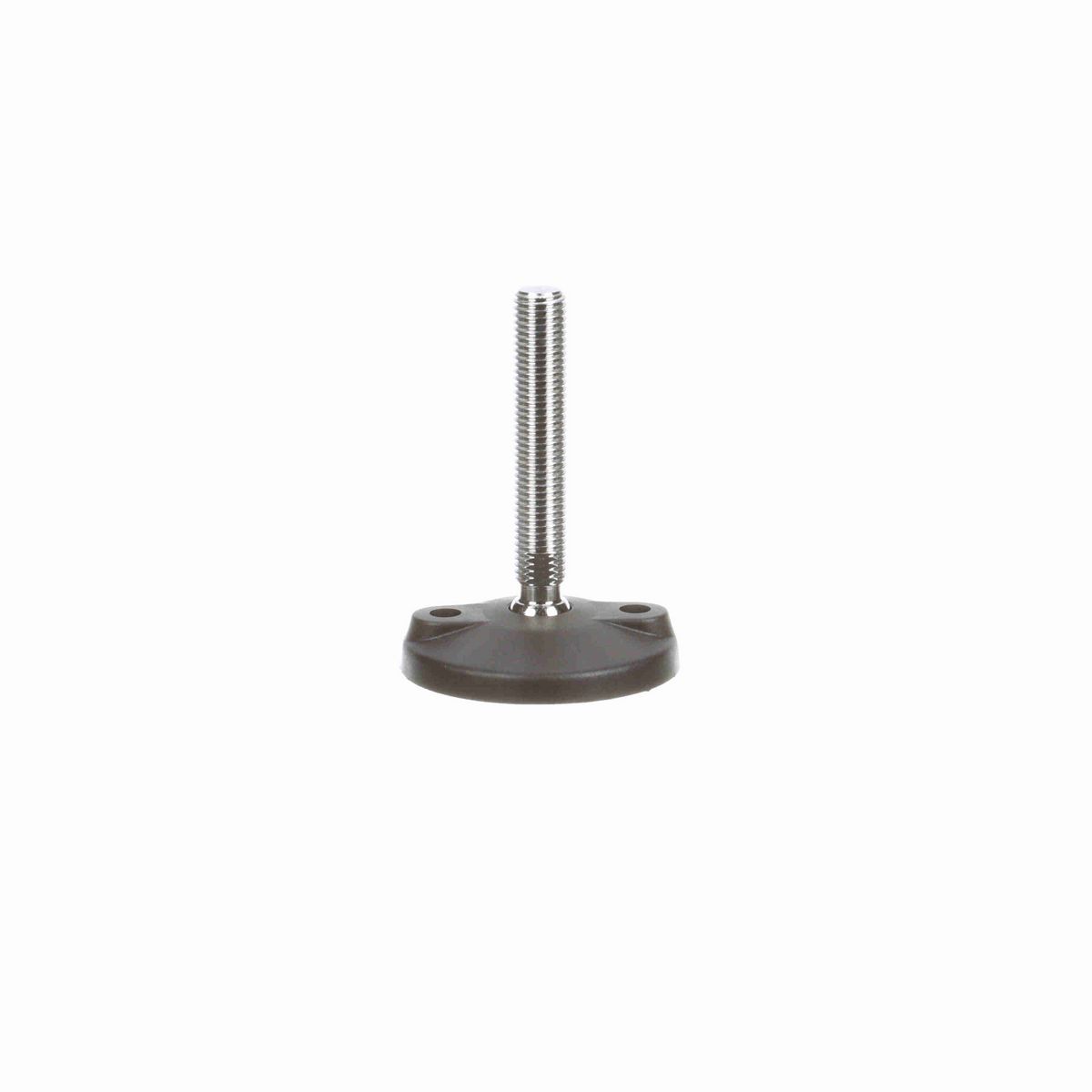

• Medium duty articulating leveler for conveyor and machinery support with two lag holes for anchoring to floor.

Technical Specifications

Vibration PAD	VG-506
Leveler Type	Articulating
Stem Thread	M16
Length (in)	3.74 in
Product Group	Levelers
Lag Hole Diameter (in)	0.35 in
Lag Hole Center Distance (in)	2.13 in
Base Height (in)	0.63 in
Thread (mm)	M16 mm
Base Height with Pad (in)	0.7 in
Material	POLYAMIDE
Stem Material	Stainless Steel
Spindle Length (in)	2.47 in
Base Diameter (in)	3.15 in
Product Type	Leveler (Polyamide Base)
Component Series	VG-505
Measurement System	Universal
Product Line	Conveying Components
Number of Lag Holes	2
Application	Conveyor and machinery support.
Static Load (lb)	2,000 lb
Misalignment Angle	±15°

General Specifications

UPC	787405243231
Weight	0.41 LB
