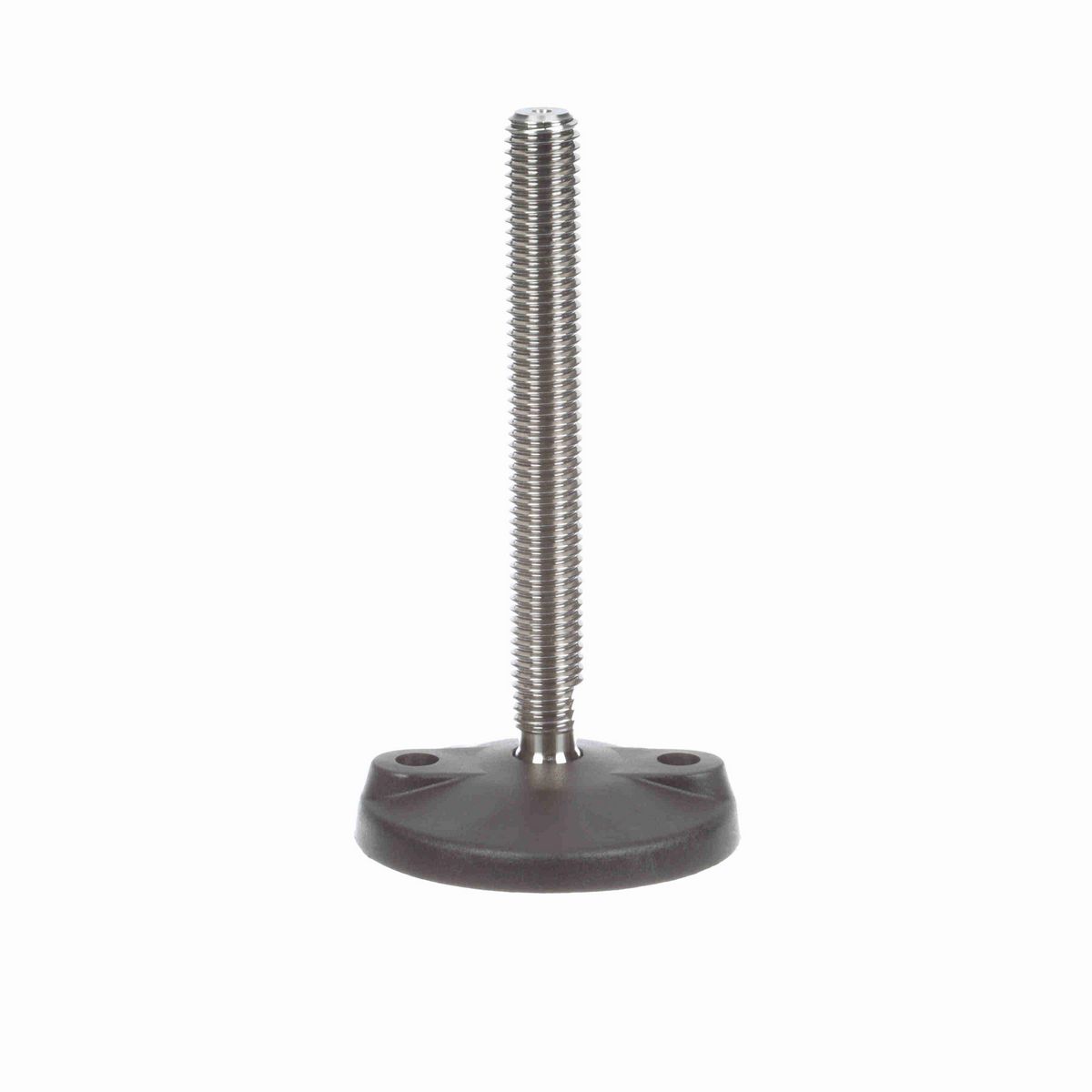

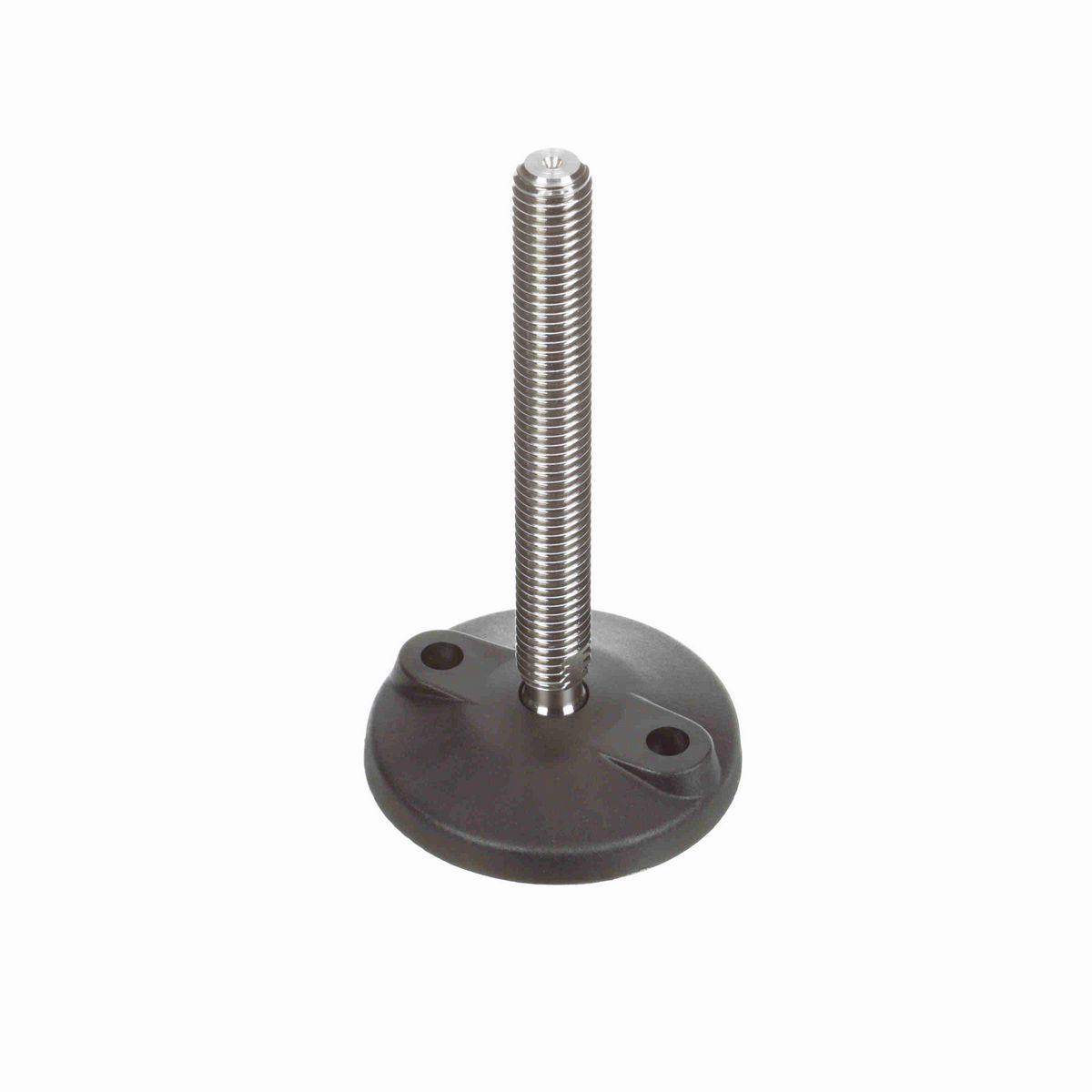

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support with two lag holes for anchoring to floor.

Technical Specifications

Vibration PAD	VG-506
Leveler Type	Articulating
Stem Thread	5/8-11
Base Height with Pad (in)	0.7 in
Base Diameter (in)	3.15 in
Product Type	Leveler (Polyamide Base)
Length (in)	5.93 in
Lag Hole Center Distance (in)	2.13 in
Product Line	Conveying Components
Spindle Length (in)	4.66 in
Thread (in)	5/8-11 in
Number of Lag Holes	2
Measurement System	Imperial
Lag Hole Diameter (in)	0.35 in
Component Series	VG-505
Stem Material	Stainless Steel
Base Height (in)	0.63 in
Product Group	Levelers
Material	POLYAMIDE
Application	Conveyor and machinery support.
Misalignment Angle	±15°
Static Load (lb)	2,000 lb

General Specifications

UPC	787405243163
Weight	0.50 LB
Packaged Length	3.05 IN
Packaged Width	3.05 IN
Packaged Height	6.20 IN
