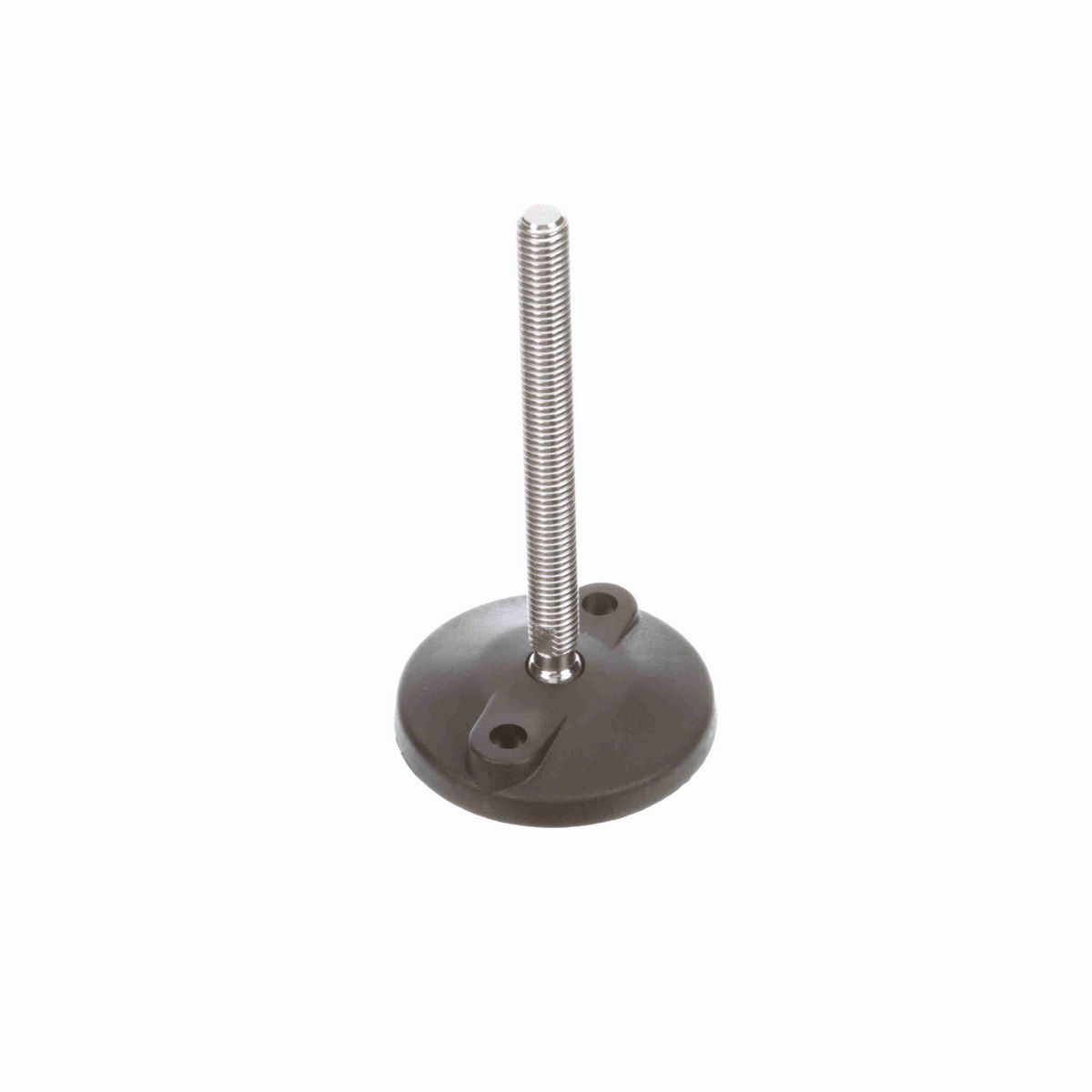

• Reinforced polyamide base, stainless steel stem.
• Medium duty articulating leveler for conveyor and machinery support with two lag holes for anchoring to floor.

Technical Specifications

Stem Thread	1/2-13
Vibration PAD	VG-506
Leveler Type	Articulating
Material	POLYAMIDE
Lag Hole Diameter (in)	0.35 in
Product Group	Levelers
Measurement System	Imperial
Base Height with Pad (in)	0.7 in
Component Series	VG-505
Number of Lag Holes	2
Product Type	Leveler (Polyamide Base)
Stem Material	Stainless Steel
Thread (in)	1/2-13 in
Length (in)	5.93 in
Base Height (in)	0.63 in
Spindle Length (in)	4.66 in
Base Diameter (in)	3.15 in
Product Line	Conveying Components
Lag Hole Center Distance (in)	2.13 in
Application	Conveyor and machinery support.
Static Load (lb)	2,000 lb
Misalignment Angle	±15°

General Specifications

UPC	787405243101
Weight	0.78 LB
Packaged Length	3.10 IN
Packaged Width	3.05 IN
Packaged Height	6.35 IN
