• Tube connecting joints.
• Reinforced polyamide material.
• Stainless steel screws and nuts.

Technical Specifications

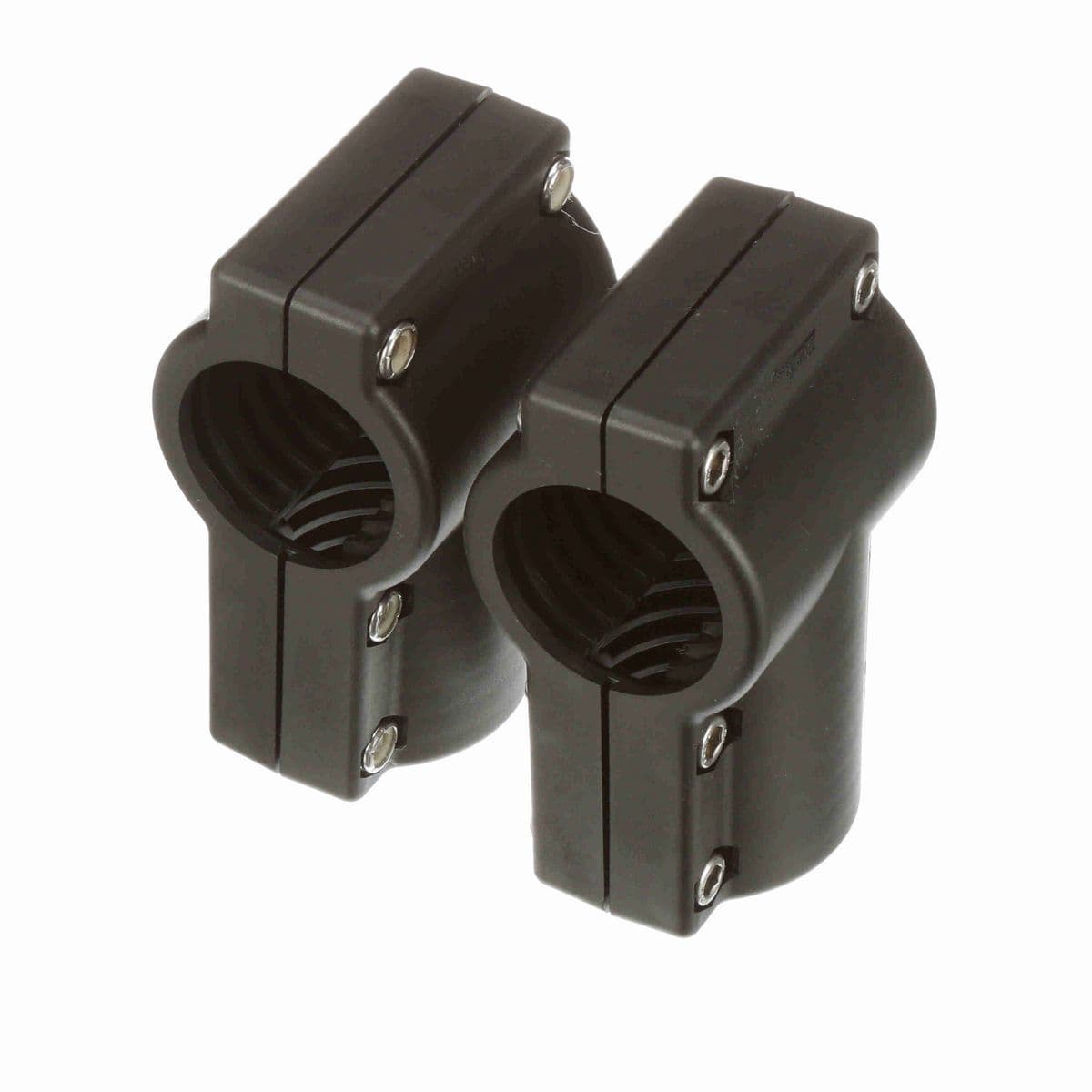

Type	Tee Leg Tie
Material	POLYAMIDE
Overall Length (mm)	134 mm
Vertical Member (in)	1-1/2 pipe in
Height (in)	5.3 in
Height (mm)	86 mm
Horizontal Member (in)	1-1/4 pipe in
Width (mm)	68 mm
Width (in)	3.3 in
Product Group	Frame and Structure Components
Product Line	Conveying Components
Horizontal Tube/Pipe Size (in)	1-1/4" Pipe in
Horizontal Tube Depth (mm)	60 mm
Component Series	VG-3110
Product Type	Tee Leg Tie
Distance to Centerline (mm)	45 mm
Measurement System	Universal
Vertical Tube/Pipe Size (in)	1-1/2" Pipe in
Pipe Size Diameter (mm)	1-1/4" Pipe mm
Max Recommended Tightening Torque (Kg)	1.5 kg
Vertical Tube Diameter (mm)	48.3 mm
Horizontal Tube Diameter (mm)	42.2 mm

General Specifications

UPC	787405118935
Weight	1.17 LB
Packaged Length	2.68 IN
Packaged Width	3.39 IN
Packaged Height	5.28 IN
