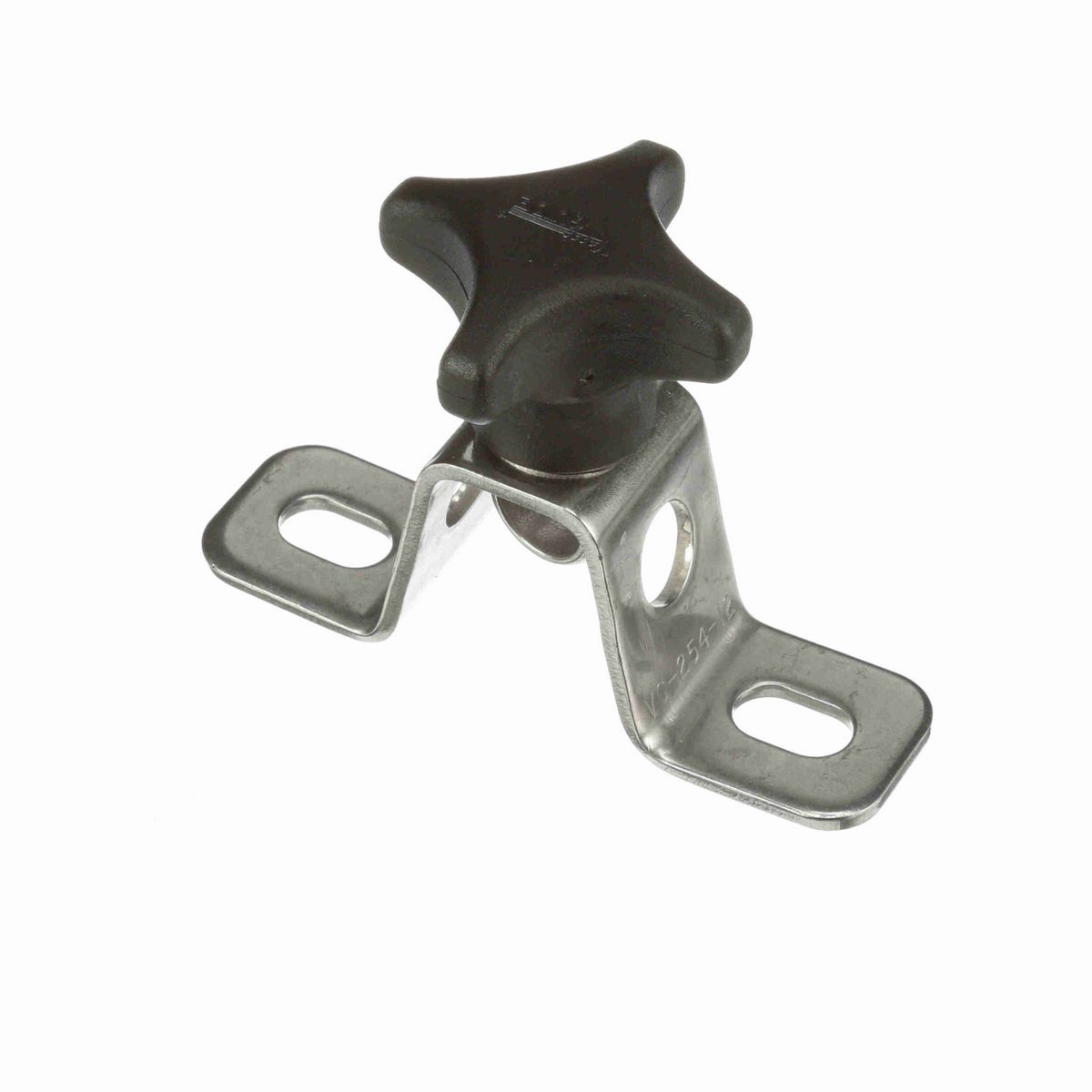

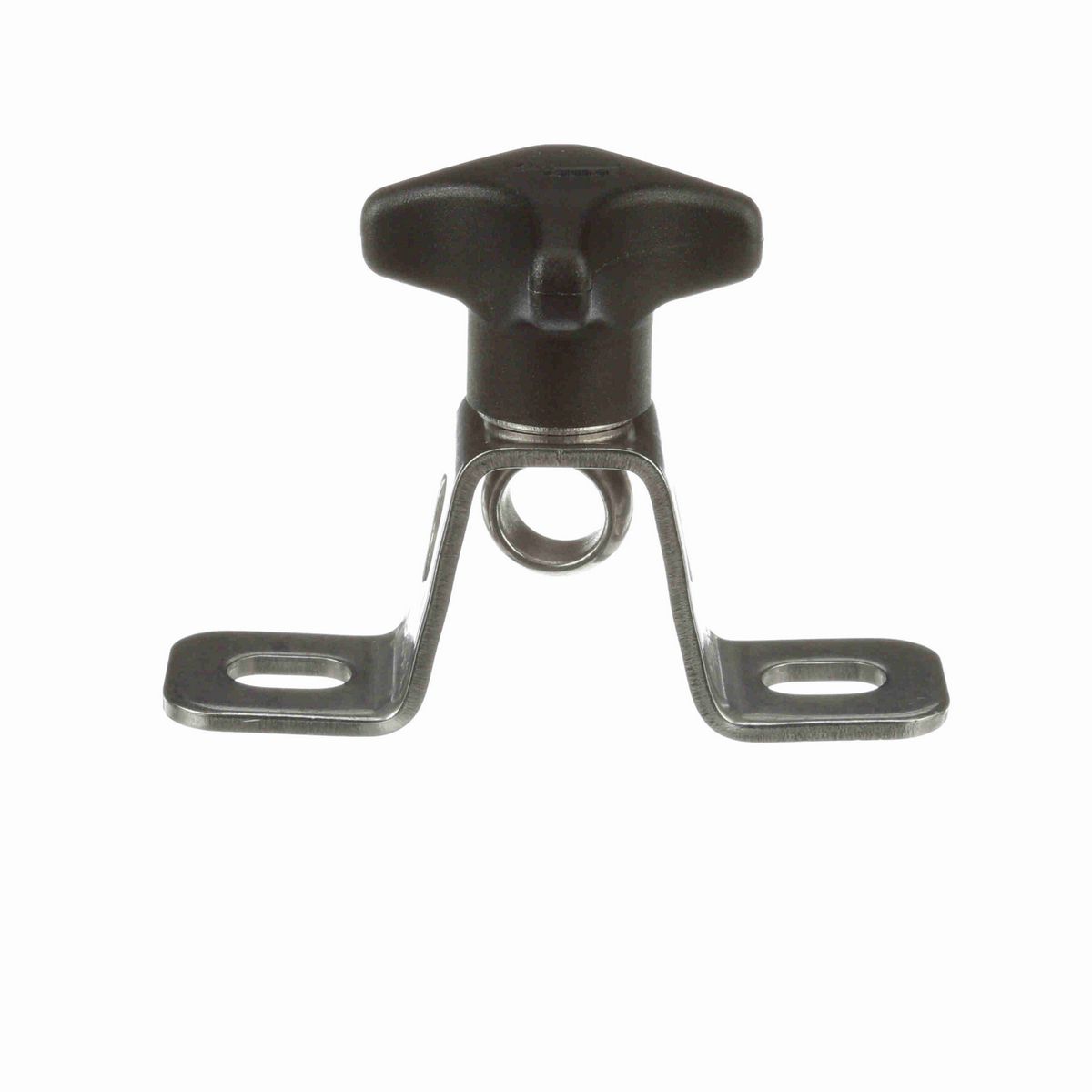

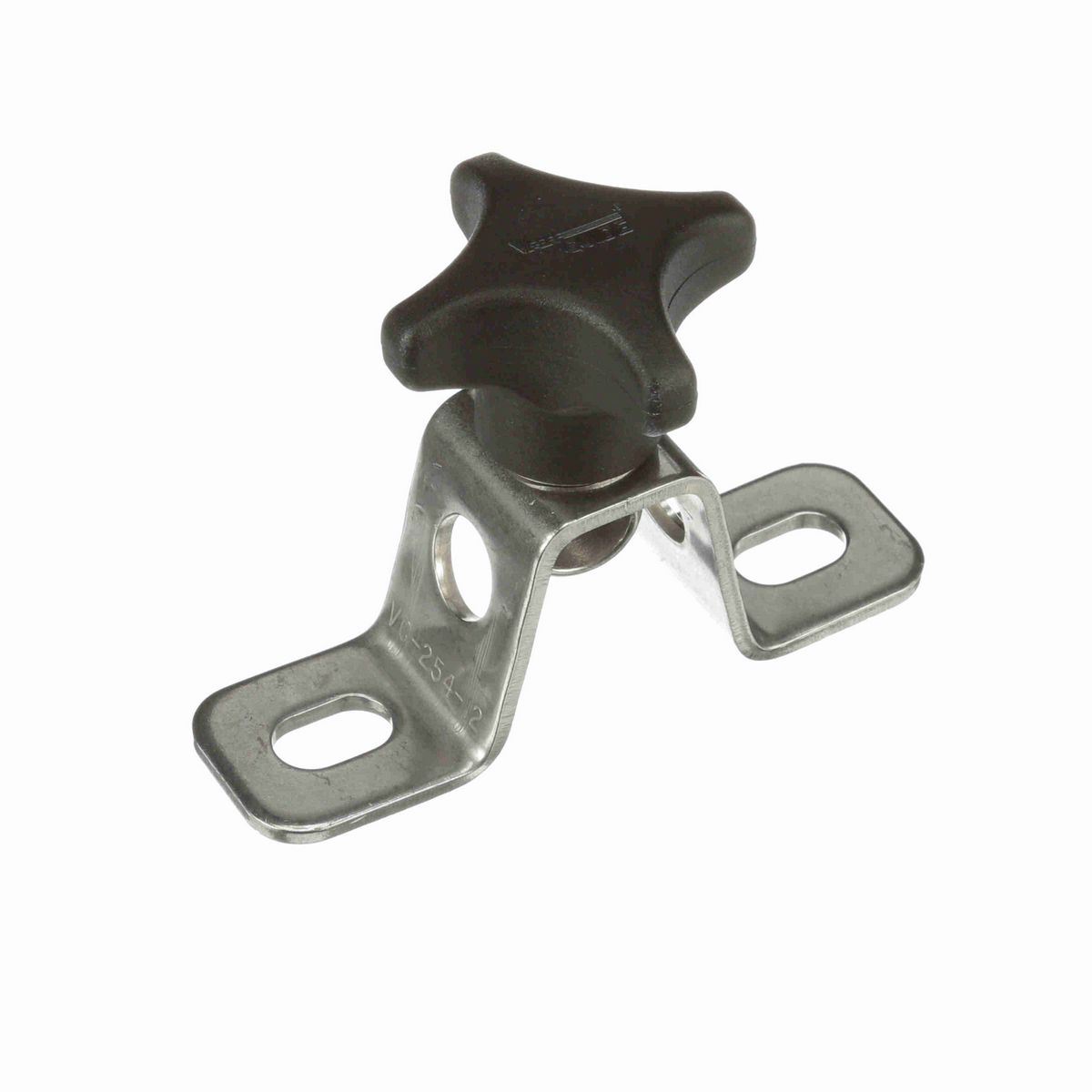

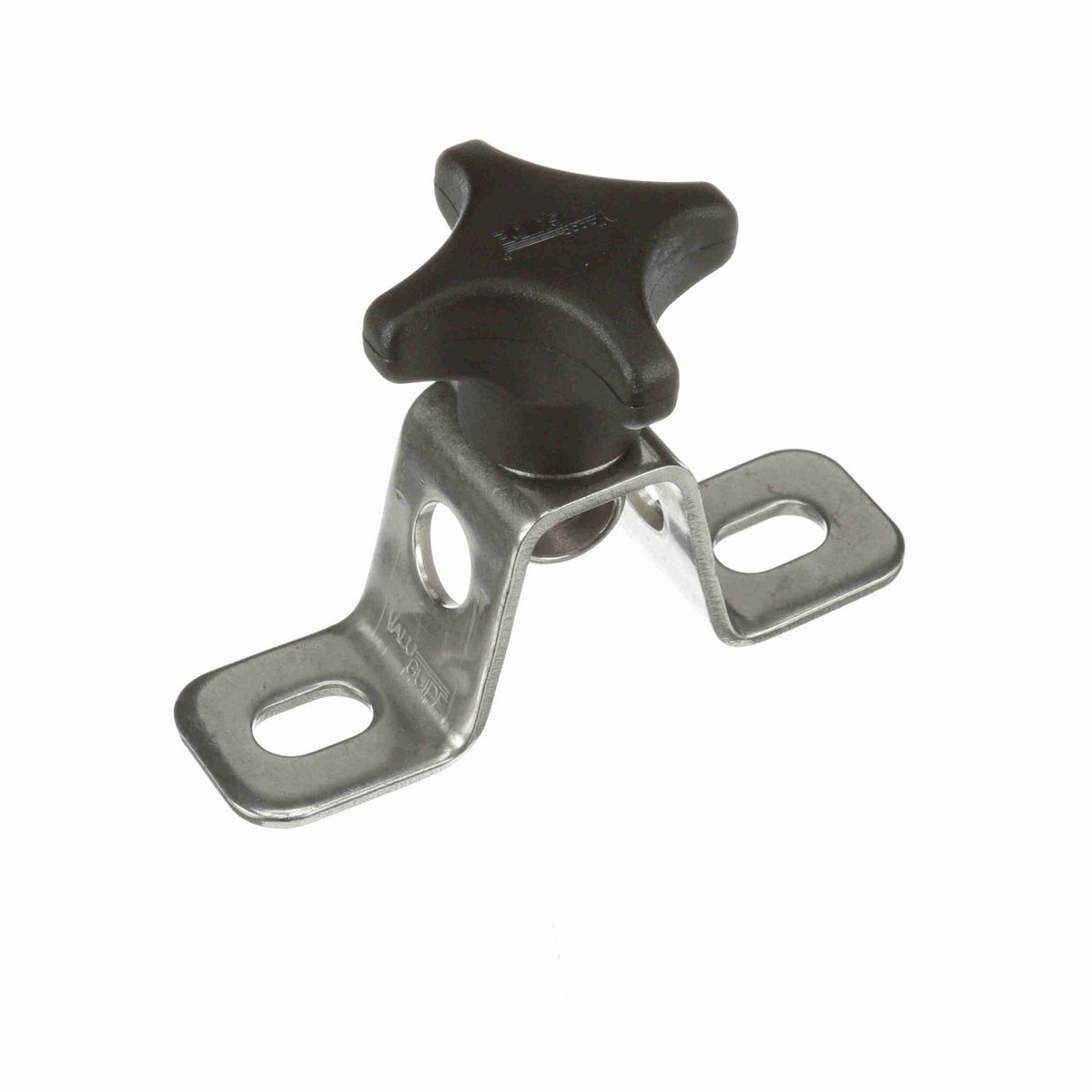

• Small rod mount bracket with hand knob.
• Provides holding and positioning of 1/2 inch O.D. rods.
• Heavy duty construction for increased strength and rigidity.
• 10 gauge stainless steel bracket and eyelet.
• Polyamide hand knob.

Technical Specifications

Material	Stainless Steel
Type	Stainless Steel Bracket
Product Line	Conveying Components
Length (in)	4 in
Height (in)	1.56 in
Measurement System	Imperial
Product Type	Bracket (Rod Mount - SS)
Width (in)	1.13 in
Thread (in)	3/8 in
Product Group	Side Guide Solutions
Component Series	VG-254K
Version	Small Bracket w/Hand Knob for 1/2" Rod (Cross Ref. 13S00104)
Rod Diameter (in)	1/2 in
Slot Outer Center Distance (in)	3 in
Slot Inner Center Distance (in)	2.5 in

General Specifications

UPC	787405188235
Weight	0.31 LB
Packaged Length	4.00 IN
Packaged Width	1.56 IN
Packaged Height	1.13 IN
