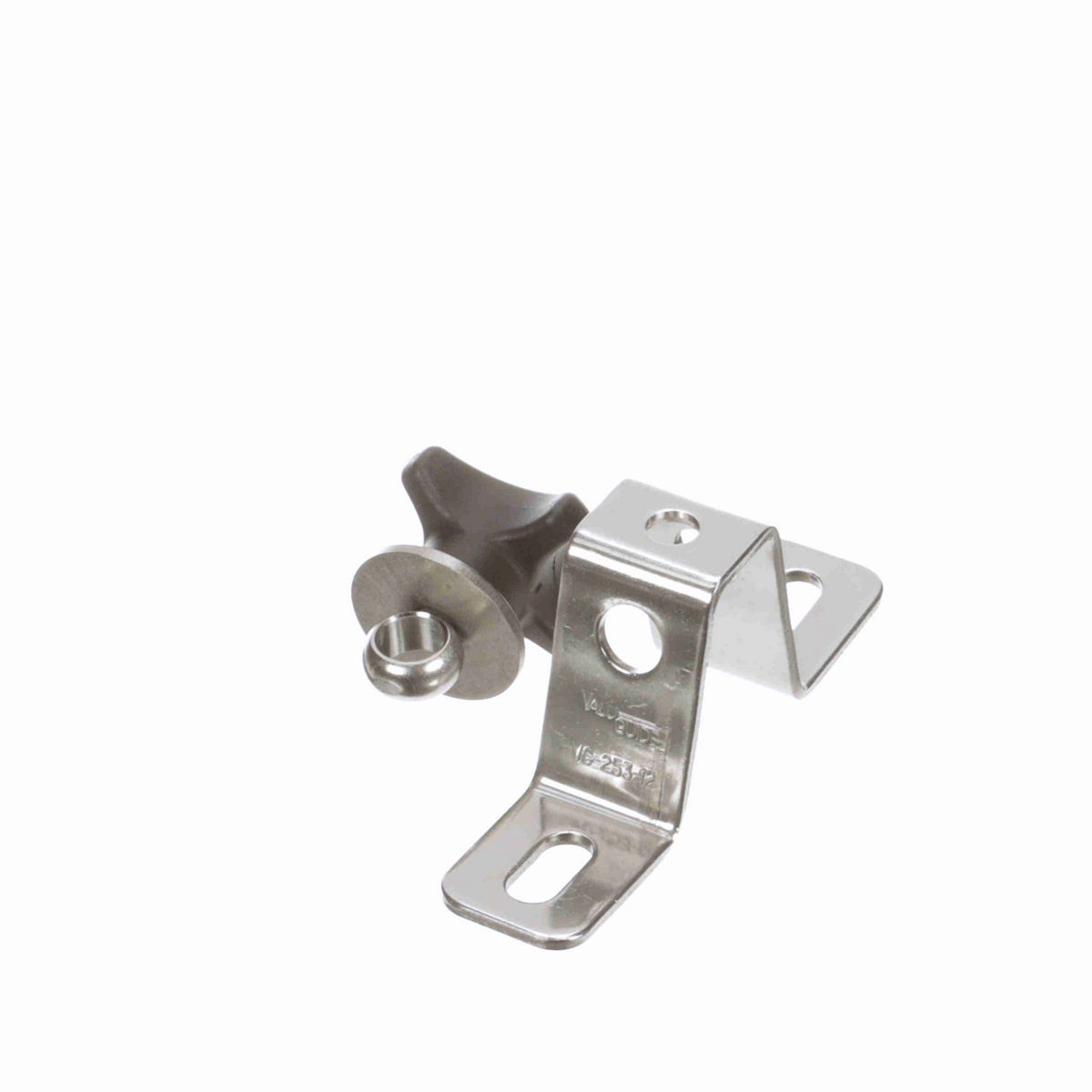

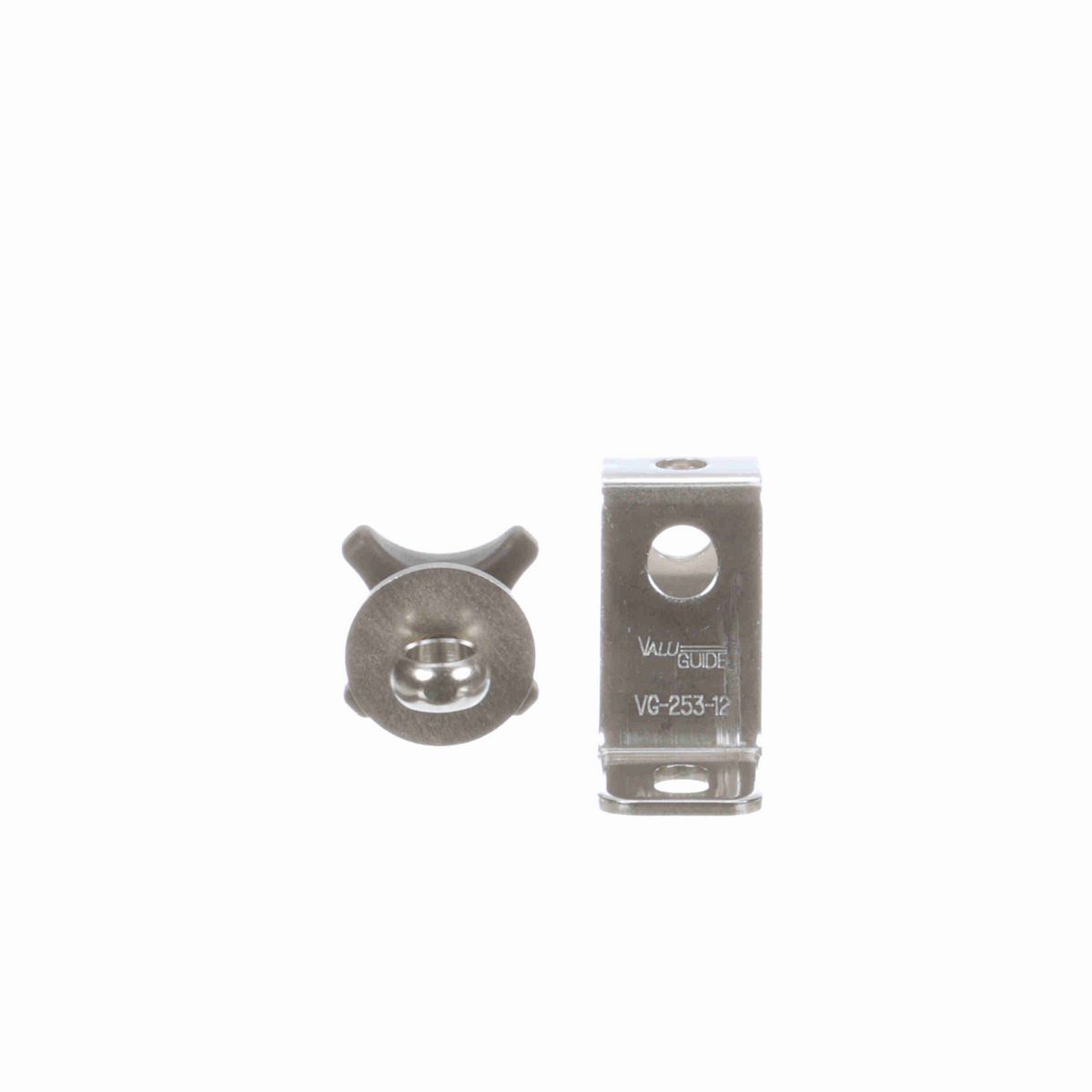

• Rod mount bracket with hand knob.
• Provides holding and positioning of 1/2, 5/8, and 3/4 inch O.D. rods.
• Heavy duty construction for increased strength and rigidity.
• 10 gauge stainless steel bracket and eyelet.
• Polyamide hand knob.

Technical Specifications

Material	Stainless Steel
Type	Stainless Steel Bracket
Product Type	Bracket (Rod Mount - SS)
Product Group	Side Guide Solutions
Thread (in)	0.375 in
Component Series	VG-253K
Width (in)	1.25 in
Height (in)	2.2 in
Product Line	Conveying Components
Base Diameter (in)	0 in
Measurement System	Imperial
Length (in)	5 in
Version	Bracket w/ Hand Knob- for 1/2" Rod (Cross Ref. 13S00100)
Rod Diameter (in)	.5 in
Slot Inner Center Distance (in)	3 in
Slot Outer Center Distance (in)	4 in

General Specifications

UPC	726166449254
Weight	0.45 LB
Packaged Length	5.00 IN
Packaged Width	2.20 IN
Packaged Height	1.25 IN
