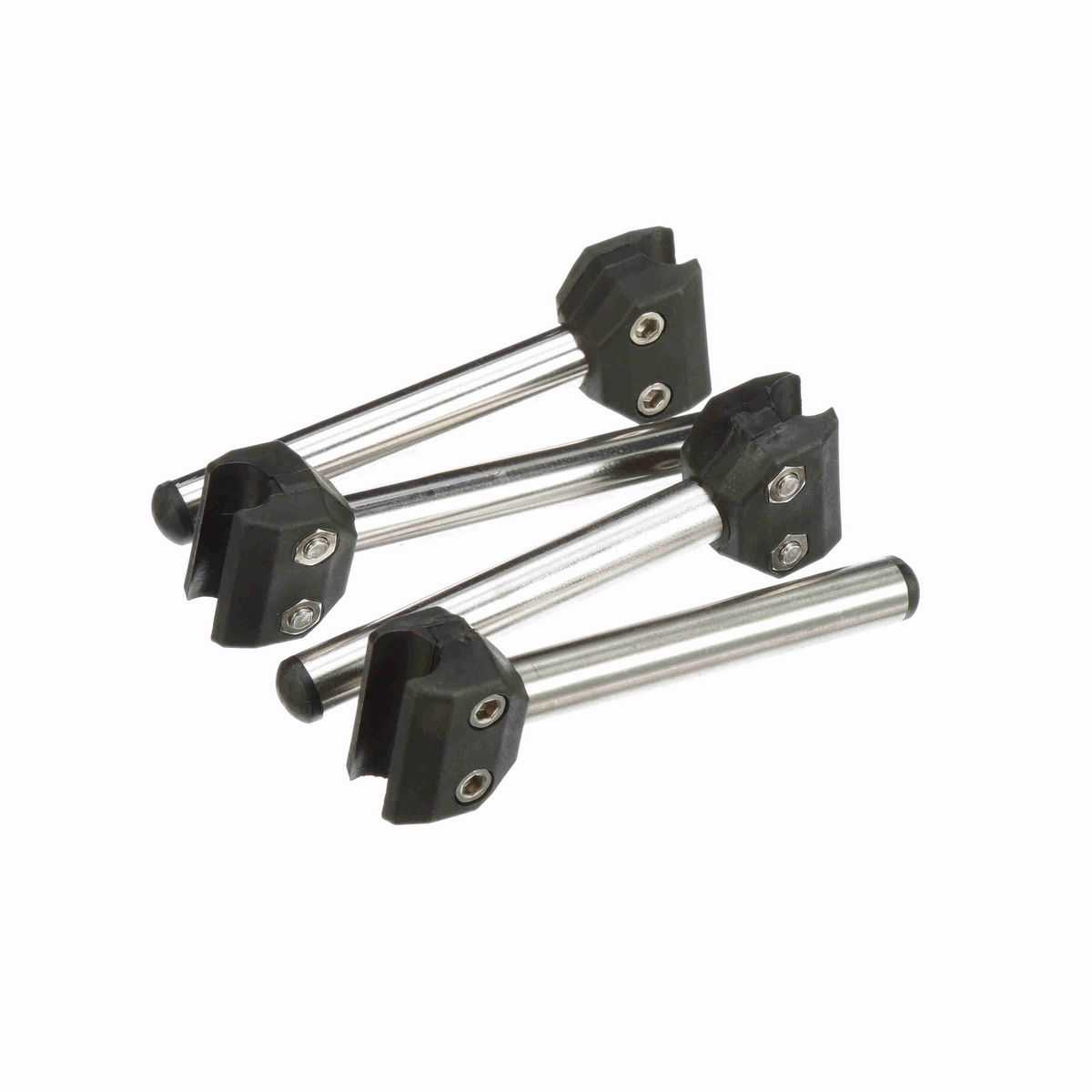

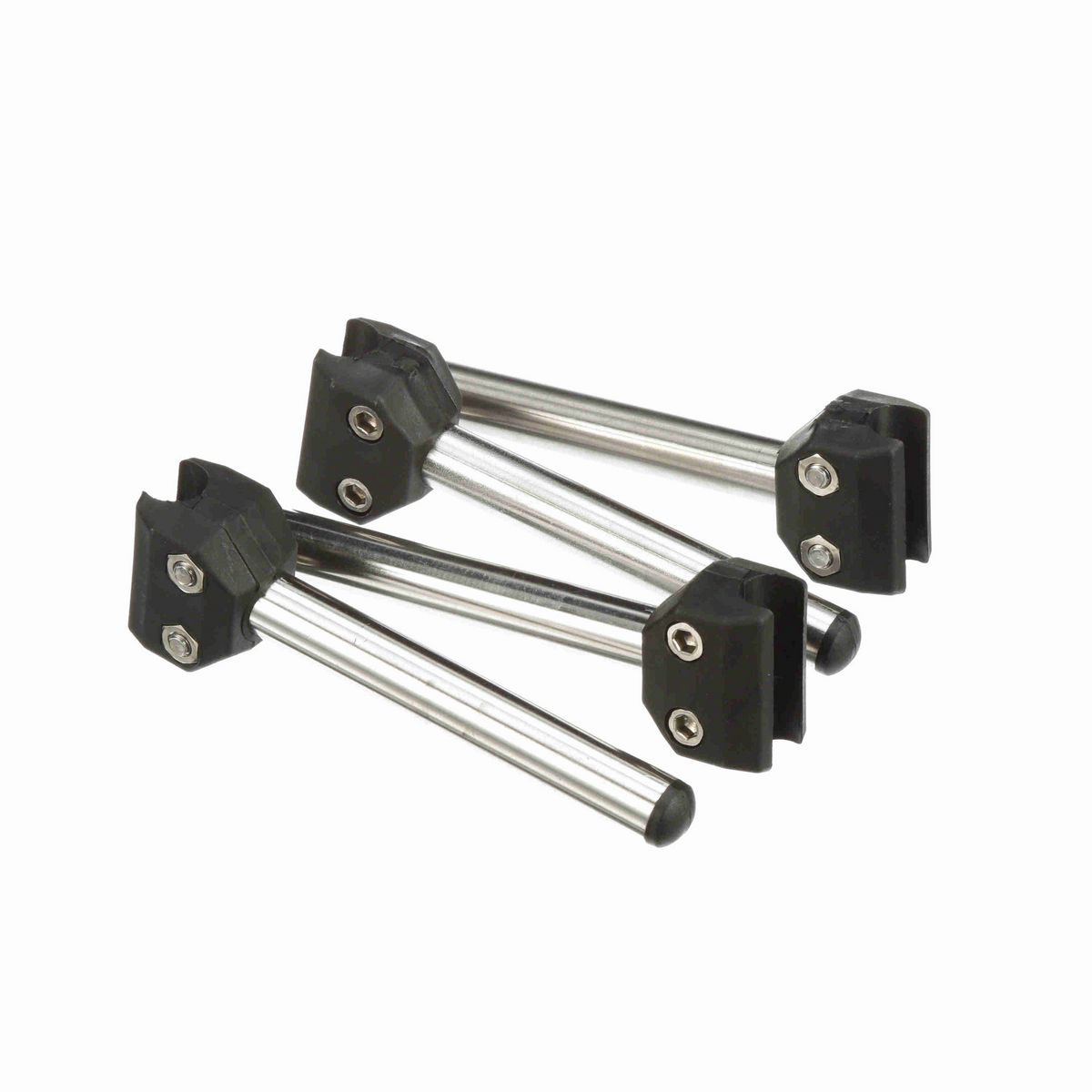

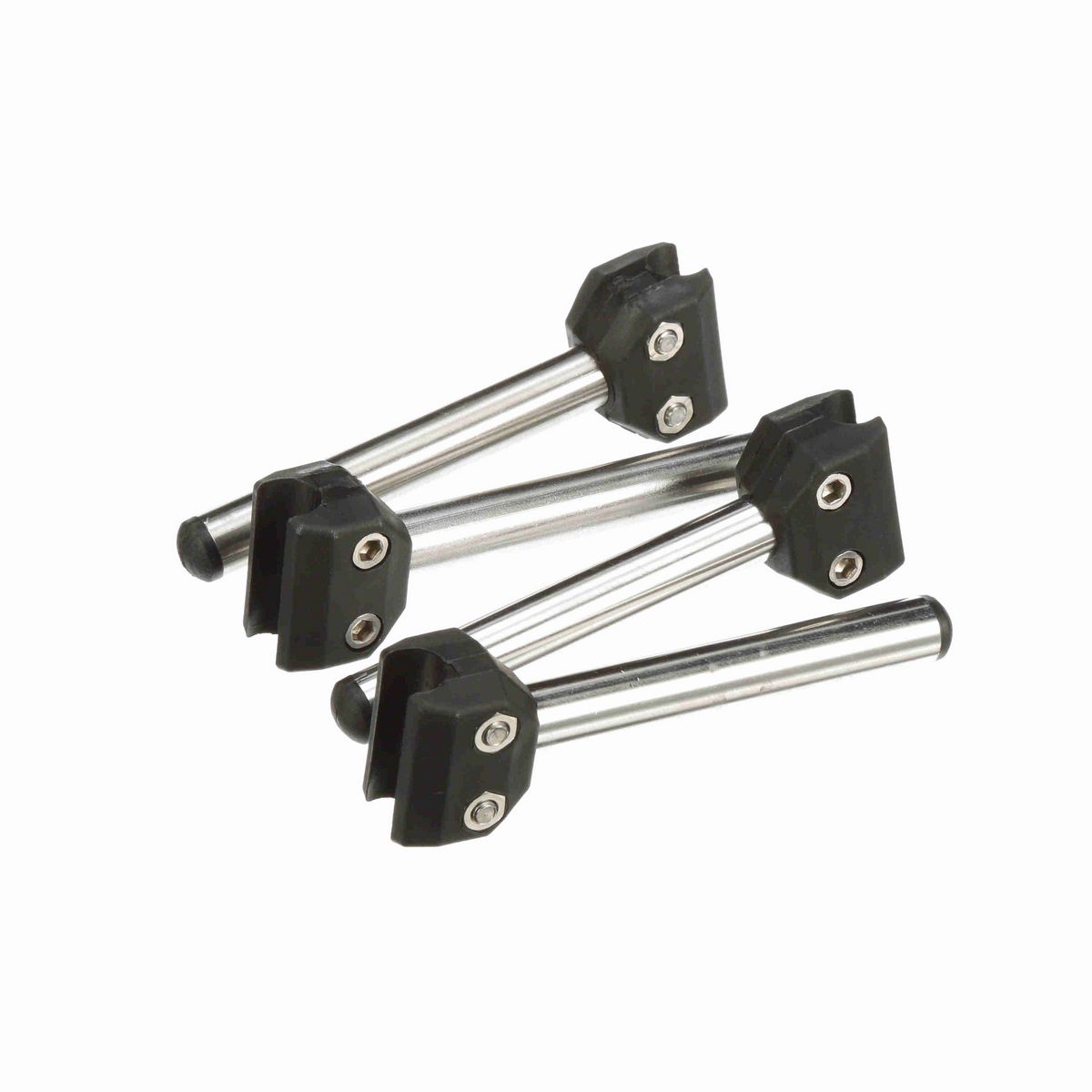

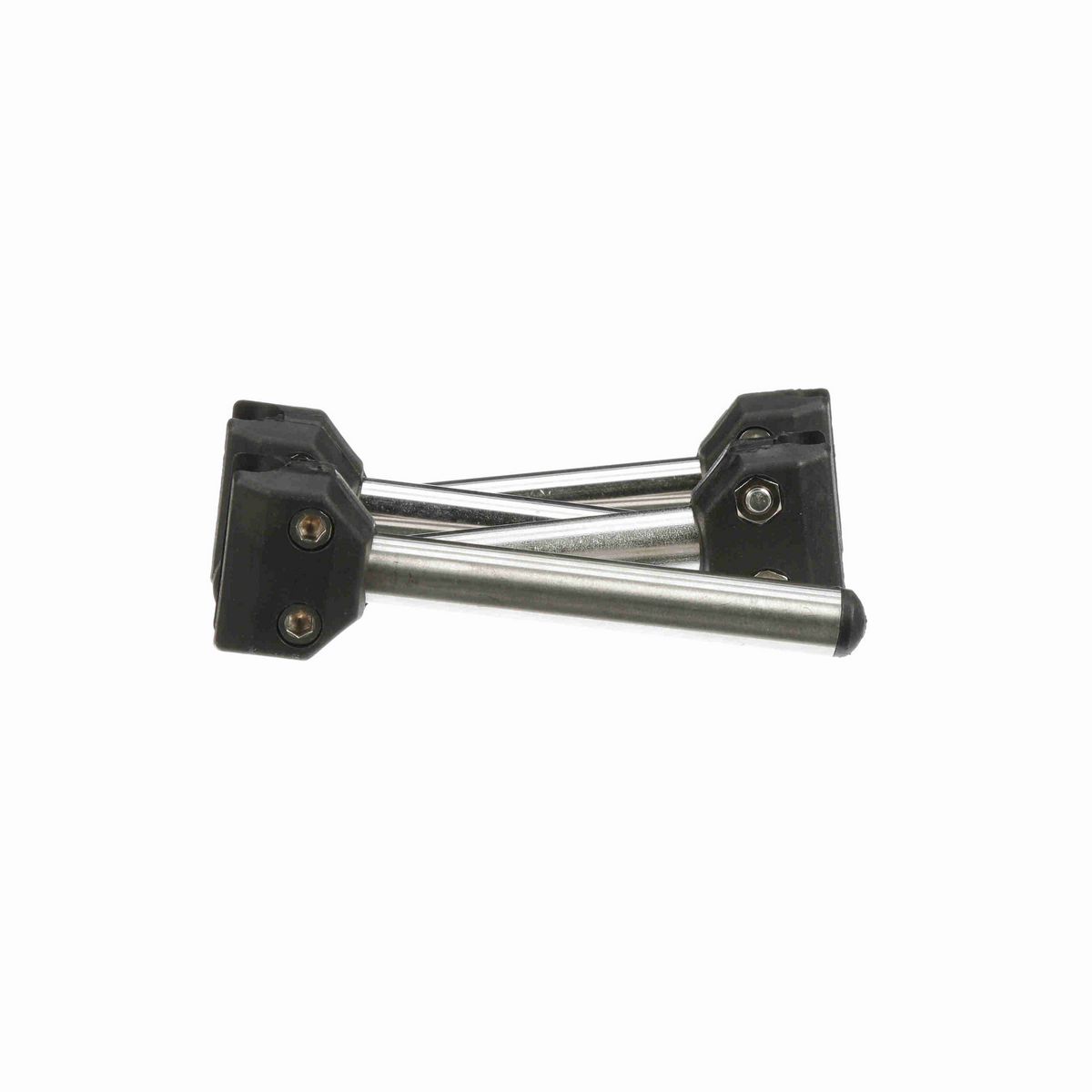

• Polyamide clamp with stainless steel rod, nickel plated brass and stainless steel fasteners.
• Clamp and metal rod combination for round rod.
• Double bolt clamp with increased grip strength.
• Clamp is molded onto 1/2 inch O.D. stainless steel tube, for a cost effective way to provide strong rail support.
• Special hardware keeps jaws assembled during rail attachment.

Technical Specifications

Type	Clamp and Metal Rod Combination for Round Rod
Material	POLYAMIDE
Rail Centers (in)	Single Rail in
Product Type	Rail Clamp (Single)
Product Group	Side Guide Solutions
Component Series	VG-032
Width (in)	1.35 in
Height (in)	0.9 in
Product Line	Conveying Components
Length (in)	4.5 in
Measurement System	Universal
Rod Diameter (in)	1/2 in

General Specifications

UPC	787405040700
Weight	0.15 LB
Packaged Length	5.20 IN
Packaged Width	4.80 IN
Packaged Height	1.10 IN
HTC	3926.90.9995
Country of Origin	Mexico
