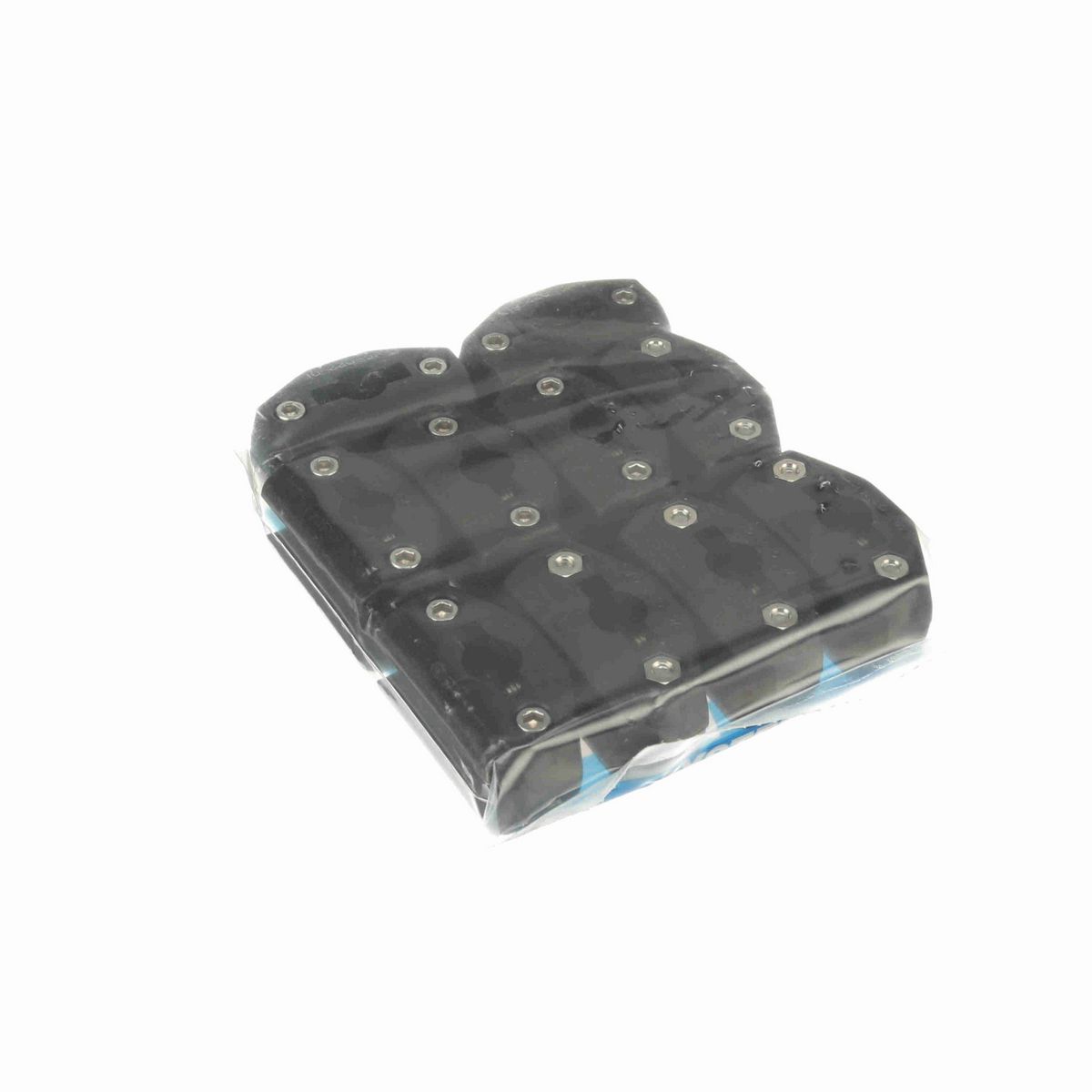

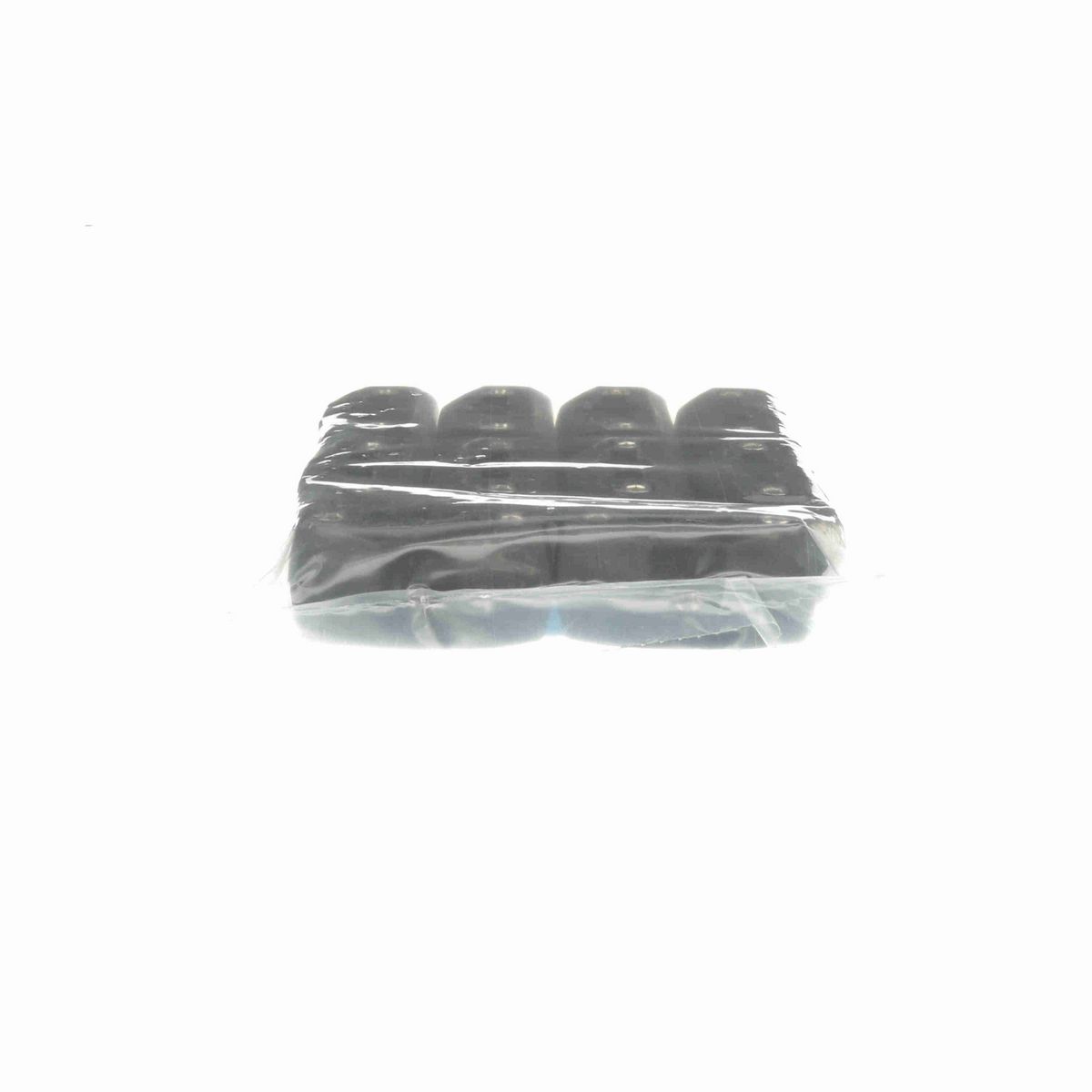

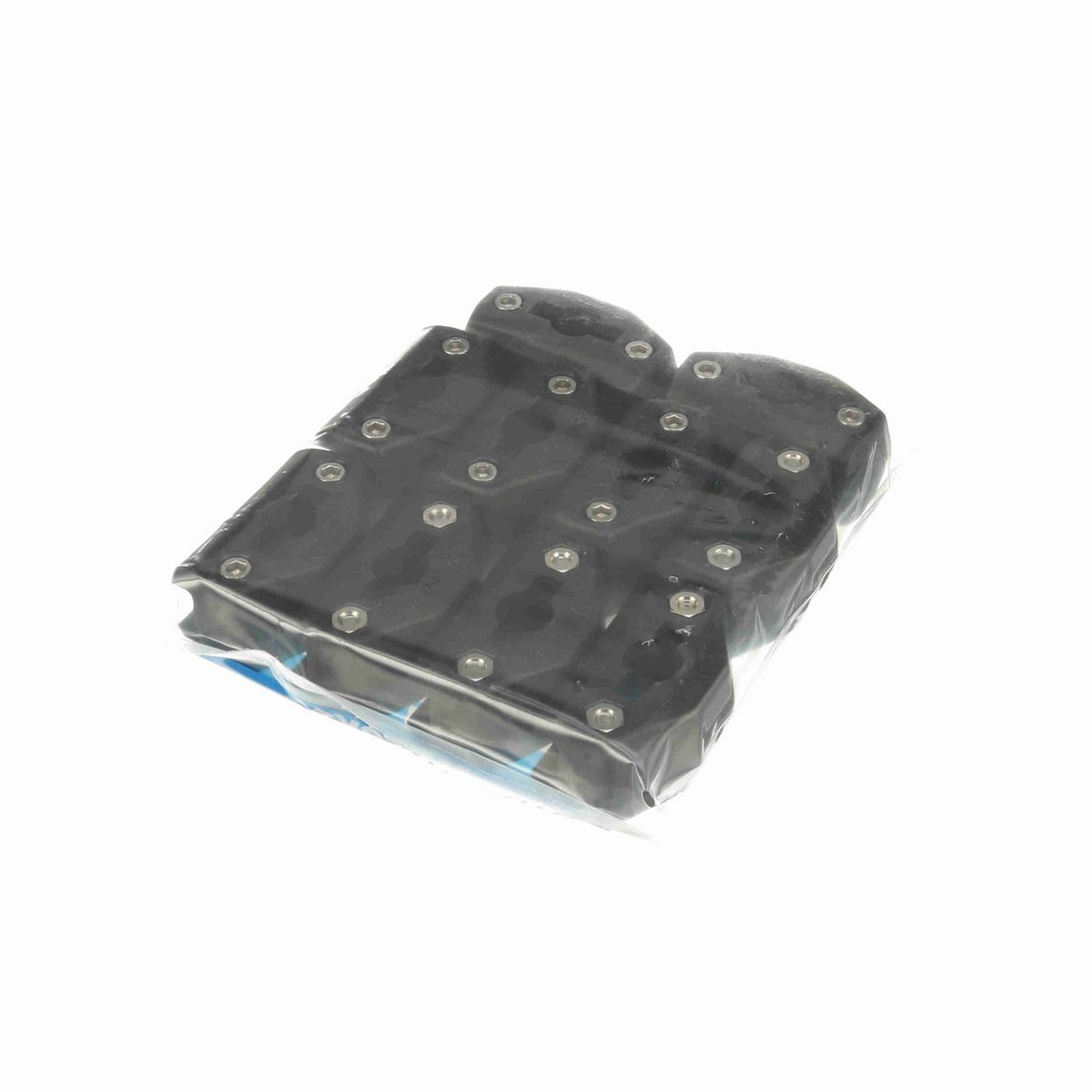

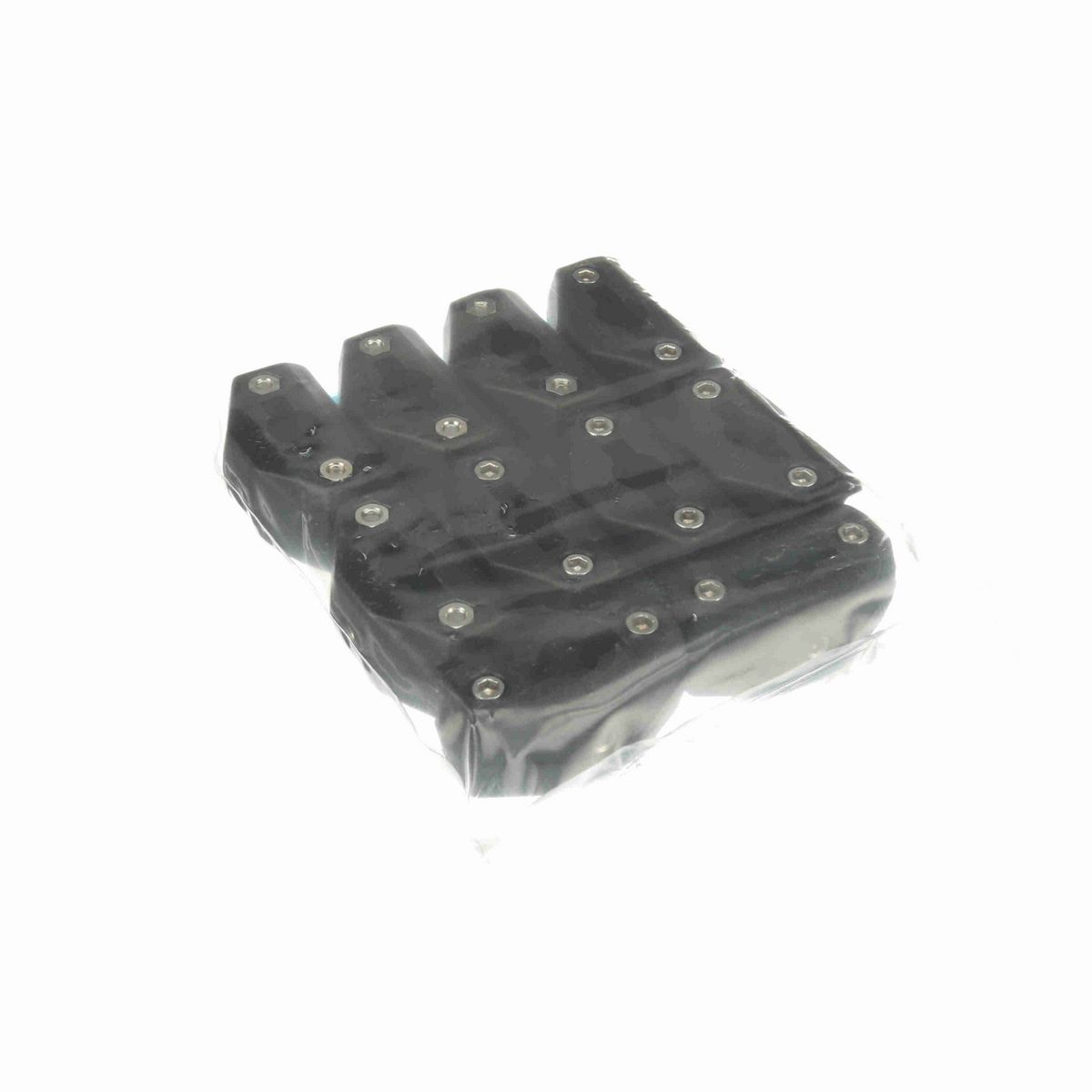

• Polyamide clamp with nickel plated brass and stainless steel hardware.
• Rail clamp for rod or flat bar.
• Mounts on flat bar up to 1/4 x 1 inch or rods up to 1/2 inch O.D.
• Versatile, corrosion resistant design easily adjusts and positions guide rails and sensor holders.
• The clamp can be opened enough to accommodate the rail while the fasteners remain engaged.

Technical Specifications

Material	POLYAMIDE
Fastener	10 x 32 UNF Shoulder Nut
Type	Rail Clamp for Rod or Flat Bar
Product Type	Rail Clamp (Single)
Product Line	Conveying Components
Component Series	VG-022
Rail Centers (in)	Single Rail in
Measurement System	Universal
Height (in)	1.3 in
Length (in)	2.3 in
Product Group	Side Guide Solutions
Width (in)	1.1 in
Rod Diameter (in)	1/2 in

General Specifications

UPC	662288969563
Weight	0.11 LB
Packaged Length	6.25 IN
Packaged Width	5.25 IN
Packaged Height	2.50 IN
