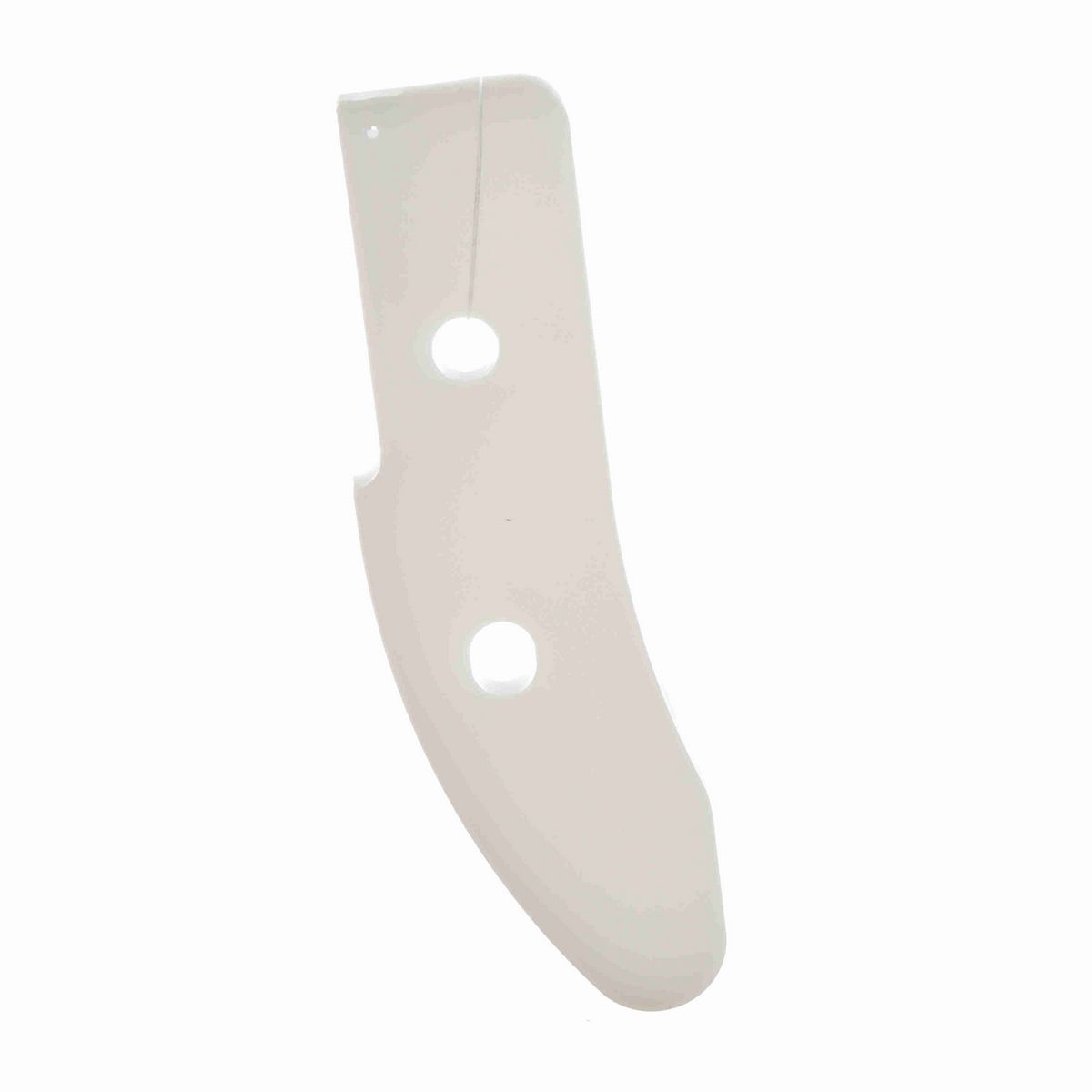

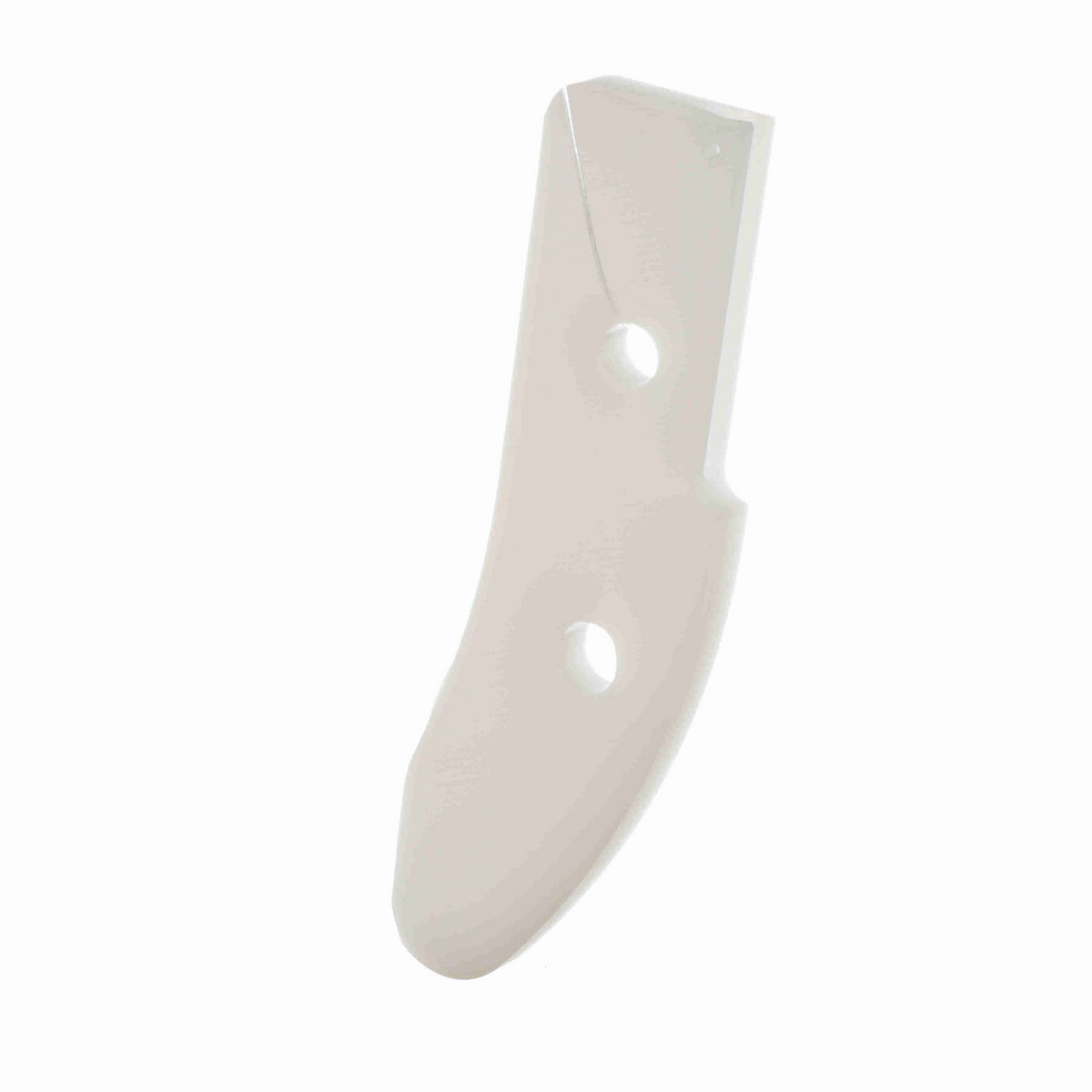

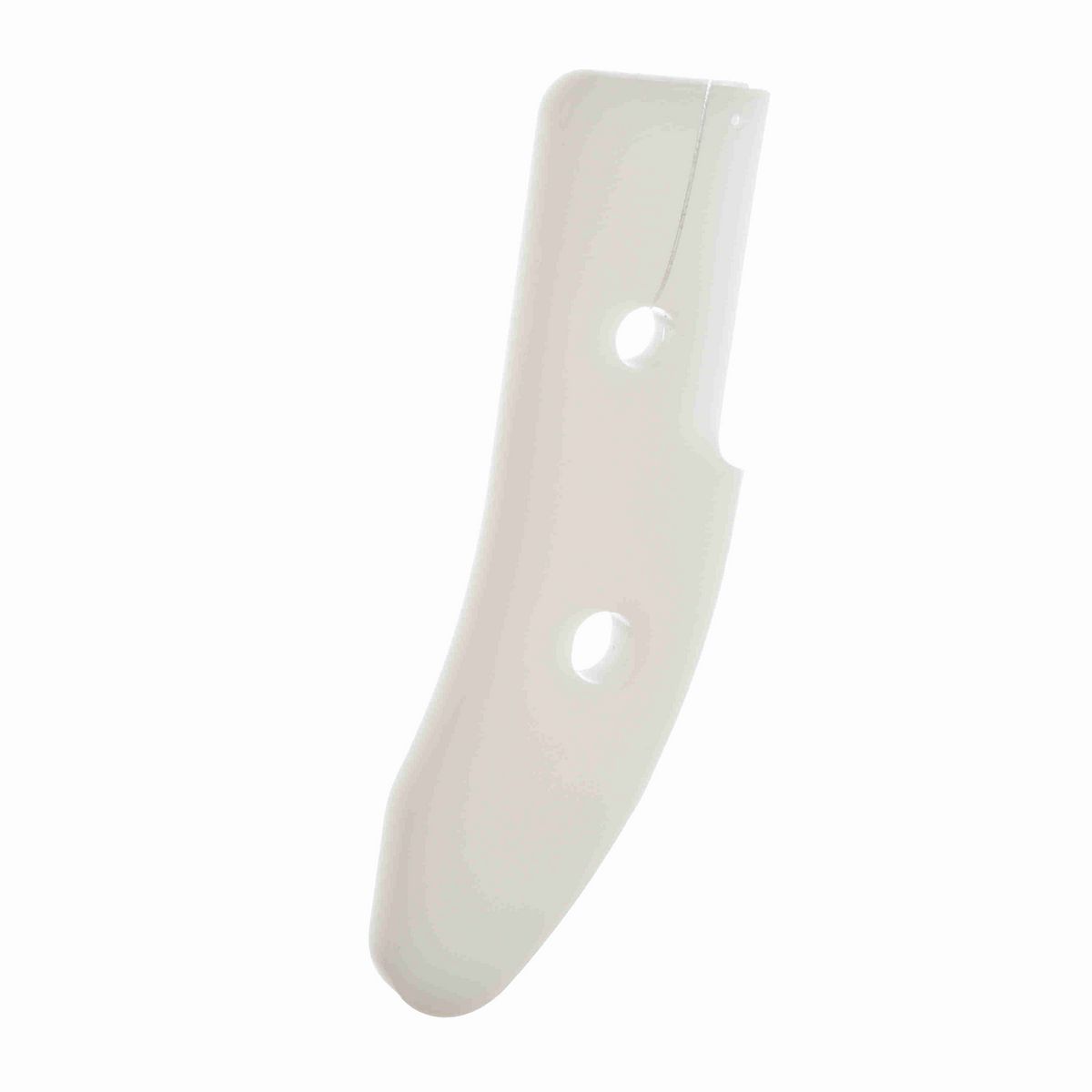

• Chain return shoe for use with VF-CR-3834 serpentine profile.
• Designed with a generous entry radius to feed the chain smoothly onto the serpentine profile.
• UHMW material.

Technical Specifications

Type	Chain Return Shoe
Width (mm)	192 mm
Width (in)	7.56 in
Radius (mm)	165 mm
Height (mm)	64 mm
Radius (in)	6.5 in
Height (in)	2.5 in
Material	UHMW-PE
Product Line	Conveying Components
Component Series	VF-CRS
Product Group	Return Systems
Product Type	Return (Serpentine)
Measurement System	Universal
Cross Rod Diameter (in)	0.5 in

General Specifications

UPC	787405381353
Weight	0.22 LB
Packaged Length	3.55 IN
Packaged Width	7.55 IN
Packaged Height	0.85 IN
