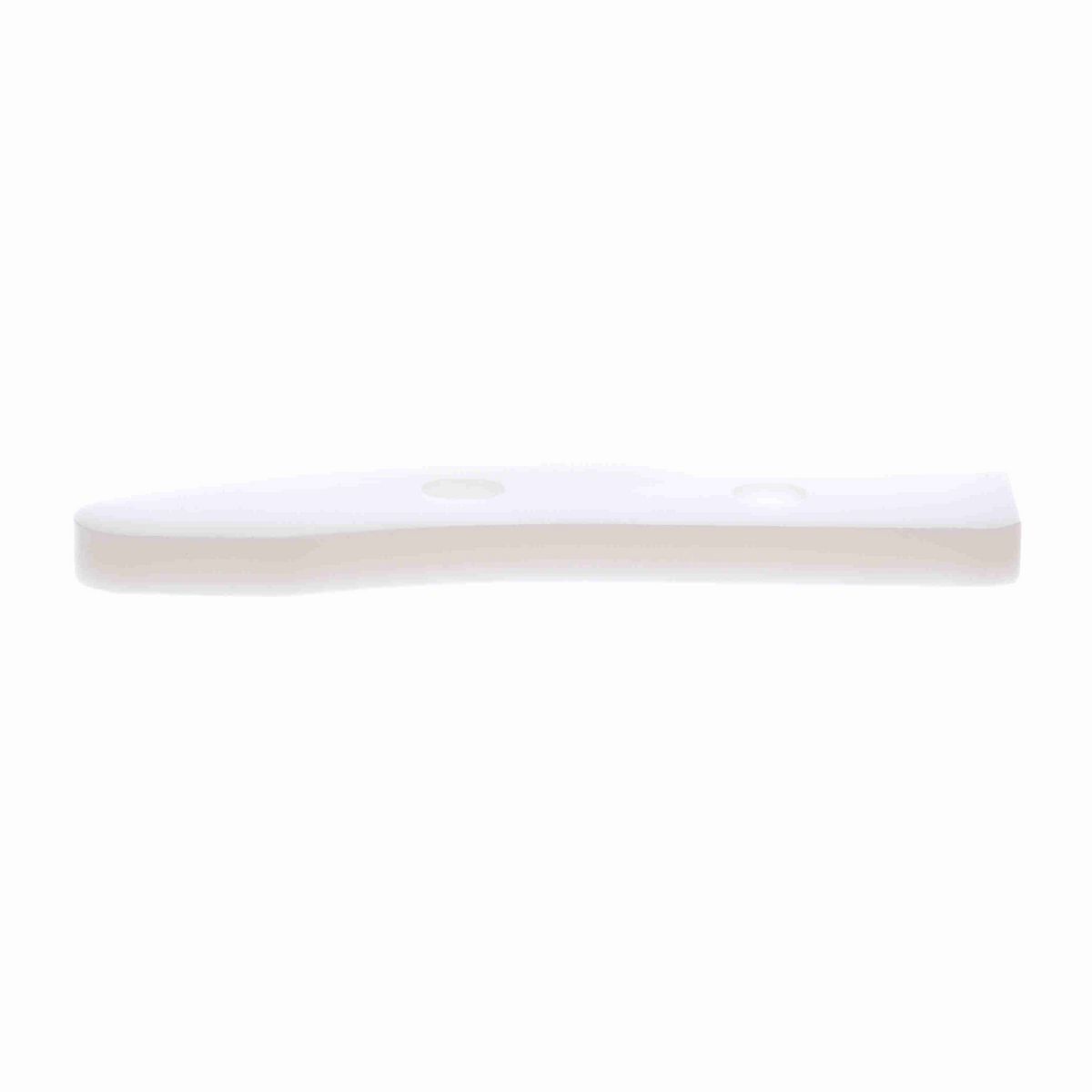

• Chain return shoe for use with VF-CR-3834 serpentine profile.
• Designed with a generous entry radius to feed the chain smoothly onto the serpentine profile.
• UHMW material.

Technical Specifications

Radius (in)	6.5 in
Height (mm)	64 mm
Radius (mm)	165 mm
Type	Chain Return Shoe
Width (in)	7.56 in
Height (in)	2.5 in
Width (mm)	192 mm
Material	UHMW-PE
Product Group	Return Systems
Product Line	Conveying Components
Product Type	Return (Serpentine)
Base Diameter (in)	0 in
Measurement System	Universal
Component Series	VF-CRS
Cross Rod Diameter (in)	0.5625 in

General Specifications

UPC	787405381407
Weight	0.64 LB
Packaged Length	5.50 IN
Packaged Width	8.05 IN
Packaged Height	1.40 IN
