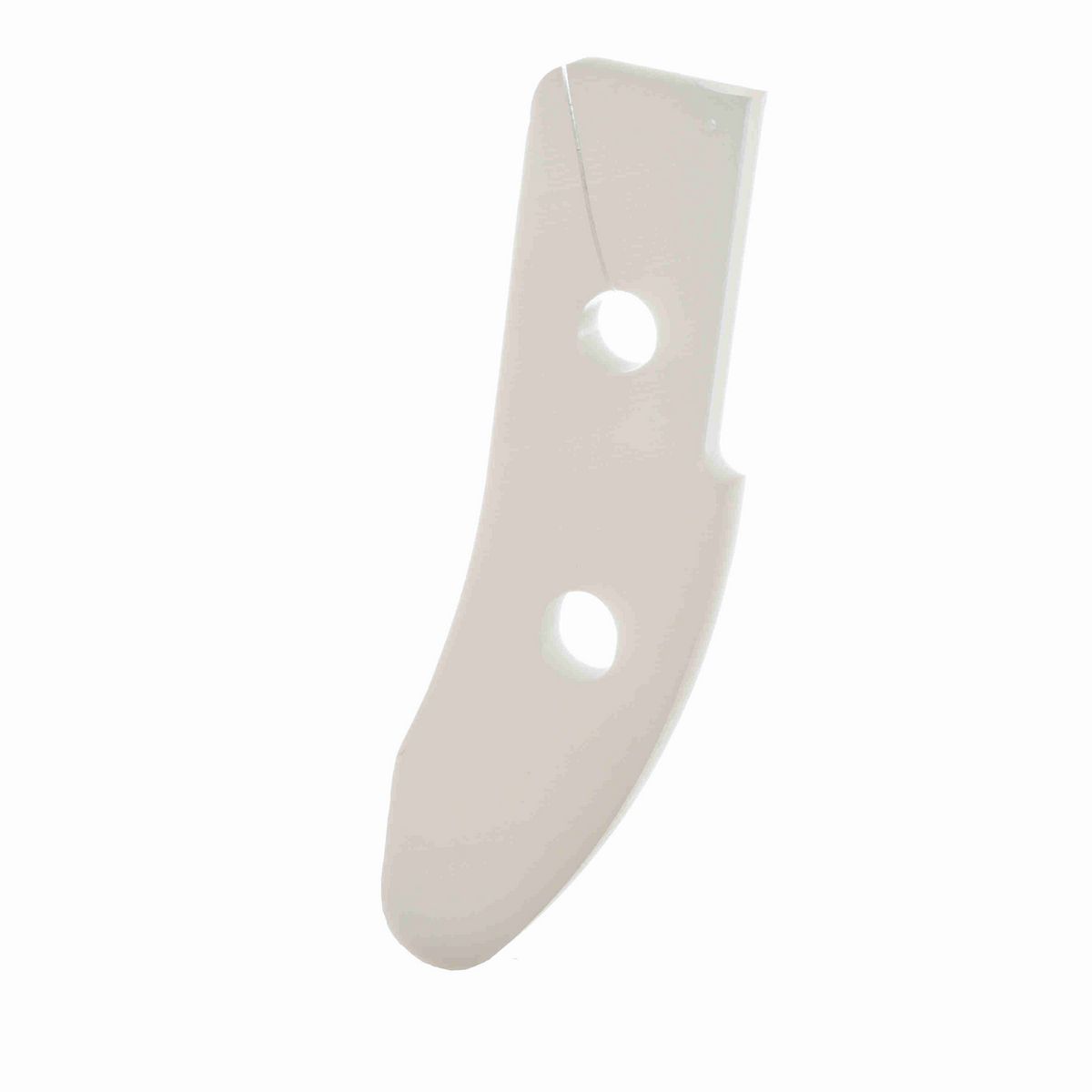

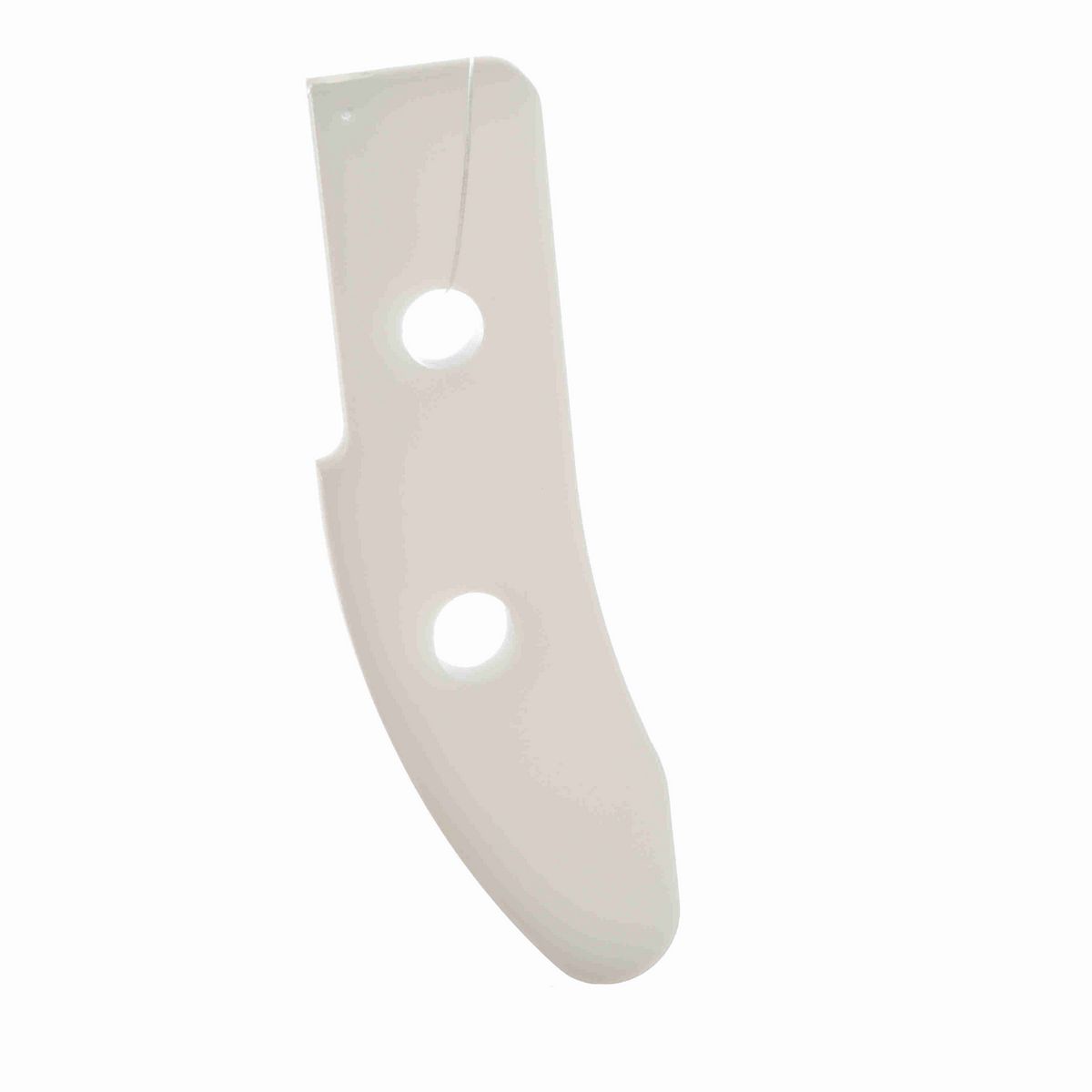

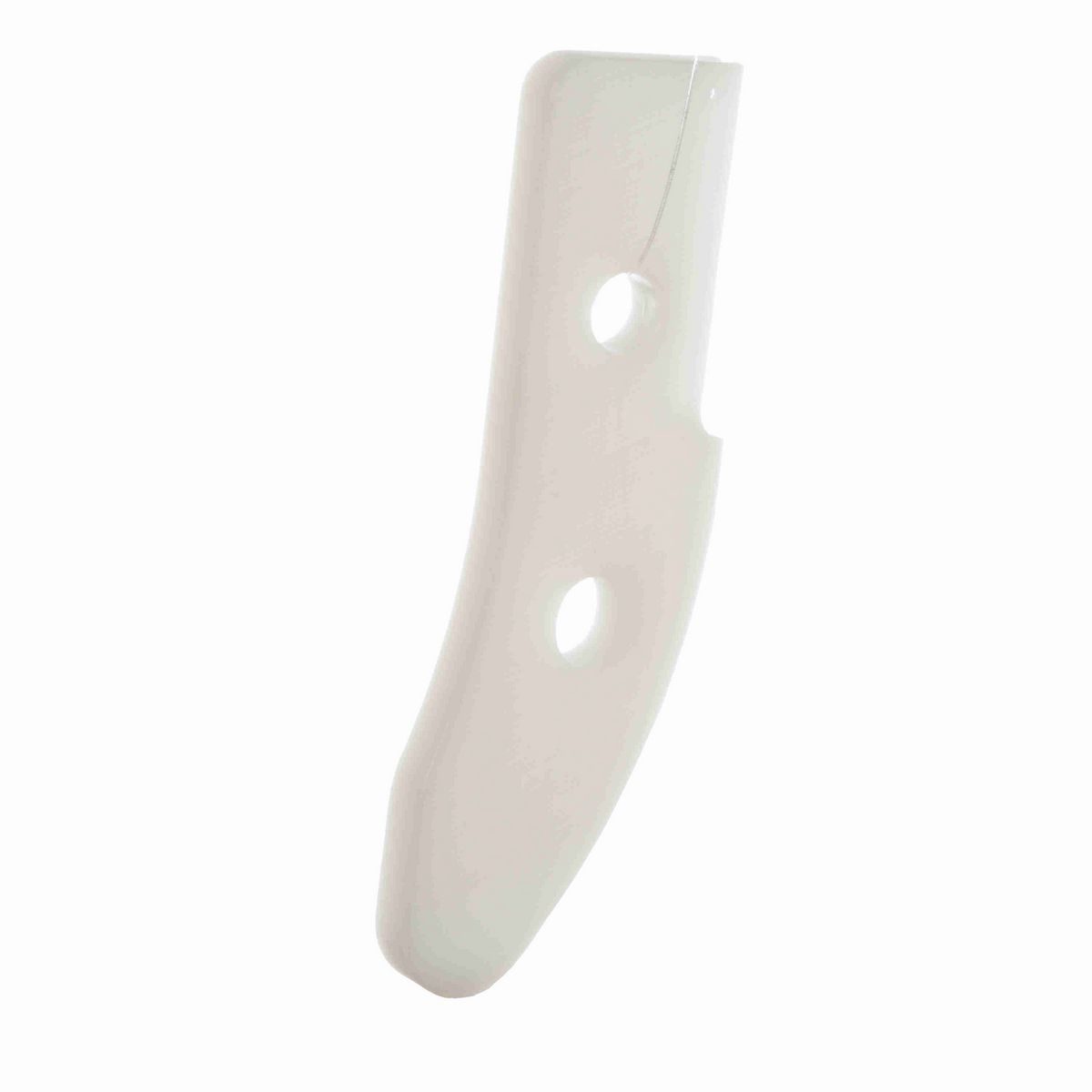

• Chain return shoe for use with VF-CR-3834 serpentine profile.
• Designed with a generous entry radius to feed the chain smoothly onto the serpentine profile.
• UHMW material.

Technical Specifications

Type	Chain Return Shoe
Height (mm)	64 mm
Radius (mm)	165 mm
Width (in)	7.56 in
Radius (in)	6.5 in
Height (in)	2.5 in
Width (mm)	192 mm
Product Line	Conveying Components
Component Series	VF-CRS
Product Group	Return Systems
Material	UHMW-PE
Product Type	Return (Serpentine)
Measurement System	Universal
Cross Rod Diameter (in)	0.625 in

General Specifications

UPC	787405381391
Weight	0.20 LB
