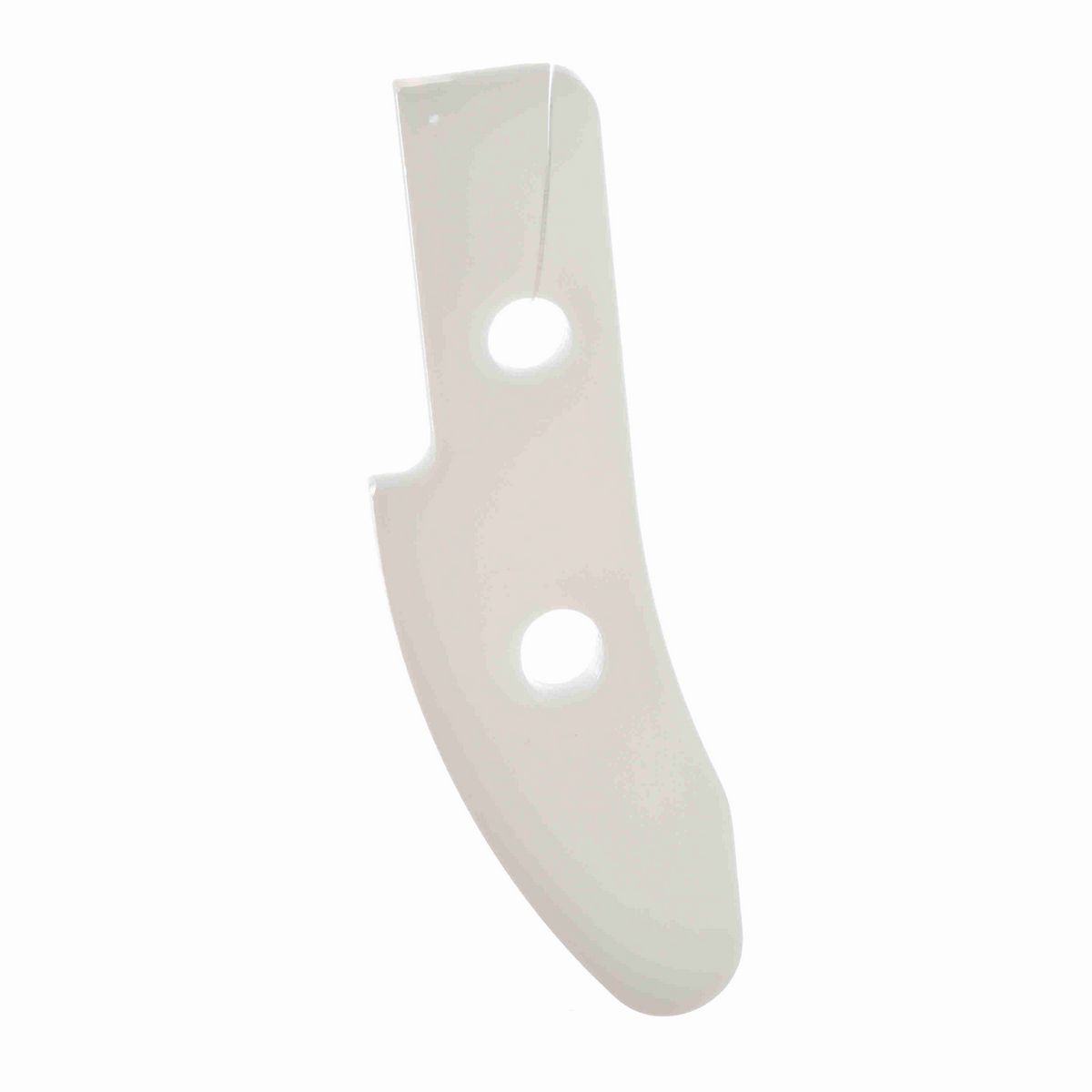

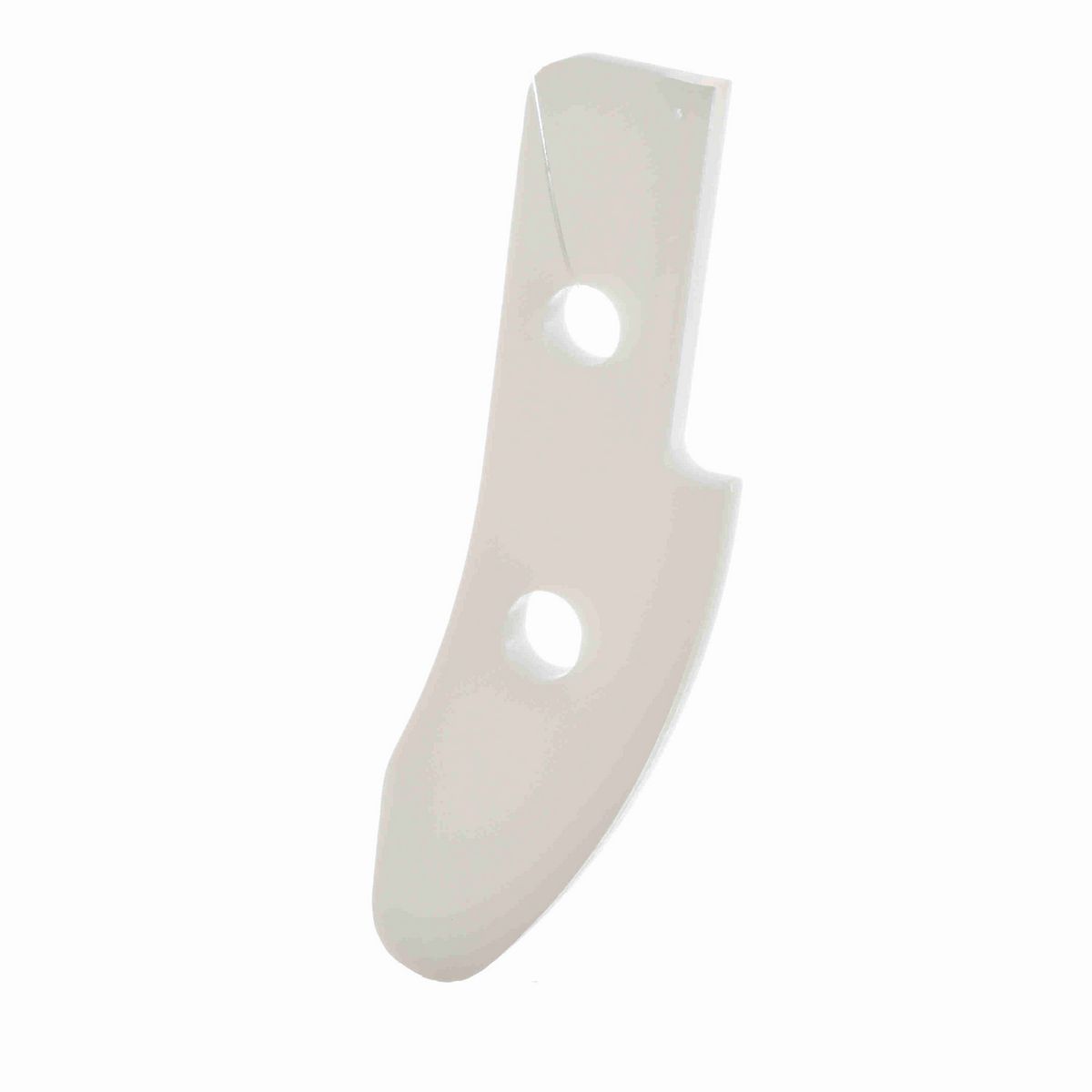

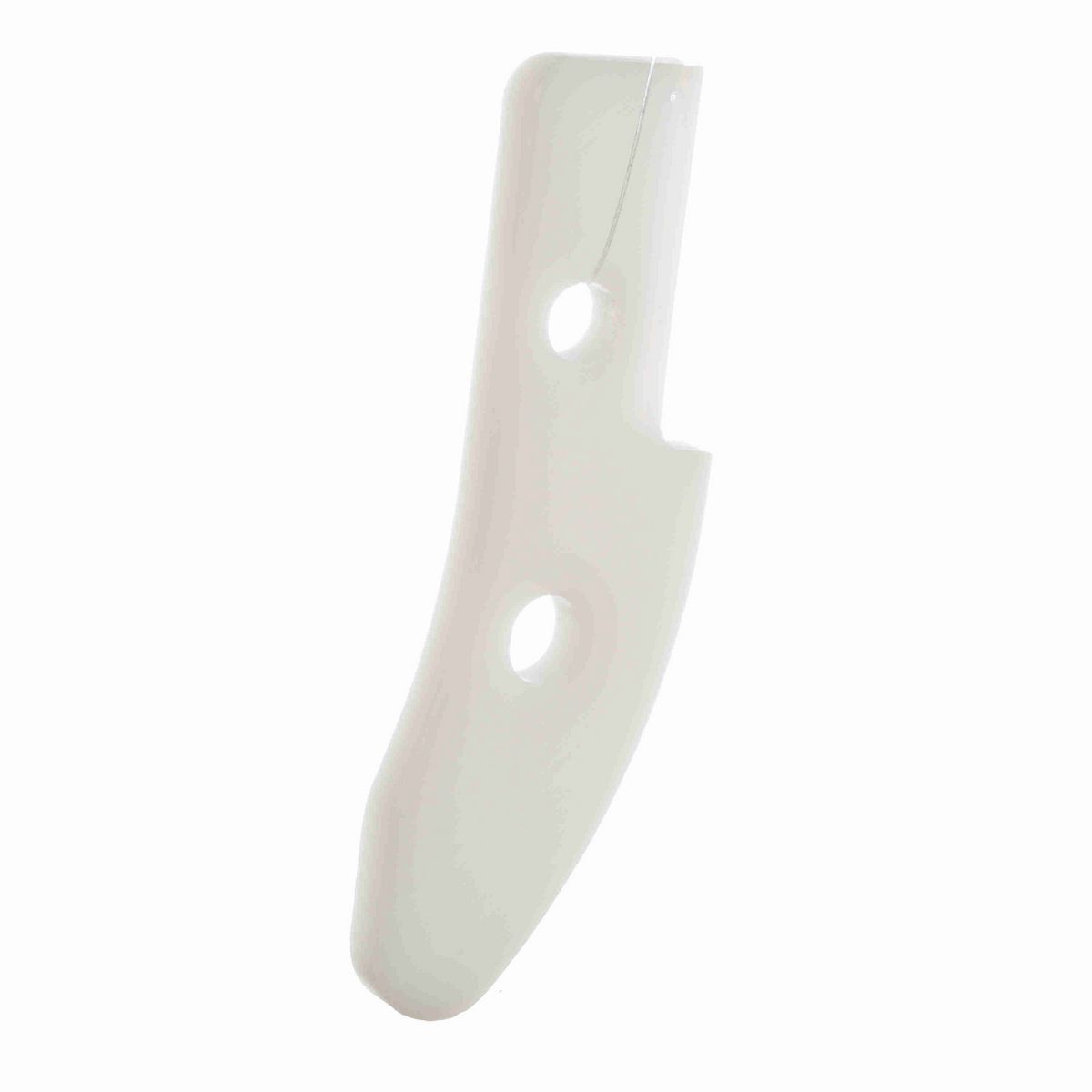

• Chain return shoe for use with VF-CR-38100 serpentine profile.
• Designed with a generous entry radius to feed the chain smoothly onto the serpentine profile.
• UHMW material.

Technical Specifications

Height (in)	2.5 in
Type	Chain Return Shoe
Radius (mm)	165 mm
Height (mm)	64 mm
Width (mm)	192 mm
Width (in)	7.56 in
Radius (in)	6.5 in
Material	UHMW-PE
Measurement System	Universal
Product Type	Return (Serpentine)
Product Group	Return Systems
Product Line	Conveying Components
Component Series	VF-CRS
Cross Rod Diameter (in)	0.625 in

General Specifications

UPC	787405381322
Weight	0.63 LB
Packaged Length	3.35 IN
Packaged Width	9.90 IN
Packaged Height	0.75 IN
