• Easy head to tail transfer
• Ultra low friction
• Low noise beads
• Clean design
• Back-to-Back and end-to-end modularity
• Quick and easy assembly
• Mounting hardware included
• Acetal thermoplastic resin frame
• Blue acetal multi-rollers, suitable for irregular shaped products
• Stainless steel pins and hardware

Technical Specifications

Height (in)	0.79 in
Bolt Effective Length (mm)	11.5 mm
Roller Type	Standard
Length (mm)	115 mm
Width (mm)	37 mm
Bolt Center Distance (in)	3.15 in
Length (in)	4.53 in
Height (mm)	20 mm
Width (in)	1.47 in
Bolt Effective Length (in)	0.45 in
Bolt Center Distance (mm)	80 mm
Measurement System	Metric

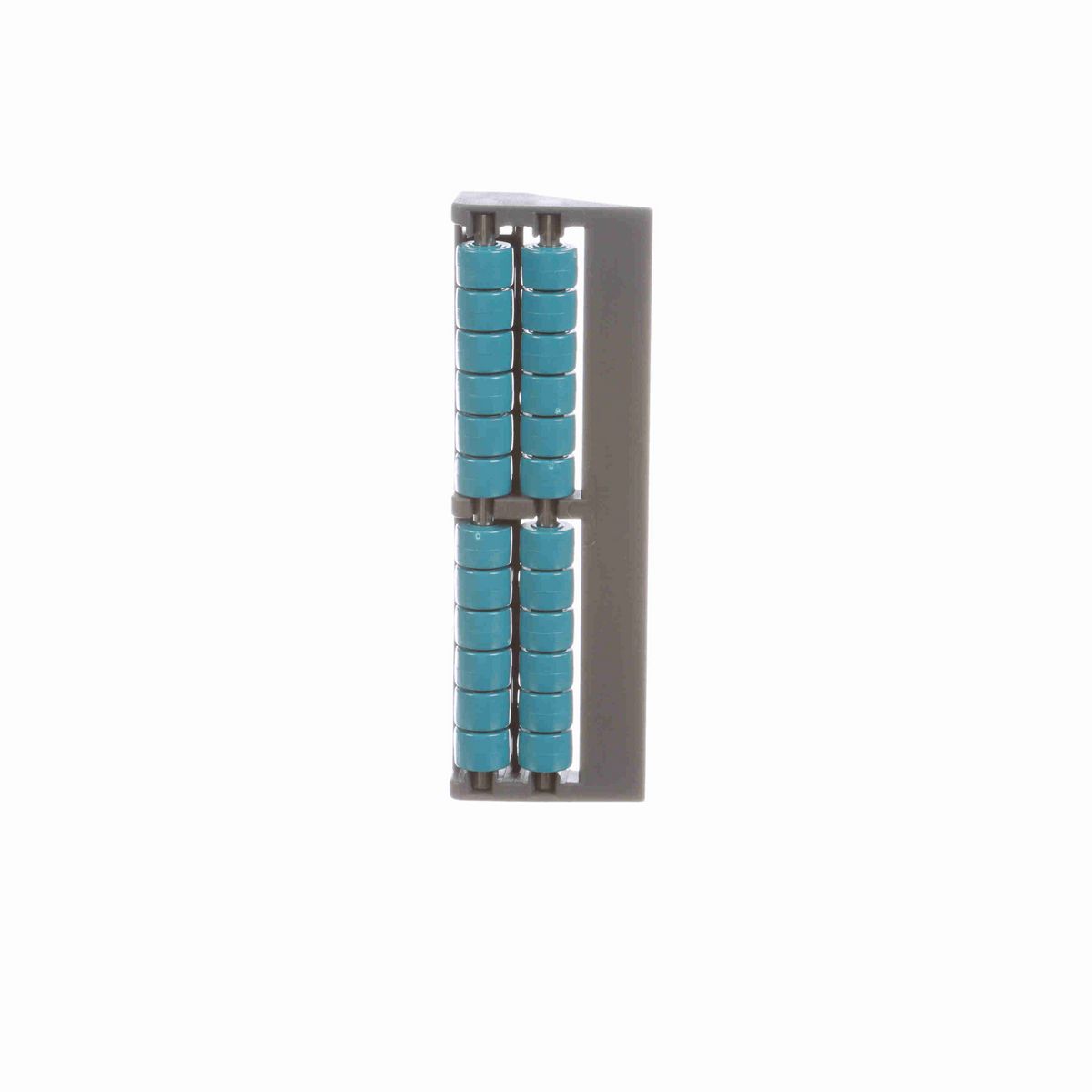

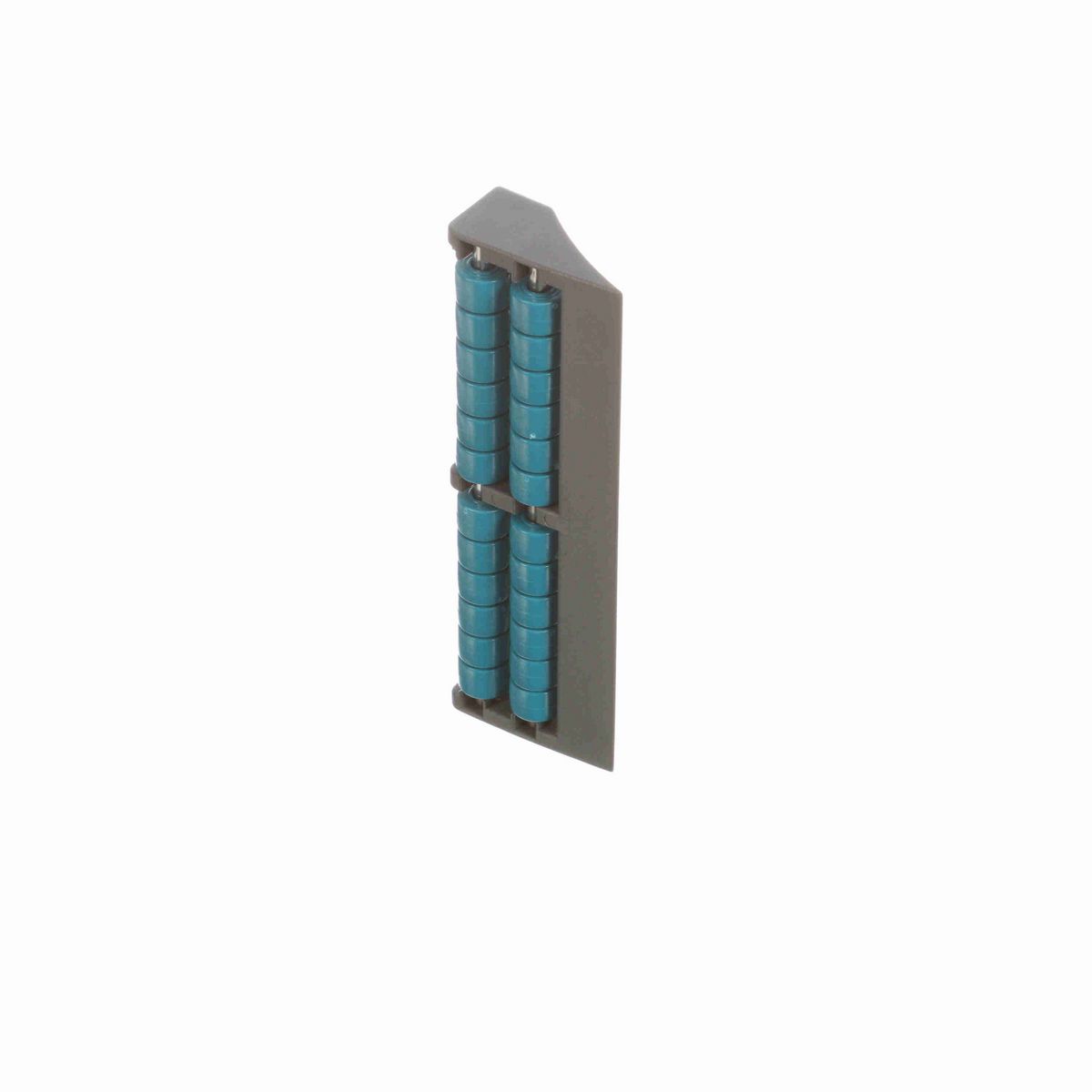

Product Type	Roller Transfer Plate
Thread (mm)	M6 mm
Component Series	TME-450
Product Group	Miscellaneous
Material	ACETAL
Product Line	Conveying Components

General Specifications

UPC	787405574922
Weight	0.58 LB
Packaged Length	7.15 IN
Packaged Width	3.20 IN
Packaged Height	1.10 IN
HTC	8431.39.0010
Country of Origin	Germany
