• Easy head to tail transfer
• Ultra low friction
• Low noise beads
• Clean design
• Back-to-Back and end-to-end modularity
• Quick and easy assembly
• Mounting hardware included
• Acetal thermoplastic resin frame
• Blue acetal multi-rollers, suitable for irregular shaped products
• Stainless steel pins and hardware

Technical Specifications

Width (mm)	37 mm
Bolt Effective Length (in)	0.45 in
Height (mm)	20 mm
Bolt Center Distance (in)	1.97 in
Length (in)	3.35 in
Bolt Center Distance (mm)	50 mm
Height (in)	0.79 in
Length (mm)	85 mm
Width (in)	1.47 in
Roller Type	Standard
Bolt Effective Length (mm)	11.5 mm

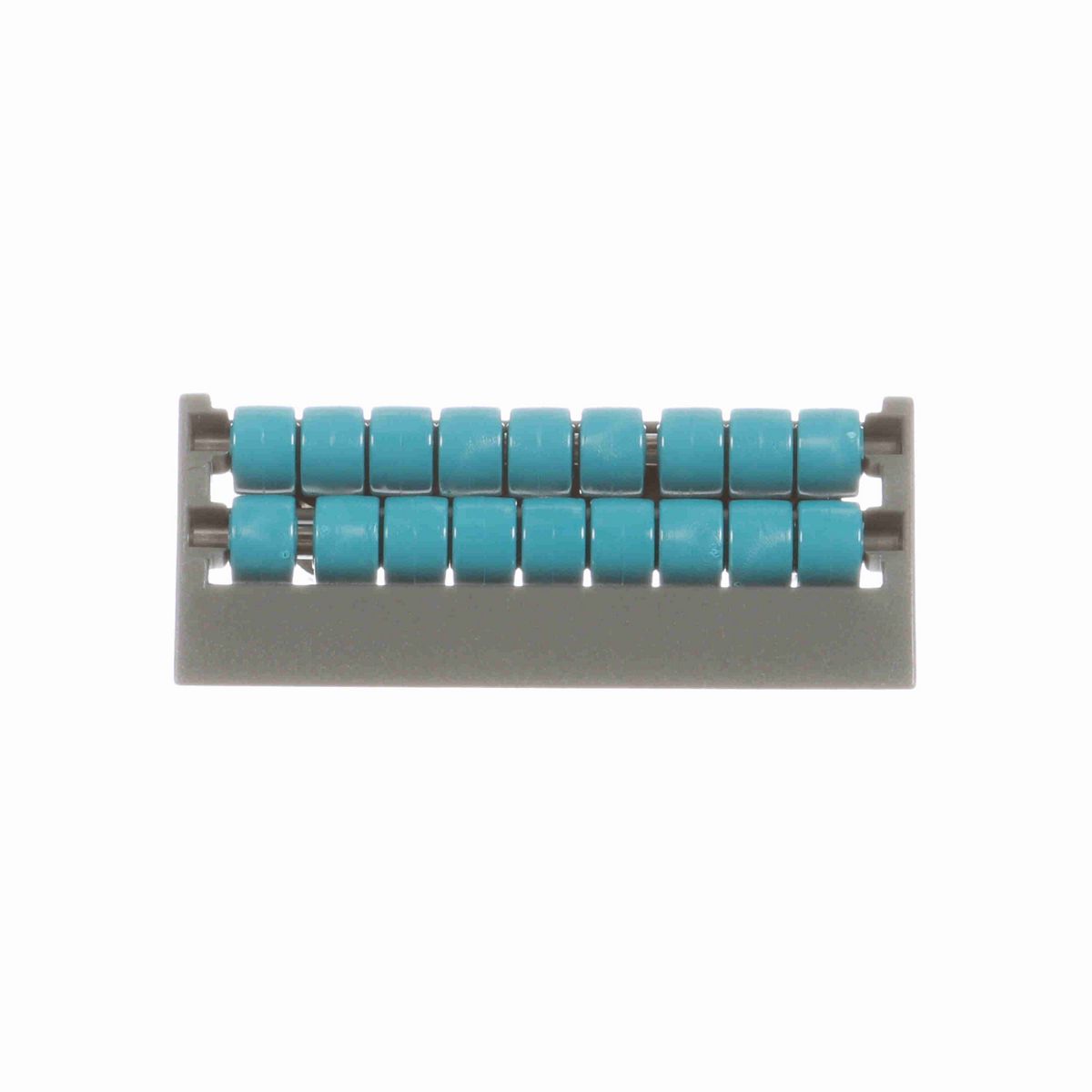

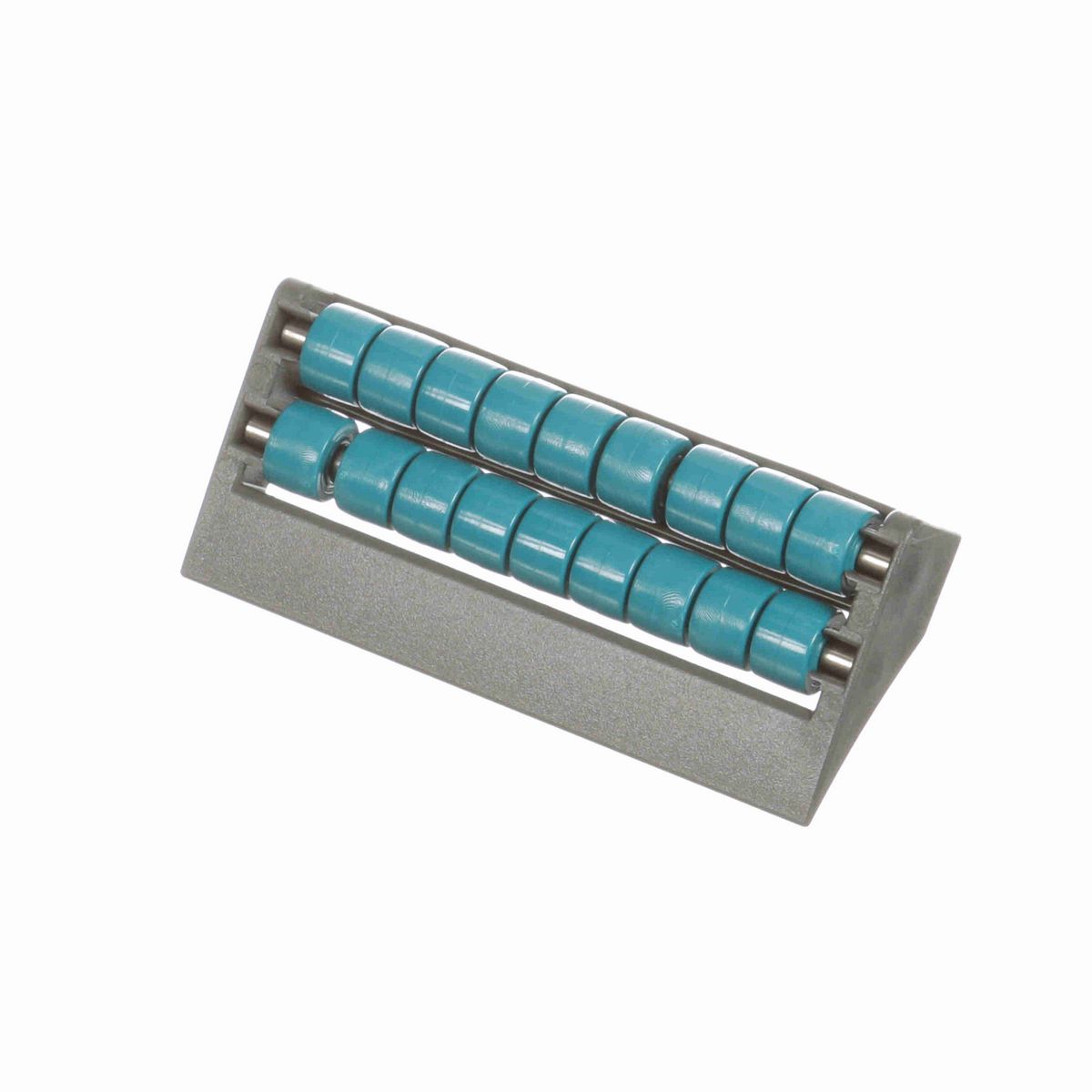

Product Type	Roller Transfer Plate
Material	ACETAL
Product Group	Miscellaneous
Measurement System	Metric
Product Line	Conveying Components
Component Series	TME-330
Thread (mm)	M6 mm
Color	Blue (Roller)

General Specifications

UPC	787405125773
Weight	0.15 LB
Packaged Length	5.90 IN
Packaged Width	5.50 IN
Packaged Height	1.60 IN
HTC	8431.39.0010
Country of Origin	Germany
