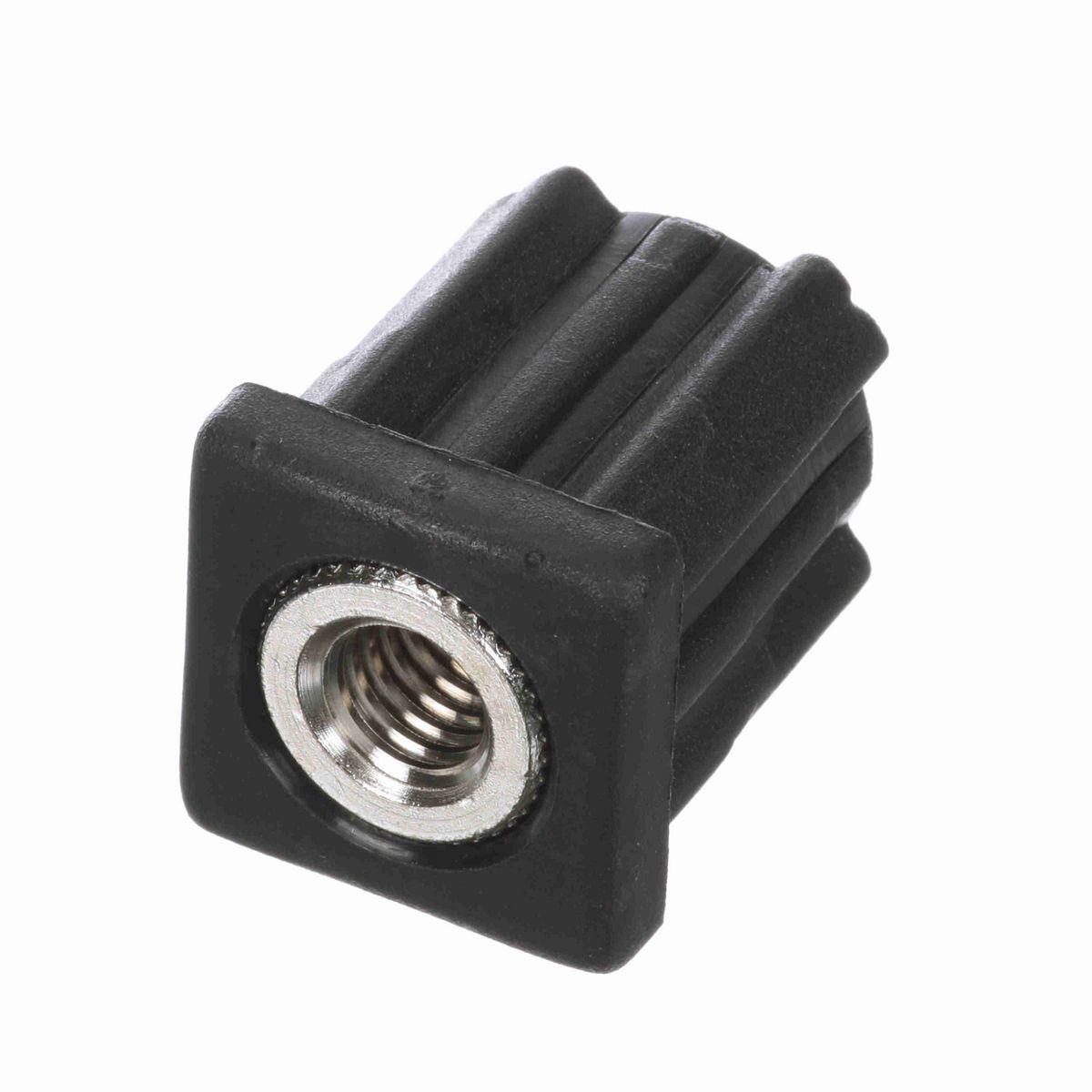

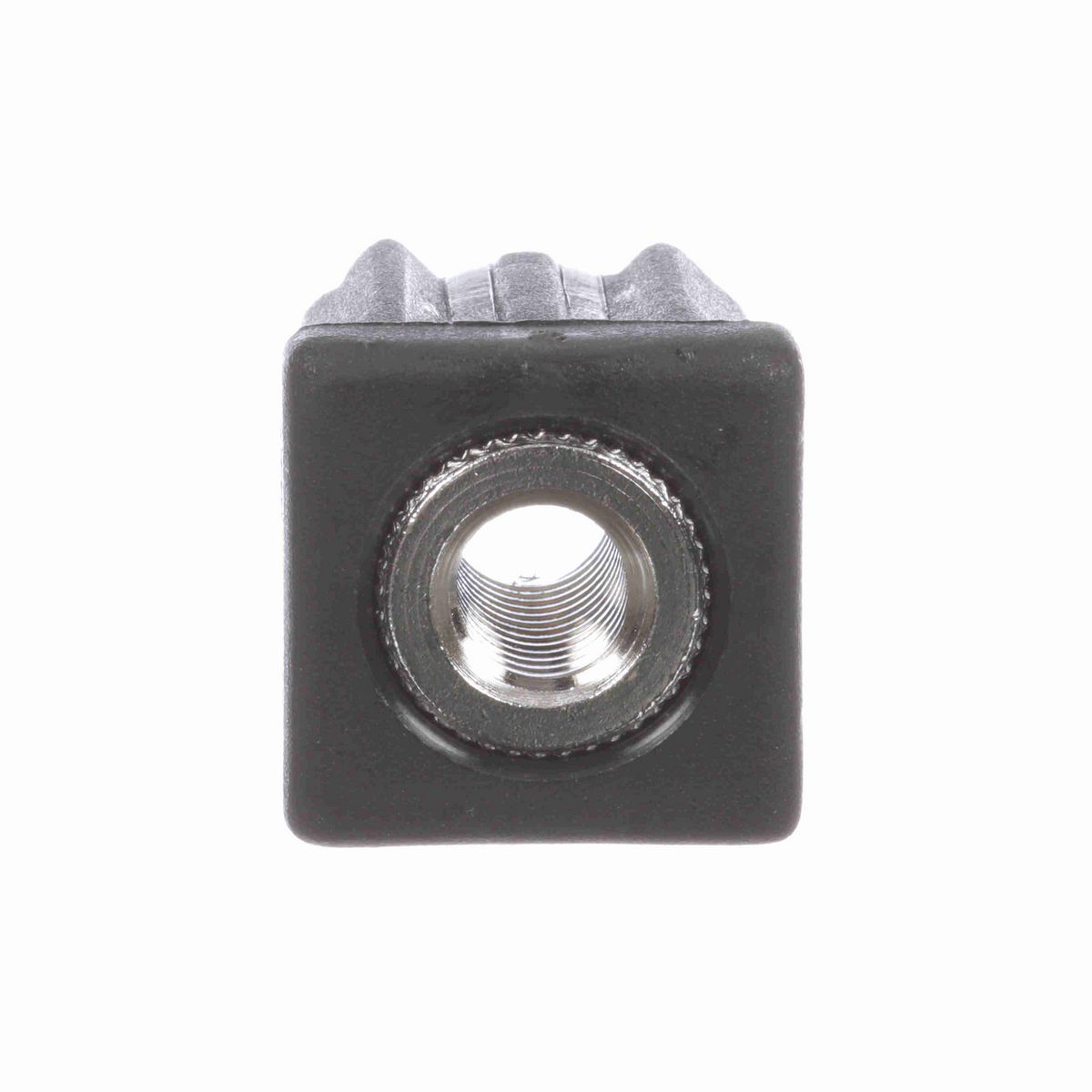

• Threaded tube end for square tube.
• Polyamide material with threaded nickel plated brass bushing.

Technical Specifications

Insert Depth (in)	1 in
Thread (in)	3/8-16 in
Insert Width / Diameter (in)	0.8 in
Face Width / Diameter (mm)	25 mm
Material	POLYAMIDE
Height (in)	1.1 in
Face Width / Diameter (in)	1 in
Type	Round Tube Ends
Insert Depth (mm)	25 mm
Insert Width / Diameter (mm)	20 mm
Base Diameter (in)	0 in
Height (mm)	28 mm
Measurement System	Imperial
Product Group	Frame and Structure Components
Product Line	Conveying Components
Component Series	34200
Vertical Tube/Pipe Size (in)	1 Sq. Tube in
Product Type	Tube End (Round)
Static Load (lb)	1,100 lb

General Specifications

UPC	787405209091
Weight	0.08 LB
Packaged Length	2.65 IN
Packaged Width	1.60 IN
Packaged Height	1.20 IN
HTC	8431.39.0010
Country of Origin	Germany
