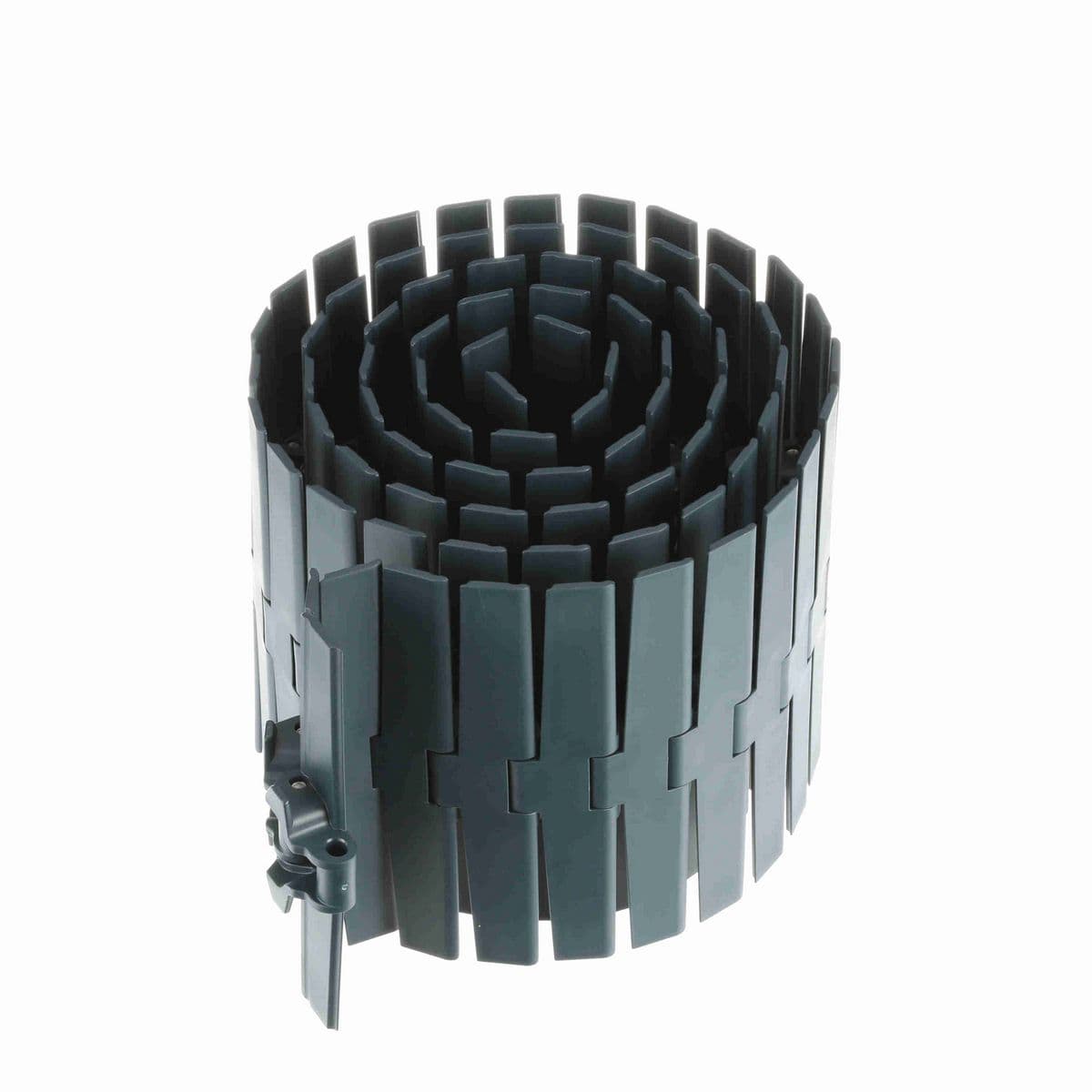

• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.

Technical Specifications

Series	TableTop 882 Series Side-flexing Chain
Flight Thickness (in)	0.19 in
Product Line	Conveying Chains and Belts
Product Type	Side-Flexing
Product Group	Chain
Flight Thickness (mm)	4.8 mm
Straight or Side-Flex	Side-flexing
Surface Type	Solid Top
Curve Retention Type	Bevel
Rod/Pin Material	Austenitic steel
Chain Material	NGE
Weight (kg/m)	2.8 kg/m
Chain Width (in)	10 in
Breaking Load (lb)	2,020 lb
Chain Number	882B
Chain Width (mm)	254 mm
Chain Width Measurement System	Imperial
Chain Material Description	NG evo (Gray Blue)
Breaking Load (N)	9,000 N
Chain Pitch (mm)	38.1 mm
Chain Pitch (in)	1.5 in
Weight (lb/ft)	1.9 lb/ft

General Specifications

UPC	726166518868
Weight	1.90 LB
Packaged Length	12.00 IN
Packaged Width	10.00 IN
Packaged Height	1.06 IN
