• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.

Technical Specifications

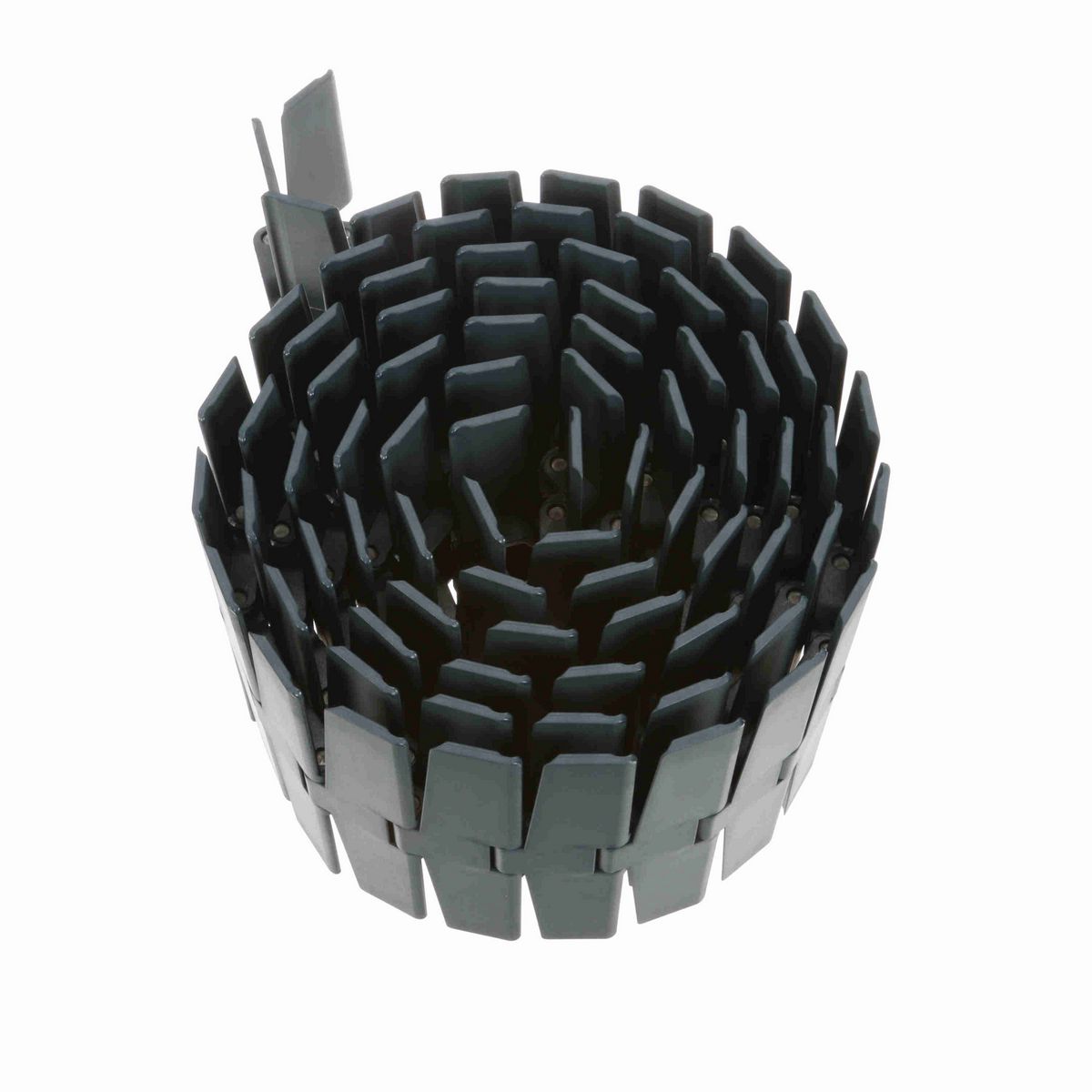

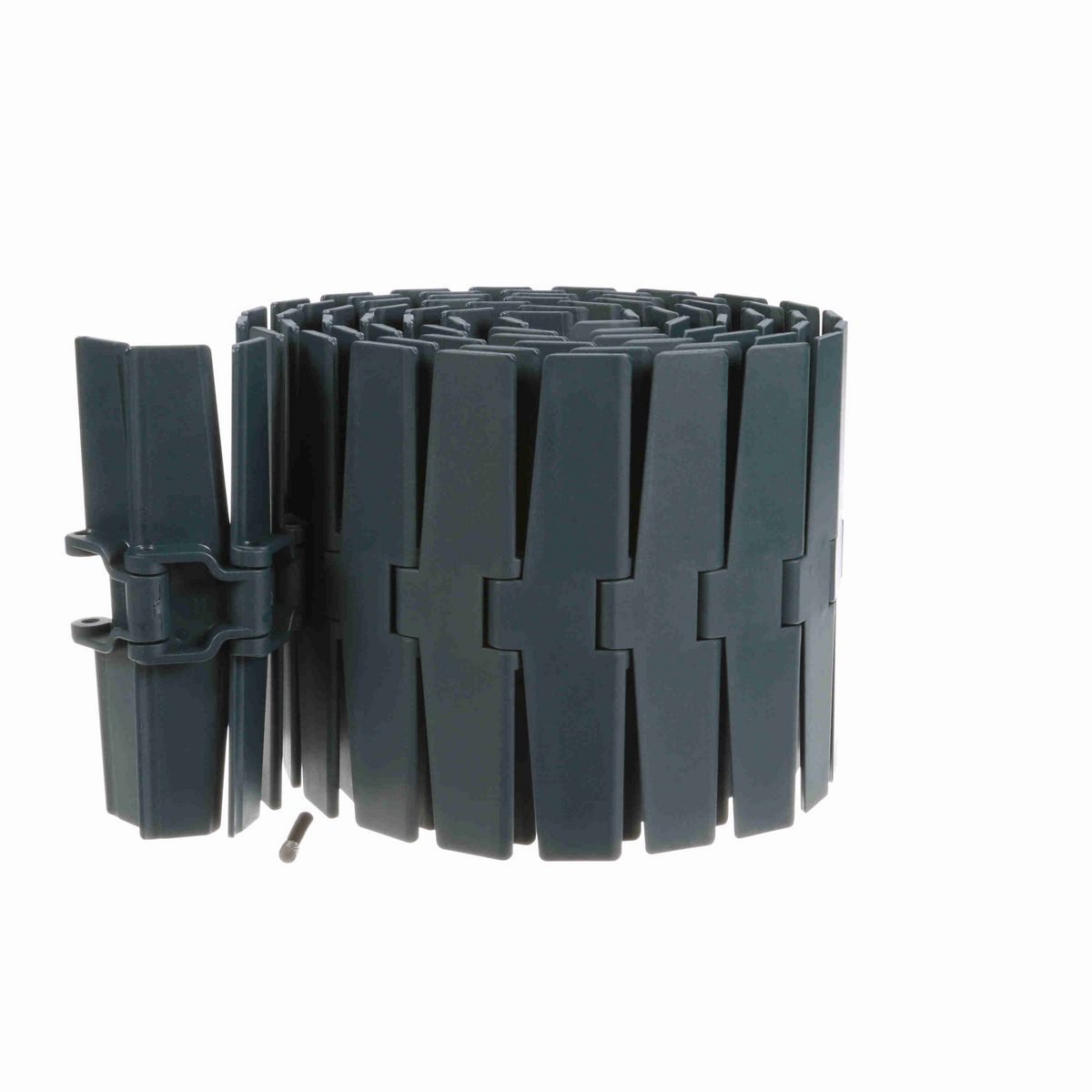

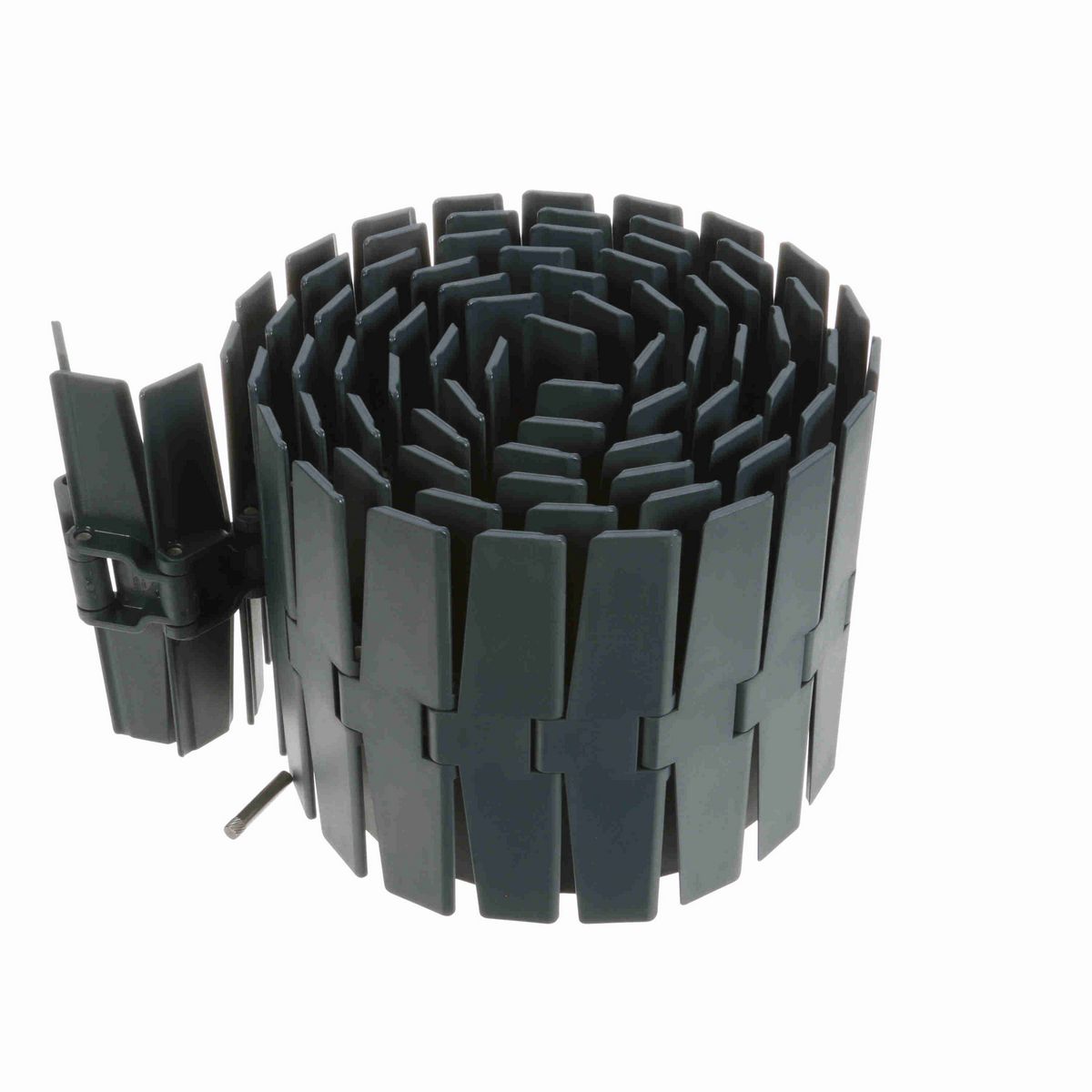

Series	TableTop 880 Series Side-flexing Chain
Product Line	Conveying Chains and Belts
Product Group	Chain
Flight Thickness (in)	0.16 in
Product Type	Side-Flexing
Flight Thickness (mm)	4 mm
Weight (lb/ft)	1 lb/ft
Chain Material	NGE
Chain Pitch (in)	1.5 in
Breaking Load (lb)	1,150 lb
Surface Type	Solid Top
Chain Width (mm)	190.5 mm
Chain Width (in)	7.5 in
Chain Material Description	NG evo (Gray Blue)
Chain Width Measurement System	Imperial
Rod/Pin Material	SPM
Curve Retention Type	Magnetic
Chain Number	880M
Breaking Load (N)	5,100 N
Weight (kg/m)	1.5 kg/m
Chain Pitch (mm)	38.1 mm
Straight or Side-Flex	Side-flexing

General Specifications

UPC	726166519193
Weight	1.02 LB
Packaged Length	10.30 IN
Packaged Width	11.70 IN
Packaged Height	8.00 IN
HTC	3923.29.0000
Country of Origin	Germany
