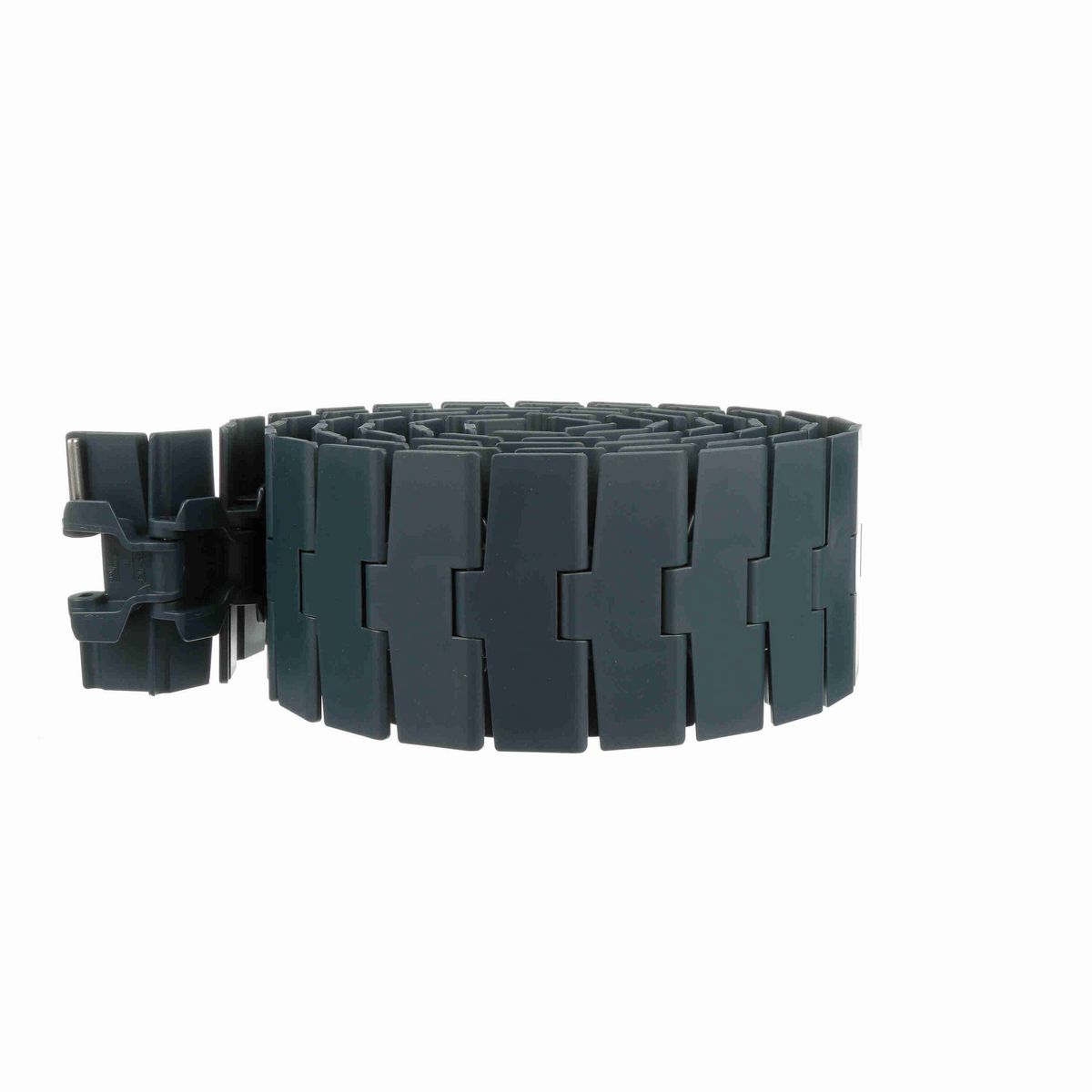

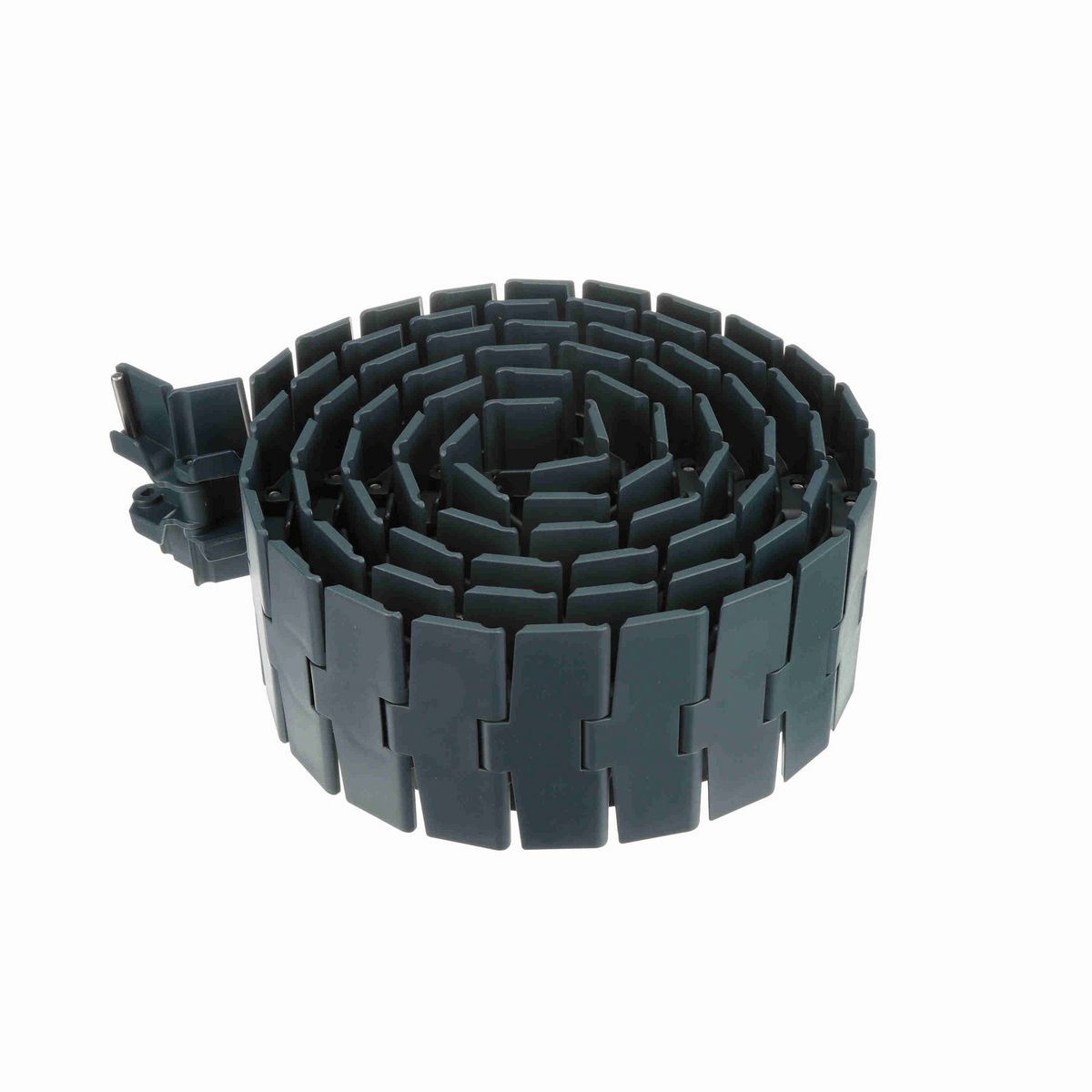

• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.

Technical Specifications

Series	TableTop 879 Series Side-flexing Chain
Product Group	Chain
Product Type	Side-Flexing
Product Line	Conveying Chains and Belts
Flight Thickness (in)	0.19 in
Flight Thickness (mm)	4.8 mm
Chain Material Description	NG evo (Gray Blue)
Surface Type	Solid Top
Chain Width Measurement System	Imperial
Chain Width (in)	4.5 in
Curve Retention Type	TAB
Chain Material	NGE
Straight or Side-Flex	Side-flexing
Chain Number	879TAB
Chain Pitch (in)	1.5 in
Chain Width (mm)	114.3 mm
Breaking Load (lb)	1,200 lb
Weight (lb/ft)	0.8 lb/ft
Rod/Pin Material	Austenitic steel
Breaking Load (N)	5,400 N
Chain Pitch (mm)	38.1 mm
Weight (kg/m)	1.1 kg/m

General Specifications

UPC	726166519322
Weight	0.60 LB
Packaged Length	10.40 IN
Packaged Width	11.50 IN
Packaged Height	5.20 IN
HTC	3923.29.0000
Country of Origin	Germany
