• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.
• Stainless steel base chain.

Technical Specifications

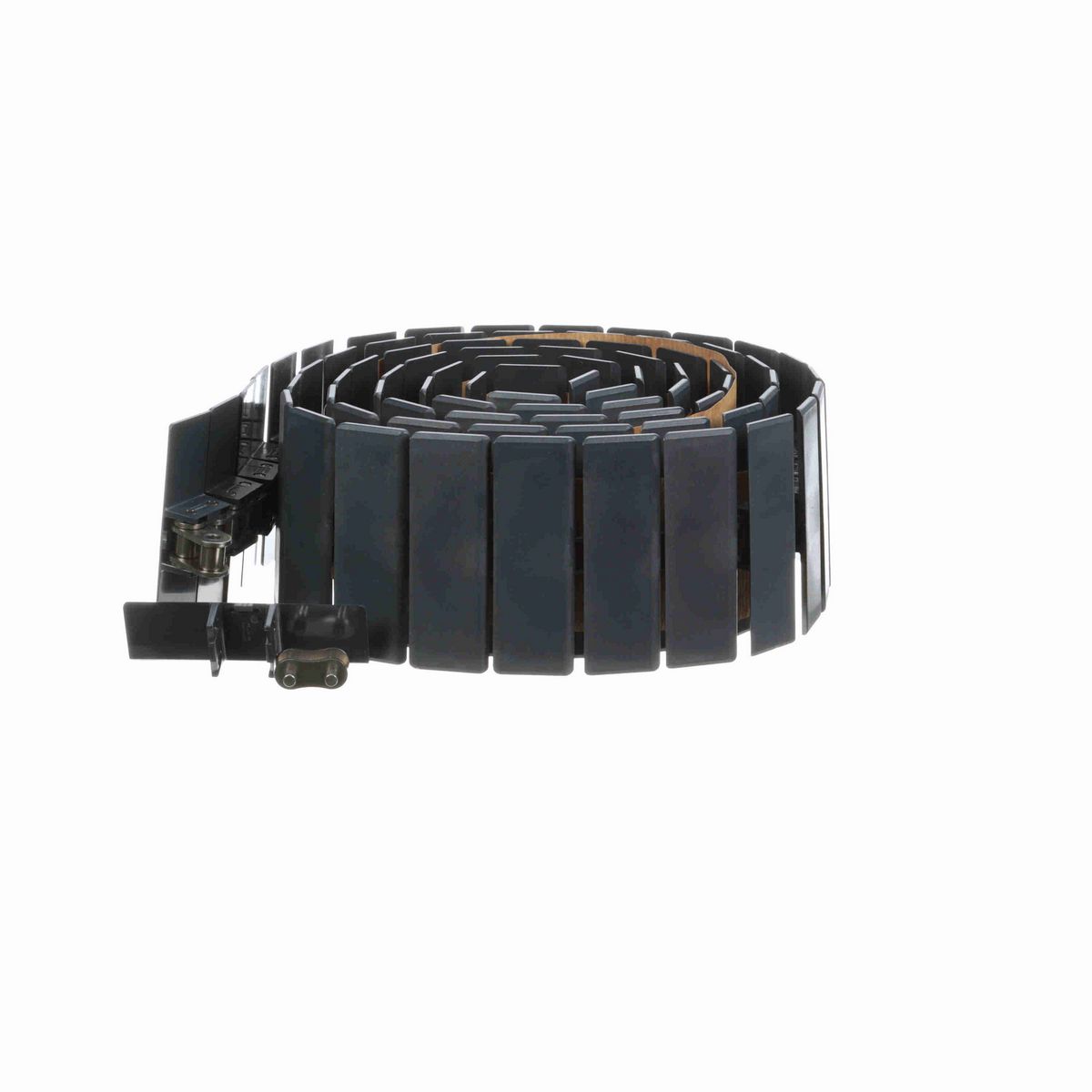

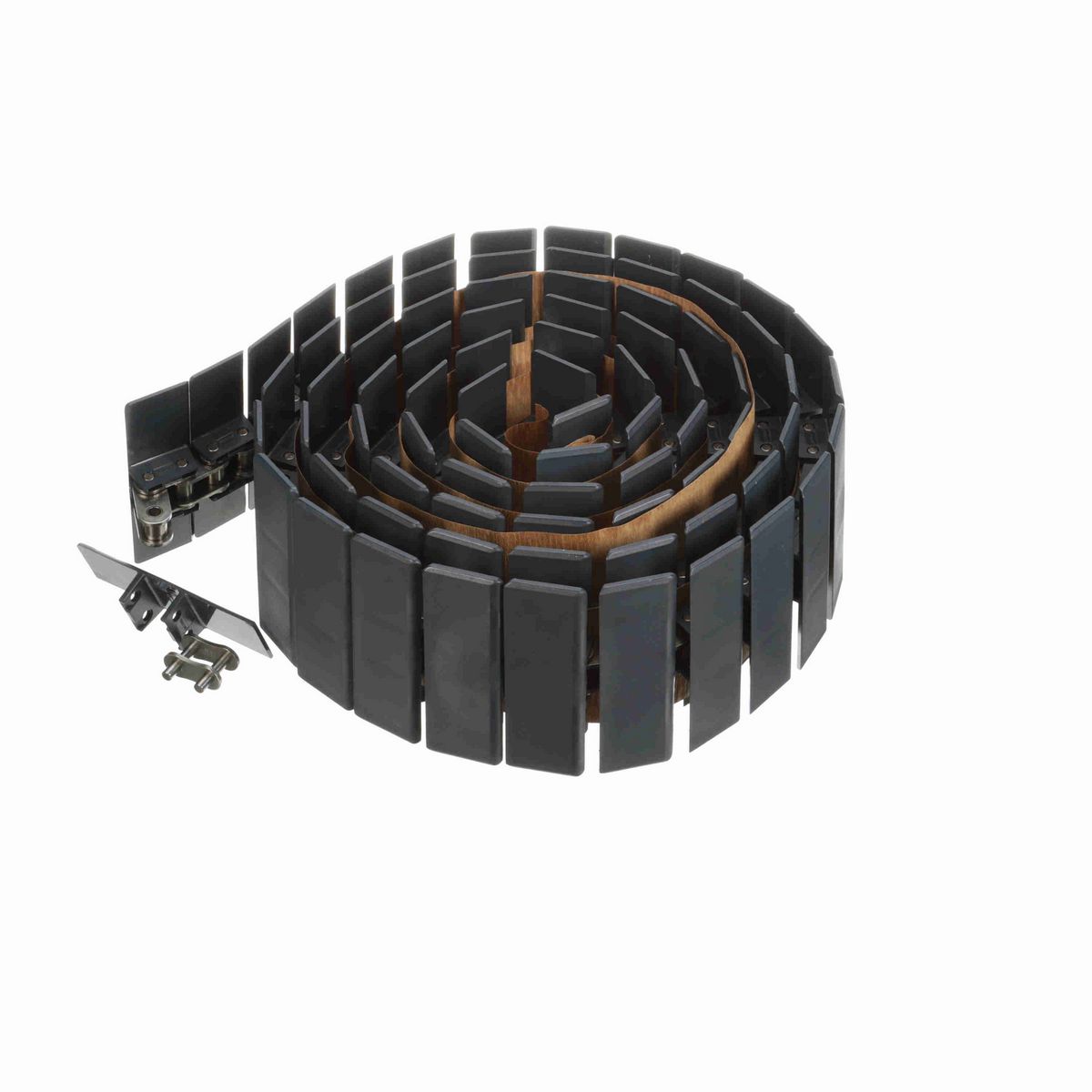

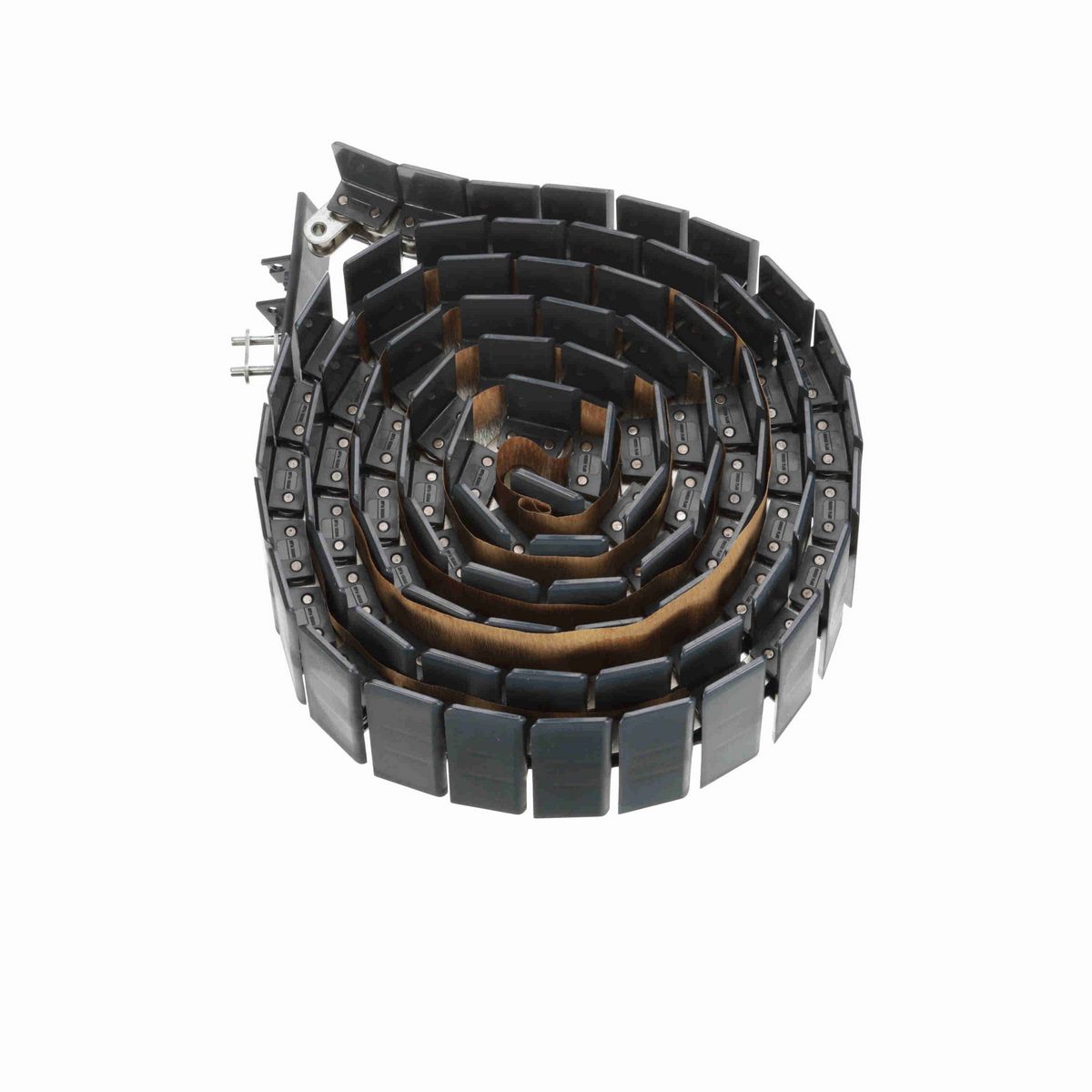

Series	TableTop 863 Series Chain
Flight Thickness (in)	0.16 in
Product Group	Chain
Product Line	Conveying Chains and Belts
Product Type	Straight Running
Flight Thickness (mm)	4.1 mm
Weight (lb/ft)	1.5 lb/ft
Breaking Load (N)	30,000 N
Weight (kg/m)	2.2 kg/m
Chain Width Measurement System	Imperial
Straight or Side-Flex	Straight Running
Chain Number	863
Base Chain Material	Austenitic
Chain Pitch (mm)	38.1 mm
Surface Type	Solid Top
Chain Pitch (in)	1.5 in
Chain Width (in)	4.5 in
Rod/Pin Material	Stainless Steel
Chain Material Description	NG evo (Gray Blue)
Chain Width (mm)	114.3 mm
Chain Material	NGE
Breaking Load (lb)	6,750 lb

General Specifications

UPC	726166559618
Weight	1.50 LB
HTC	7315.11.0060
Country of Origin	Germany
