• NG Evo (gray blue in color) conveyor components made from engineered plastic resin.
• Longest Life
• Lowest friction.
• Good chemical resistance.
• High abrasion resistance.
• Less dusting than acetal chains
• Meets the requirement for materials as stated by ECI035/2004 and FDA CFR21 norms for direct food contact.

Technical Specifications

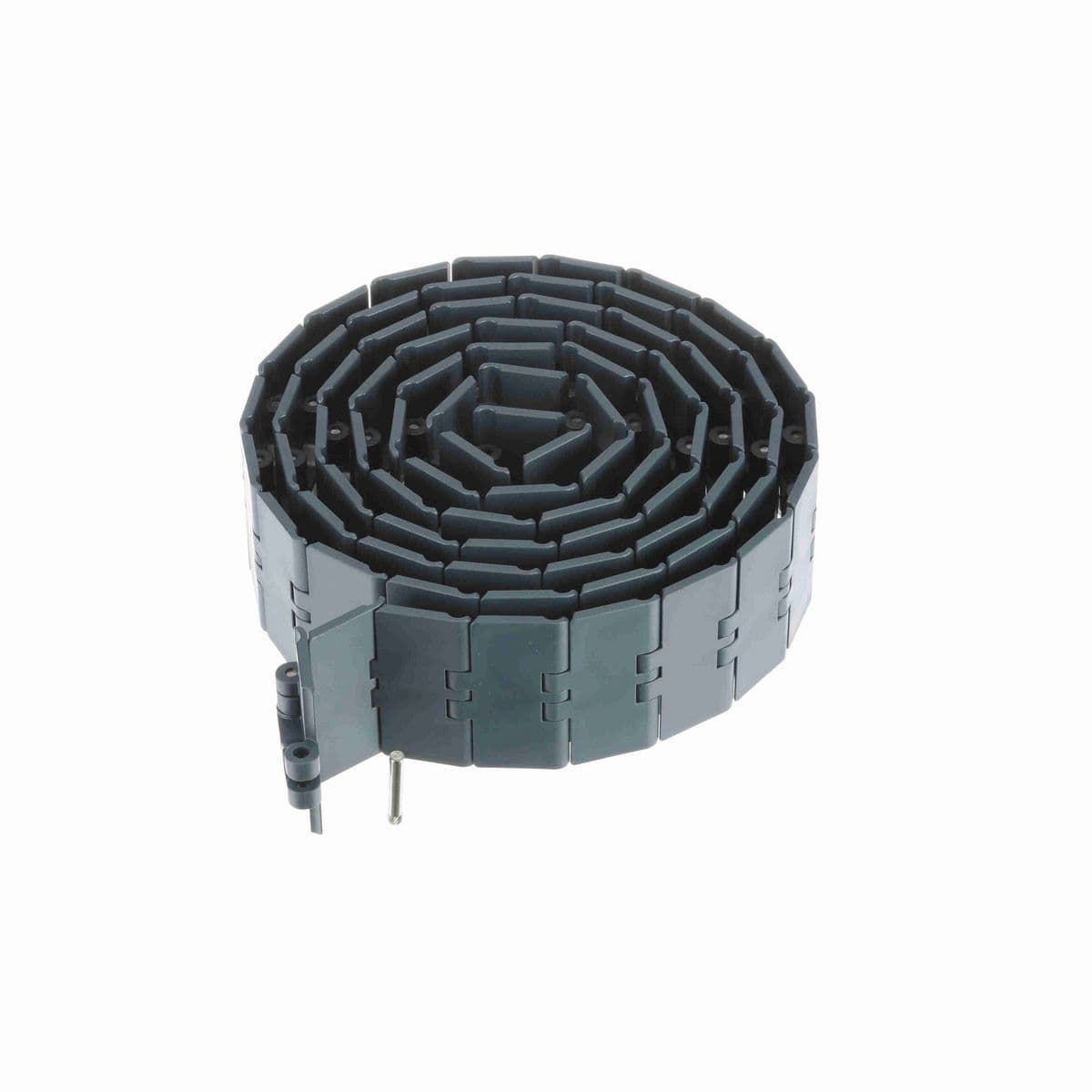

Series	TableTop 831 Series Chain
Product Type	Straight Running
Flight Thickness (in)	0.19 in
Product Group	Chain
Product Line	Conveying Chains and Belts
Flight Thickness (mm)	4.8 mm
Breaking Load (N)	4,500 N
Chain Number	831
Chain Material	NGE
Breaking Load (lb)	1,000 lb
Weight (kg/m)	1.3 kg/m
Chain Width Measurement System	Imperial
Chain Width (in)	4.5 in
Chain Width (mm)	114.3 mm
Chain Material Description	NG evo (Gray Blue)
Rod/Pin Material	Austenitic steel
Chain Pitch (mm)	38.1 mm
Straight or Side-Flex	Straight Running
Chain Pitch (in)	1.5 in
Surface Type	Solid Top
Weight (lb/ft)	0.8 lb/ft

General Specifications

UPC	726166518714
Weight	0.86 LB
Packaged Length	12.00 IN
Packaged Width	0.53 IN
